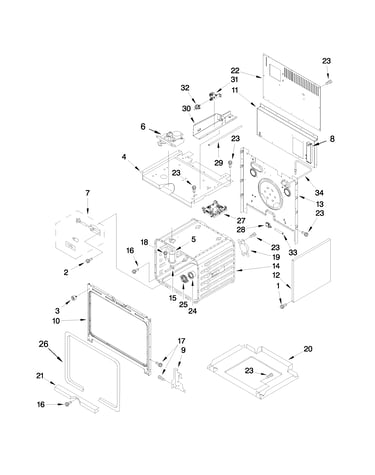

KitchenAid KDRU767VSS04 range Parts

To replace the oven temperature sensor on your KitchenAid KDRU767VSS04 range, we disconnect power, remove the sensor mounting screws inside the oven, unplug the sensor connector, then install the new sensor and route the wiring back through the opening. Use the steps in the KDRU767VSS04 installation guide for safe power shutoff and access.

What you’ll need

• Phillips screwdriver (or the correct driver for your sensor screws)
• Work gloves
• Flashlight
• A replacement sensor such as the wall oven temperature sensor WPW10131825 (model-compatible part)

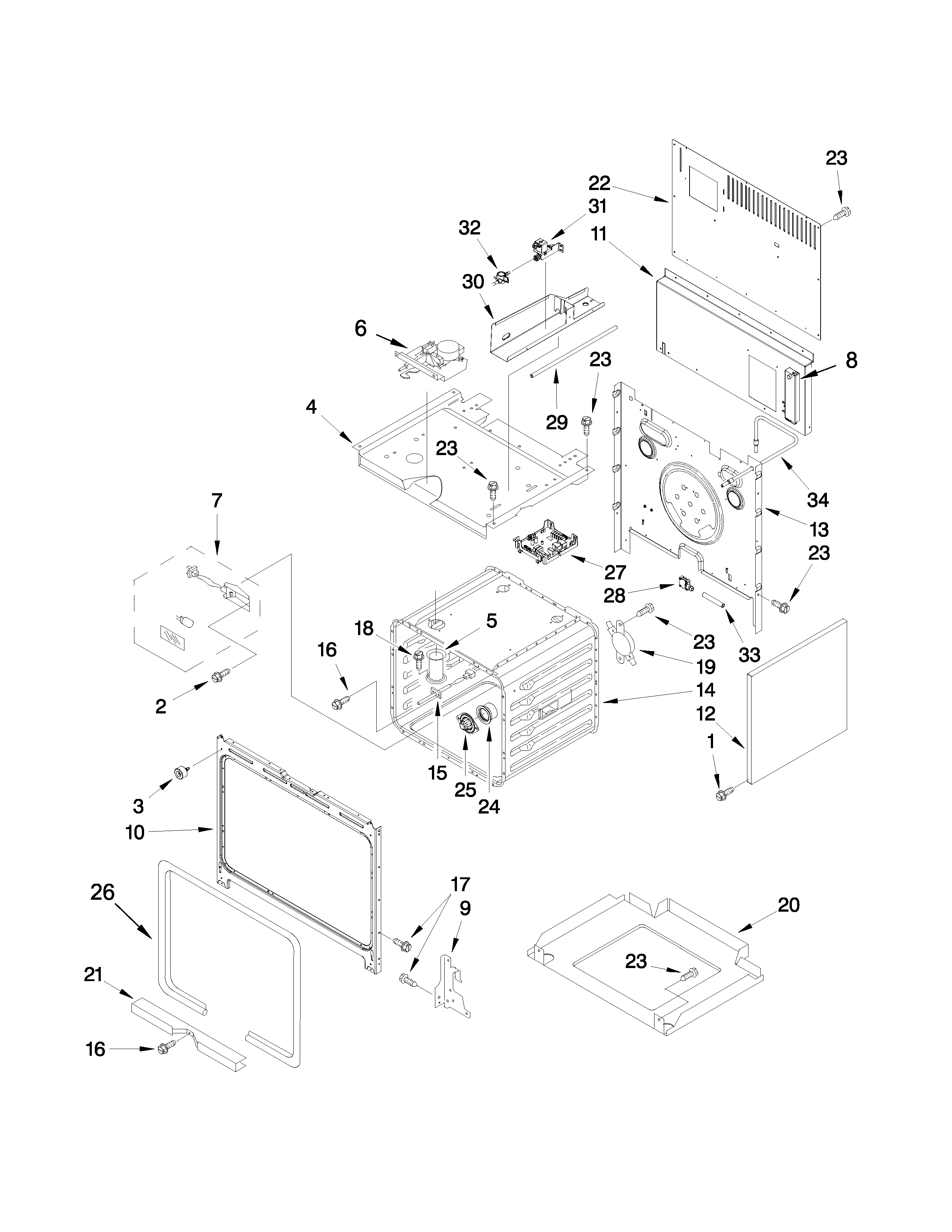

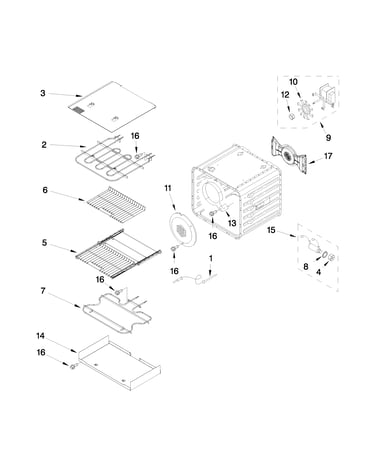

Step-by-step: replace the oven temperature sensor

1. Shut off power: Unplug the range or switch off the circuit breaker.

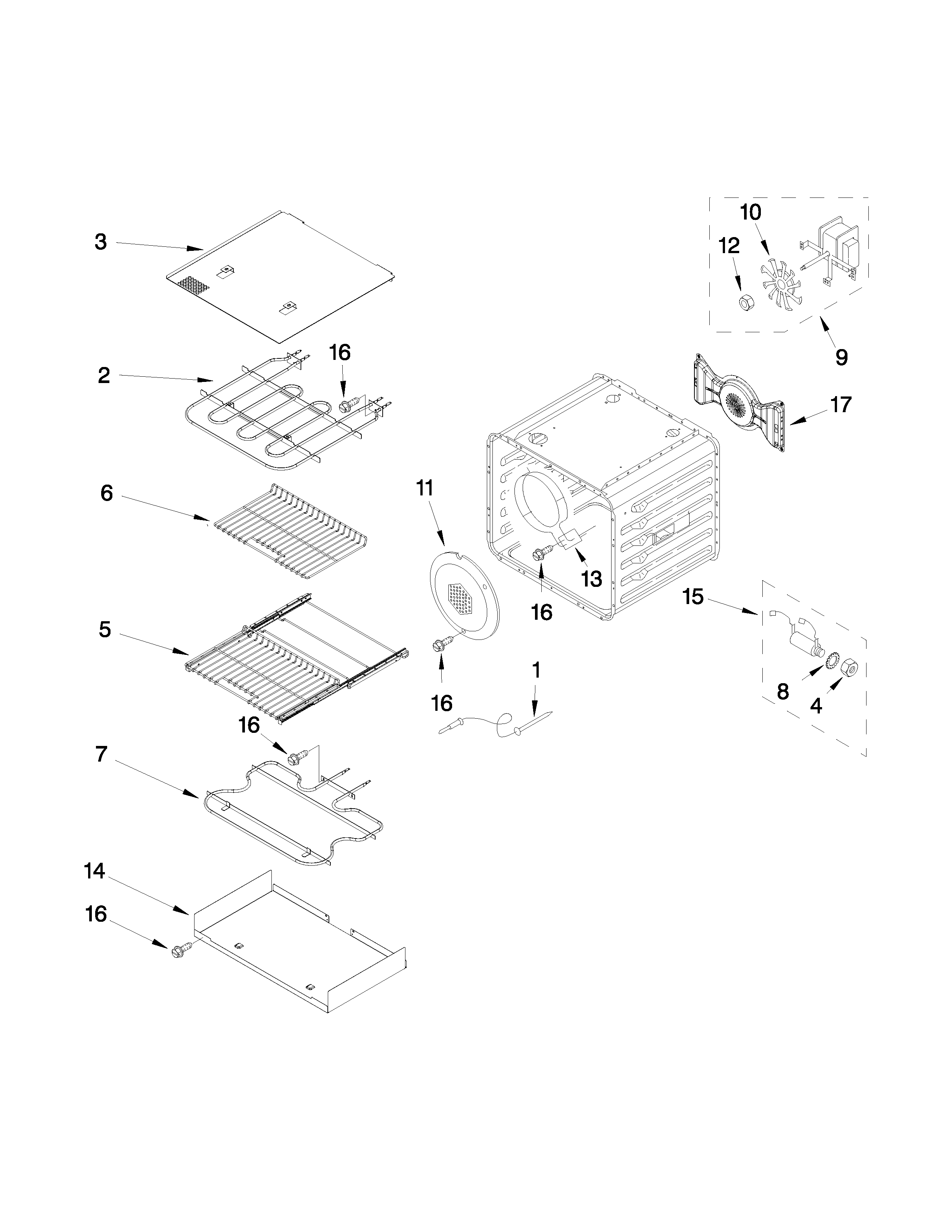

2. Access the sensor: Open the oven door; the sensor is typically mounted to the rear oven wall.
3. Remove the sensor screws: Support the sensor as you remove the mounting screws.
4. Pull the sensor forward gently: Feed the sensor lead out until you can reach the connector.
5. Disconnect the wire harness: Separate the connector (do not pull on the wires).
6. Install the new sensor: Connect the harness firmly, then guide excess wire back through the opening.
7. Re-mount the sensor: Reinstall screws snugly (do not overtighten).
8. Restore power and test: Run a Bake cycle for 10 to 15 minutes and confirm the oven heats normally.

Quick checks if the oven still heats incorrectly

• Verify the connector is fully seated and not loose.
• Make sure the sensor wiring is not pinched behind the rear panel.
• If you see an error code (often shown as an “F” and “E” code), turn the oven off and schedule service.
• Confirm the issue is not a control setting (Bake vs. Convect).

Why it matters

A failing temperature sensor can cause inaccurate baking temperatures, long preheat times, or error codes. Replacing the sensor restores proper temperature feedback to the oven control so the range can regulate heat correctly.

Symptom-to-part guide

Symptom	Common cause	What to check/replace
Oven temperature swings high/low	Sensor out of range	Wall oven temperature sensor WPW10131825
Oven won’t heat and shows error code	Sensor or wiring issue	Sensor connector, harness routing, sensor
Long preheat	Sensor reading off	Sensor first, then calibration settings

Last updated: February 2026

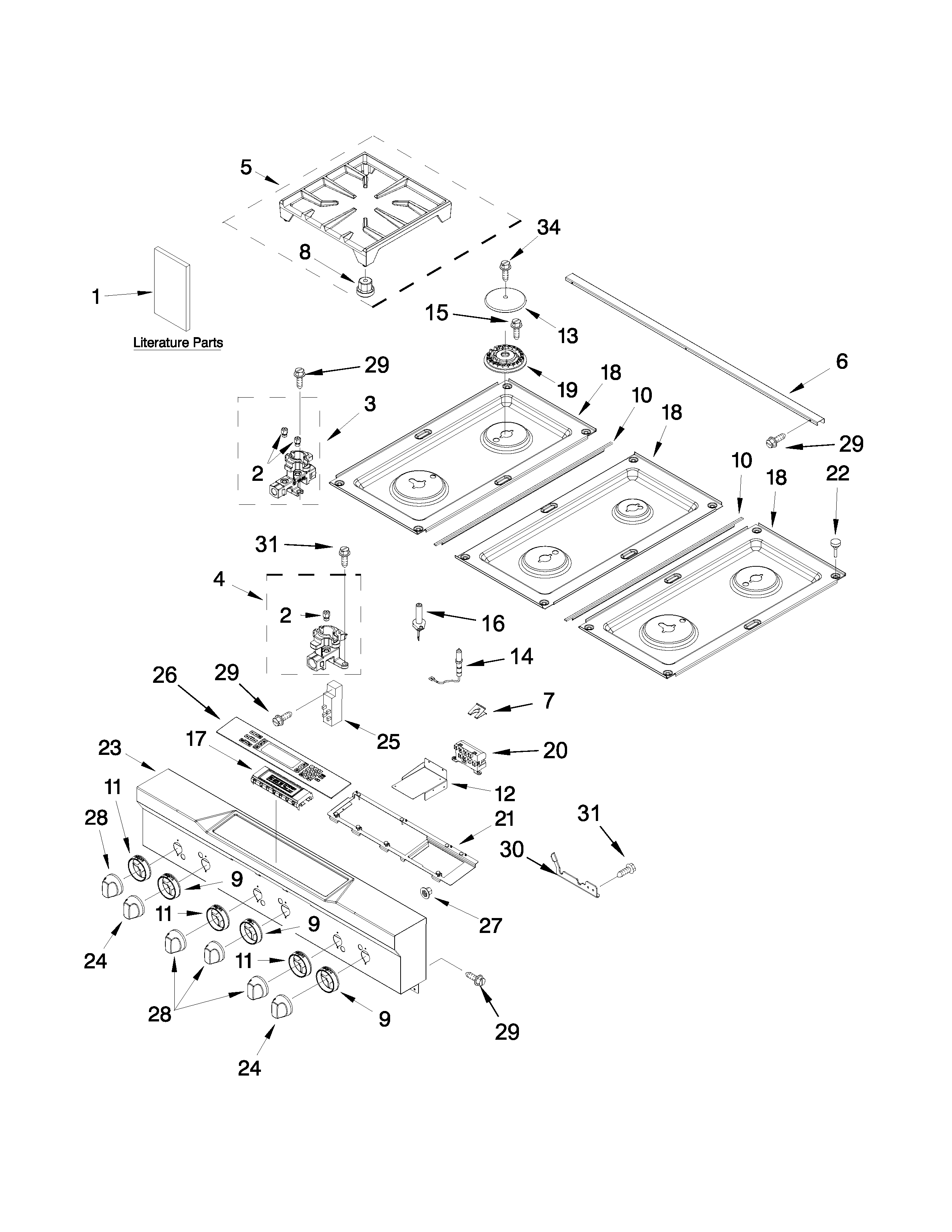

On the KitchenAid KDRU767VSS04 range, the most commonly replaced parts are the ones that take the most heat and wear: burner ignition parts, burner hardware, oven temperature sensing parts, door locking parts, and cooling or convection airflow parts. Use the installation guide to identify key burner components and safe reassembly points.

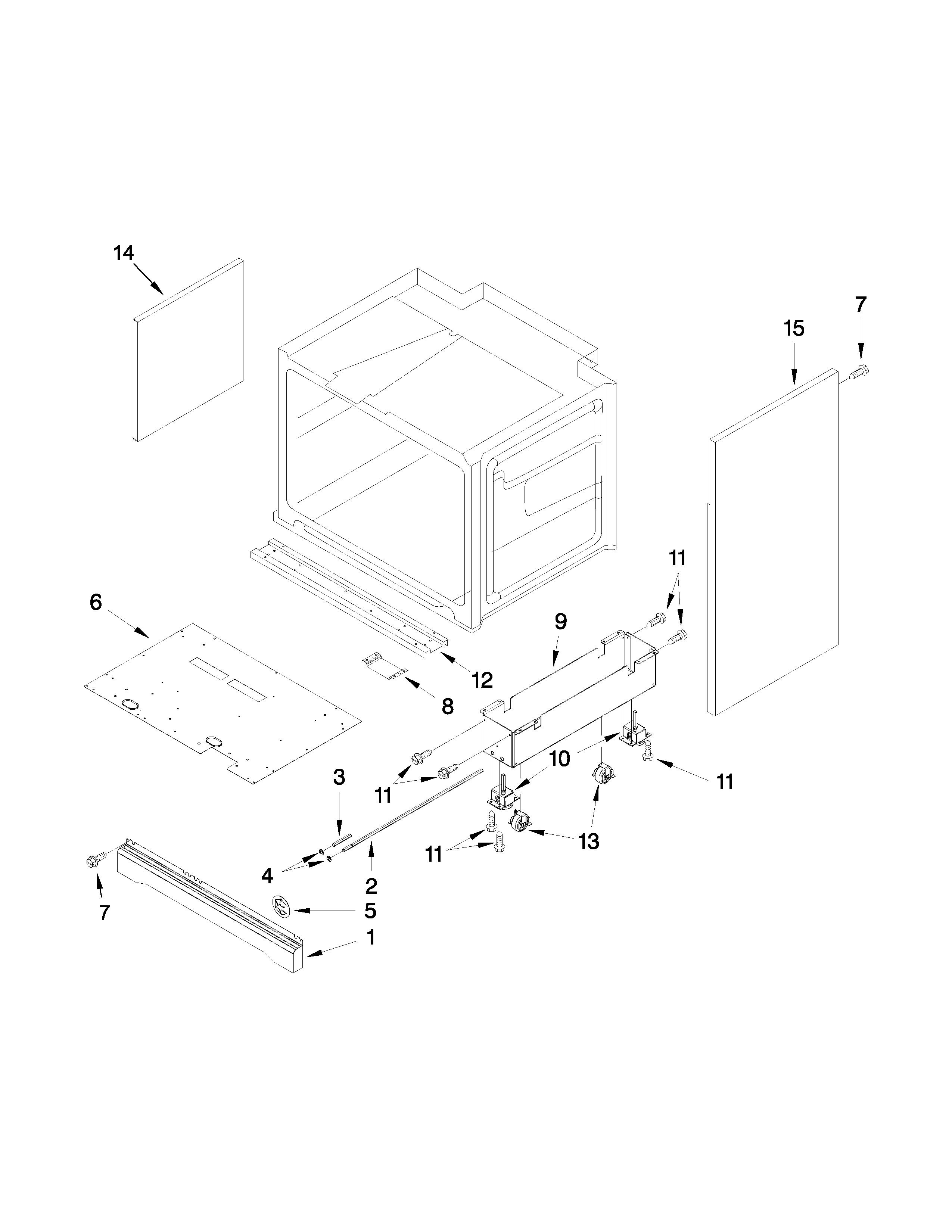

Common replacement parts on this model

These are frequent “wear and tear” items we see on pro-style ranges like the KDRU767VSS04:

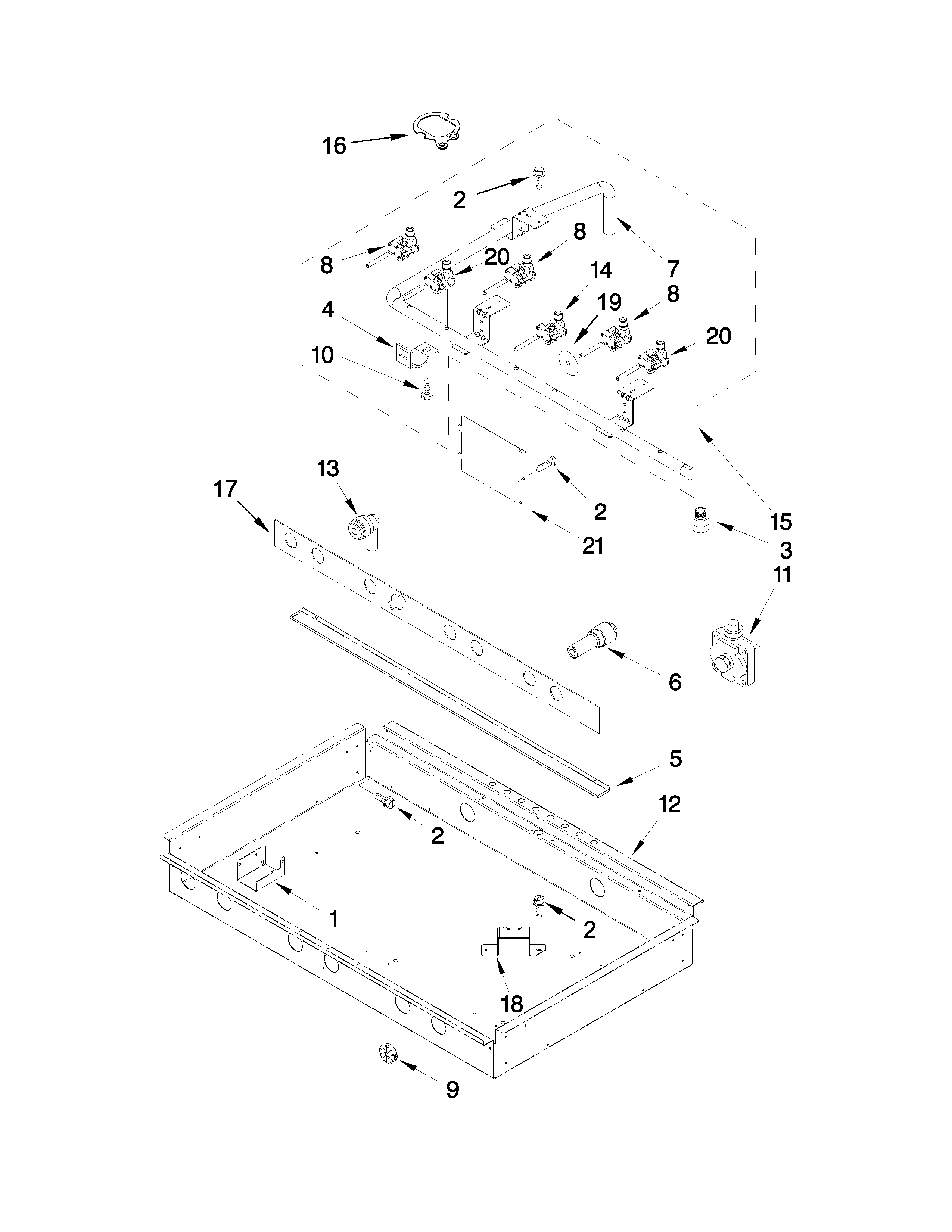

• Ignition components (spark module and surface igniters) for burners that click but will not light

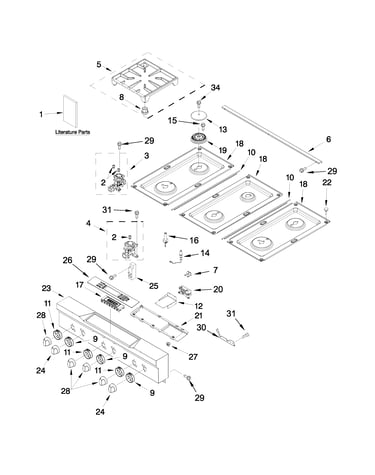

• Burner hardware (burner head, grates, grate pads) for uneven flames, wobbling cookware, or damaged enamel
• Oven temperature sensing parts for inaccurate baking temperatures

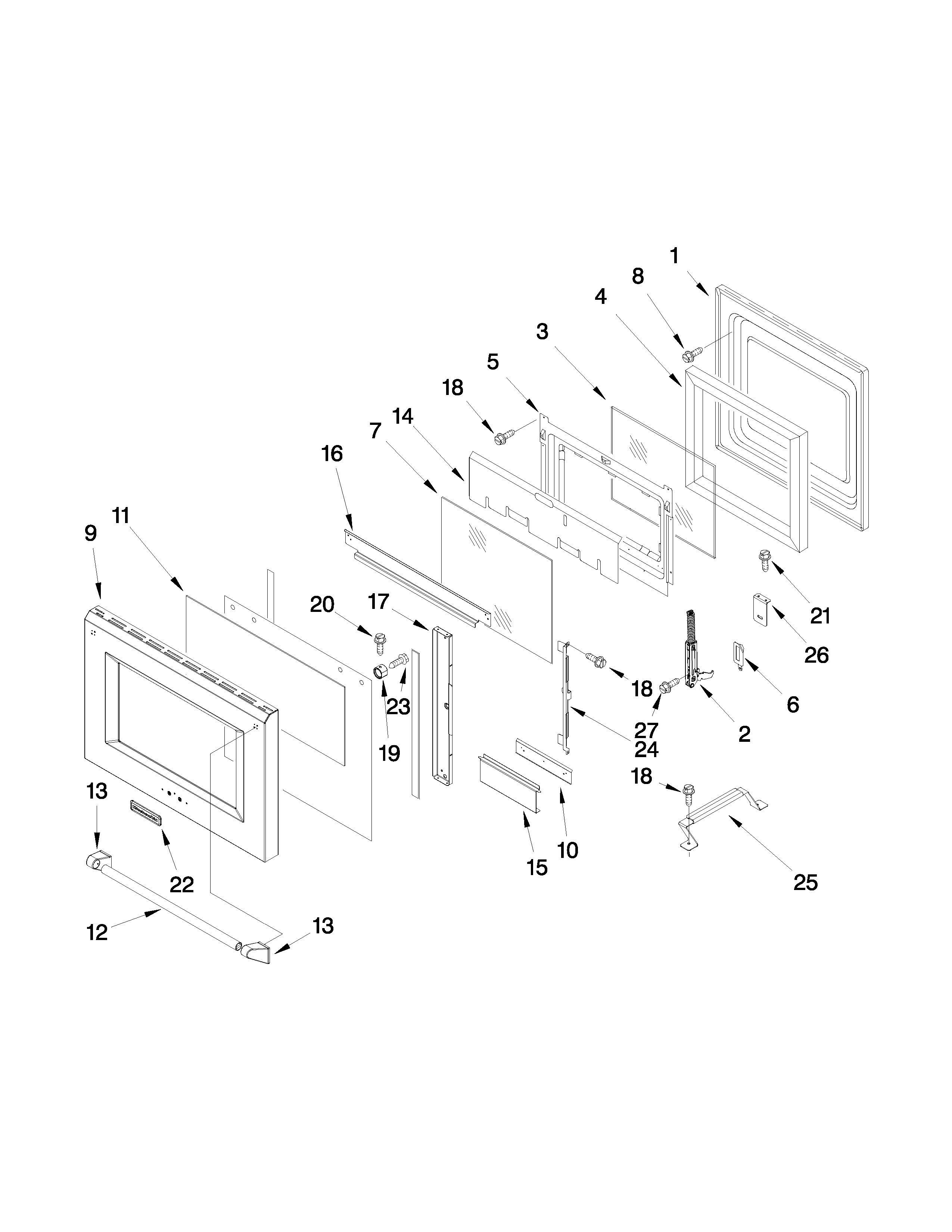

• Door lock and door bumpers for self-clean lock issues or door alignment problems
• Cooling and convection airflow parts for overheating controls or weak convection performance

Model-matched parts available for KDRU767VSS04

Symptom you notice	Part that commonly fixes it	Example part on this model
Burners keep clicking or will not spark	Spark/ignition control	Range spark module WPW10475147

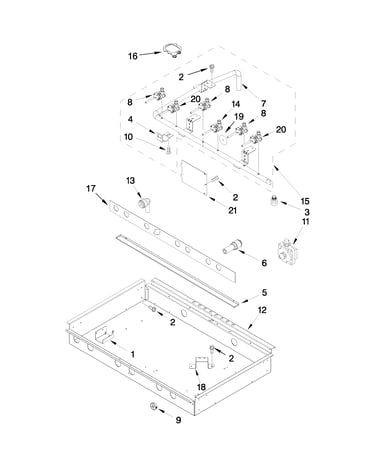

Burner will not ignite or ignites inconsistently	Igniter at the burner	Surface igniter W10854967
Oven temp seems off (overbakes or underbakes)	Oven temperature sensor	Wall oven temperature sensor WPW10131825
Oven door will not unlock after self-clean	Door latch/lock	Door latch W11029221

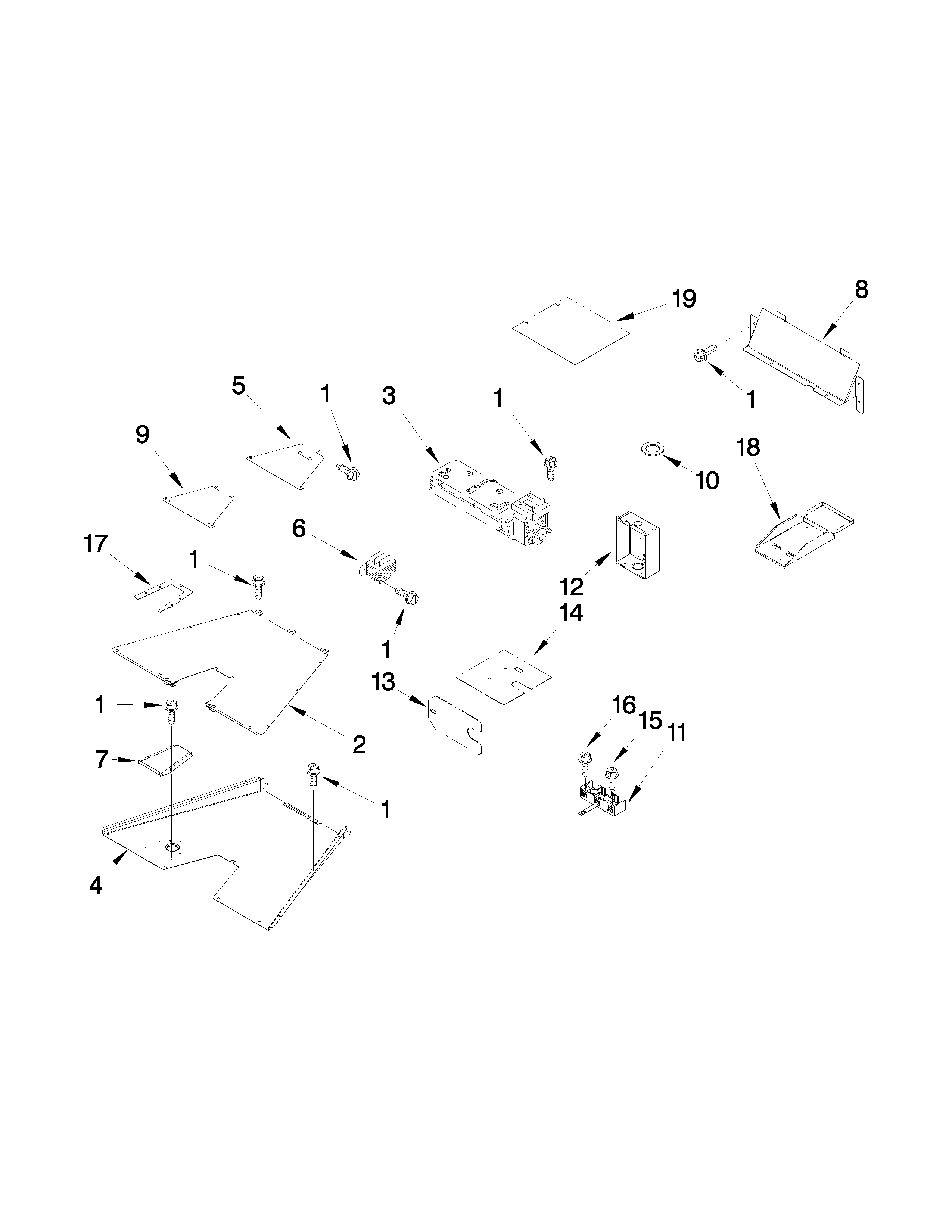

Control area gets too hot, fan noisy	Cooling fan	Range cooling fan WPW10245511

Quick checks before you order a part

These steps help confirm the failure and avoid replacing the wrong component:

• Reseat burner caps and bases so they sit flat and aligned
• Clean burner ports and dry everything fully after cleaning
• Verify the burner flame is steady from LO to HI (the install steps cover flame testing)
• For oven temperature issues, compare set temp vs. actual temp using an oven thermometer
• If a fan is loud, check for rubbing, grease buildup, or a loose mounting point

Why it matters

Replacing the right “high-wear” part restores safe ignition, stable flame, and accurate oven temperatures. It also prevents secondary problems like overheated controls, poor baking results, and repeated ignition clicking.

Last updated: February 2026

A KitchenAid oven in a range like model KDRU767VSS04 typically lasts 15 years with normal household use and basic care. Keeping the oven clean, ensuring proper installation, and fixing heating or ignition issues early helps you reach that lifespan.

Typical lifespan and what affects it

Most ovens fail early due to heat-related wear, heavy use, or neglected maintenance. These factors make the biggest difference:

• How often you bake or broil (daily use shortens life)
• Self-clean frequency (high heat stresses door latches, sensors, and wiring)
• Ventilation and cooling (blocked airflow can overheat controls)
• Burner and ignition performance (for gas cooktops and gas oven sections)
• Power quality (surges can damage electronic controls)

What “end of life” usually looks like

If your KDRU767VSS04 is approaching the 12 to 18 year mark, these are the most common symptoms that signal a major repair is coming:

• Oven temperature swings or undercooking
• Error codes or shutdowns during preheat
• Door won’t lock or unlock after self-clean
• Weak or inconsistent ignition on surface burners
• Cooling fan runs excessively or gets noisy

Quick symptom-to-part mapping (common on ranges)

Symptom	Common system involved	Example part on this model page
Oven not holding temp	Temperature sensing	Wall oven temperature sensor WPW10131825
Door won’t lock/unlock	Door lock mechanism	Door latch W11029221
Clicking or no spark at burners	Ignition system	Range spark module WPW10475147

Why it matters

Knowing the typical 15-year life expectancy helps you decide whether to repair or replace. If the range is relatively young, replacing a failed sensor, latch, or ignition component is often the fastest path back to reliable baking and broiling.

For model-specific operating and care tips (including cleaning guidance and troubleshooting), use the owner's manual.

Last updated: February 2026
