Model # PF920032 Official Proform proform 920 treadmill

Here are the diagrams and repair parts for Official Proform PF920032 proform 920 treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Silicone 6.2 100916

#NI

All parts diagram

Silicone 6.2

Part #100916

Replaced by #219170

?
Manufacturer substitution
This part replaces 100916. Substitute parts can look different from the original.
BEST SELLER
$23.69
17% OFF Phone Price : $28.69
In Stock
Treadmill Power Cord (replaces 031033, 031143, 031147, 247991) 031229
#24

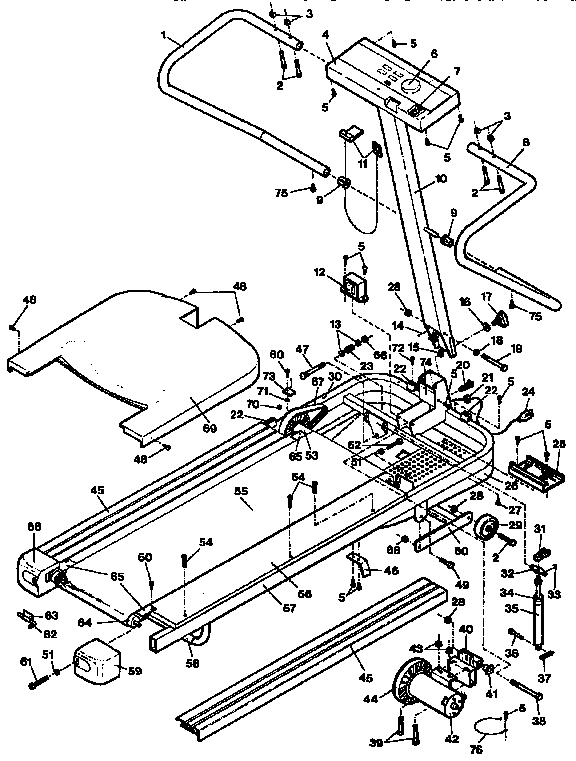

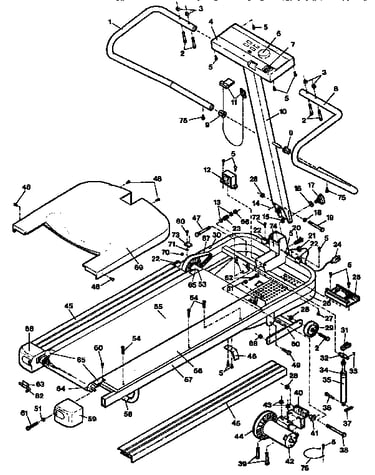

Unit parts diagram

Treadmill power cord (replaces 031033, 031143, 031147, 247991)

Part #031229

$11.39
15% OFF Phone Price : $13.39
Back Order
Exercise Equipment Screw 105444
#61

Unit parts diagram

Exercise equipment screw

Part #105444

This item is not returnable
In Stock
Walking Belt Assembly 126255
#55

Unit parts diagram

Walking belt assembly

Part #126255

Replaced by #124882

?
Manufacturer substitution
This part replaces 126255. Substitute parts can look different from the original.
$54.79
8% OFF Phone Price : $59.79
In Stock
Treadmill Walking Belt Alignment Tool Holder 016028
#63

Unit parts diagram

Treadmill walking belt alignment tool holder

Part #016028

This item is not returnable
In Stock
Exercise Equipment Screw 100691
#54

Unit parts diagram

Exercise equipment screw

Part #100691

The manufacturer no longer makes this part, and there's no substitute part

Exercise Equipment Screw 112609
#52

Unit parts diagram

Exercise equipment screw

Part #112609

This item is not returnable
In Stock
Exercise Equipment Bolt 013303
#49

Unit parts diagram

Exercise equipment bolt

Part #013303

This item is not returnable
In Stock
Exercise Equipment Flat Washer 014041
#13

Unit parts diagram

Exercise equipment flat washer

Part #014041

This item is not returnable
In Stock
Bolt, 3/8 X 4-in 101263
#38

Unit parts diagram

Bolt, 3/8 x 4-in

Part #101263

This item is not returnable
In Stock
