Craftsman 10217313 two-stage two-cylinder tank-type air compressor Parts
Here are the diagrams and repair parts for Craftsman 10217313 two-stage two-cylinder tank-type air compressor, as well as links to manuals and error code tables, if available.
By Schematic

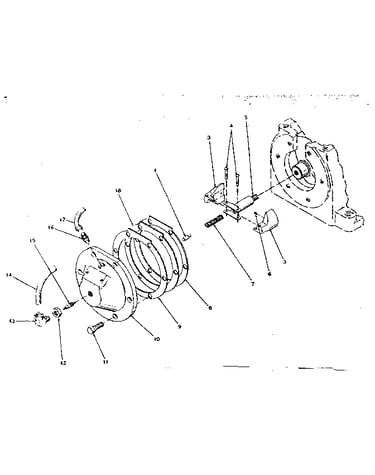

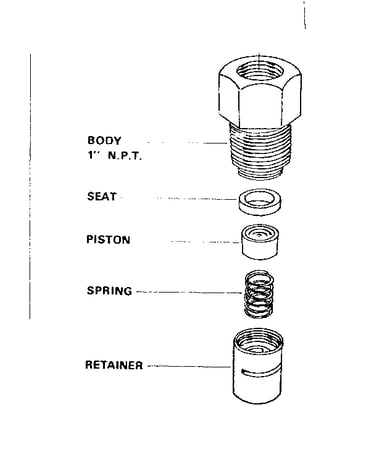

SELECT DIAGRAM
Browse Parts for 10217313 Power Tools

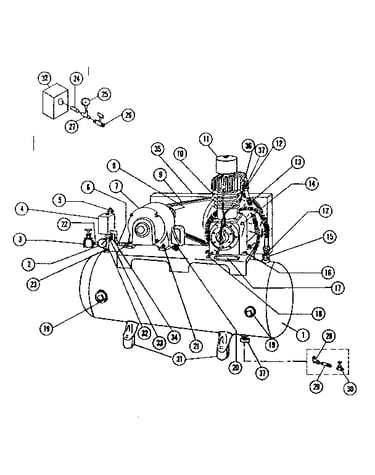

Replacement parts diagram
Close Nipple
Part #98499
The manufacturer no longer makes this part, and there's no substitute part

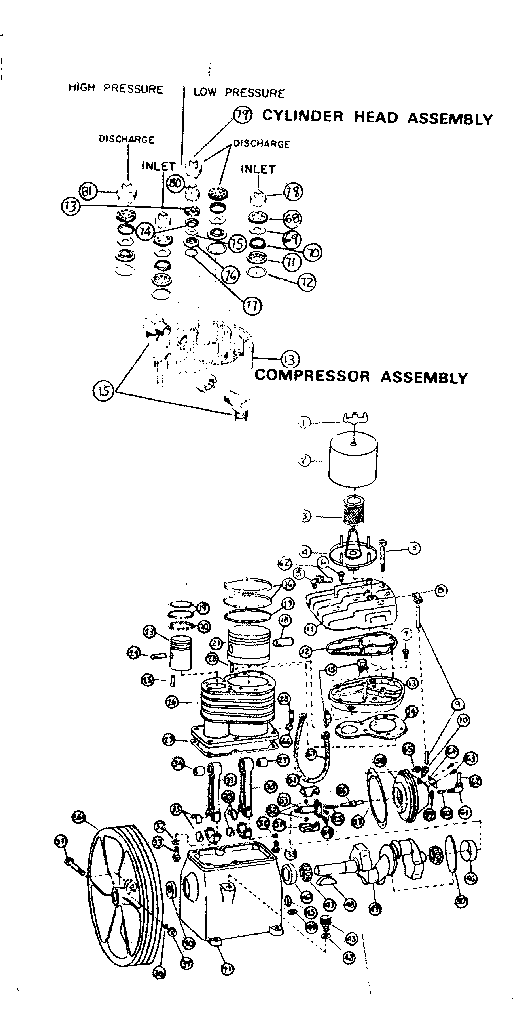

Compressor and cylinder head assembly diagram
Esc Pin
Part #9237
The manufacturer no longer makes this part, and there's no substitute part

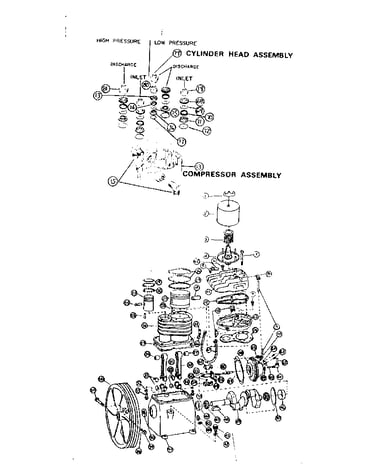

Compressor and cylinder head assembly diagram
Tool
Part #16869
The manufacturer no longer makes this part, and there's no substitute part
Compressor and cylinder head assembly diagram
Tool
Part #16870
The manufacturer no longer makes this part, and there's no substitute part
Compressor and cylinder head assembly diagram
Roll Pin
Part #38255
The manufacturer no longer makes this part, and there's no substitute part
Compressor and cylinder head assembly diagram
Connector
Part #13620
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Motor Pulley
Part #47171
The manufacturer no longer makes this part, and there's no substitute part
Compressor and cylinder head assembly diagram
Piston
Part #45352
The manufacturer no longer makes this part, and there's no substitute part
Compressor and cylinder head assembly diagram
Pulley
Part #31009
The manufacturer no longer makes this part, and there's no substitute part
Compressor and cylinder head assembly diagram
Piston
Part #45351
The manufacturer no longer makes this part, and there's no substitute part
