Soleus Air PE2-10R-32 room air conditioner

Soleus Air PE2-10R-32 room air conditioner Parts

Here are the diagrams and repair parts for Soleus Air PE2-10R-32 room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for PE2-10R-32 Room Air Conditioners

  • Soleus Air Swing Motor for Soleus Air PE2-10R-32 - Part P-PE210R-74

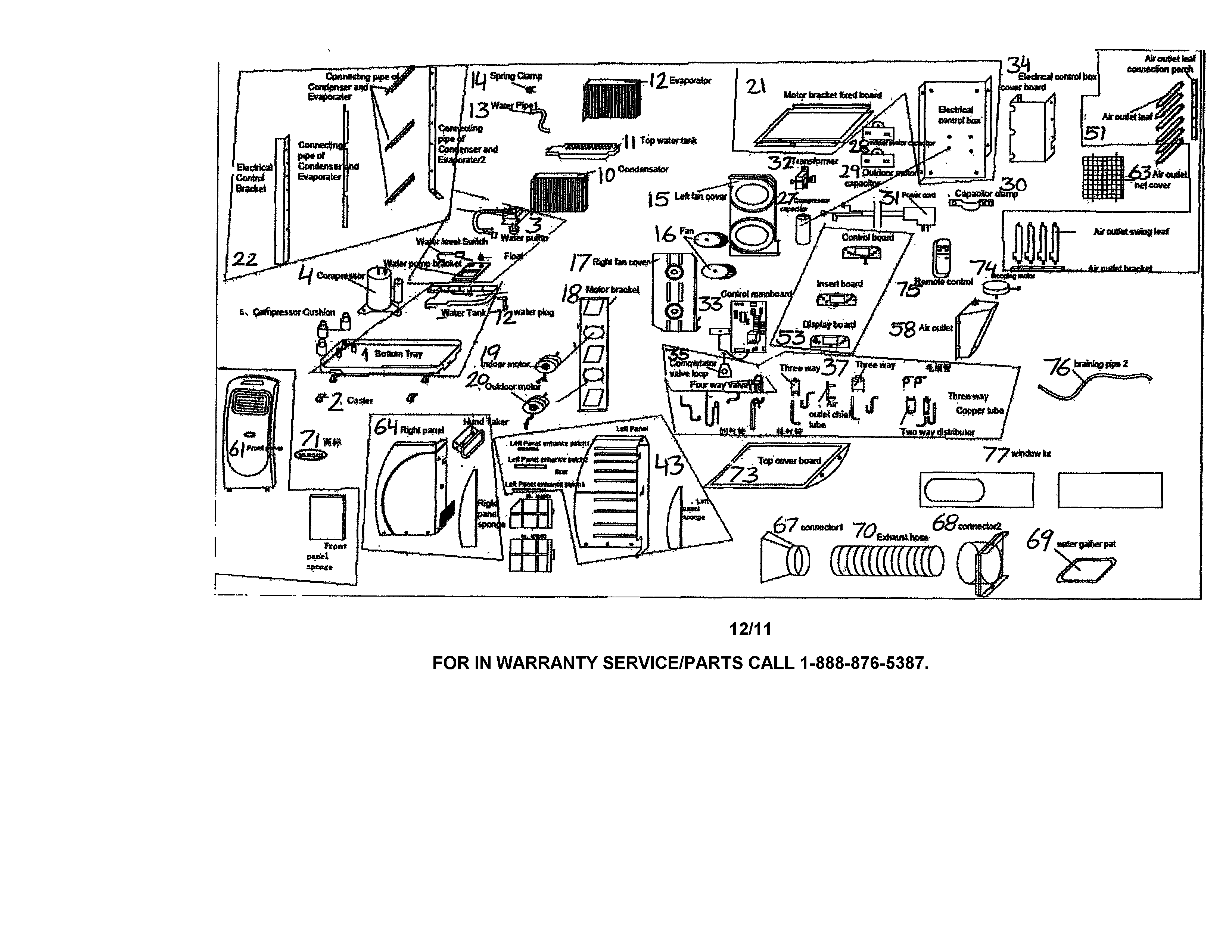

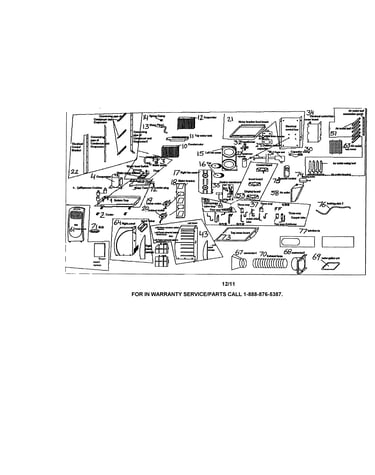

    Cabinet parts diagram

    Soleus Air Swing Motor

    Part #P-PE210R-74

    The manufacturer no longer makes this part, and there's no substitute part

  • Soleus Air Cover for Soleus Air PE2-10R-32 - Part P-PE210R-73

    Cabinet parts diagram

    Soleus Air Cover

    Part #P-PE210R-73

    The manufacturer no longer makes this part, and there's no substitute part

  • Soleus Air Cap for Soleus Air PE2-10R-32 - Part P-PE210R-27

    Cabinet parts diagram

    Soleus Air Cap

    Part #P-PE210R-27

    The manufacturer no longer makes this part, and there's no substitute part

  • Soleus Air Motor Bracket for Soleus Air PE2-10R-32 - Part P-PE210R-18

    Cabinet parts diagram

    Soleus Air Motor Bracket

    Part #P-PE210R-18

    The manufacturer no longer makes this part, and there's no substitute part

  • Soleus Air Room Air Conditioner Condenser Fan Blower Wheel for Soleus Air PE2-10R-32 - Part P-PE210R-16-2

    Cabinet parts diagram

    Soleus Air Room Air Conditioner Condenser Fan Blower Wheel

    Part #P-PE210R-16-2

    The manufacturer no longer makes this part, and there's no substitute part

  • Soleus Air Water Tray for Soleus Air PE2-10R-32 - Part P-PE210R-69

    Cabinet parts diagram

    Soleus Air Water Tray

    Part #P-PE210R-69

    The manufacturer no longer makes this part, and there's no substitute part

  • Soleus Air Room Air Conditioner Condenser Fan Motor for Soleus Air PE2-10R-32 - Part P-PE210R-20

    Cabinet parts diagram

    Soleus Air Room Air Conditioner Condenser Fan Motor

    Part #P-PE210R-20

    The manufacturer no longer makes this part, and there's no substitute part

  • Soleus Air Display Pcb for Soleus Air PE2-10R-32 - Part P-PE210R-53

    Cabinet parts diagram

    Soleus Air Display Pcb

    Part #P-PE210R-53

    The manufacturer no longer makes this part, and there's no substitute part

  • Soleus Air Top Water for Soleus Air PE2-10R-32 - Part P-PE210R-11

    Cabinet parts diagram

    Soleus Air Top Water

    Part #P-PE210R-11

    The manufacturer no longer makes this part, and there's no substitute part

  • Soleus Air Transformer for Soleus Air PE2-10R-32 - Part P-PE210R-32

    Cabinet parts diagram

    Soleus Air Transformer

    Part #P-PE210R-32

    The manufacturer no longer makes this part, and there's no substitute part

Soleus Air Room Air Conditioner PE2-10R-32 FAQs

A 10,000 BTU portable air conditioner like the Soleus PE2-10R-32 typically cools about 300 to 450 sq ft in average conditions. Real-world coverage depends most on sun exposure, insulation, ceiling height, and how well the exhaust hose is vented and sealed (see the PE2-10R-32 owner's manual).

Quick sizing guide (what we use in the field)

Use these ranges as a practical starting point for a 10,000 BTU room air conditioner:

  • 300 to 350 sq ft: hot rooms, lots of sun, poor insulation, high ceilings
  • 350 to 450 sq ft: average bedrooms, offices, and living spaces
  • Below 300 sq ft: if you want faster pull-down, lower noise, or you run it continuously
What changes the square footage the most

These factors can easily shift performance by 20% or more:

  • Direct sunlight through windows (south or west exposure)
  • Ceiling height above 8 ft (more air volume to cool)
  • Insulation and air leaks (doors, old windows, attic heat)
  • Heat sources (kitchen appliances, computers, many occupants)
  • Exhaust setup quality (short hose, tight window seal, minimal kinks)
Setup tips that improve cooling on this model

The PE2-10R-32 requires the exhaust hose to be vented outdoors in cooling mode; improving the venting setup improves capacity in the room.

  • Keep the exhaust duct as short as possible
  • Insulate the exhaust hose if it runs through a warm area
  • Seal gaps around the window kit to prevent hot air from re-entering
  • Reduce direct sunlight with blinds or curtains
  • On very hot days, set temperature to the lowest setting and fan speed to high
At-a-glance: room conditions vs. expected coverage
Room conditions Expected coverage for 10,000 BTU What to do
Shaded, well-insulated, 8 ft ceilings 400 to 450 sq ft Standard setup is usually enough
Average room, some sun 350 to 400 sq ft Improve window sealing and airflow
Hot, sunny, leaky, or high ceilings 300 to 350 sq ft Tighten venting, reduce sun, consider sizing up
Why it matters

If the room is oversized for the BTU rating, the unit runs longer, struggles to reach set temperature, and can feel less comfortable. Correct sizing and a tight exhaust seal help the PE2-10R-32 deliver the cooling performance it was designed for.

Last updated: February 2026

If you want the most reliable portable AC, we recommend choosing a properly sized unit from a brand with a strong service track record, then installing and maintaining it exactly as directed. For your Soleus PE2-10R-32, reliability depends heavily on correct venting, level placement, and routine cleaning per the PE2-10R-32 owner's manual.

What “reliable” means for portable air conditioners

Portable AC reliability usually comes down to fewer shutdowns, fewer water leaks, and steady cooling over time.

  • Correct BTU sizing for the room and heat load
  • A tight window seal and short, straight exhaust hose routing
  • Consistent airflow (clean filters, unobstructed intake and exhaust)
  • Proper drainage habits (especially in humid climates)
  • Stable power supply (no loose outlets, no undersized extension cords)
Model-specific notes for Soleus PE2-10R-32

From the manual, this model is a 10,000 BTU single-hose portable air conditioner with dehumidifier and fan functions. The window slider kit range is 22 to 62 inches (horizontal or vertical), and the unit should be kept on a level surface for best operation.

Item PE2-10R-32 detail Why it affects reliability
Cooling capacity 10,000 BTU/hr Undersizing causes long run times and stress
Dehumidifying 55 pts/day More moisture removed means more drainage attention
Window kit fit 22" to 62" Poor fit increases hot air infiltration
Placement Level surface Helps prevent water handling issues
How to pick a reliable portable AC (quick checklist)

Use these criteria when comparing portable AC units across brands and models:

  • Choose capacity that matches your room size and sun exposure
  • Prefer designs that vent efficiently (short hose path, solid adapters)
  • Look for clear “bucket full” or drain guidance and easy access to the drain point
  • Confirm noise expectations for your space (bedroom vs. garage)
  • Buy a unit you will actually maintain (filter access and cleaning are simple)
Why it matters

Most “unreliable” portable AC complaints trace back to installation and maintenance issues, not just the brand. A tight window kit seal, correct hose setup, and regular cleaning prevent overheating, poor cooling, and nuisance shutoffs.

Last updated: February 2026

Yes. Running a portable air conditioner can raise your electric bill because it adds a steady electrical load while it cools and dehumidifies. For the Soleus PE2-10R-32 specifically, the manual lists power consumption in cooling at 1050 watts, so longer run time and higher fan speed mean higher cost (see the PE2-10R-32 owner's manual).

What the PE2-10R-32 power rating means in real use

Your cost depends on how many hours per day it runs and your electricity rate.

  • 1050 W = 1.05 kW while cooling at the highest fan speed (per the manual)
  • If it runs 8 hours/day, that is about 8.4 kWh/day
  • If it runs 12 hours/day, that is about 12.6 kWh/day
  • Hotter days, poor venting, and air leaks increase run time
  • Using “fan only” typically costs less than cooling because the compressor is off
Daily run time Approx. energy use (kWh/day) What changes it most
4 hours 4.2 Room heat load, venting quality
8 hours 8.4 Thermostat setting, insulation
12 hours 12.6 Outdoor temp, sun exposure
How to keep the bill as low as possible

These steps reduce run time, which is what usually drives cost.

  • Keep at least 10 inches of clearance around the unit; blocked grilles reduce airflow and efficiency
  • Seal the window kit tightly so hot outdoor air does not leak back in
  • Keep the exhaust hose as short and straight as possible
  • Close doors to isolate the room you are cooling
  • Clean the unit exterior and keep the air path unobstructed
  • Avoid extension cords; plug into a properly grounded outlet as directed in the manual
Why it matters

Portable ACs remove heat and moisture; that comfort comes from compressor run time. When venting is leaky or the room load is high, the unit runs longer, and the electric bill climbs faster.

Last updated: February 2026

Most common symptoms to help you fix your room air conditioners

Main causes: clogged condensate drain, air conditioner not leveled properly, leaky window air seals …

Main causes: bad compressor, lack of refrigerant, bad compressor start relay, electronic control board failure…

Main causes: lack of electrical power, bad electronic control board, wiring failure, bad temperature sensor…

Thermostat problems, bad compressor/condenser fan capacitor, lack of refrigerant, failed compressor…

Dirty air filter, clogged condenser coils, low refrigerant charge, faulty compressor…

Main causes: turning the air conditioner off and the back on too quickly, dirty or restricted condenser coil, compressor…

Main causes: errant thermostat settings, lack of electrical power, clogged drain line, wiring failure, control failure.…

Main causes: dirty air filter, air conditioner is too small for the room, temperature set too cold, control failure…

Main causes: clogged drain hole, air conditioner not leveled properly…
