Kelvinator AW501A0W washer - k1780-35 Parts
Here are the diagrams and repair parts for Kelvinator AW501A0W washer - k1780-35, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

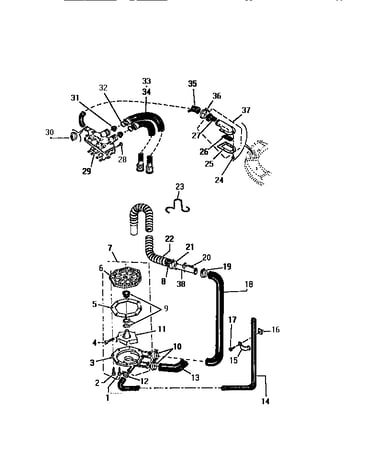

SELECT DIAGRAM
Browse Parts for AW501A0W Washer - K1780-35

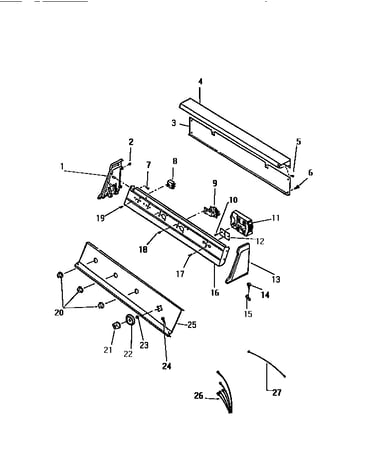

Console & controls diagram
Screw
Part #F073325-000Replaced by #131168200
Manufacturer substitutionThis part replaces F073325-000. Substitute parts can look different from the original.In Stock$14.0812% OFF Phone Price : $16.08
Qty
#NI
All parts diagram
Adhesive
Part #064709-100Replaced by #5308027429

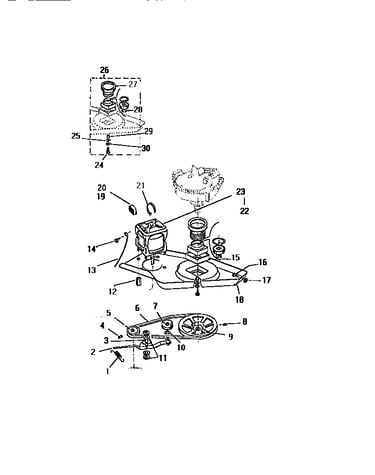

Manufacturer substitutionThis part replaces 064709-100. Substitute parts can look different from the original.In Stock$53.0310% OFF Phone Price : $59.03QtyMotor diagram
Spring Washer
Part #F140083-000Replaced by #5303161306
Manufacturer substitutionThis part replaces F140083-000. Substitute parts can look different from the original.In Stock$38.71Qty#NI
All parts diagram
Spray Paing
Part #F94566-50Replaced by #350956
Manufacturer substitutionThis part replaces F94566-50. Substitute parts can look different from the original.This item is not returnableIn Stock$31.0216% OFF Phone Price : $37.02QtyMotor diagram
Housing

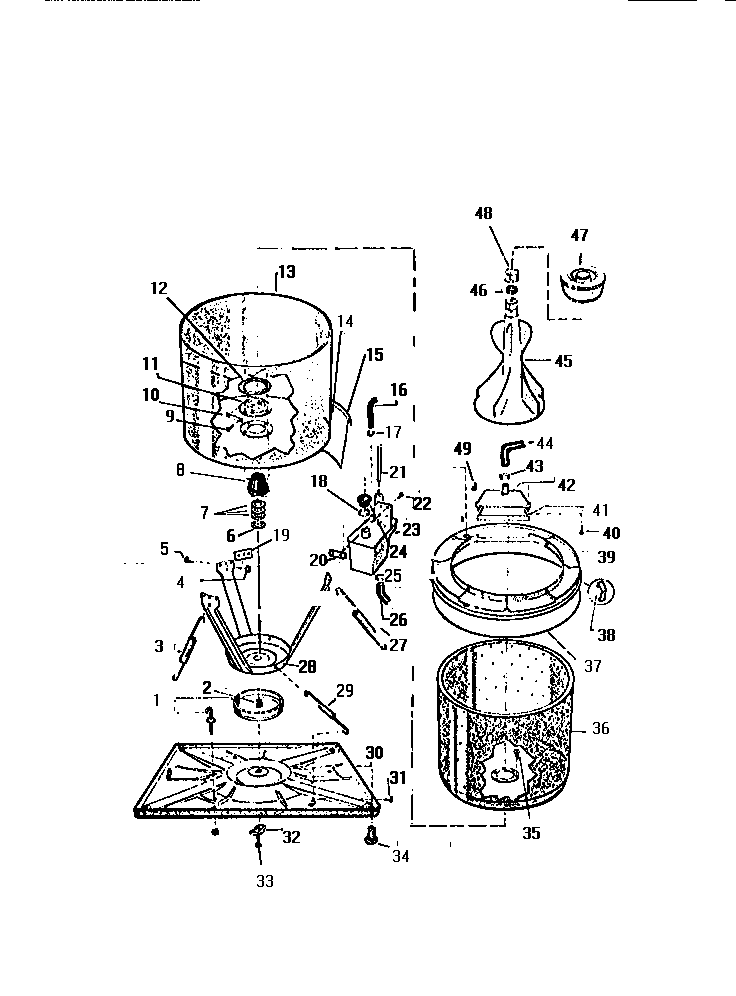

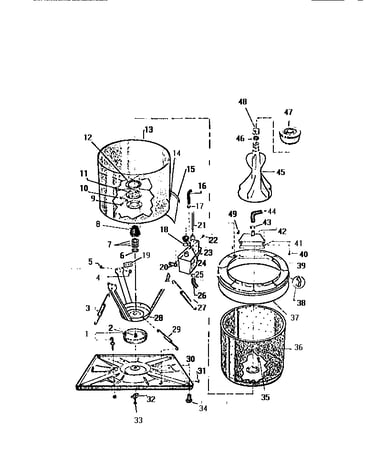

In Stock$143.80QtyTubs, base diagram
Screw
Part #F136029-000Replaced by #08011280
Manufacturer substitutionThis part replaces F136029-000. Substitute parts can look different from the original.In Stock$25.53QtyMotor diagram
Pulley
Part #F139278-100Replaced by #5308011288
Manufacturer substitutionThis part replaces F139278-100. Substitute parts can look different from the original.In Stock$65.91QtyMotor diagram
Screw
Part #F077090-000Replaced by #3161211

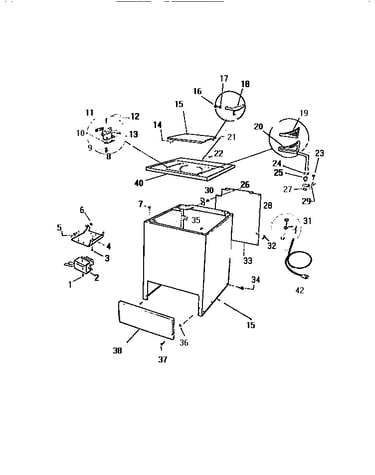

Manufacturer substitutionThis part replaces F077090-000. Substitute parts can look different from the original.In Stock$26.48QtyCabinet, top panel diagram
Hinge
Part #F066964-000Replaced by #5308002412
Manufacturer substitutionThis part replaces F066964-000. Substitute parts can look different from the original.In Stock$40.76QtyTransmission diagram
Ring
Part #F064305-000Replaced by #5308002483
Manufacturer substitutionThis part replaces F064305-000. Substitute parts can look different from the original.In Stock$34.77Qty
