KitchenAid KIRD861XSS0 range hood Parts
Here are the diagrams and repair parts for KitchenAid KIRD861XSS0 range hood, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for KIRD861XSS0 Range Hood

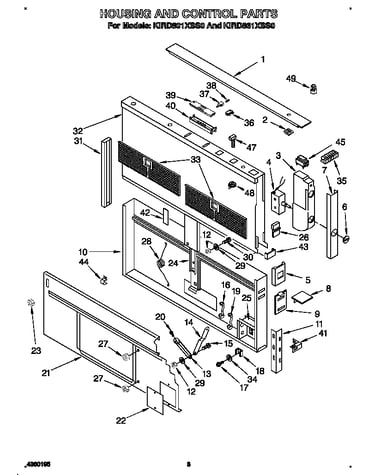

Housing and control parts diagram
Grease Filter
Part #4360194Replaced by #WPW10381779
Manufacturer substitutionThis part replaces 4360194. Substitute parts can look different from the original.In Stock$137.218% OFF Phone Price : $149.21
Qty

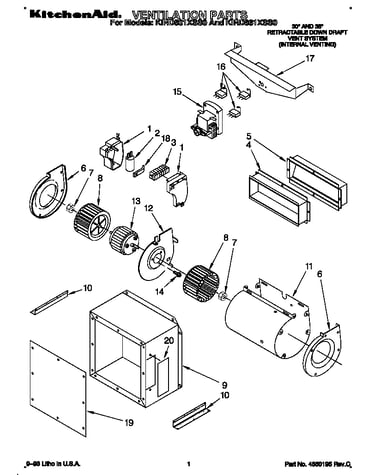

Ventilation parts diagram
Terminal
In Stock$27.79QtyHousing and control parts diagram
Nut
In Stock$27.79QtyVentilation parts diagram
Guide
In Stock$113.78QtyHousing and control parts diagram
Spacer
In Stock$27.79QtyVentilation parts diagram
Blower Support
In Stock$53.24QtyVentilation parts diagram
Air Box
In Stock$321.98QtyHousing and control parts diagram
Washer
Part #4360158Replaced by #98007193
Manufacturer substitutionThis part replaces 4360158. Substitute parts can look different from the original.This item is not returnableIn Stock$13.80QtyHousing and control parts diagram
Actuator
Part #4360166Replaced by #W10235643
Manufacturer substitutionThis part replaces 4360166. Substitute parts can look different from the original.In Stock$191.366% OFF Phone Price : $203.36QtyHousing and control parts diagram
Switch
Part #4360196Replaced by #W10235643
Manufacturer substitutionThis part replaces 4360196. Substitute parts can look different from the original.In Stock$191.366% OFF Phone Price : $203.36Qty
Most common symptoms to help you fix your range hoods
Choose a symptom to see related range hood repairs.
Main causes: sentry feature trips due to high cooktop temperature, bad temperature sensor, electronic control board fail…
Main causes: bad fan switch, electronic control board failure, faulty user interface control, wiring failure…
Main causes: bad light bulb, broken light switch, bad electronic control, user interface control failure, bad light sock…
Main causes: electronic control board failure, bad user interface control, light and fan switch failures, wiring failure…
Main causes: loose mounting screws, bad fan motor, damaged fan blade, worn fan motor bearings…
Main causes: clogged air filters, air duct problems, fan motor failure, broken fan blade…
Main causes: lack of electrical power, bad electronic control board, faulty user interface, fan and light switch failure…
Most common repair guides to help fix your range hoods
These step-by-step repair guides will help you safely fix what’s broken on your range hood.
How to replace a range hood fan motor
If the fan on the range hood won’t run, it’s likely that the fan motor has failed. Follow the steps in this guide to rep…
Repair time and Difficulty
30 minutes or less
How to replace a range hood fan switch
The fan switch activates the fan motor in the range hood. If the fan switch is defective, replace it using the detailed …
Repair time and Difficulty
15 minutes or less
How to replace a range hood light socket
When you replace a light bulb and it still won’t work, the socket is likely defective. Use the detailed steps in this re…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your range hoods
Use the advice and tips in these articles and videos to get the most out of your range hood.
Learn about a new feature added to the Search Bar on Sears PartsDirect…
See the most common replacement parts needed for your range hood.…
Find out what’s wrong with your appliance by following a circuit.…
