White-Westinghouse
Side-By-Side Refrigerator

Model #WRS23MF5AS5 White-Westinghouse refrigerator

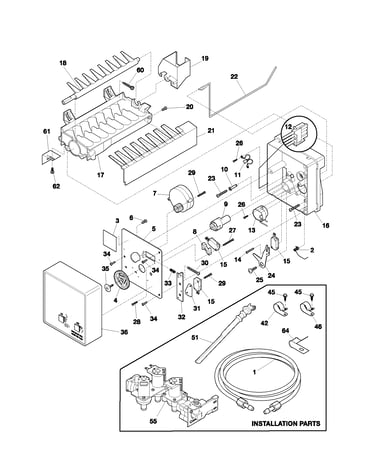

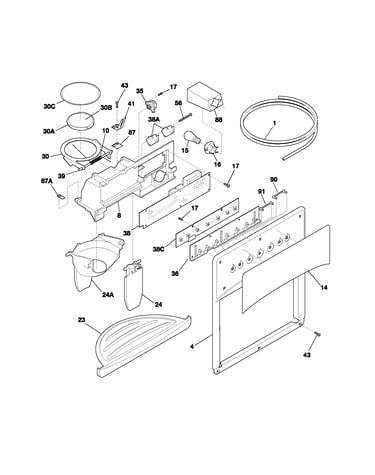

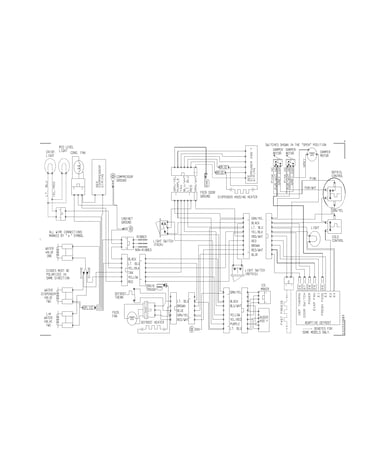

Here are the diagrams and repair parts for White-Westinghouse WRS23MF5AS5 refrigerator, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

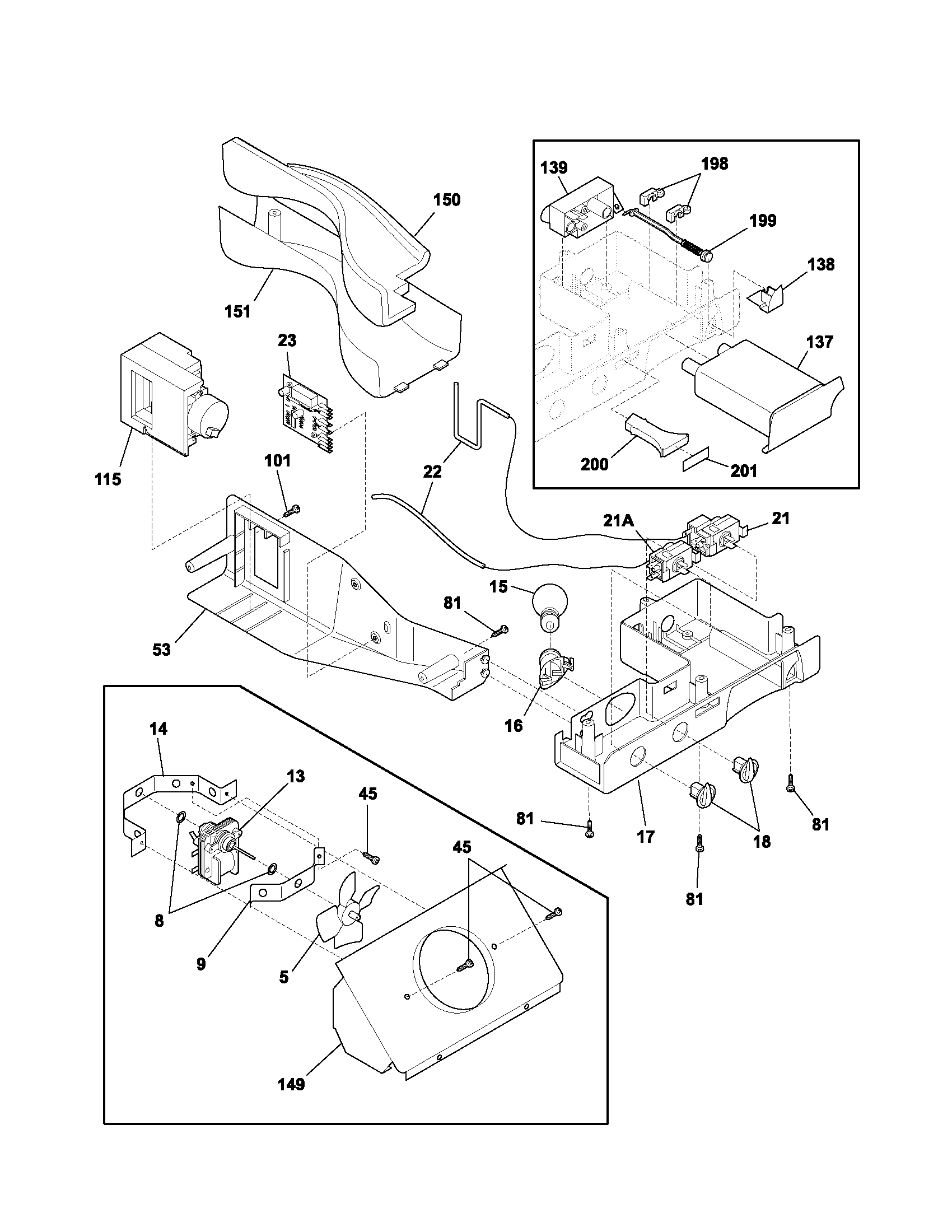

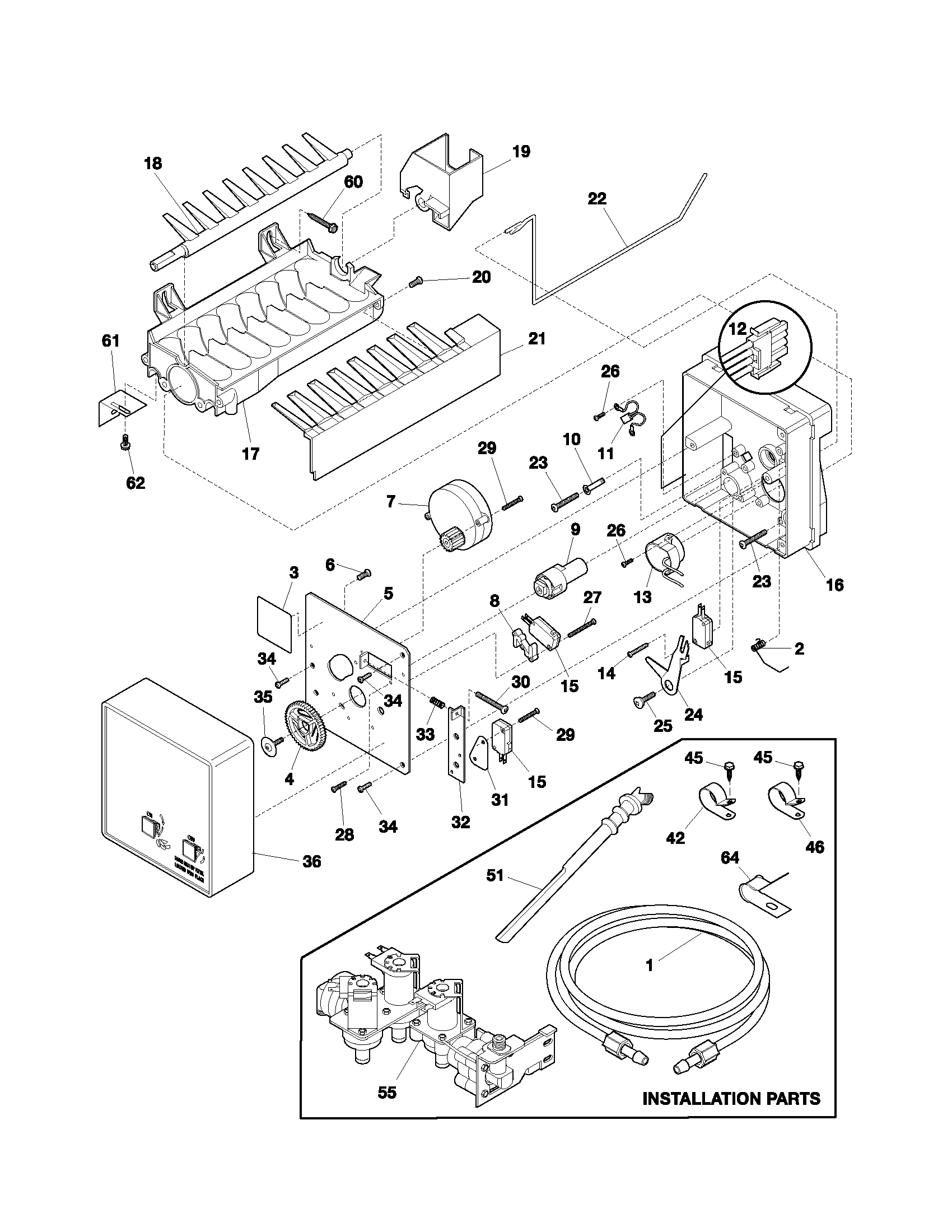

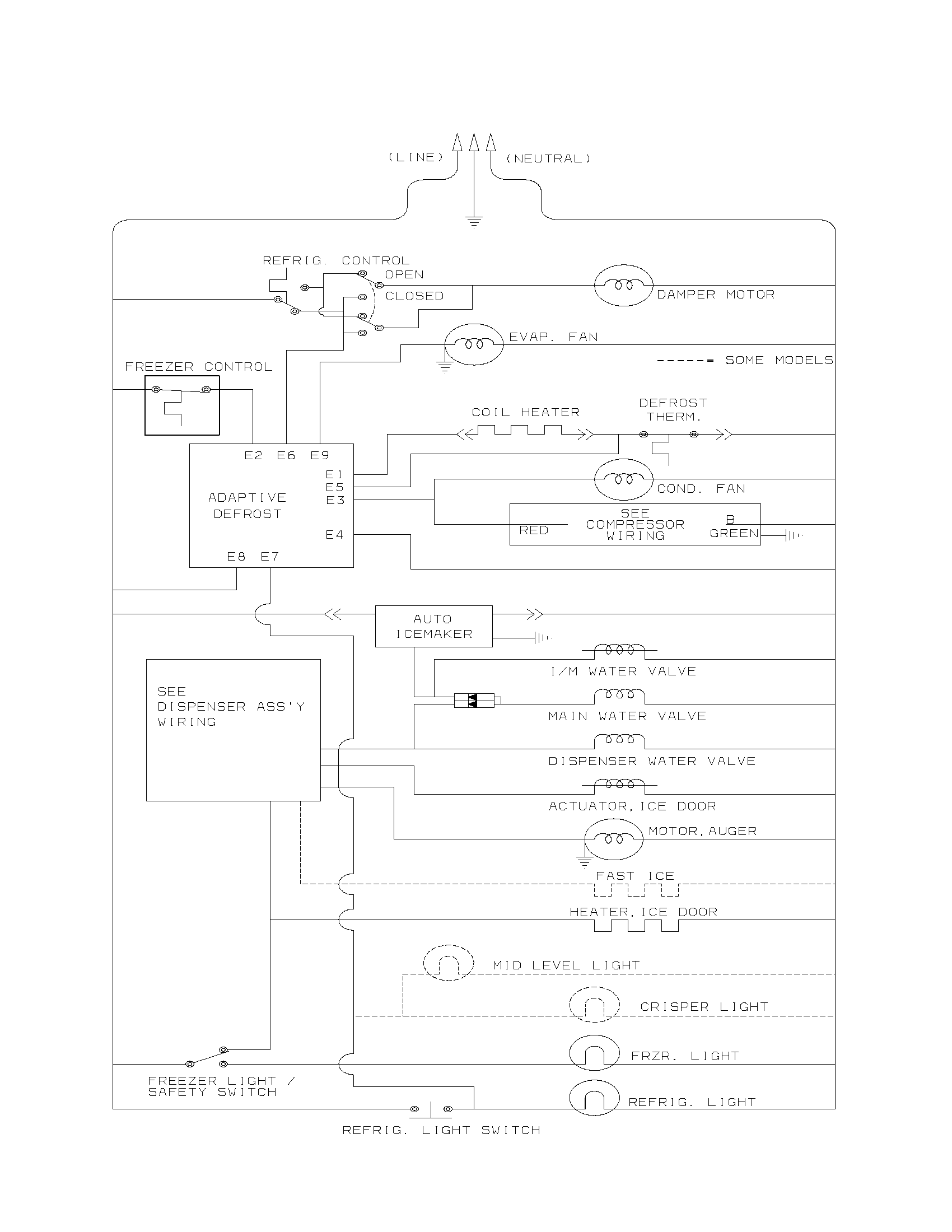

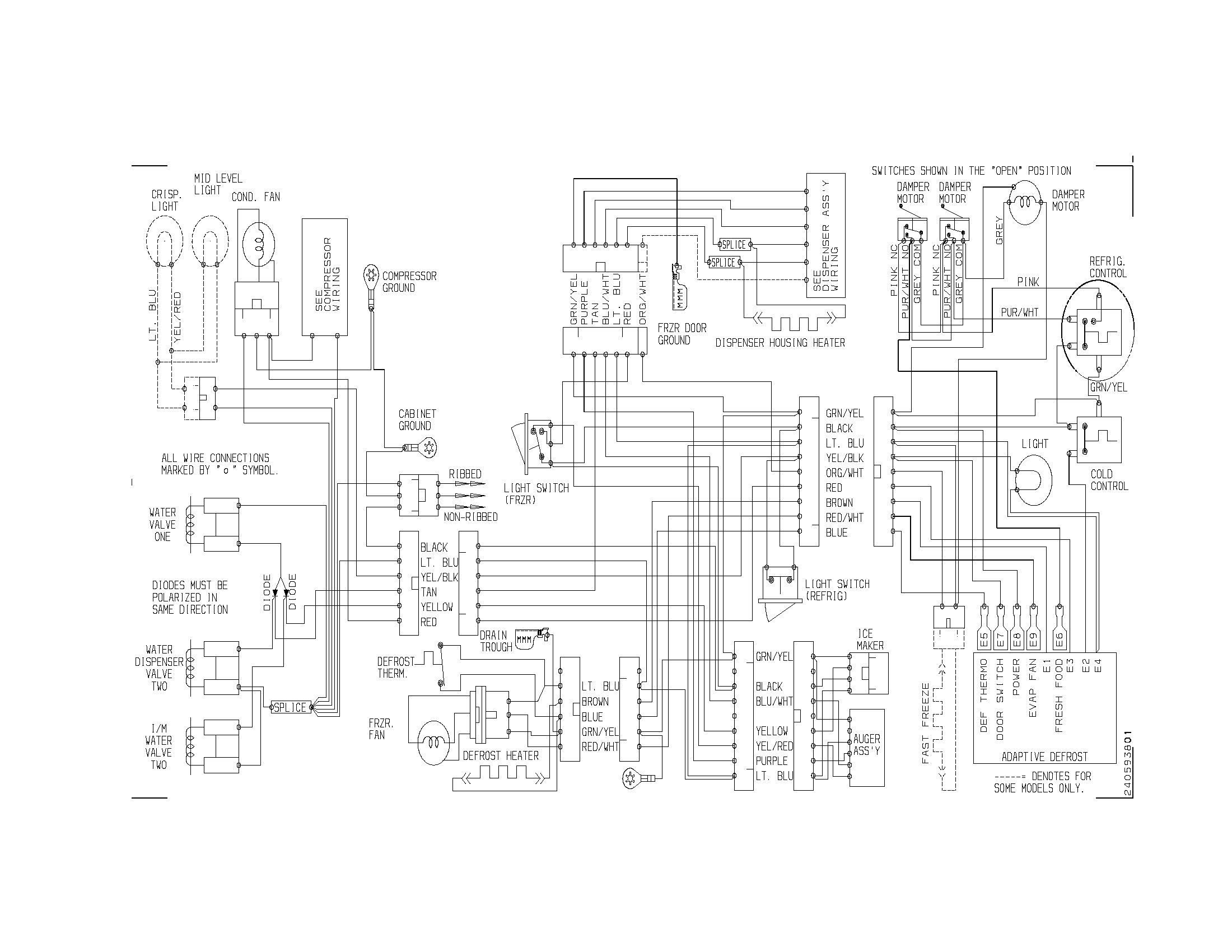

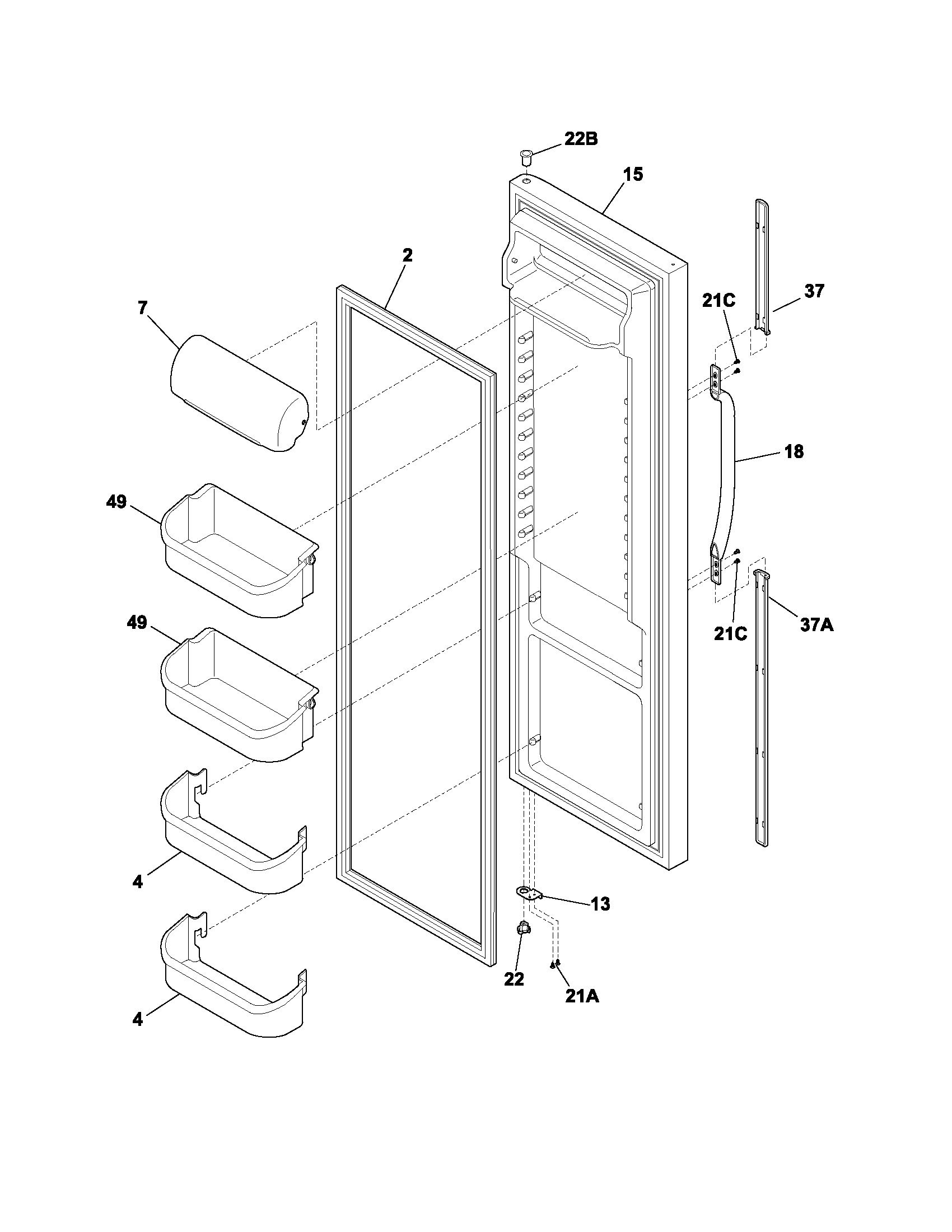

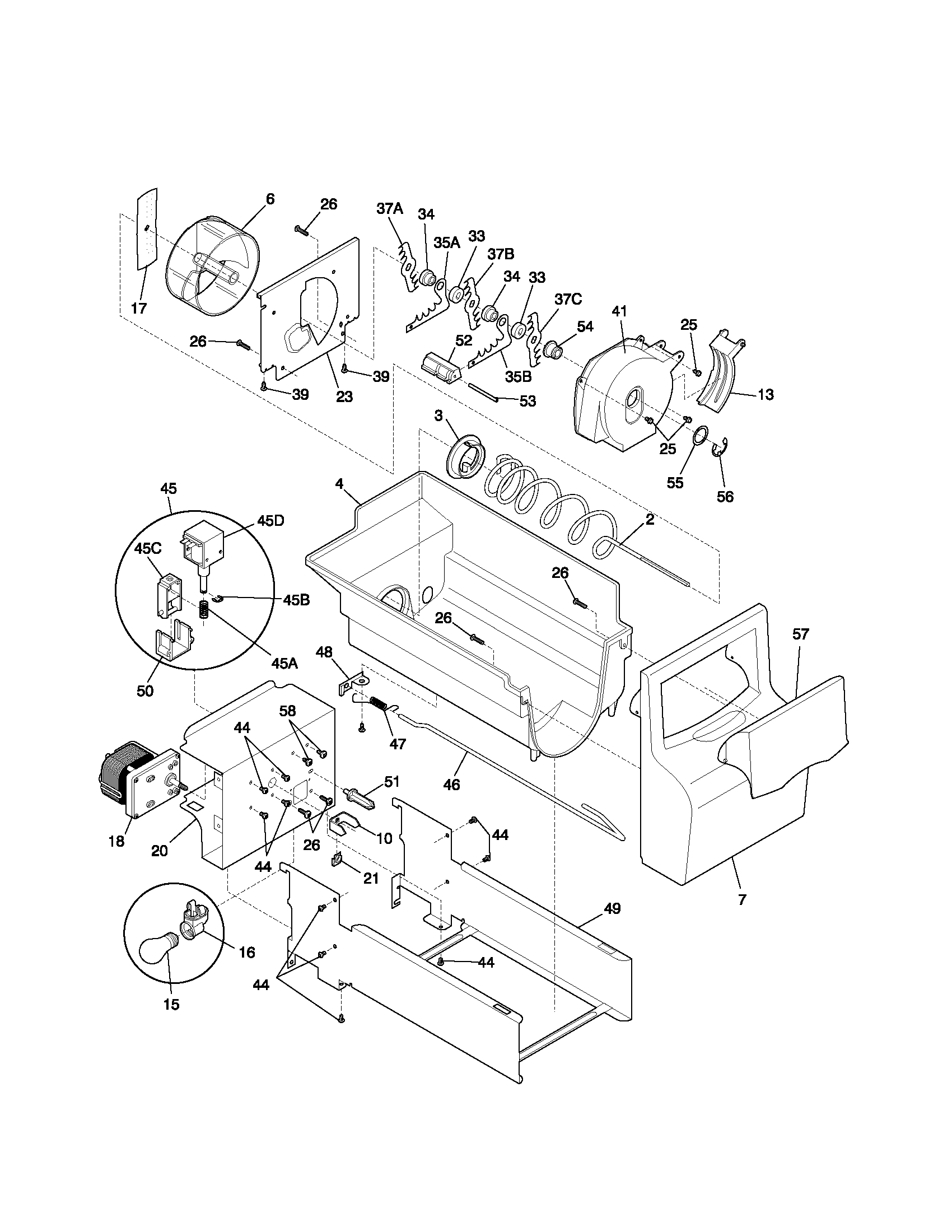

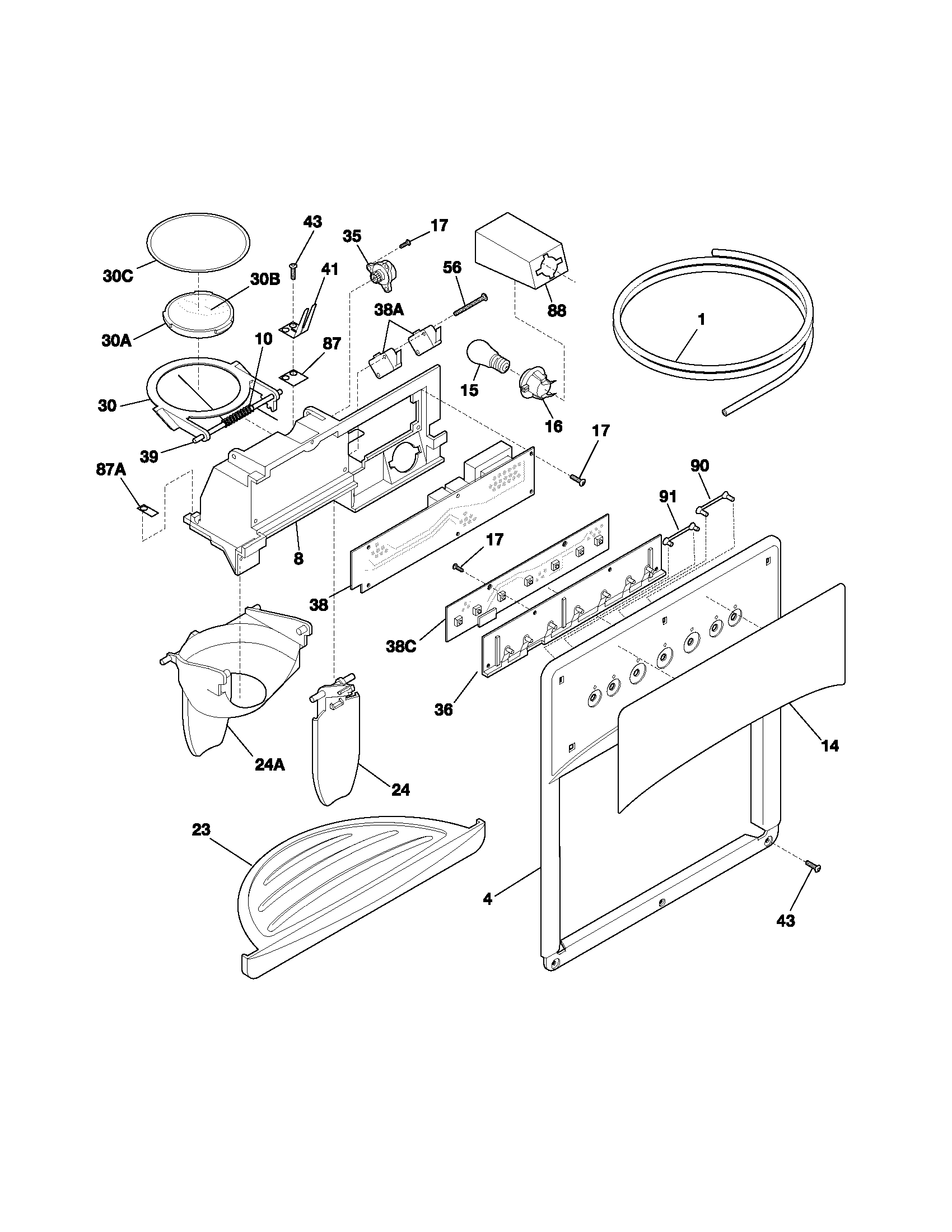

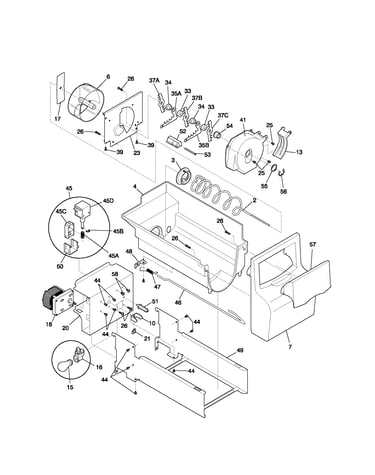

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 307 parts

|

Refrigerator Deli Drawer Hanger, Right

#42

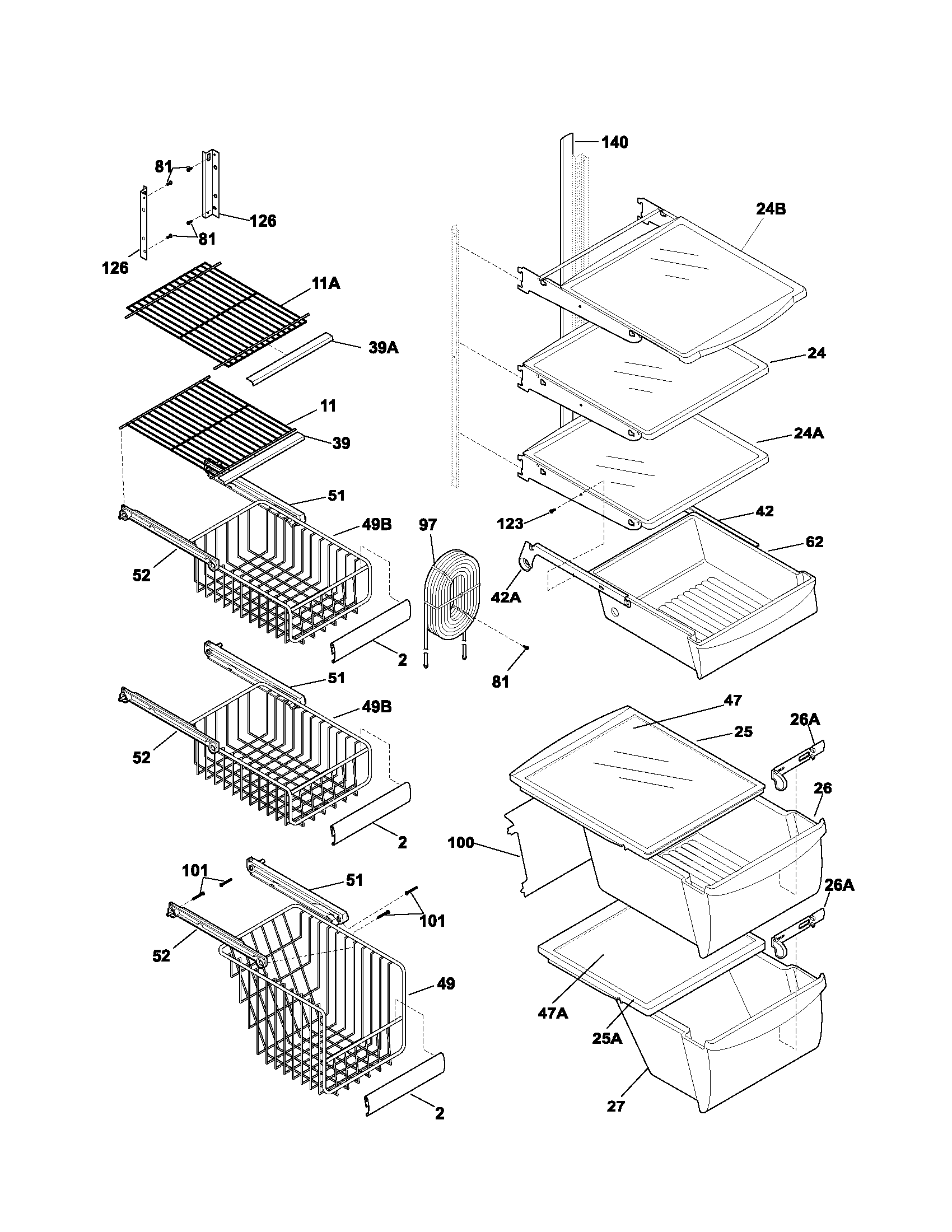

Shelves Diagram

$26.67 |
30% OFF MSRP:$38.00

In Stock

Refrigerator Drawer Slide Rail

#42A

Shelves Diagram

$37.20 |
5% OFF MSRP:$39.00

In Stock

Refrigerator Defrost Bi-Metal Thermostat

#21

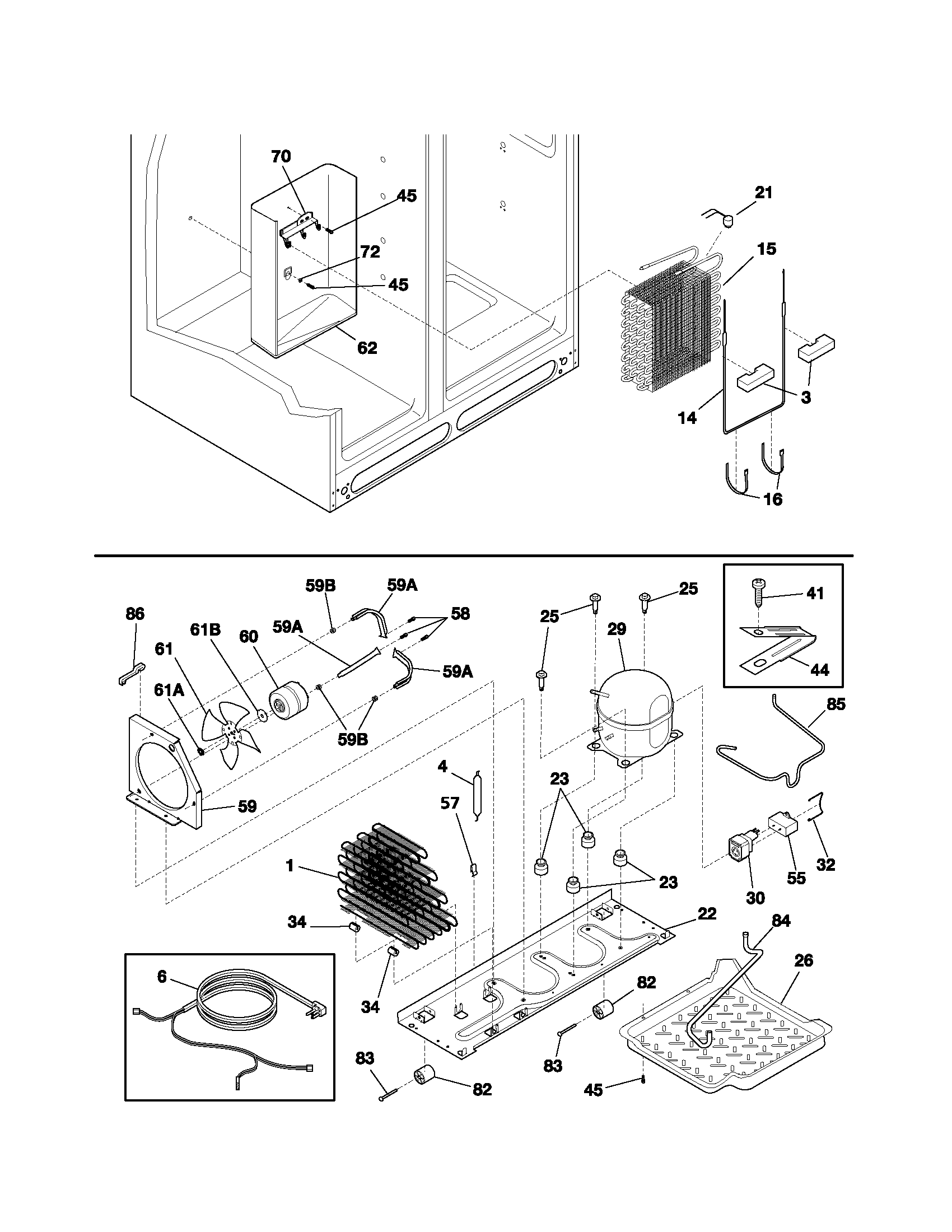

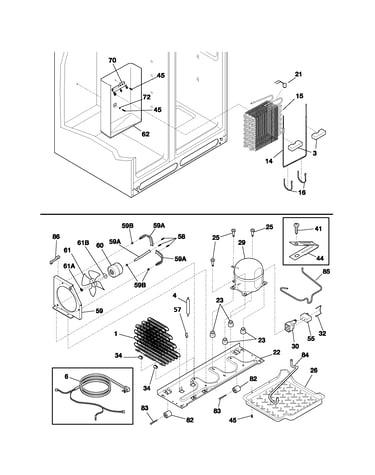

System Diagram

$11.70 |
31% OFF MSRP:$16.90

In Stock

Refrigerator Drawer Cover

#25

Shelves Diagram

$81.81

In Stock

Refrigerator Crisper Drawer Cover Frame, Lower

#25A

Shelves Diagram

$51.11 |
23% OFF MSRP:$66.00

In Stock

Refrigerator Freezer Basket Support Rail

#52

Shelves Diagram

$29.92 |
32% OFF MSRP:$44.00

In Stock

Refrigerator Freezer Basket Support Rail

#51

Shelves Diagram

$34.02 |
17% OFF MSRP:$41.00

In Stock

Refrigerator Door Closer Plate

#22

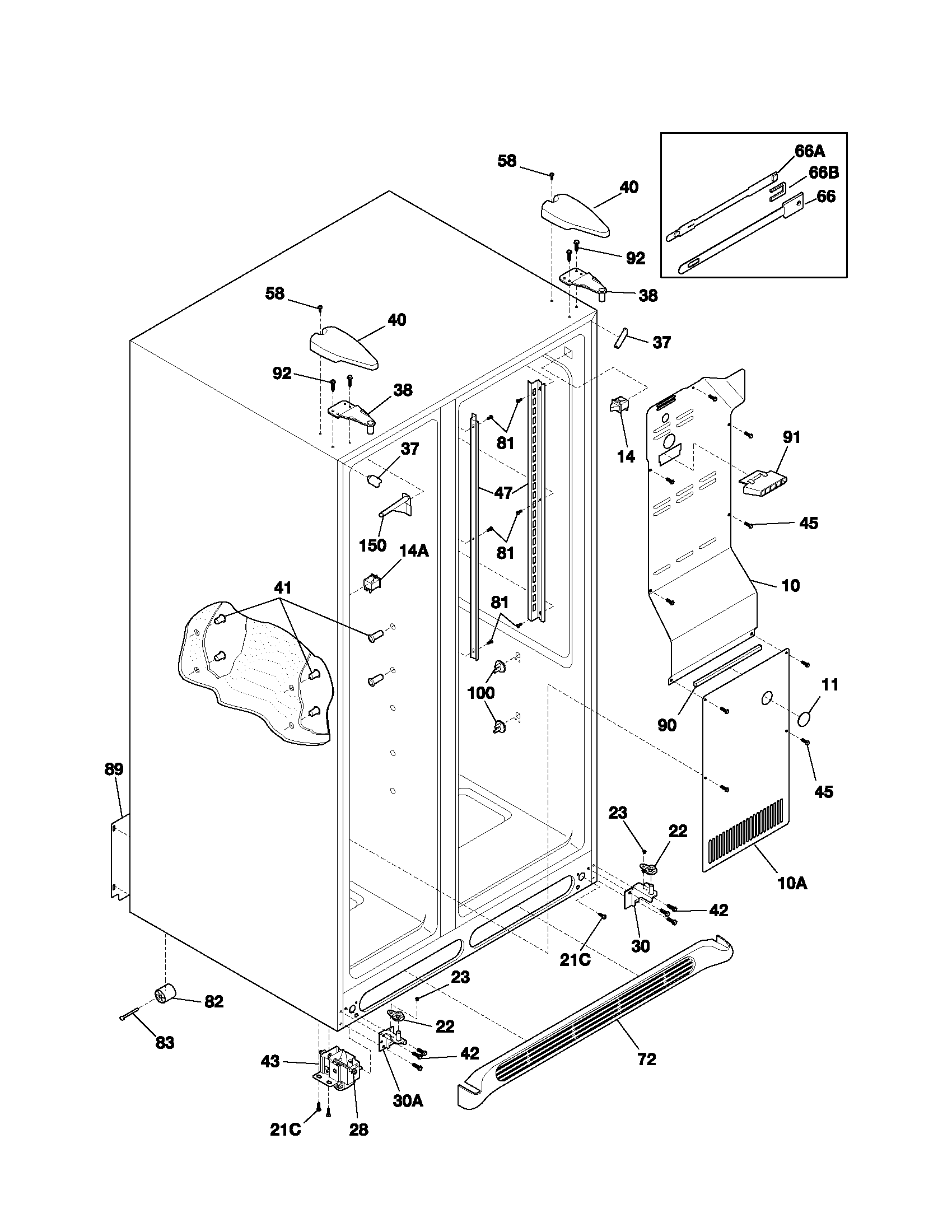

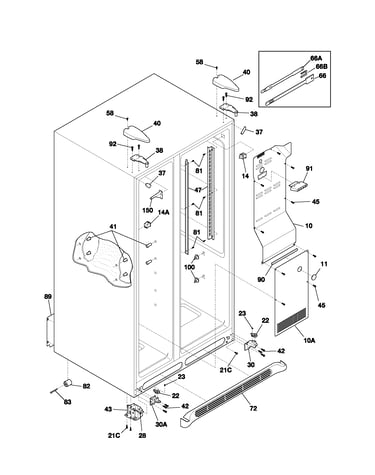

Cabinet Diagram

$37.35

In Stock

Refrigerator Crisper Drawer Slide Clip

#NI

Shelves Diagram

$11.22 |
14% OFF MSRP:$13.00

In Stock

Refrigerator Door Hinge Bearing (Black)

#22C

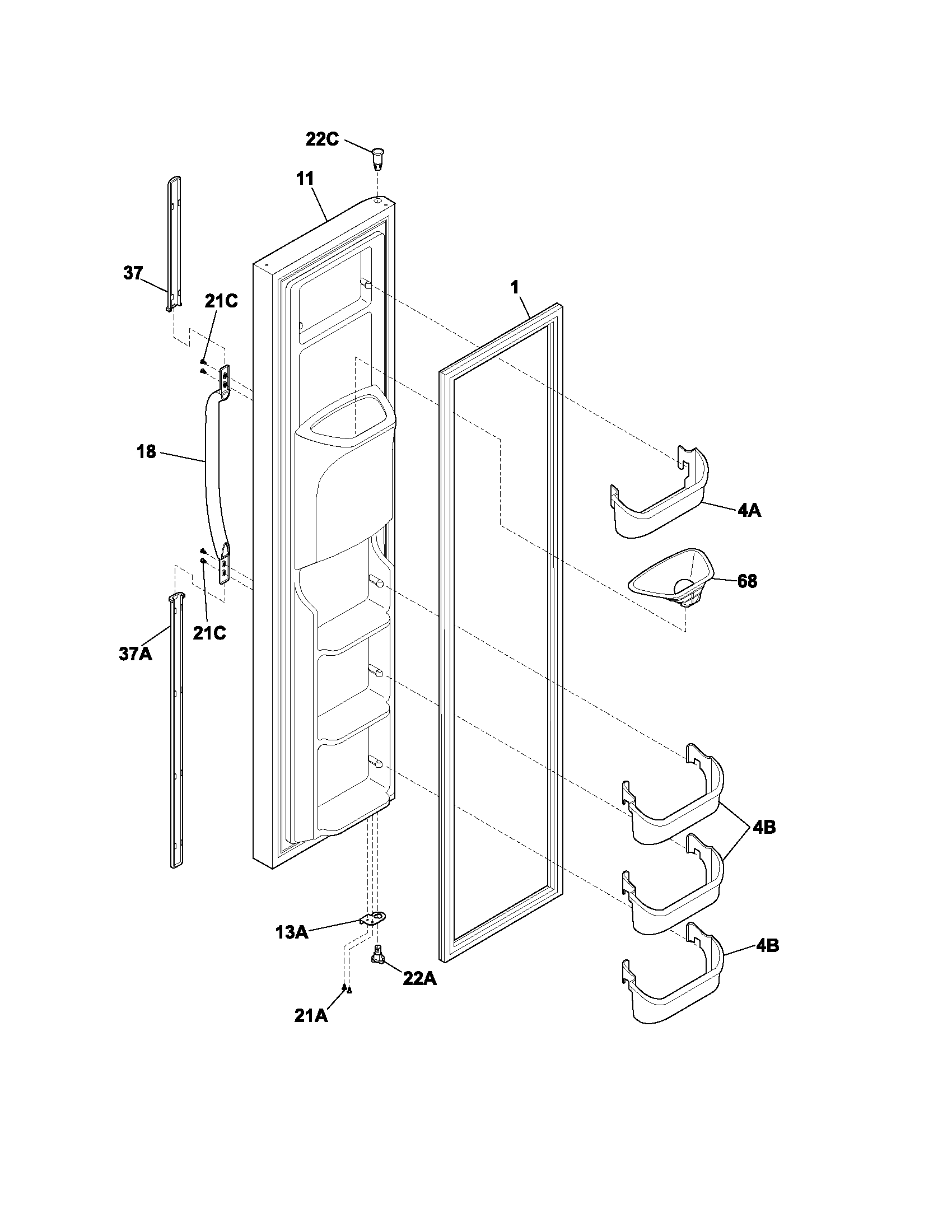

Freezer door Diagram

$12.80

In Stock
