Modern Maid
Gas Wall Oven

Model # QKO-751 Official Modern Maid wall oven

Here are the diagrams and repair parts for Official Modern Maid QKO-751 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Vent Extrusion 77-04-209
#3

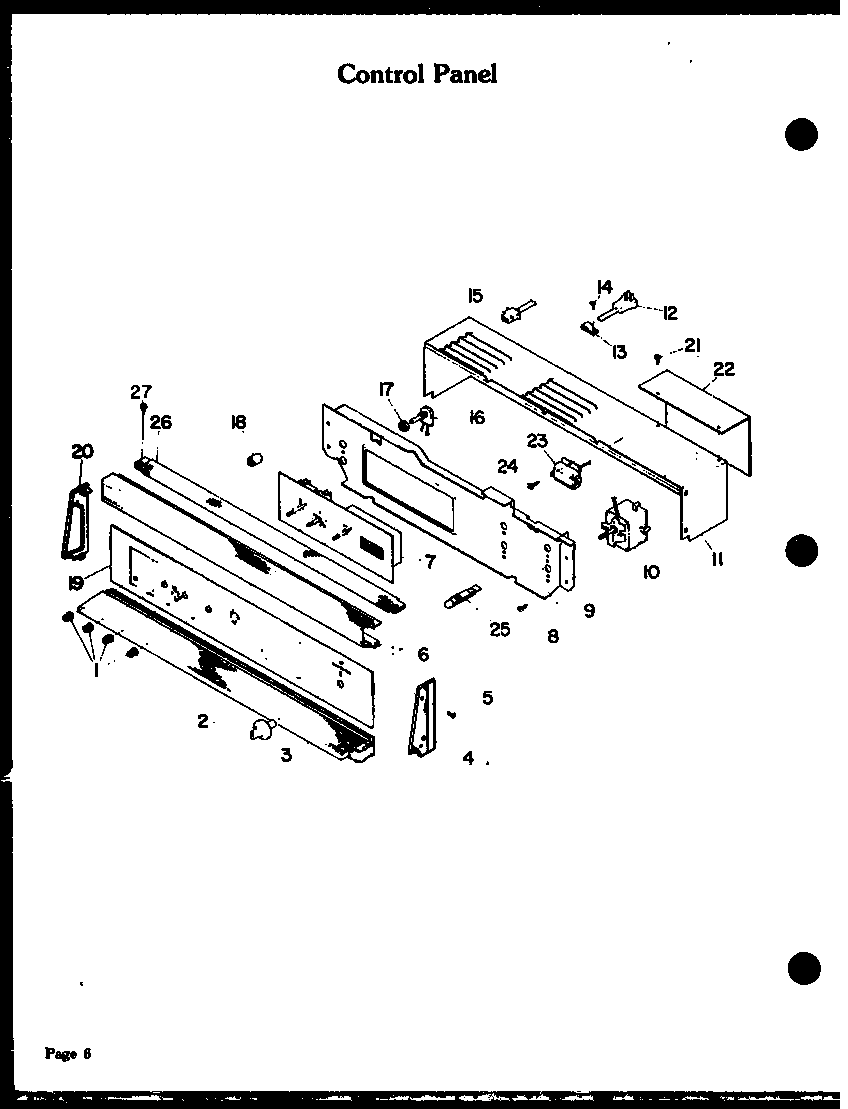

Control panel diagram

Vent extrusion

Part #77-04-209

The manufacturer no longer makes this part, and there's no substitute part

Broil Element Support 44-01-771
#27

Cabinet section diagram

Broil element support

Part #44-01-771

The manufacturer no longer makes this part, and there's no substitute part

Hold Warm Stat 74-04-057
#23

Control panel diagram

Hold warm stat

Part #74-04-057

The manufacturer no longer makes this part, and there's no substitute part

Control Valve Tubing 56-27-091
#6

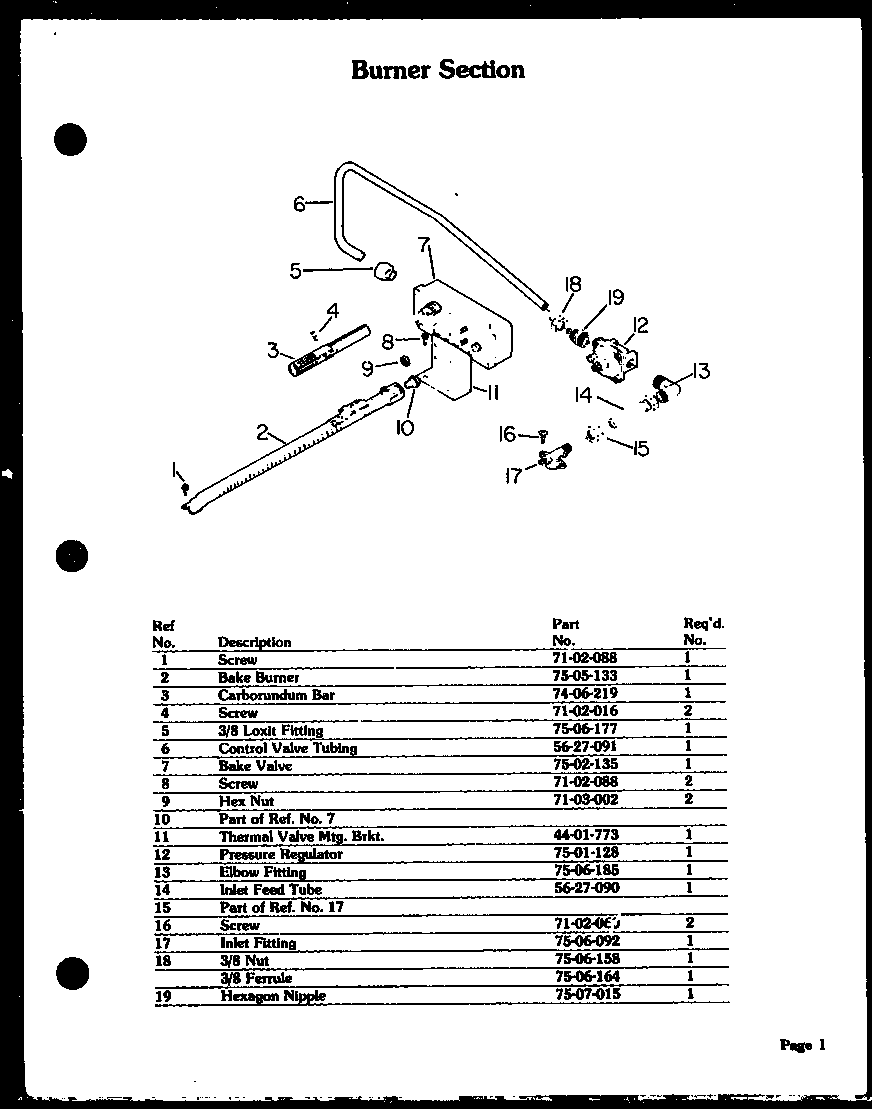

Burner section diagram

Control valve tubing

Part #56-27-091

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 71-03-002
#9

Burner section diagram

Hex nut

Part #71-03-002

The manufacturer no longer makes this part, and there's no substitute part

Elbow Fitting 75-06-185
#13

Burner section diagram

Elbow fitting

Part #75-06-185

The manufacturer no longer makes this part, and there's no substitute part

Door Panel - Coffee 12-01-121
#3B

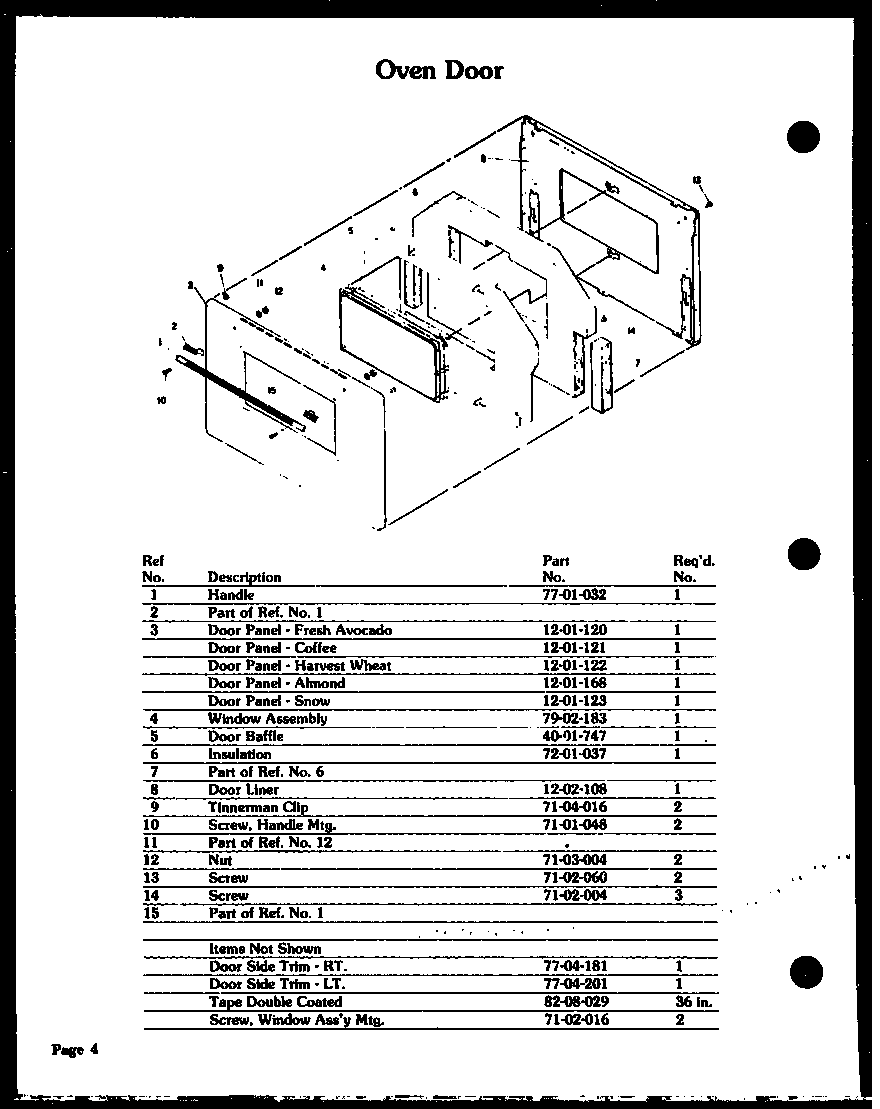

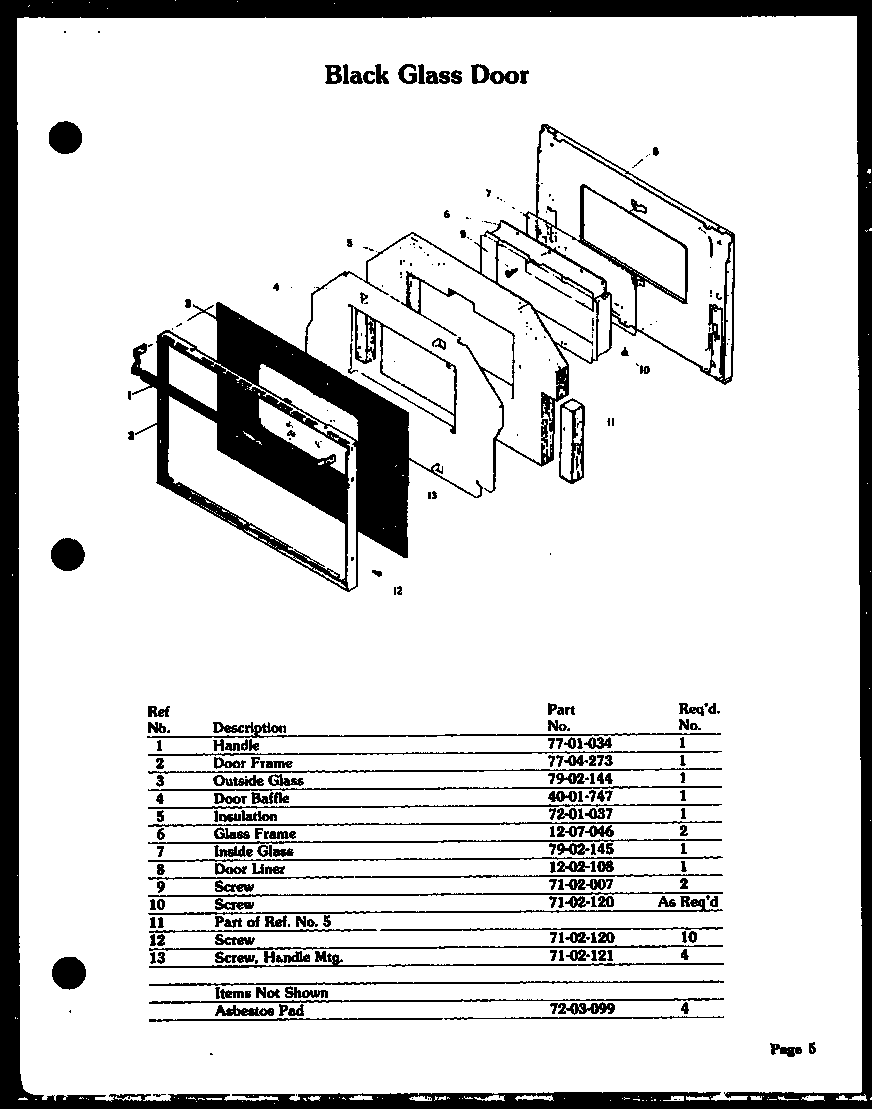

Oven door diagram

Door panel - coffee

Part #12-01-121

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Base 16-01-027
#11

Cabinet section diagram

Cabinet base

Part #16-01-027

The manufacturer no longer makes this part, and there's no substitute part

Side Panel 16-02-237
Side panel

Part #16-02-237

The manufacturer no longer makes this part, and there's no substitute part

Broil Element 74-06-218
#22

Cabinet section diagram

Broil element

Part #74-06-218

The manufacturer no longer makes this part, and there's no substitute part
