Roper
Chest Freezer

Model #RH2200RAW00 Roper freezer

Here are the diagrams and repair parts for Roper RH2200RAW00 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

    Showing 10 of 48 parts

    Appliance Touch-Up Paint, 0.6-oz (White)

    #NI

    All parts Diagram

    Appliance touch-up paint, 0.6-oz (white)

    Part #72017
    This item is not returnable
    $6.89 |
    8% OFF MSRP:$7.50

    In Stock

    Appliance Porcelain Touch-Up Paint, 1-qt (White)

    #NI

    All parts Diagram

    $88.99 |
    8% OFF MSRP:$96.48

    In Stock

    Overload

    #3

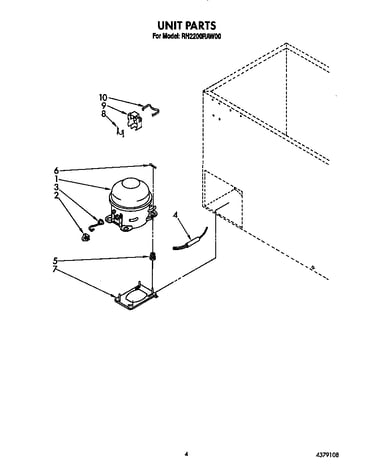

    Unit parts Diagram

    Overload

    Part #4356331
    $15.94

    In Stock

    Grommet

    #4

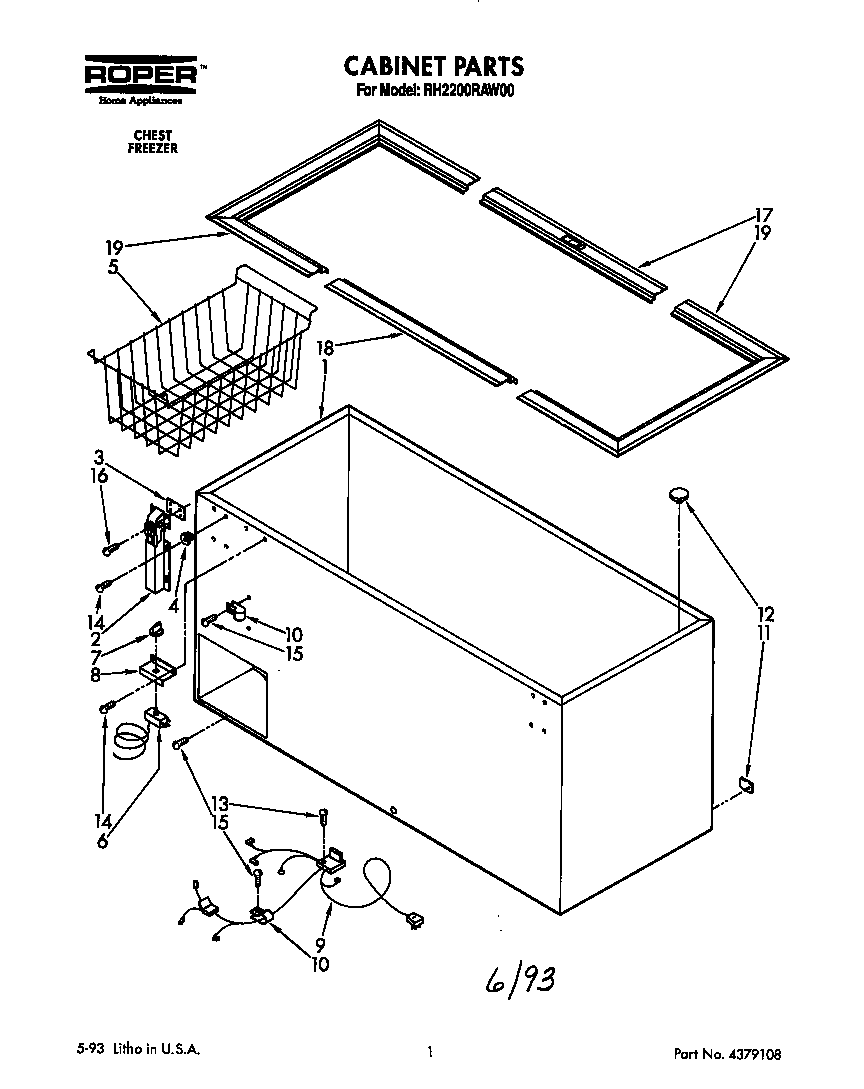

    Cabinet parts Diagram

    Grommet

    Part #4356321
    $11.39

    In Stock

    Nameplate

    #19

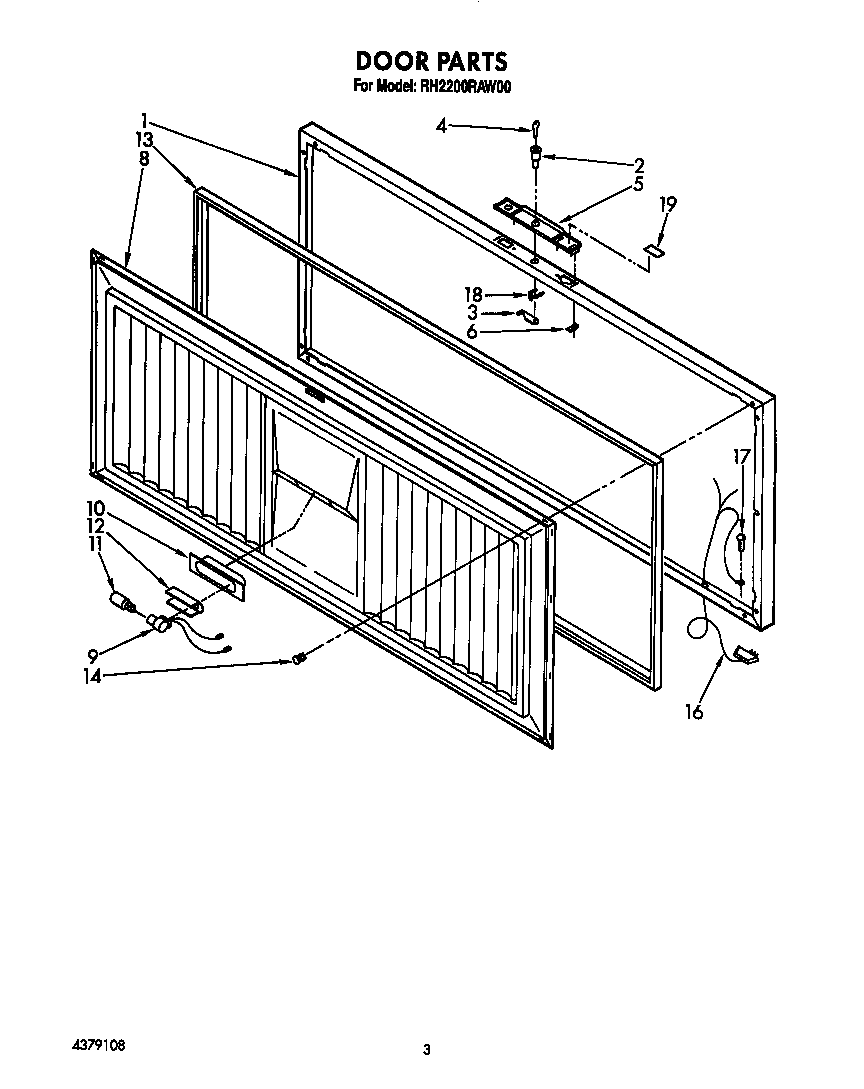

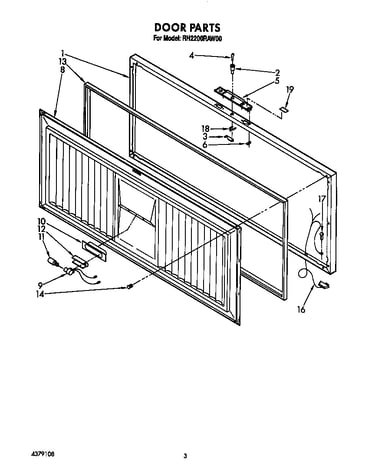

    Door parts Diagram

    Nameplate

    Part #4356372
    $24.14

    In Stock

    Freezer Lid Hinge and Spring

    #2

    Cabinet parts Diagram

    Freezer lid hinge and spring

    Part #W11192185
    ?
    Manufacturer substitution
    This part replaces 4356464. Substitute parts can look different from the original.
    This part replaces 4356464
    $90.66

    In Stock

    Range Screw

    #14

    Cabinet parts Diagram

    Range screw

    Part #WP308685
    ?
    Manufacturer substitution
    This part replaces 308685. Substitute parts can look different from the original.
    This part replaces 308685
    This item is not returnable
    $3.89

    In Stock

    Refrigerator Light Bulb

    #11

    Door parts Diagram

    Refrigerator light bulb

    Part #WP1-24397-001
    ?
    Manufacturer substitution
    This part replaces 4356311. Substitute parts can look different from the original.
    This part replaces 4356311
    This item is not returnable
    $5.54

    In Stock

    Hook Bolt

    #3

    Door parts Diagram

    Hook bolt

    Part #2-35195-002
    ?
    Manufacturer substitution
    This part replaces 4356303. Substitute parts can look different from the original.
    This part replaces 4356303
    $29.06

    In Stock

    Freezer Drain Cap

    #11

    Cabinet parts Diagram

    Freezer drain cap

    Part #3-33211-001
    ?
    Manufacturer substitution
    This part replaces 4356462. Substitute parts can look different from the original.
    This part replaces 4356462
    This item is not returnable
    $6.22 |
    31% OFF MSRP:$8.97

    In Stock

    Symptoms common to all freestanding freezers

    Choose a symptom to see related freezer repairs.

    Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser coils, control failure
    Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, faulty compressor
    Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket
    Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failure
    Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, bad defrost timer
    Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor motor failure
    Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-metal thermostat
    Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, compressor problems
