Whirlpool RH8330XLS1 range hood Parts
Here are the diagrams and repair parts for Whirlpool RH8330XLS1 range hood, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for RH8330XLS1 Range Hood

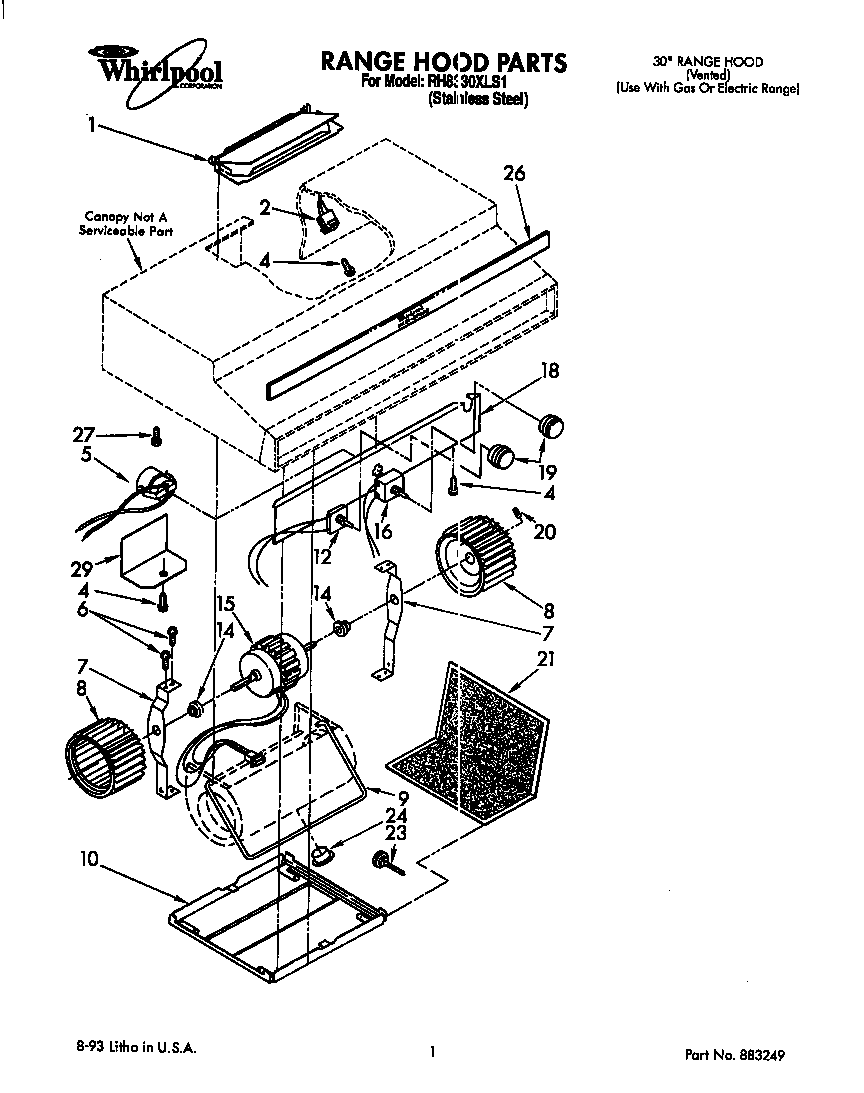

Range hood parts diagram
Screw
Part #830747Replaced by #WP90767
Manufacturer substitutionThis part replaces 830747. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88
Qty
Range hood parts diagram
Screw
Part #830465Replaced by #WP489069
Manufacturer substitutionThis part replaces 830465. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyRange hood parts diagram
Grease Filter
Part #830865Replaced by #WP830865
Manufacturer substitutionThis part replaces 830865. Substitute parts can look different from the original.In Stock$44.42Qty#NI
All parts diagram
Light Bulb
Part #311255Replaced by #8009
Manufacturer substitutionThis part replaces 311255. Substitute parts can look different from the original.This item is not returnableIn Stock$14.6812% OFF Phone Price : $16.68QtyRange hood parts diagram
Range Hood Blower Wheel
Part #830745
The manufacturer no longer makes this part, and there's no substitute part
Range hood parts diagram
Bushing
Part #883253
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Instructions, Installation & Operating
Part #LIT830869
The manufacturer no longer makes this part, and there's no substitute part
Range hood parts diagram
Wire Cover
Part #830888
The manufacturer no longer makes this part, and there's no substitute part
Range hood parts diagram
Lamp Socket
Part #830755
The manufacturer no longer makes this part, and there's no substitute part
Range hood parts diagram
Rotary Switch
Part #830736
The manufacturer no longer makes this part, and there's no substitute part
