Whirlpool WRS315SDHW06 refrigerator, side-by-side Parts

Here are the diagrams and repair parts for Whirlpool WRS315SDHW06 refrigerator, side-by-side, as well as links to manuals and error code tables, if available.

Whirlpool WRS315SDHW06 refrigerator, side-by-side
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WRS315SDHW06 Refrigerators

  • Whirlpool Everydrop 1 Refrigerator Water Filter for Whirlpool WRS315SDHW06 - Part EDR1RXD1

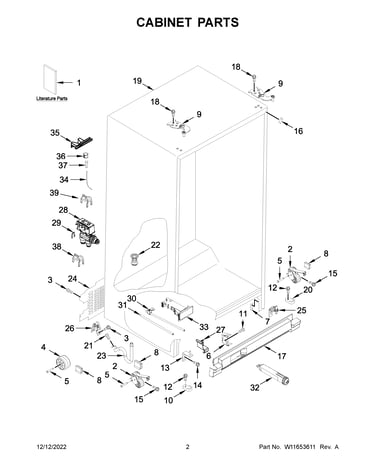

    Cabinet parts diagram

    Refrigerator Cartridge

    Part #W10735398

    Replaced by #EDR1RXD1

    Info Icon
    Manufacturer substitution
    This part replaces W10735398. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $77.46
    7% OFF Phone Price : $83.46Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Ice Maker Assembly for Whirlpool WRS315SDHW06 - Part W11700250

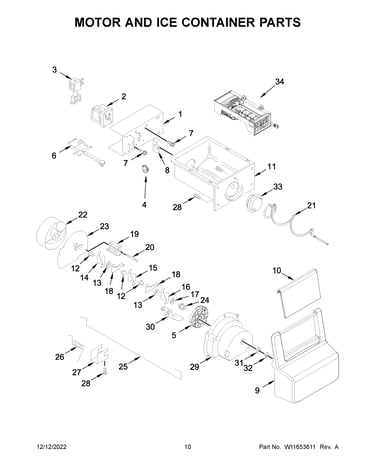

    Motor and ice container parts diagram

    Ice Maker As

    Part #W11359448

    Replaced by #W11700250

    Info Icon
    Manufacturer substitution
    This part replaces W11359448. Substitute parts can look different from the original.
    In Stock
    $188.35
    6% OFF Phone Price : $200.35Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Run Capacitor for Whirlpool WRS315SDHW06 - Part WPW10662129

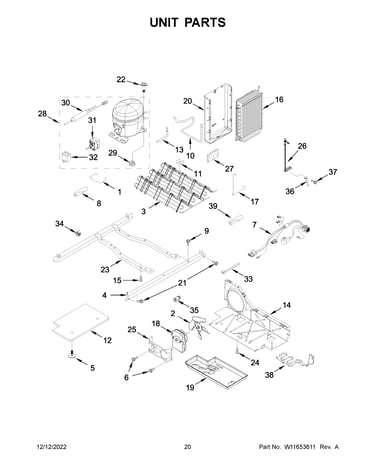

    Unit parts diagram

    Refrigerator Capacitor

    Part #W10590083

    Replaced by #WPW10662129

    Info Icon
    Manufacturer substitution
    This part replaces W10590083. Substitute parts can look different from the original.
    In Stock
    $43.74
    12% OFF Phone Price : $49.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Water Filter Housing for Whirlpool WRS315SDHW06 - Part W11162041

    Cabinet parts diagram

    Refrigerator Housing Assembly

    Part #W11036340

    Replaced by #W11162041

    Info Icon
    Manufacturer substitution
    This part replaces W11036340. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $83.64
    7% OFF Phone Price : $89.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Led Light for Whirlpool WRS315SDHW06 - Part W11602886

    Hemera 30deg

    Part #W11549780

    Replaced by #W11602886

    Info Icon
    Manufacturer substitution
    This part replaces W11549780. Substitute parts can look different from the original.
    In Stock
    $32.45
    16% OFF Phone Price : $38.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing for Whirlpool WRS315SDHW06 - Part W10823511

    Cabinet parts diagram

    Refrigerator Water Tube

    Part #W10357076

    Replaced by #W10823511

    Info Icon
    Manufacturer substitution
    This part replaces W10357076. Substitute parts can look different from the original.
    In Stock
    $37.48
    14% OFF Phone Price : $43.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Motor for Whirlpool WRS315SDHW06 - Part WP2315549

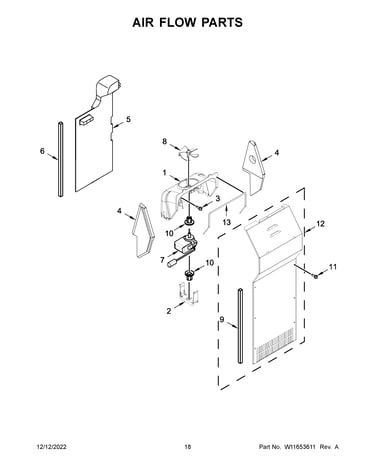

    Air flow parts diagram

    Refrigerator Evaporator Fan Motor

    Part #2315549

    Replaced by #WP2315549

    Info Icon
    Manufacturer substitution
    This part replaces 2315549. Substitute parts can look different from the original.
    In Stock
    $178.31
    6% OFF Phone Price : $190.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Auger Motor for Whirlpool WRS315SDHW06 - Part W11671282

    Motor and ice container parts diagram

    Motor, Dispenser

    Part #W10884561

    Replaced by #W11671282

    Info Icon
    Manufacturer substitution
    This part replaces W10884561. Substitute parts can look different from the original.
    In Stock
    $225.30
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Inlet Valve for Whirlpool WRS315SDHW06 - Part W11645245

    Cabinet parts diagram

    Water Valve

    Part #W11563296

    Replaced by #W11645245

    Info Icon
    Manufacturer substitution
    This part replaces W11563296. Substitute parts can look different from the original.
    In Stock
    $48.62
    11% OFF Phone Price : $54.62Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Door Gasket, Almond for Whirlpool WRS315SDHW06 - Part 2159075

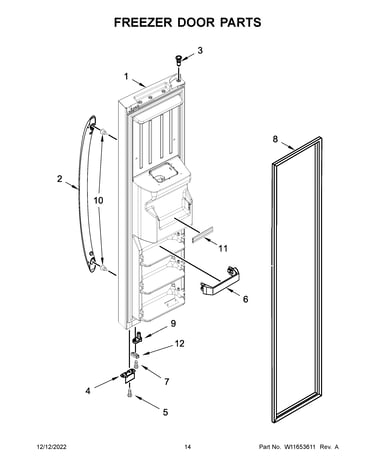

    Freezer door parts diagram

    Gasket, Door (beige)

    Part #W10912123

    Replaced by #2159075

    Info Icon
    Manufacturer substitution
    This part replaces W10912123. Substitute parts can look different from the original.
    In Stock
    $172.96
    6% OFF Phone Price : $184.96Info Icon
    Minus Item
    Qty
    Plus Item

Whirlpool REFRIGERATOR, SIDE-BY-SIDE WRS315SDHW06 FAQs

A common disadvantage of a side-by-side refrigerator like Whirlpool WRS315SDHW06 is reduced usable width in each compartment; wide platters, pizza boxes, and large bins can be harder to fit, and you may need more shelf organizing to keep fresh foods visible and easy to reach.

Main drawbacks (and what you can do about them)

  • Narrow shelves: Large trays and party platters may not fit flat.
  • More bending and scanning: Fresh items can get lost behind door bins and shelves.
  • Freezer organization can feel tighter: Tall items may block access to smaller items.
  • Door storage can crowd the interior: Full door bins reduce usable shelf depth.
  • Ice and water features can take space: Dispenser and ice storage can reduce room in the freezer door area.

Quick comparison: side-by-side vs French door

Feature Side-by-side (WRS315SDHW06 style) French door (typical)
Fits wide items Often harder Often easier
Eye-level access to fresh food Mixed Usually better
Freezer access Full-height, narrow Drawer, wider
Door swing clearance Often better in tight kitchens Can be similar, depends on model

Why it matters

If you regularly store wide containers (sheet pans, large deli trays, pizza boxes), the side-by-side layout can create daily frustration even when total cubic feet is similar. Planning shelf layout and using bins helps you get the most out of the space.

When a “space issue” is actually a parts issue

If shelves, bins, or drawers are cracked or missing, the refrigerator can feel much harder to organize than it should. For this model, a common organization-related replacement is the refrigerator door bin W11239961.

Last updated: January 2026

For the Whirlpool WRS315SDHW06 side-by-side refrigerator, the most common issue we see is poor cooling caused by restricted airflow, usually from dust-clogged condenser coils or a condenser fan that is not running. These problems make the compressor work harder and temperatures drift warm.

What to check first (fast, no-parts steps)

  • Confirm airflow at the bottom/back: you should feel warm air moving when the unit is running.
  • Clean the condenser area: unplug the refrigerator, remove the toe grille, and vacuum dust and pet hair.
  • Verify door closure: make sure doors seal fully and nothing is holding them open.
  • Set temperatures correctly: allow 24 hours after changes for temps to stabilize.
  • Listen for fans: a stalled fan often causes warm temps and unusual noise.

When it points to a part on WRS315SDHW06

If cleaning does not help and the refrigerator still runs warm, these model-compatible parts are common suspects:

  • Condenser fan not running: inspect the motor, condenser fan W11578915 for binding, noise, or no operation.
  • Freezer section warm or uneven temps: check the evaporator fan motor and blade for ice buildup or failure.
  • Compressor struggles to start or clicks: a weak run capacitor can contribute to hard starts.

Quick symptom-to-likely-cause guide

Symptom Most likely cause What we recommend
Fresh food and freezer both warm Dirty condenser coils or condenser fan issue Clean coils; then check condenser fan motor
Freezer cold, fresh food warm Airflow problem between sections Check evaporator fan operation and vents
Clicking, then no cooling Start/run components or compressor issue Check run capacitor; consider pro diagnosis

Why it matters

Restricted condenser airflow is one of the easiest fixes and one of the most common reasons a Whirlpool side-by-side like WRS315SDHW06 stops cooling well. Addressing it early can prevent food spoilage and reduce strain on the sealed system.

Last updated: January 2026

A Whirlpool side-by-side refrigerator like model WRS315SDHW06 typically lasts about 12 years with normal household use. Consistent airflow, clean condenser areas, stable temperatures, and timely part replacement can help you reach (or beat) that average.

What affects lifespan most

A refrigerator’s sealed system and airflow components do the heavy lifting. These factors usually make the biggest difference:

  • Keeping condenser coils and the condenser fan area clean
  • Avoiding overpacking so air can circulate through the freezer and fresh food sections
  • Keeping door seals tight so the compressor does not run constantly
  • Using correct temperature settings (not “coldest” all the time)
  • Fixing small issues early (noisy fan, warm spots, slow ice production)

Quick maintenance checklist (high impact)

Use this simple routine to reduce wear on the compressor and fans:

  • Vacuum dust from the lower front grille area and around the unit
  • Leave space behind the cabinet for ventilation
  • Wipe door gaskets and check for gaps or tears
  • Replace the water filter on schedule if your unit uses one
  • Listen for changes in fan noise and address them promptly

Common wear items and what they do

If performance drops, these model-compatible parts are often involved:

Symptom Likely area Example compatible part for WRS315SDHW06
Warm refrigerator or freezer, weak airflow Evaporator airflow Refrigerator evaporator fan motor WP2315549
Water tastes off or flow slows Filtration / housing Refrigerator cartridge EDR1RXD1
Ice maker stops or makes poor ice Ice maker system Ice maker as W11700250

Why it matters

A side-by-side that is forced to run longer (from dirty coils, air leaks, or restricted airflow) puts extra hours on the compressor and fans. Reducing run time is one of the most reliable ways to extend service life and keep temperatures stable.

Last updated: January 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…
