GE ZMC1095BF02 microwave

GE ZMC1095BF02 microwave Parts

Here are the diagrams and repair parts for GE ZMC1095BF02 microwave, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for ZMC1095BF02 Microwaves

  • Wire Harness for GE ZMC1095BF02 - Part WB18X542

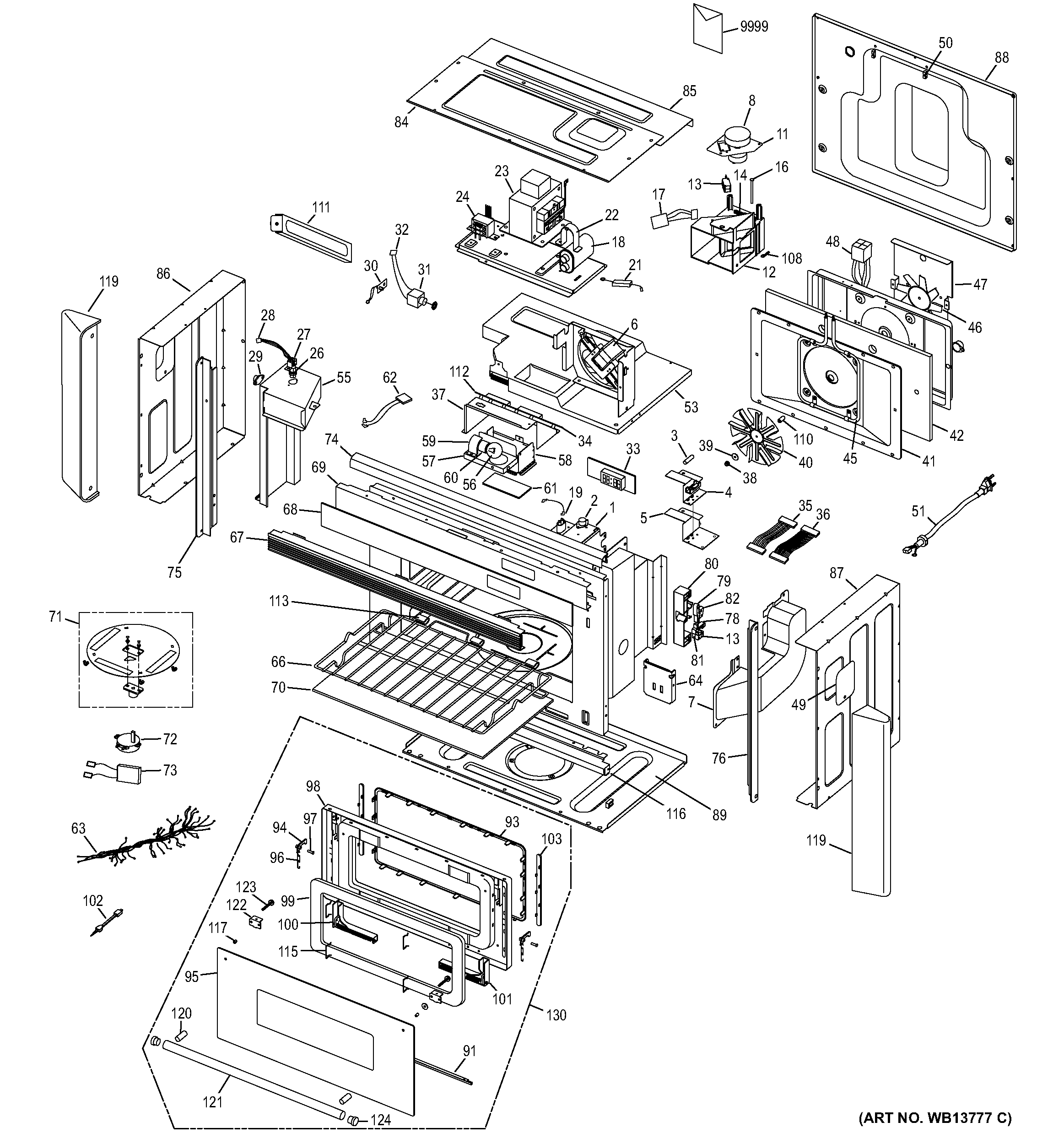

    Microwave diagram

    Wire Harn F

    Part #WB18X0542

    Replaced by #WB18X542

    Info Icon
    Manufacturer substitution
    This part replaces WB18X0542. Substitute parts can look different from the original.
    In Stock
    $50.79
    Minus Item
    Qty
    Plus Item
  • Pcb Suppo for GE ZMC1095BF02 - Part WB4X175

    Microwave diagram

    Pcb Support

    Part #WB04X0175

    Replaced by #WB4X175

    Info Icon
    Manufacturer substitution
    This part replaces WB04X0175. Substitute parts can look different from the original.
    In Stock
    $32.52
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Diode for GE ZMC1095BF02 - Part WB27X10597

    Microwave diagram

    H.v. Diode

    Part #WB27X10817

    Replaced by #WB27X10597

    Info Icon
    Manufacturer substitution
    This part replaces WB27X10817. Substitute parts can look different from the original.
    In Stock
    $55.83
    10% OFF Phone Price : $61.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Control Washer for GE ZMC1095BF02 - Part WB1X1483

    Microwave diagram

    Fan Washer Control

    Part #WB01X1483

    Replaced by #WB1X1483

    Info Icon
    Manufacturer substitution
    This part replaces WB01X1483. Substitute parts can look different from the original.
    In Stock
    $31.10
    Minus Item
    Qty
    Plus Item
  • Microwave Cooking Rack Spacer for GE ZMC1095BF02 - Part WB4X174

    Microwave diagram

    Spacer Rack

    Part #WB04X0174

    Replaced by #WB4X174

    Info Icon
    Manufacturer substitution
    This part replaces WB04X0174. Substitute parts can look different from the original.
    In Stock
    $10.24
    16% OFF Phone Price : $12.24Info Icon
    Minus Item
    Qty
    Plus Item
  • Wir Harn I for GE ZMC1095BF02 - Part WB18X0546

    Microwave diagram

    Wir Harn I

    Part #WB18X0546

    The manufacturer no longer makes this part, and there's no substitute part

  • Slot Cvr Dr for GE ZMC1095BF02 - Part WB55X0861

    Microwave diagram

    Slot Cvr Dr

    Part #WB55X0861

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire Harn B for GE ZMC1095BF02 - Part WB18X0544

    Microwave diagram

    Wire Harn B

    Part #WB18X0544

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor Bracket Damper for GE ZMC1095BF02 - Part WB06X0341

    Microwave diagram

    Motor Bracket Damper

    Part #WB06X0341

    The manufacturer no longer makes this part, and there's no substitute part

  • Switch for GE ZMC1095BF02 - Part WB24X0428

    Microwave diagram

    Switch

    Part #WB24X0428

    The manufacturer no longer makes this part, and there's no substitute part
