Whirlpool ED5VHEXTQ01 side-by-side refrigerator Parts

The Whirlpool ED5VHEXTQ01 is a full-size side-by-side refrigerator; most units in this class are about 25 cu. ft. total capacity and fit a 36-inch-wide opening. For the exact capacity and cabinet dimensions for your unit, use the ED5VHEXTQ01 owner's manual.

What “big” usually means (capacity vs. dimensions)

Refrigerator size is typically described two ways:

• Capacity (cu. ft.): how much food it holds
• Overall dimensions: width, height, and depth (important for fit)
• Door swing and clearance: space needed to open doors and pull out bins
• Water line and cord clearance: space behind the cabinet

Typical size range for a 25 cu. ft. side-by-side

These are common ranges for Whirlpool side-by-side models in the 25 cu. ft. class (use your manual for exact numbers):

Measurement	Typical range
Width	35 1/2 to 36 inches
Height (to top of hinge)	69 to 71 inches
Depth (without handles)	29 to 32 inches
Depth (with handles)	32 to 35 inches

How to confirm the exact size for ED5VHEXTQ01

We recommend verifying the specs before ordering a replacement refrigerator or planning cabinetry changes.

• Check the product data / specifications section in the ED5VHEXTQ01 owner's manual
• Measure width at the widest point (often the hinge side)
• Measure height to the top hinge cover
• Measure depth with handles if the refrigerator sits in a tight alcove
• Allow extra clearance for airflow and door swing

Why it matters

Correct measurements prevent installation problems like doors hitting walls, drawers not pulling out fully, or restricted airflow that can reduce cooling performance.

Last updated: January 2026

The most common Whirlpool refrigerator problem is a cooling complaint: the refrigerator or freezer is warm, or the unit seems to run too much. On the Whirlpool ED5VHEXTQ01 specifically, frequent door openings, warm room conditions, and heavy food loads can also make the compressor and fans run longer than expected (even when the refrigerator is working normally).

Most common symptoms we see (and what they usually point to)

• Food not staying cold enough: airflow restriction, dirty condenser coils, or a defrost problem
• Runs constantly or runs “too much”: warm room, frequent door openings, or a cooling system working harder than normal
• No ice or slow ice production: water supply issue, ice maker issue, or a water valve problem
• Water dispenser weak or not dispensing: clogged filter, air in the water line, or inlet valve issue
• Unusual noises (buzzing, sizzling, popping): often normal operating sounds during ice maker fill or defrost

For model-specific operating notes and troubleshooting steps, use the ED5VHEXTQ01 owner's manual.

Quick checks that fix a lot of “common problems”

1. Confirm temperatures: set refrigerator near 37°F and freezer near 0°F (typical targets).
2. Reduce door openings: frequent openings can make the motor run longer.
3. Let it stabilize after changes: give cooling adjustments time; setting controls to coldest does not cool faster.
4. Check airflow: avoid blocking vents with packages.
5. Address water and ice issues: replace the filter on schedule and purge air after filter changes.

Common part-related causes (when symptoms persist)

Symptom	Common cause	Example part for ED5VHEXTQ01
No water to dispenser/ice maker	Water inlet valve not opening	Refrigerator inlet valve W10408179
Bad taste/slow water flow	Clogged water filter	Refrigerator water filter EDR3RXD1

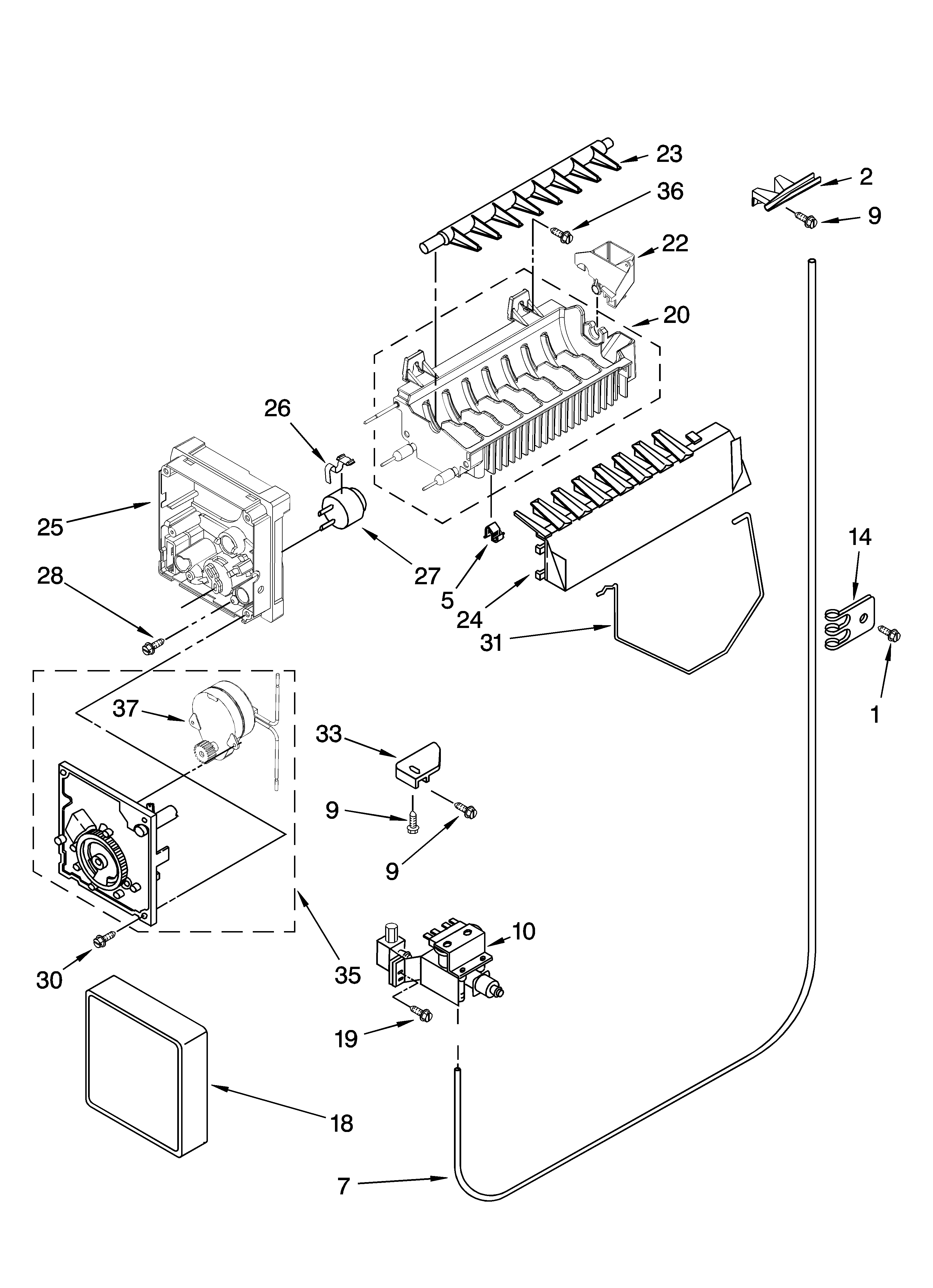

No ice production	Ice maker failure	Refrigerator ice maker WPW10190965

Why it matters

Cooling and ice maker complaints often share the same root causes: restricted airflow, heavy run time from usage conditions, or a weak water supply path. Catching the simple issues first helps prevent food temperature swings and reduces unnecessary part replacements.

Last updated: January 2026

Yes, you can use a generic water filter in your Whirlpool ED5VHEXTQ01 side-by-side refrigerator if it matches the same filter type and connection as the original. For this model, the listed replacement is part number 4396841, which corresponds to the same filter sold as refrigerator water filter EDR3RXD1. Confirm fit and certification before installing; then flush the system.

What filter this model uses (use this as your baseline)

Your ED5VHEXTQ01 uses the “standard base filter cartridge” listed in the manual as 4396841. Many filters are cross-labeled by both a part number and a part ID; for this model, 4396841 and EDR3RXD1 refer to the same replacement filter.

Label you may see	What it means	Use it to shop by
4396841	Whirlpool replacement part number	Part number match
EDR3RXD1	Filter part ID/name used on listings	Part ID match

For the official reference, check the ED5VHEXTQ01 owner's manual.

How to choose a compatible “generic” filter

• Match the baseline exactly: 4396841 or EDR3RXD1
• Verify the same housing style (locking tabs, cap style, O-ring placement)
• Choose NSF/ANSI certified filtration for your needs (taste/odor, chlorine, lead)
• Avoid “universal” filters that require adapters unless they are made for this exact housing
• Replace on schedule; most refrigerator water filters are changed about every 6 months

Why it matters

A mismatched filter can leak at the filter head, reduce water flow, or introduce air into the water line, which can affect the dispenser and ice maker performance.

Helpful DIY guidance

• Follow how to replace the water filter in a Whirlpool refrigerator for replacement and flushing steps.

Last updated: January 2026
