Model # WGG555S0BW07 Official Whirlpool gas double oven range

Here are the diagrams and repair parts for Official Whirlpool WGG555S0BW07 gas double oven range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

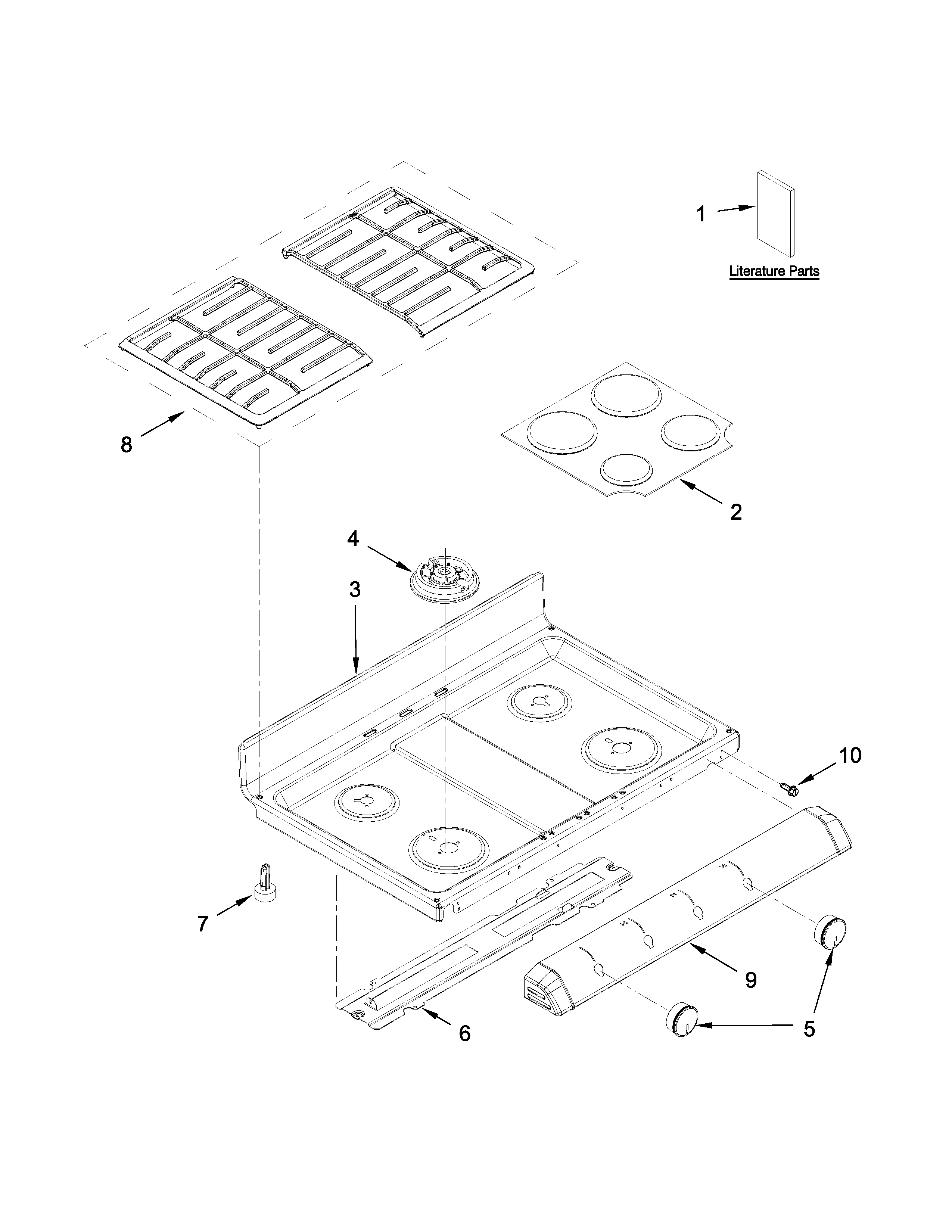

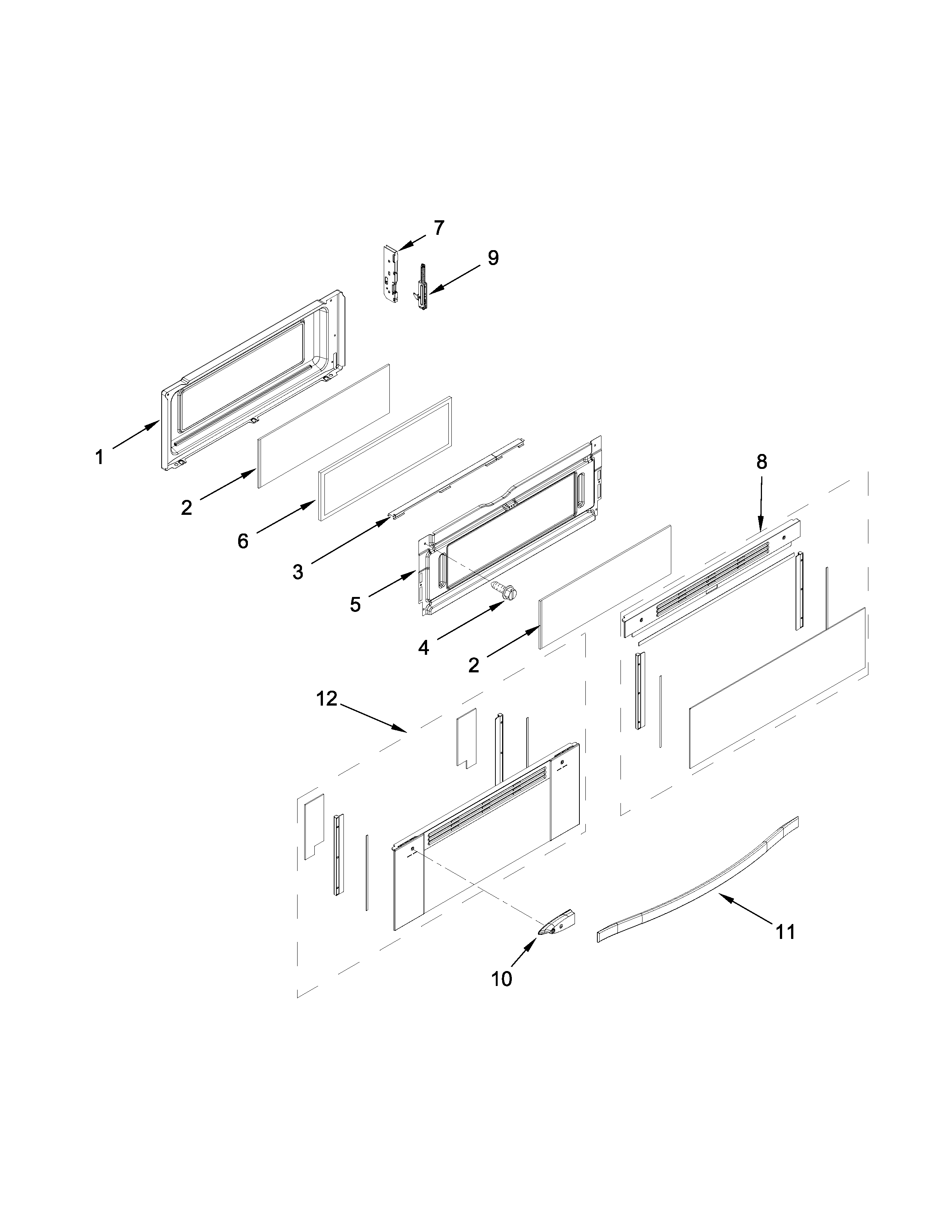

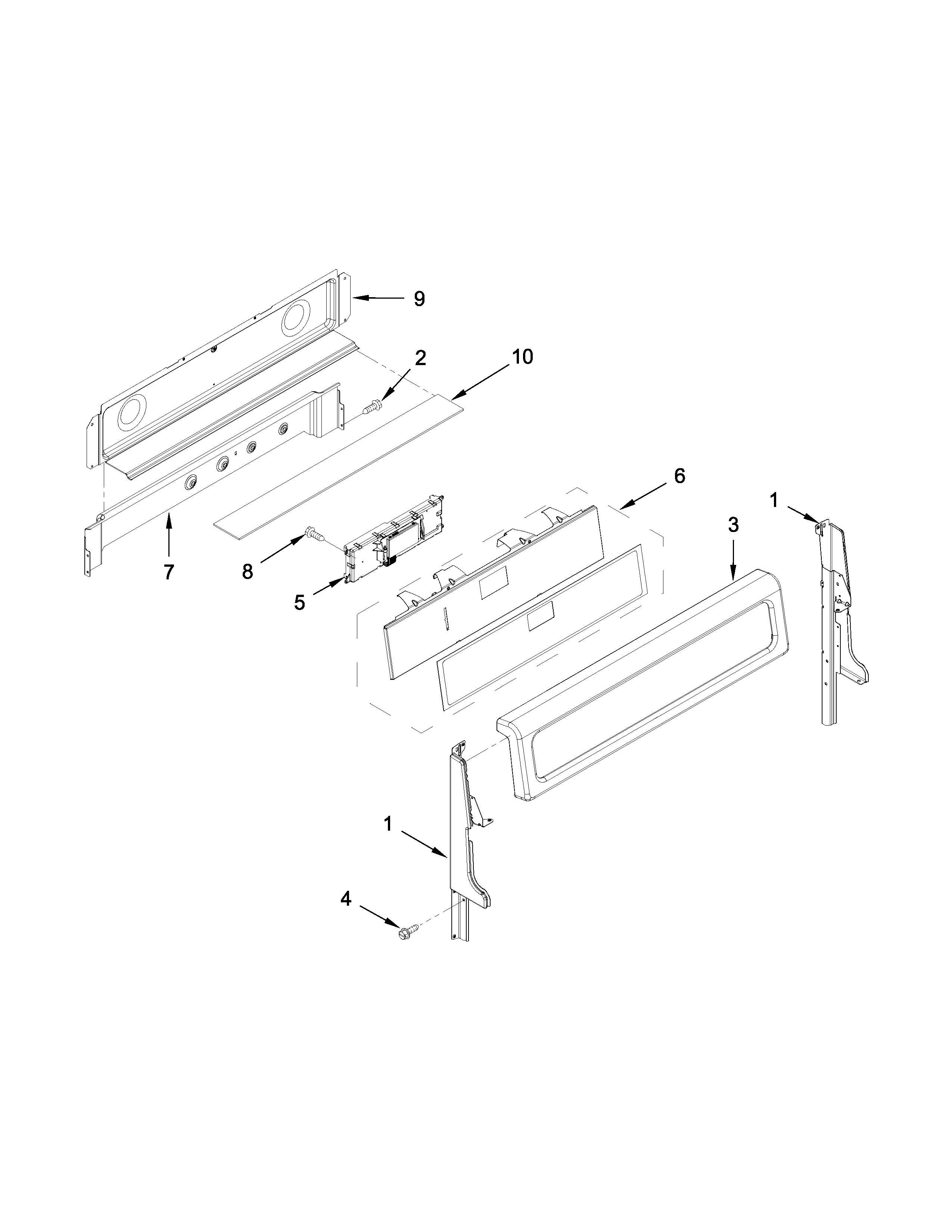

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |

Light Bulb 311255
#30

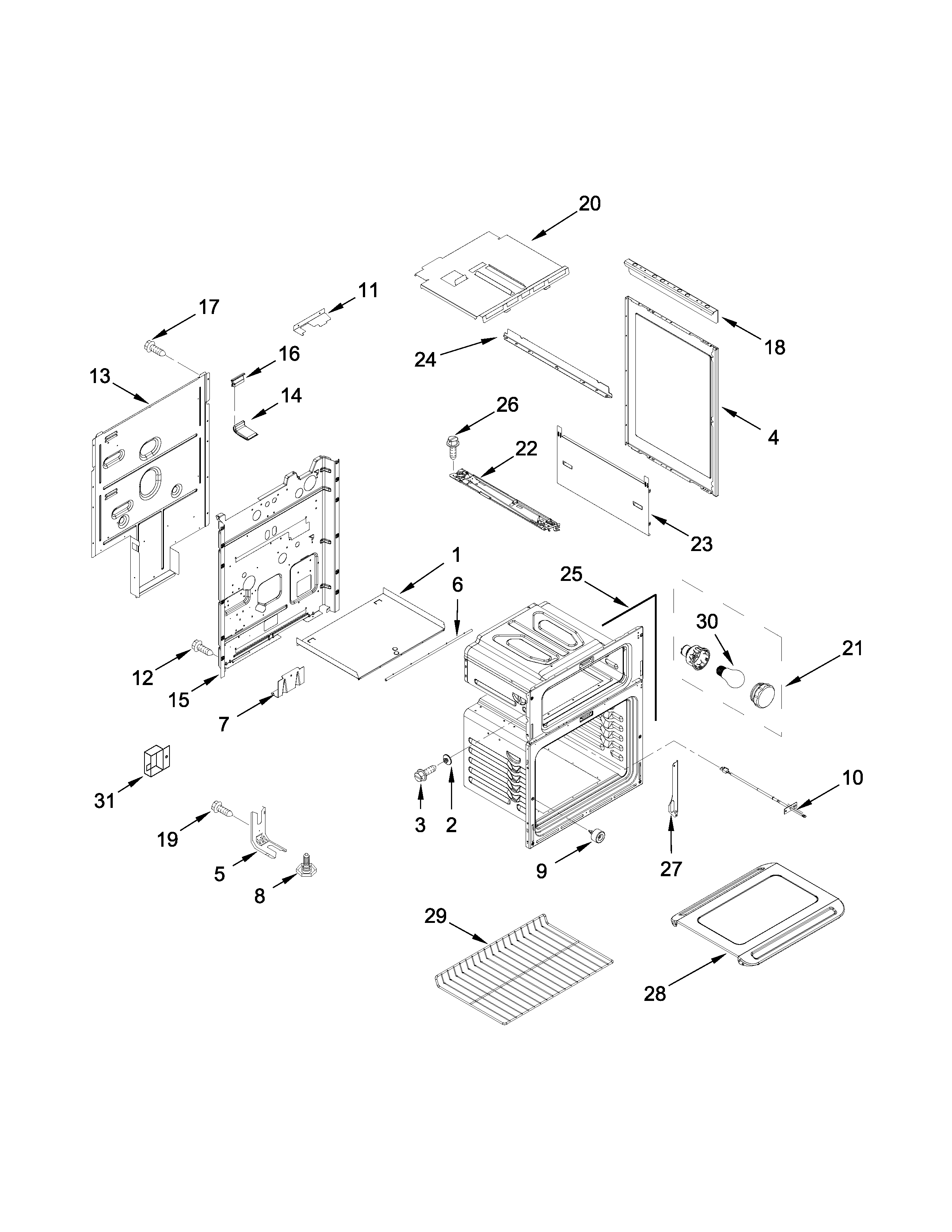

Chassis parts diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$14.94
12% OFF Phone Price : $16.94
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Affresh Cooktop Cleaner (replaces 31464) W10355051
#NI

Optional parts (not included) diagram

Affresh cooktop cleaner (replaces 31464)

Part #W10355051

BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89
16% OFF Phone Price : $12.89
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Range Bake Igniter 7432P143-60
#13

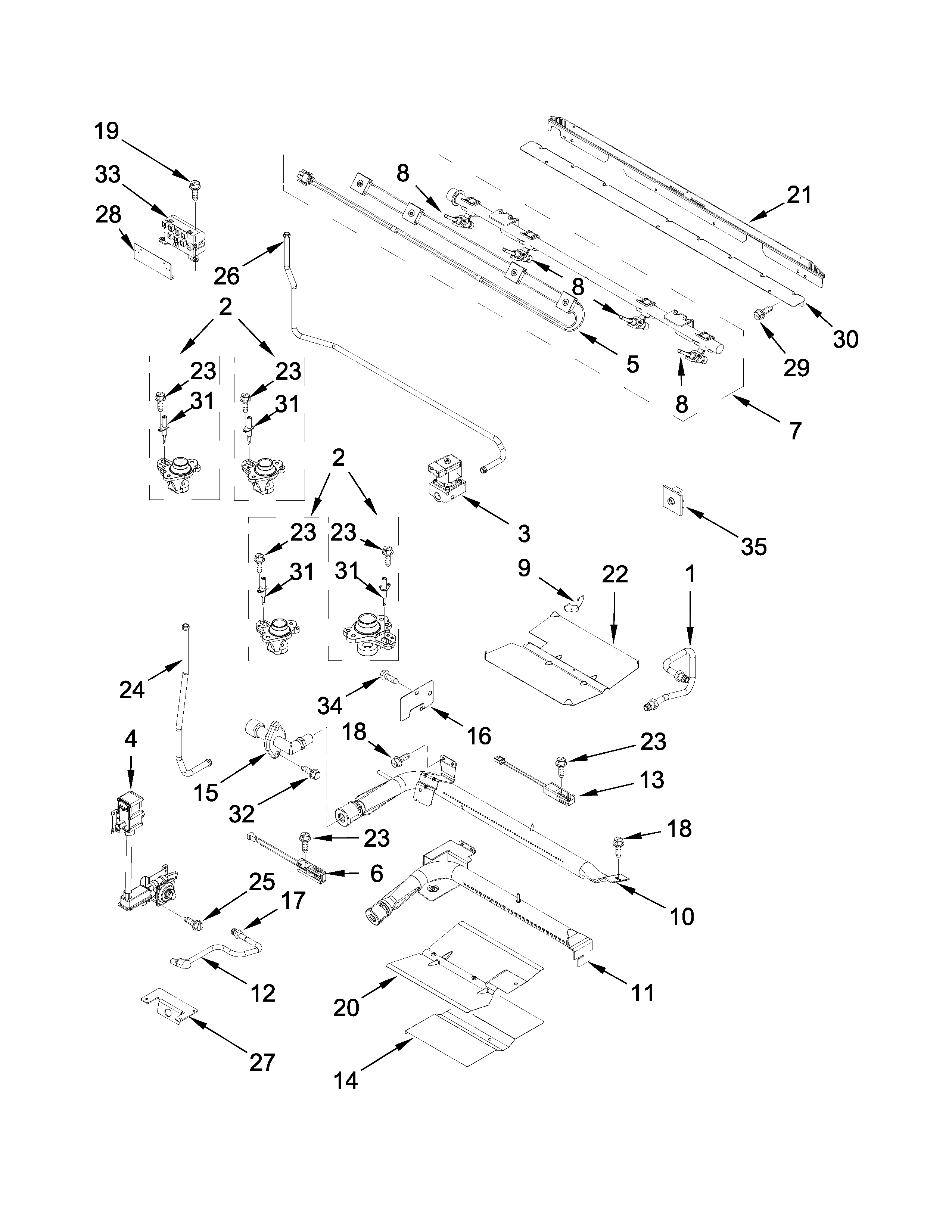

Manifold parts diagram

Range bake igniter

Part #7432P143-60

BEST SELLER
$53.99
8% OFF Phone Price : $58.99
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.18
49% OFF MSRP : $12.00
In Stock
Screw 7101P502-60
#32

Manifold parts diagram

Screw

Part #7101P502-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P502-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Range Surface Burner Valve W10206288
#8

Manifold parts diagram

Range surface burner valve

Part #W10206288

Replaced by #WPW10206288

?
Manufacturer substitution
This part replaces W10206288. Substitute parts can look different from the original.
BEST SELLER
$71.92
12% OFF MSRP : $82.00
In Stock
Range Screw W10317886
#4

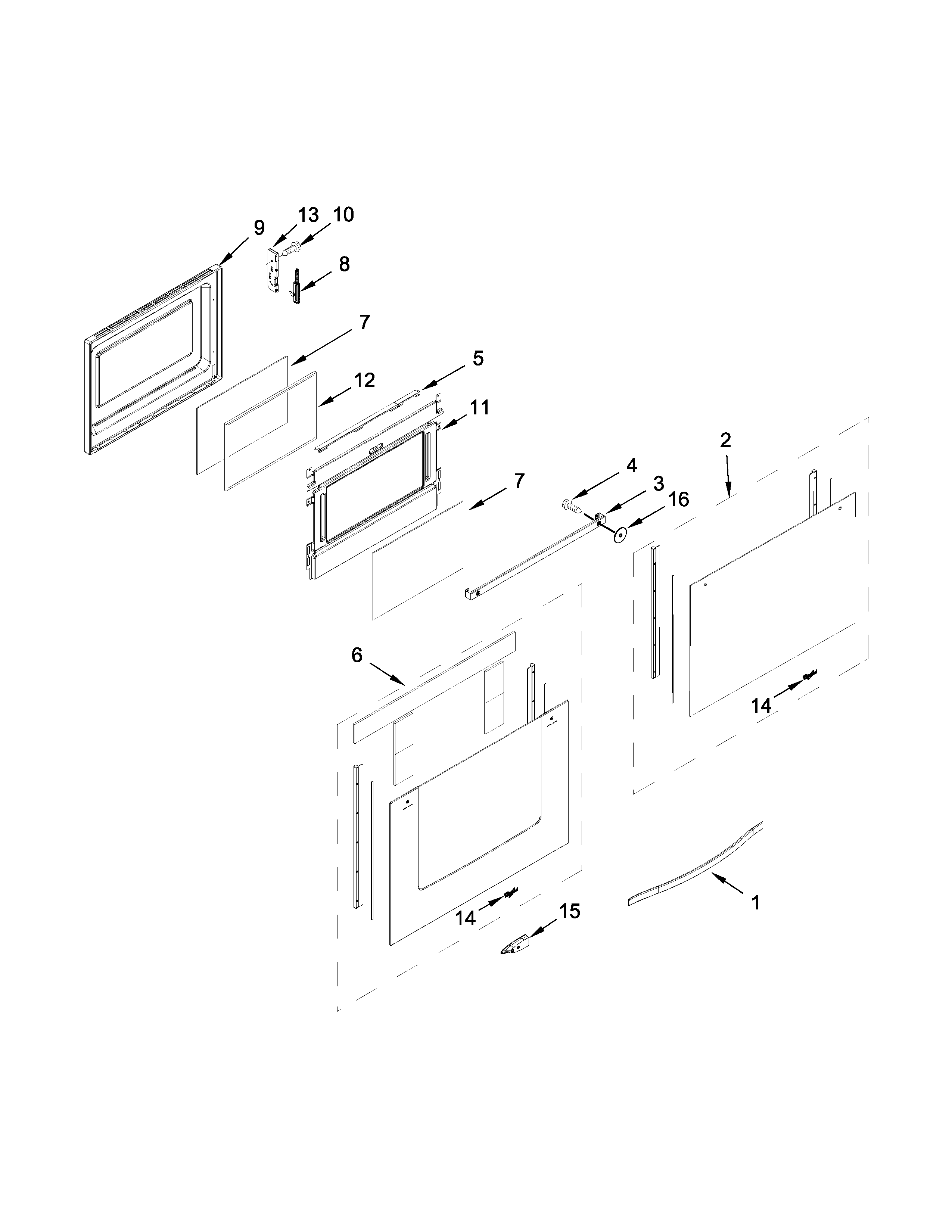

Lower door parts diagram
