Model # GTW680BSJ5WS Official GE washer

Here are the diagrams and repair parts for Official GE GTW680BSJ5WS washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

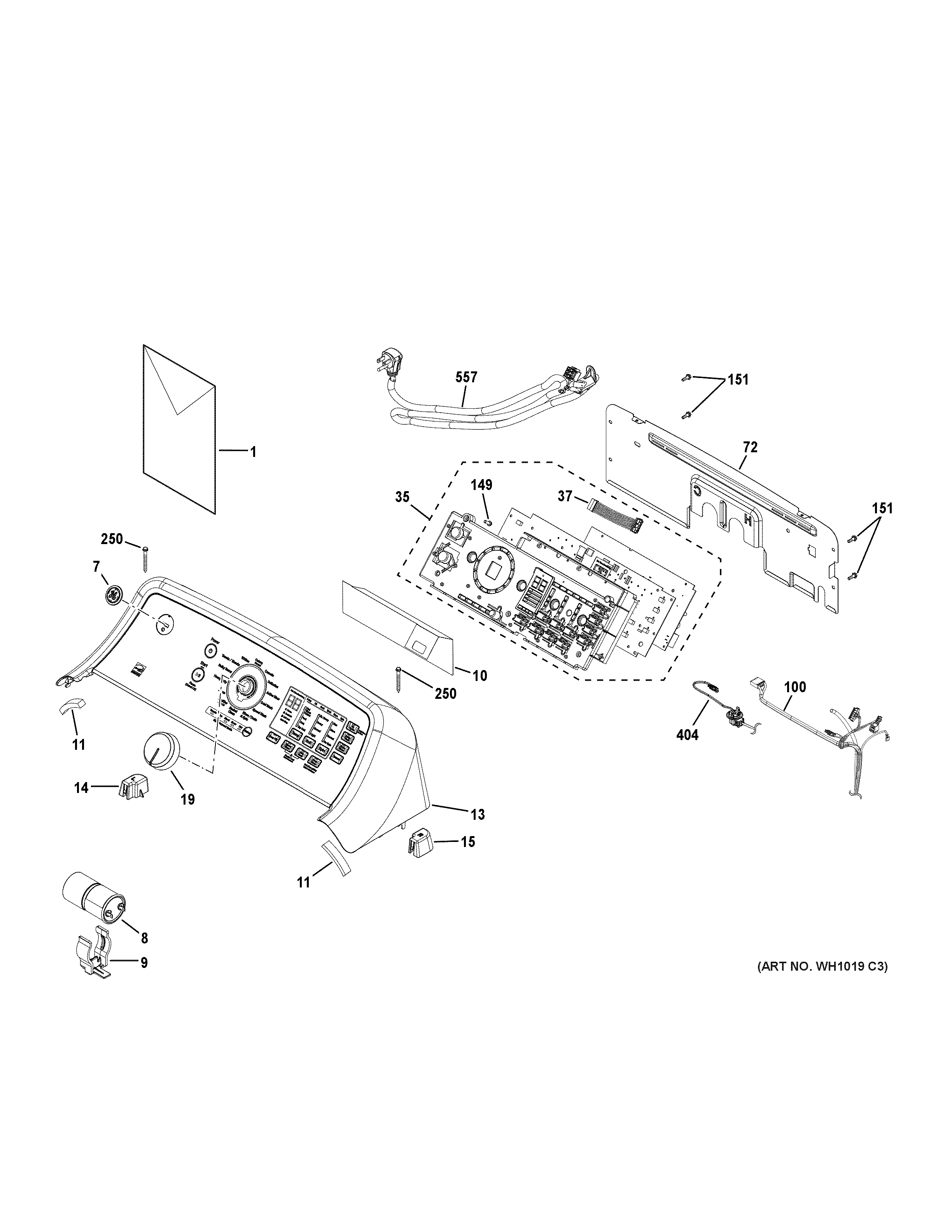

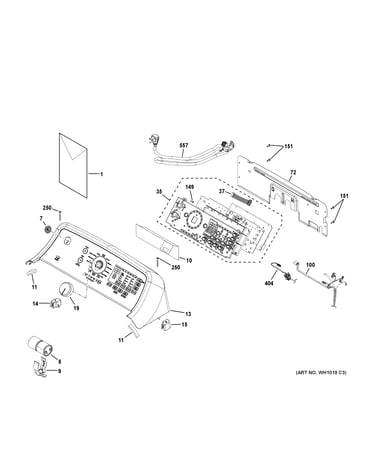

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |

Washer Shifter WH05X25036
#325

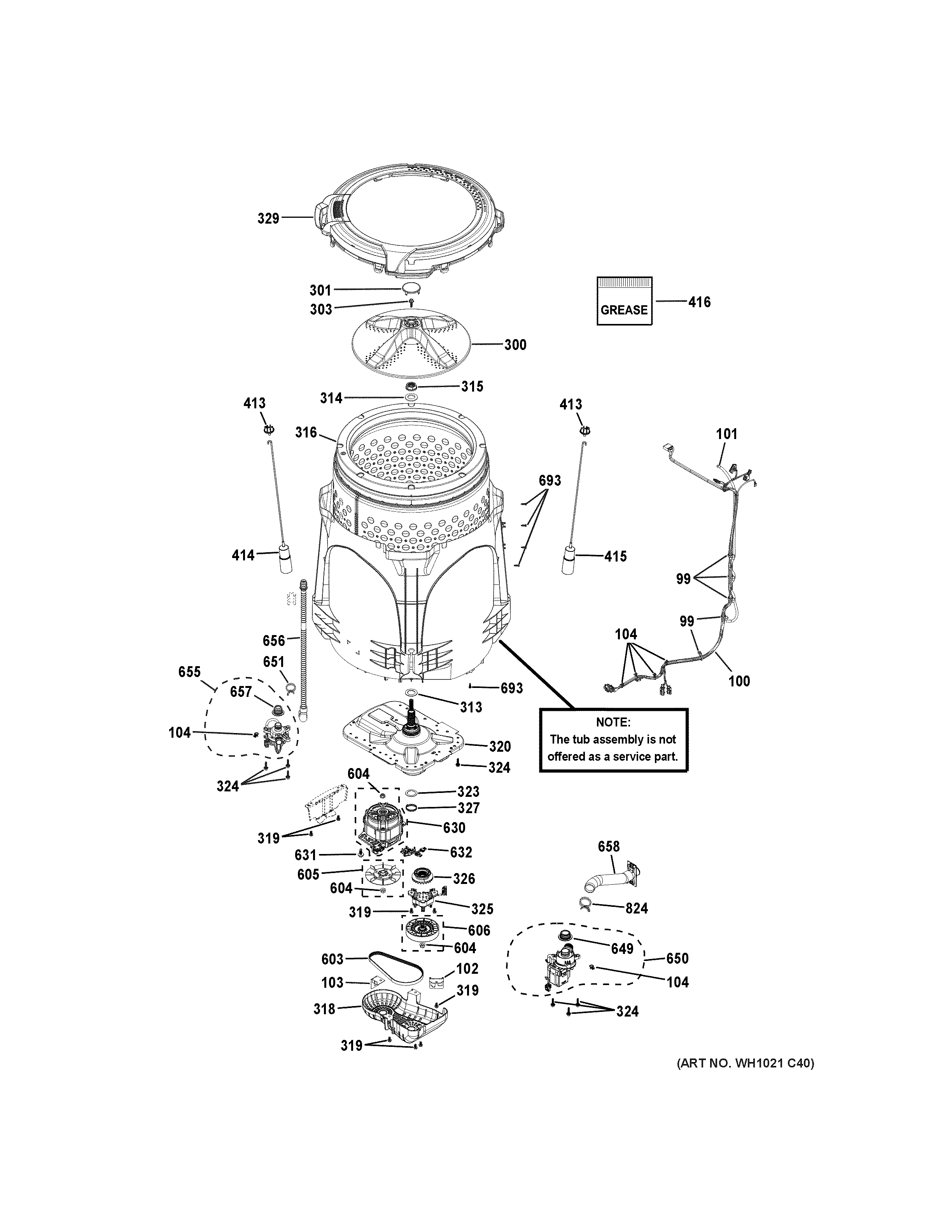

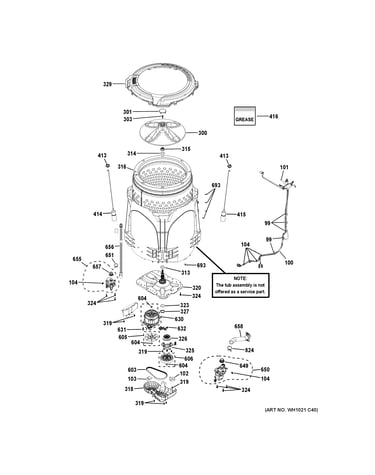

Tub & motor diagram

Washer shifter

Part #WH05X25036

Replaced by #WH03X30517

?
Manufacturer substitution
This part replaces WH05X25036. Substitute parts can look different from the original.
BEST SELLER
$54.48
8% OFF Phone Price : $59.48
In Stock
Washer Suspension Rod And Spring Assembly, Right (green) (replaces Wh16x24144) WH16X26910
#415

Tub & motor diagram

Washer suspension rod and spring assembly, right (green) (replaces wh16x24144)

Part #WH16X26910

BEST SELLER
$12.59
14% OFF Phone Price : $14.59
In Stock
Washer Drain Pump Assembly WH23X27574
#650

Tub & motor diagram

Washer drain pump assembly

Part #WH23X27574

Replaced by #WH23X28418

?
Manufacturer substitution
This part replaces WH23X27574. Substitute parts can look different from the original.
BEST SELLER
$40.85
11% OFF Phone Price : $45.85
In Stock
Washer Suspension Rod And Spring Assembly (replaces Wh16x24145) WH16X26911
#414

Tub & motor diagram

Washer suspension rod and spring assembly (replaces wh16x24145)

Part #WH16X26911

BEST SELLER
$15.24
12% OFF Phone Price : $17.24
In Stock
Washer Gear Case Pulley And Nut WH03X28859
#606

Tub & motor diagram

Washer gear case pulley and nut

Part #WH03X28859

Replaced by #WH03X32097

?
Manufacturer substitution
This part replaces WH03X28859. Substitute parts can look different from the original.
BEST SELLER
In Stock
Washer Clutch WH05X24185
#326

Tub & motor diagram

Washer clutch

Part #WH05X24185

BEST SELLER
$7.88
11% OFF Phone Price : $8.88
In Stock
Washer Speed Sensor WH12X26330
#632

Tub & motor diagram

Washer speed sensor

Part #WH12X26330

Replaced by #WH03X32158

?
Manufacturer substitution
This part replaces WH12X26330. Substitute parts can look different from the original.
BEST SELLER
In Stock
Washer Drive Belt WH01X24180
#603

Tub & motor diagram

Washer drive belt

Part #WH01X24180

BEST SELLER
$14.42
12% OFF Phone Price : $16.42
In Stock
Washer Water Inlet Valve Assembly (replaces Wh13x24058) WH13X26637
#805

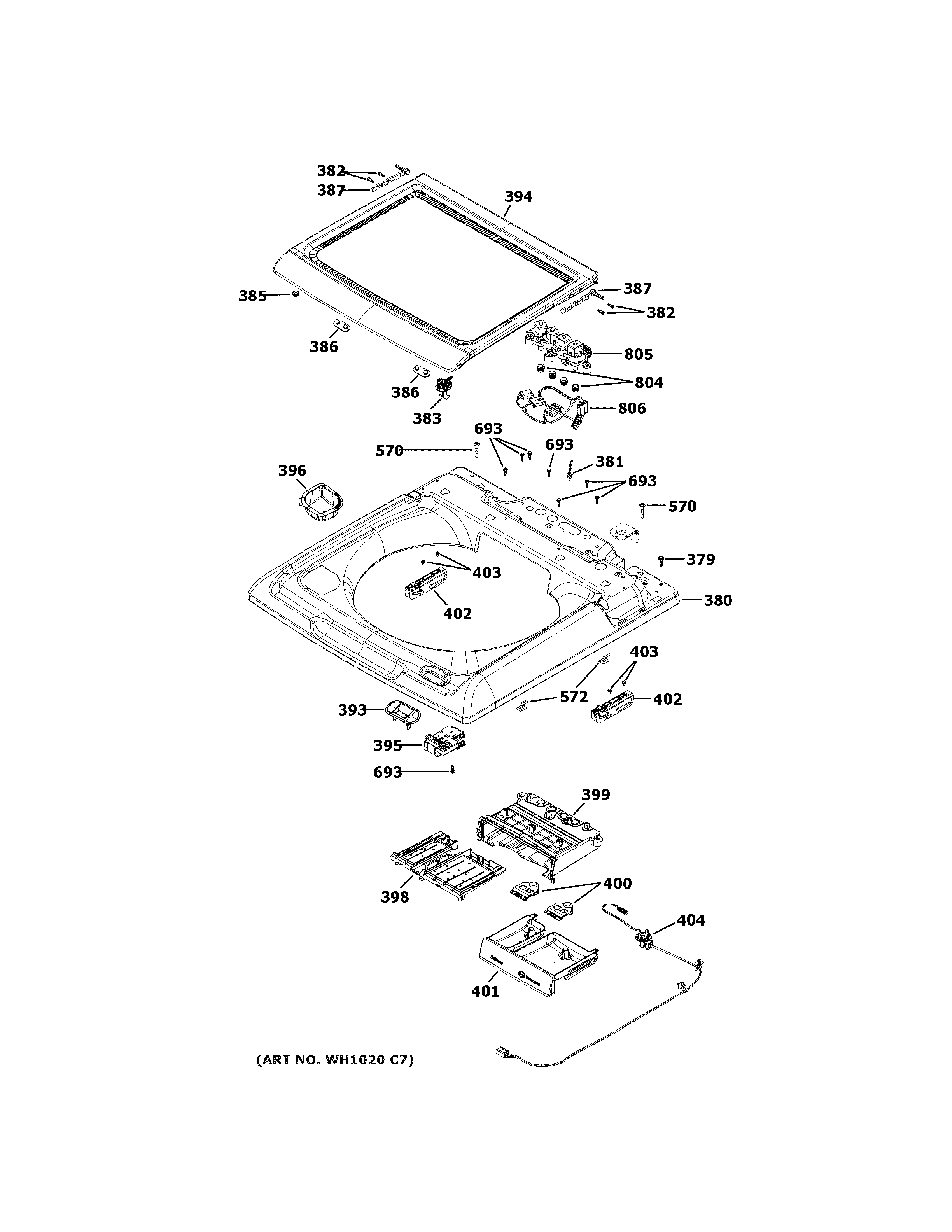

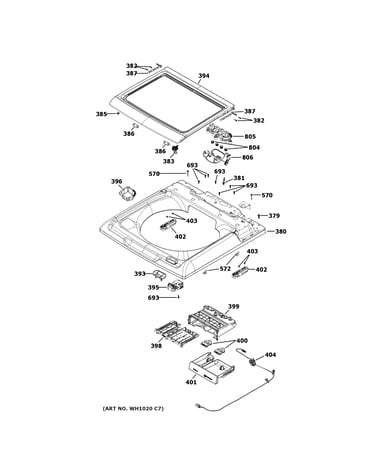

Top panel & lid diagram

Washer water inlet valve assembly (replaces wh13x24058)

Part #WH13X26637

BEST SELLER
$47.24
10% OFF Phone Price : $52.24
In Stock
Washer Hub Nut WH02X10363
#315

Tub & motor diagram

Washer hub nut

Part #WH02X10363

BEST SELLER
$13.21
13% OFF Phone Price : $15.21
In Stock
