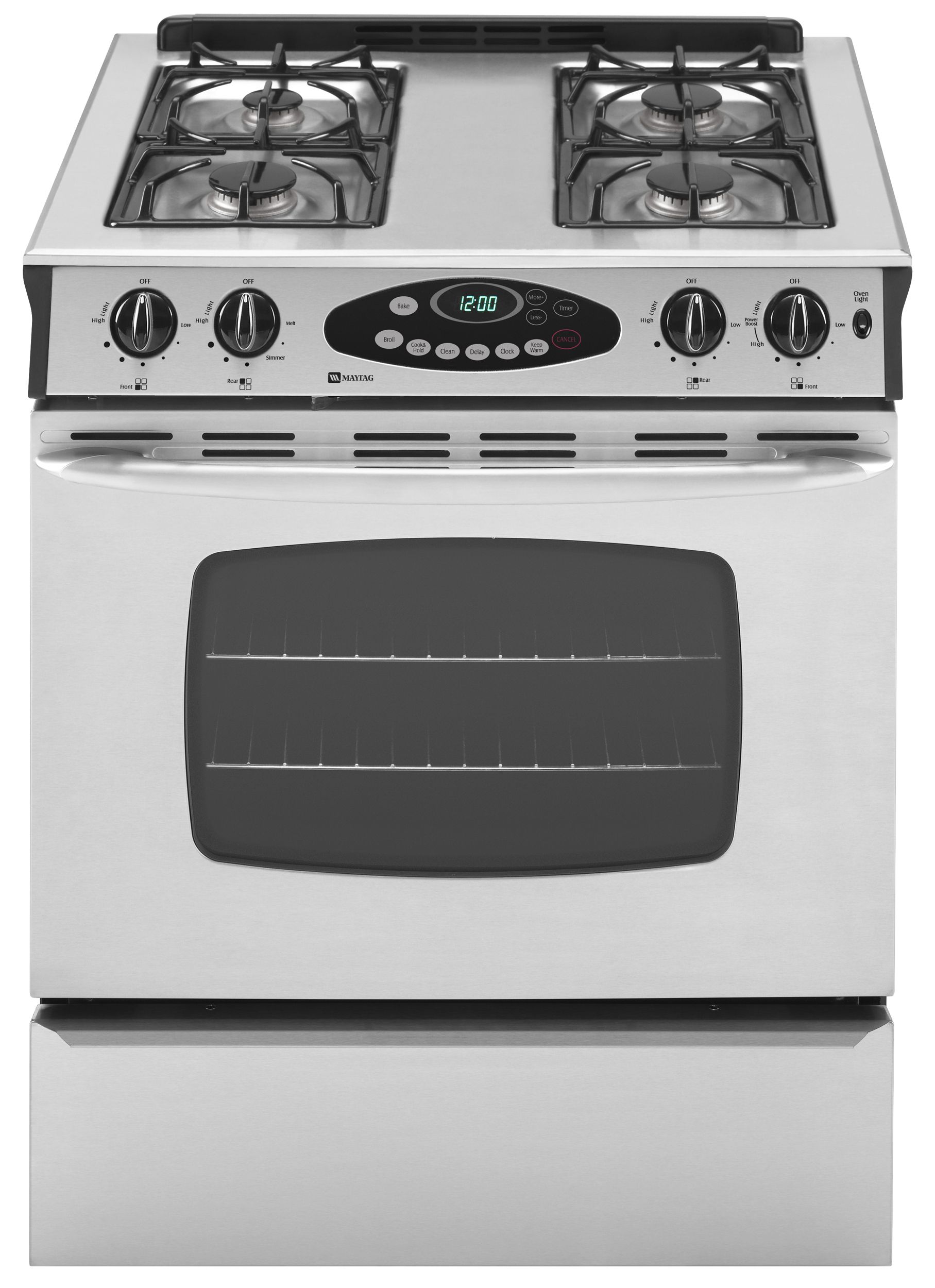

Maytag MGS5752BDW gas slide-in range Parts
Here are the diagrams and repair parts for Maytag MGS5752BDW gas slide-in range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts forMGS5752BDW Ranges
Oven/base diagram
Cooktop Washer Screw
Part #7101P124-60Replaced by #WP74003976
Manufacturer substitutionThis part replaces 7101P124-60. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0617% OFF Phone Price : $6.06
Qty

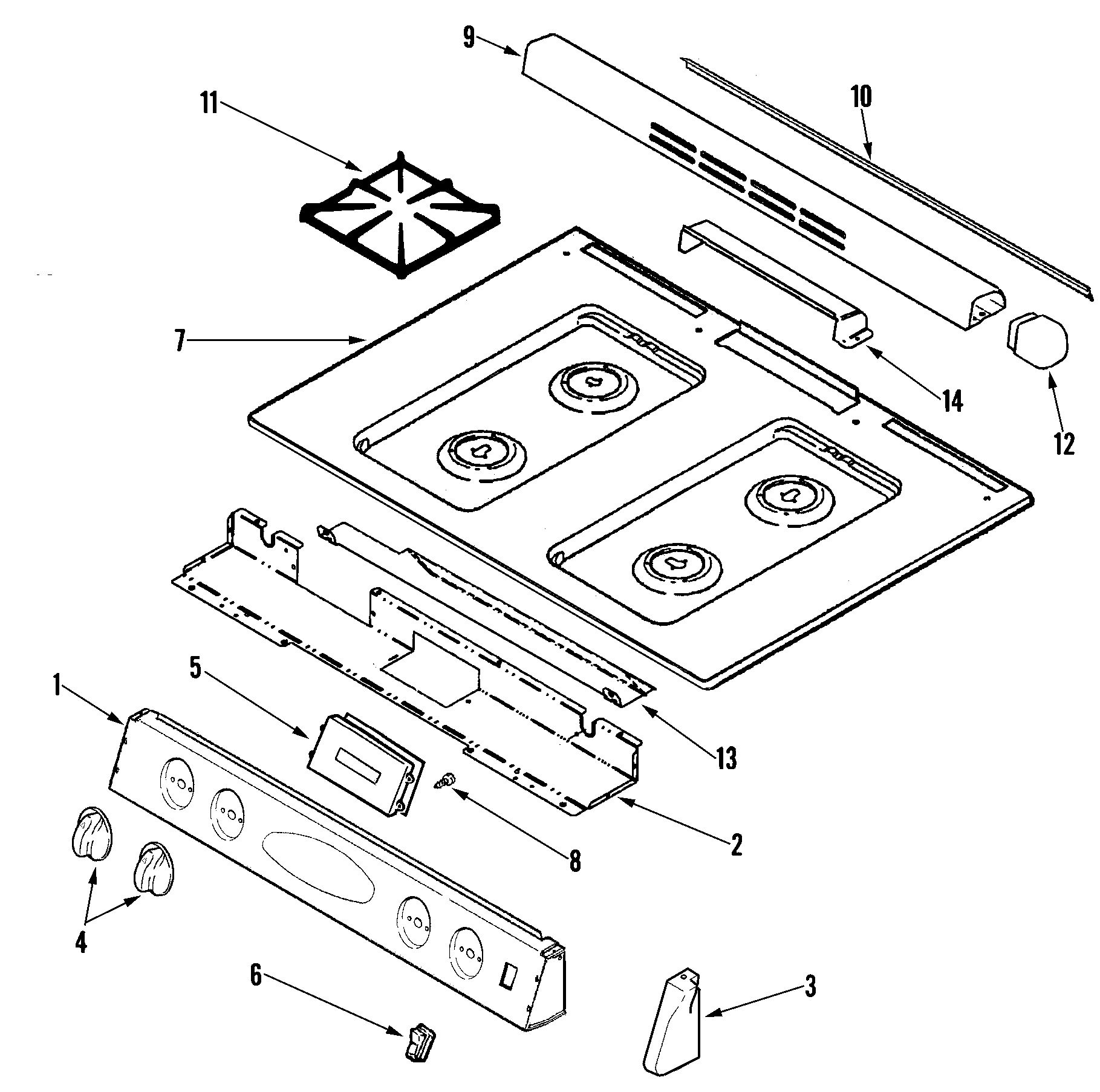

Control panel/top assembly diagram
Range Screw
Part #74004005Replaced by #WP74004005

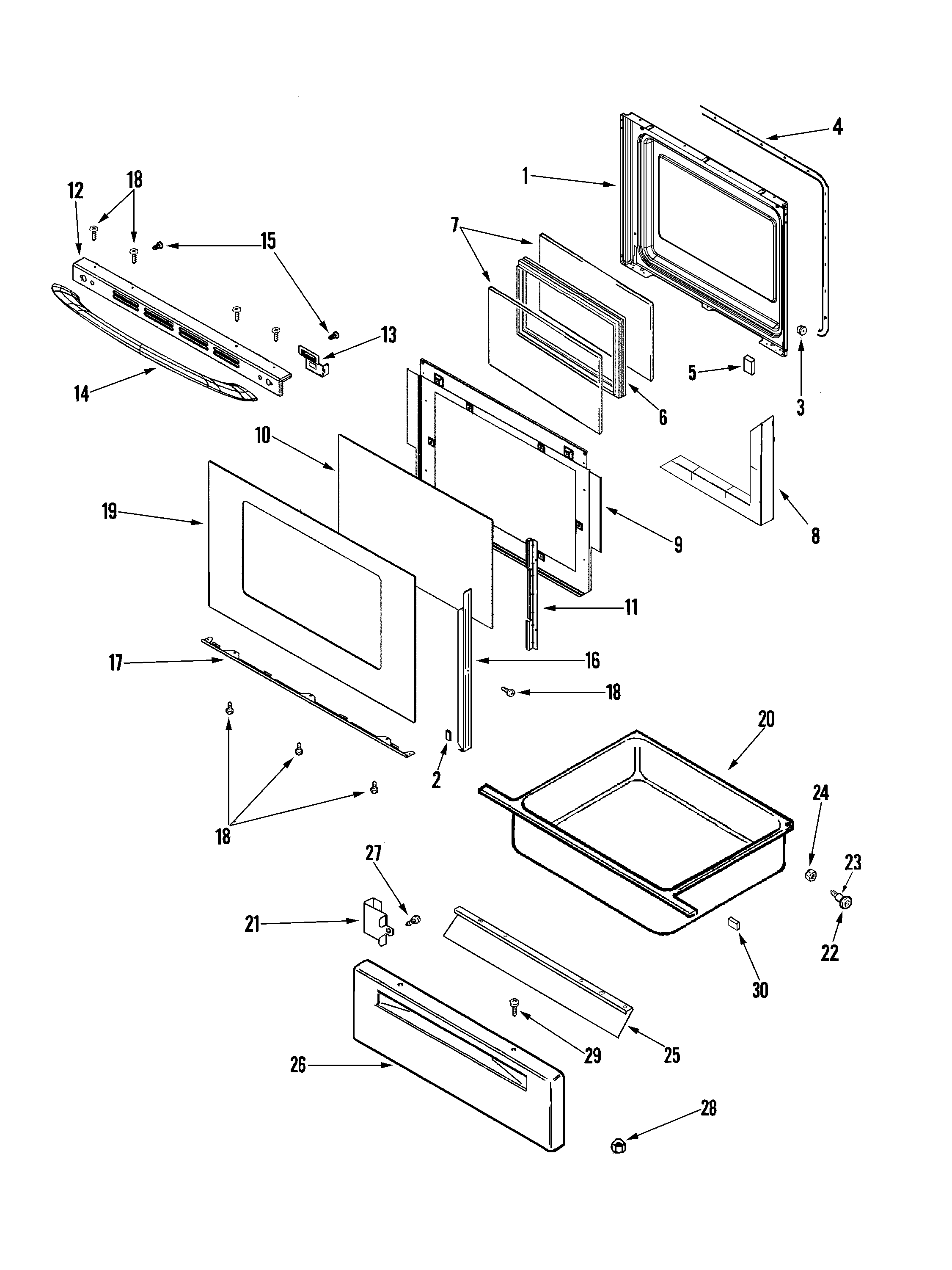

Manufacturer substitutionThis part replaces 74004005. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyDoor/drawer diagram
Door Bracket
Part #74009699Replaced by #3801F832-45

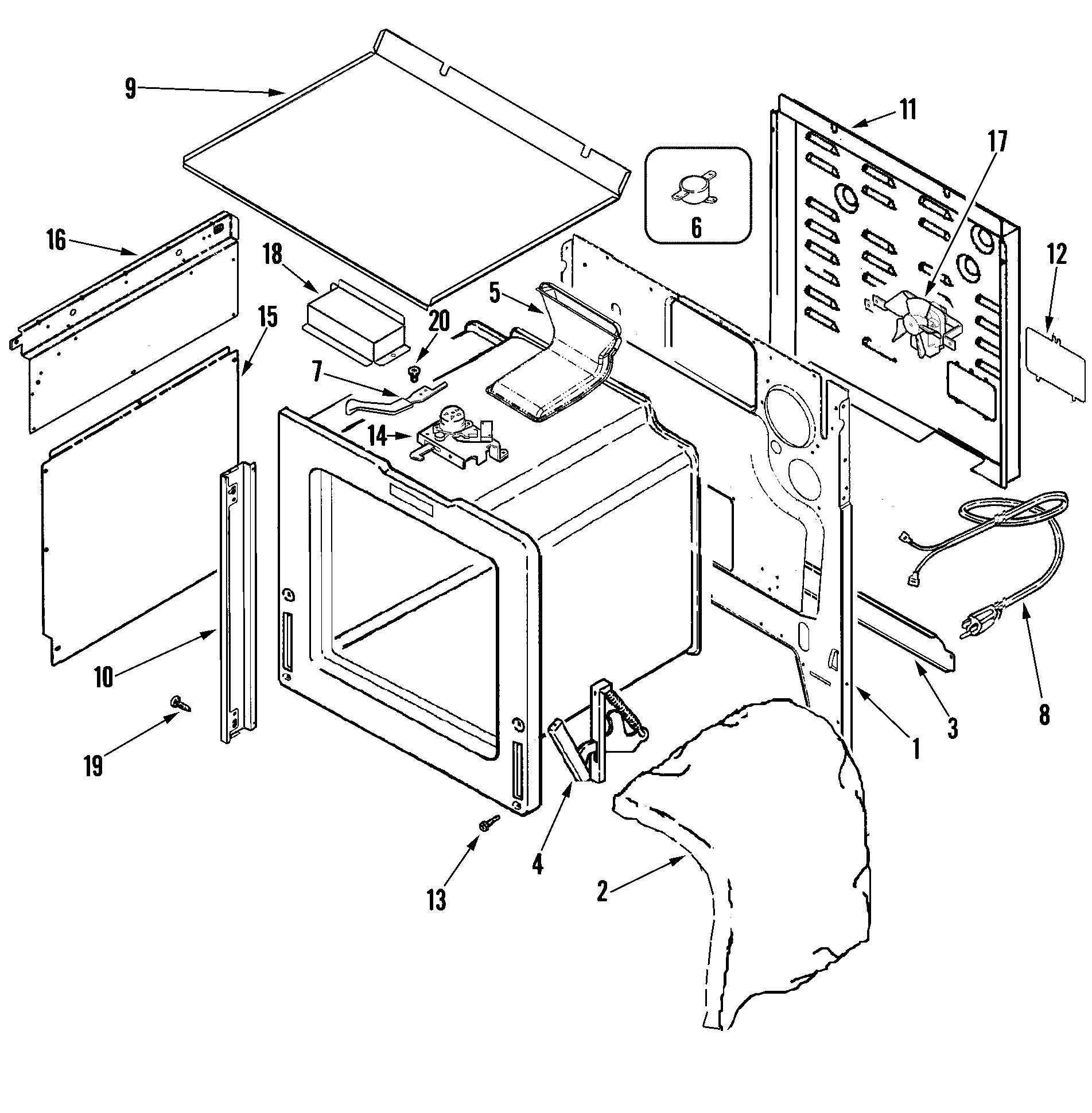

Manufacturer substitutionThis part replaces 74009699. Substitute parts can look different from the original.In Stock$40.89QtyBody diagram
Door Latch
Part #74009600Replaced by #8002P094-60

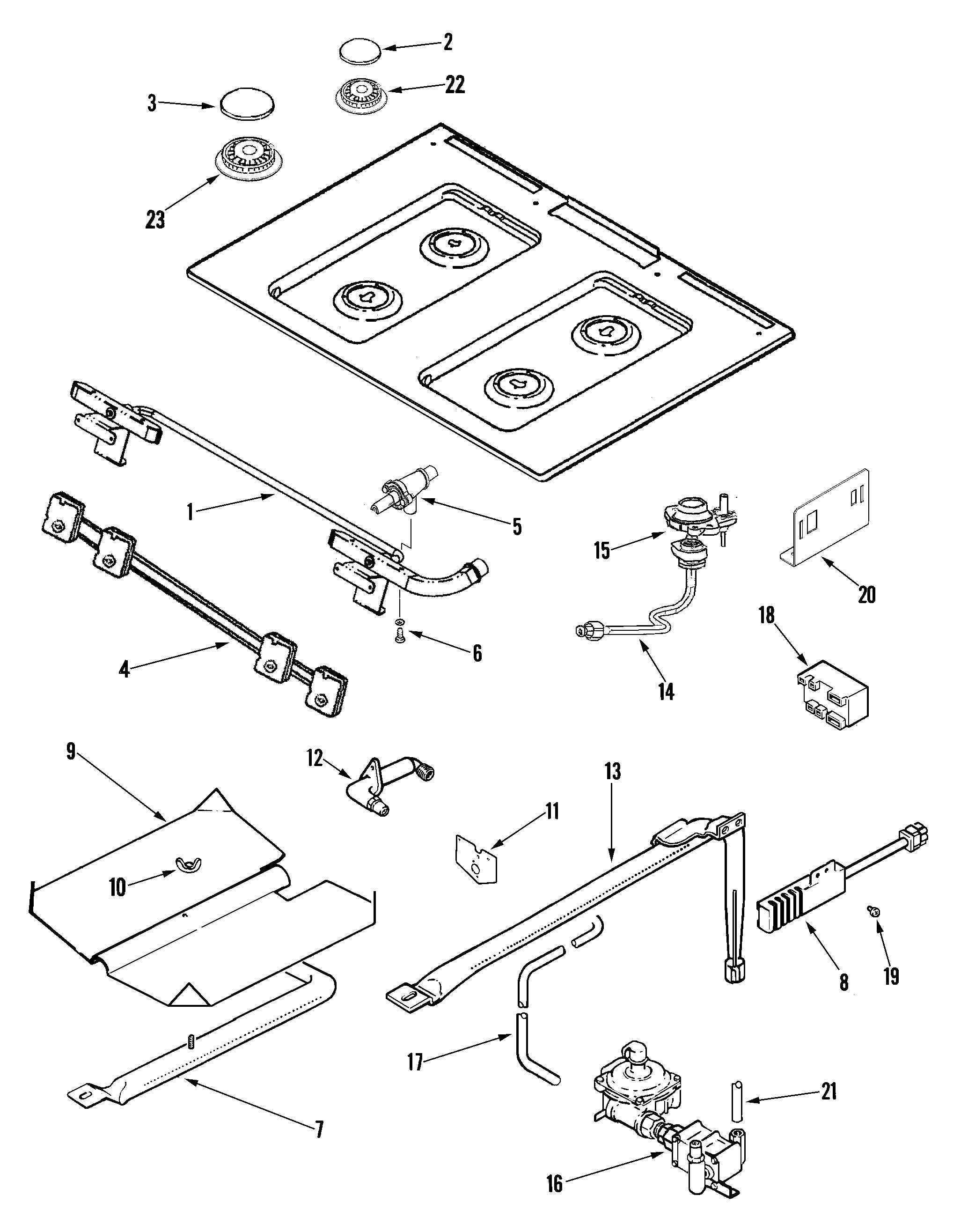

Manufacturer substitutionThis part replaces 74009600. Substitute parts can look different from the original.In Stock$220.13QtyGas controls diagram
Broiler Fitting
Part #74010901Replaced by #WP74010901
Manufacturer substitutionThis part replaces 74010901. Substitute parts can look different from the original.In Stock$98.92QtyRange Storage Drawer Roller
Part #74004078Replaced by #WP74004078
Manufacturer substitutionThis part replaces 74004078. Substitute parts can look different from the original.In Stock$10.3516% OFF Phone Price : $12.35QtyControl panel/top assembly diagram
Clock Overlay
Part #74010681Replaced by #WP5701M887-60
Manufacturer substitutionThis part replaces 74010681. Substitute parts can look different from the original.In Stock$413.73$12.00 OFF Phone Price : $425.73QtyOven/base diagram
Pedestal
Part #74010899Replaced by #4020W035-80

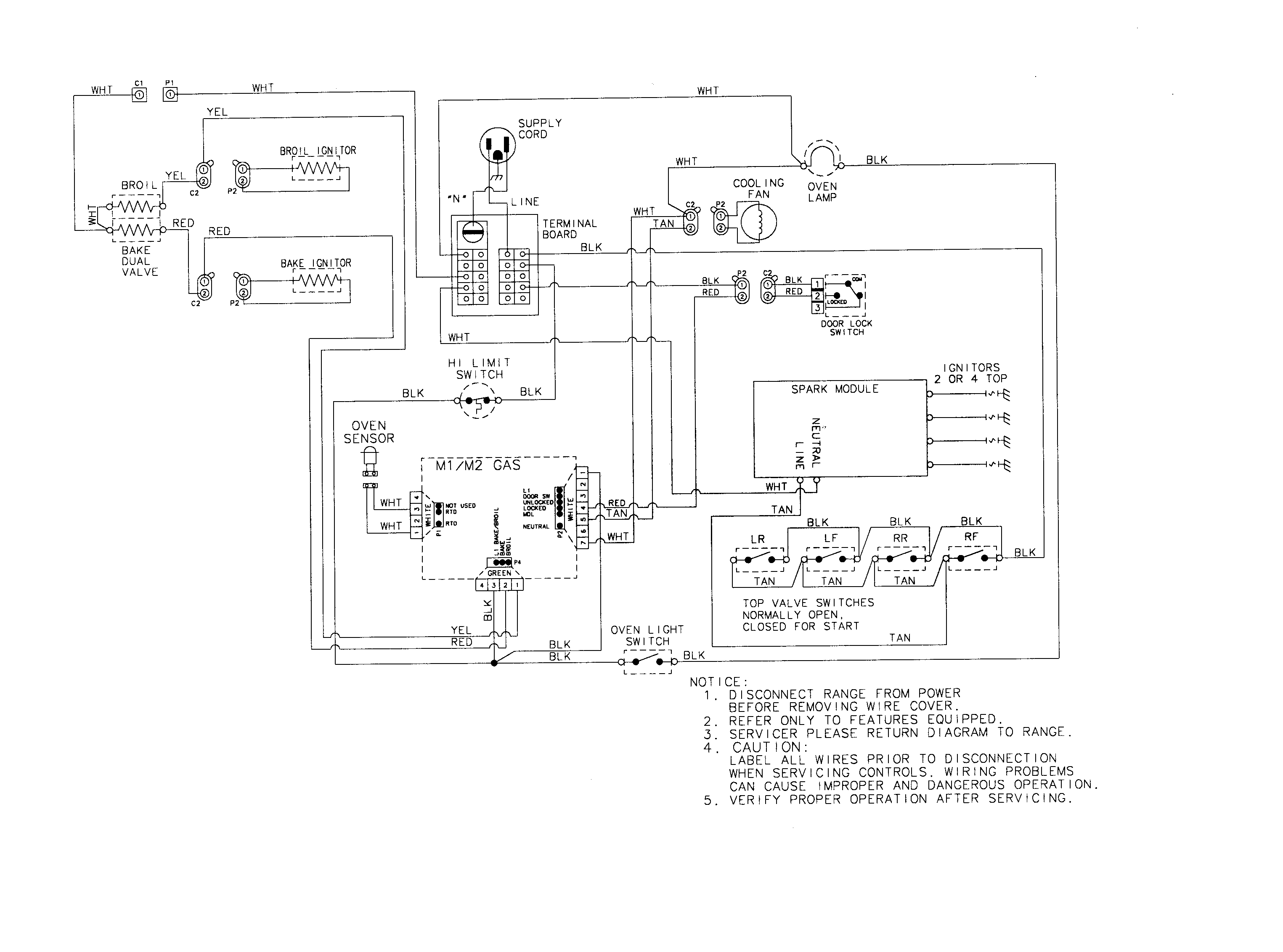

Manufacturer substitutionThis part replaces 74010899. Substitute parts can look different from the original.In Stock$115.00QtySupplemental information diagram
Harness
Part #74010914Replaced by #W10173467
Manufacturer substitutionThis part replaces 74010914. Substitute parts can look different from the original.In Stock$66.62QtyBody diagram
Panel, Shiel
Part #74010822Replaced by #2618F206-51
Manufacturer substitutionThis part replaces 74010822. Substitute parts can look different from the original.In Stock$120.49Qty
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure...
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen...
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig...
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem...
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite...
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen...
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin...
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it ...
Repair time and Difficulty
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how....
Repair time and Difficulty
15 minutes or less
