Kenmore
Upright Vacuum

Model #11632212200 Kenmore vacuum

Here are the repair parts and diagrams for your Kenmore 11632212200 vacuum.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileOwner’s manual

Showing 10 of 84 parts

Window Switch

#2

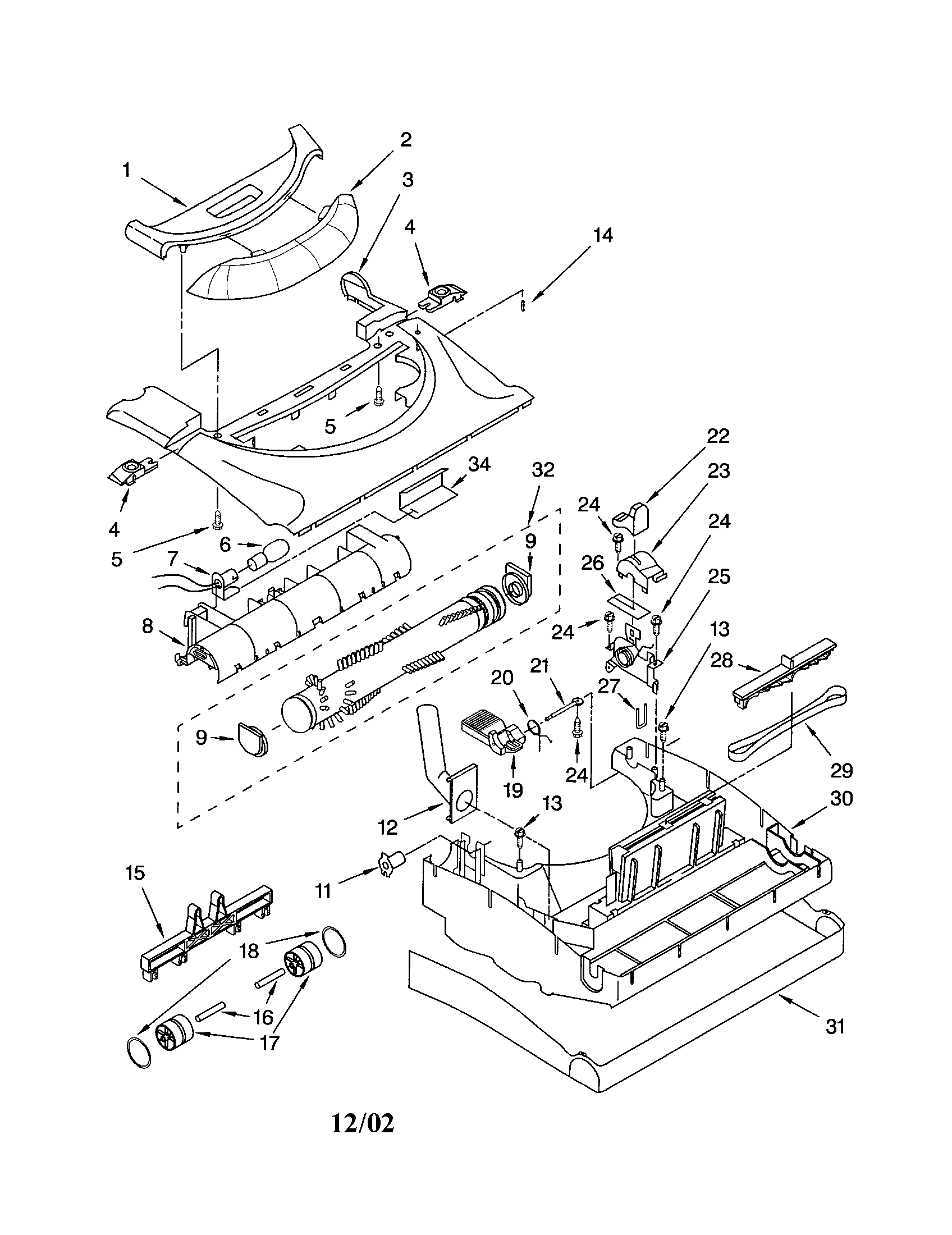

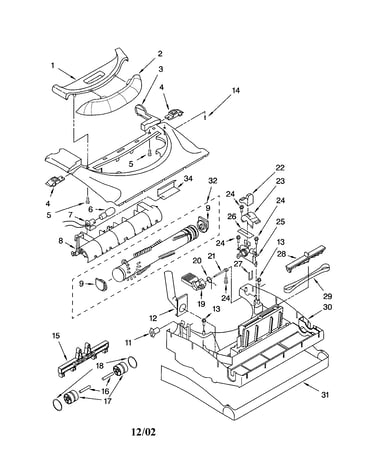

Nozzle Diagram

Window switch

Part #4370410
$12.29

In Stock

Vacuum On/Off Switch

#3

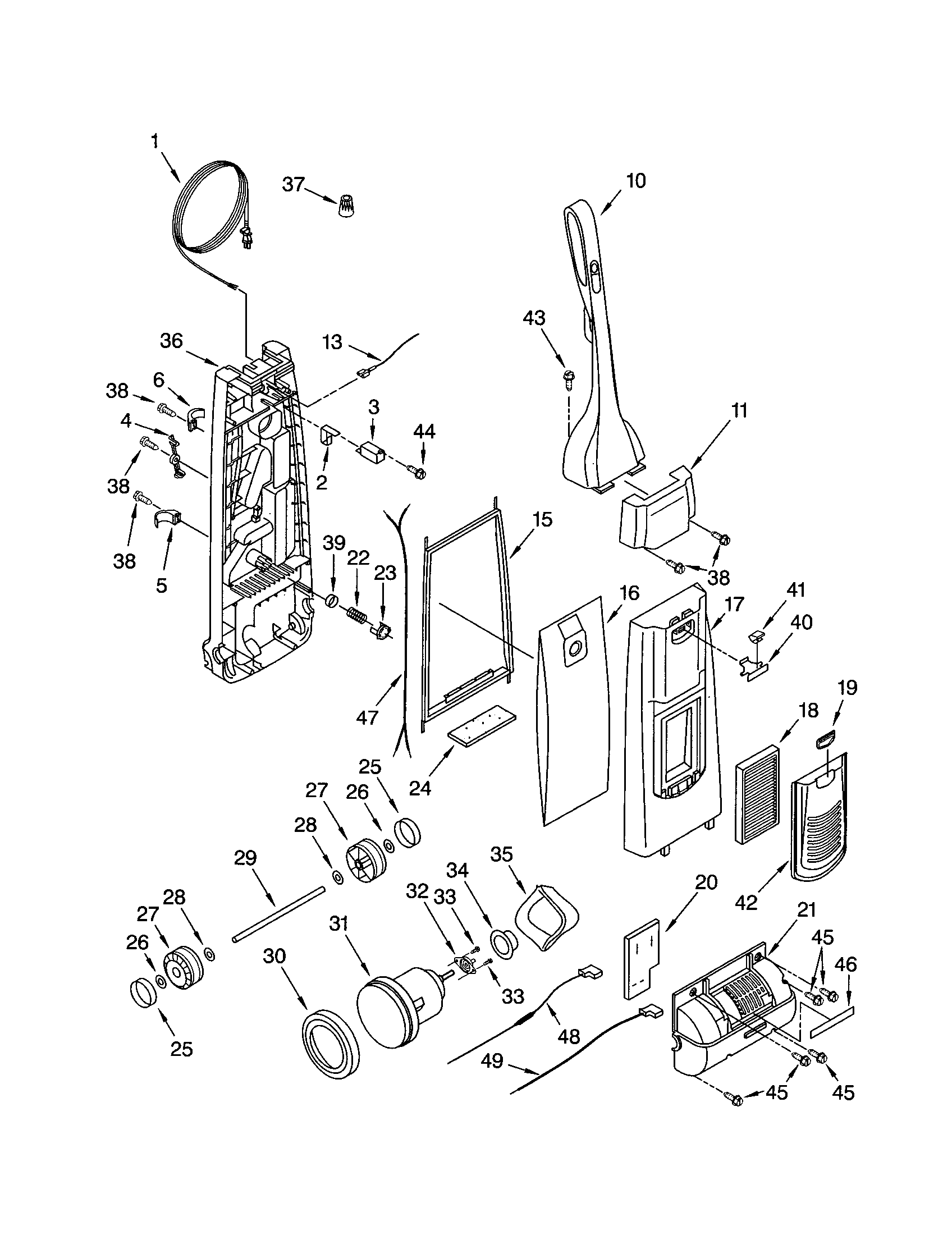

Dust compartment and motor Diagram

Vacuum on/off switch

Part #4368653
?
Manufacturer substitution
This part replaces 4368653. Substitute parts can look different from the original.
This part replaces 4368653
This item is not returnable
$7.22

Back Order

Vacuum HEPA Bag, Type Q, 2-pack

#16

Dust compartment and motor Diagram

Vacuum hepa bag, type q, 2-pack

Part #53291
?
Manufacturer substitution
This part replaces 4370418. Substitute parts can look different from the original.
This part replaces 4370418
$11.99

In Stock

Vacuum Crevice Tool

#2

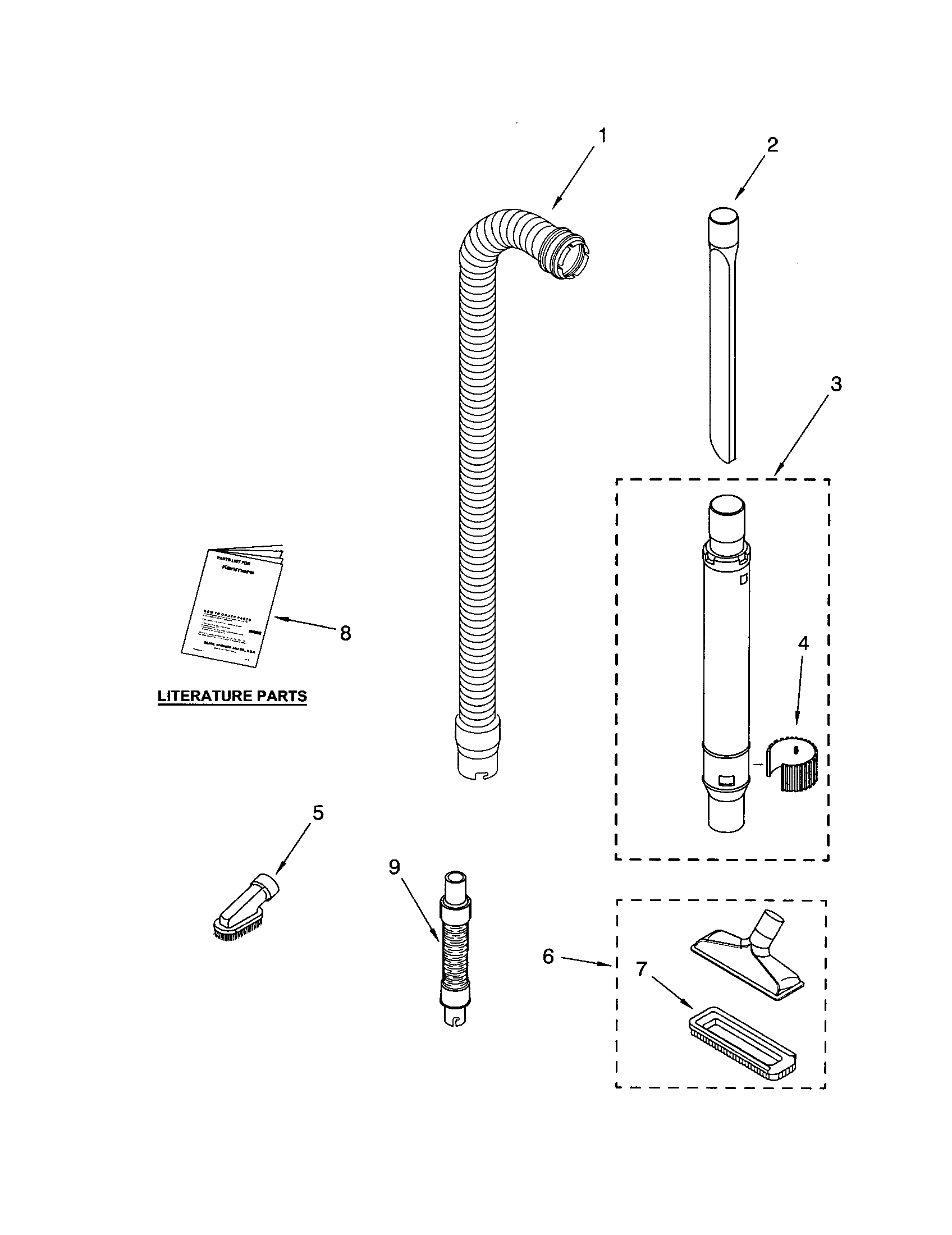

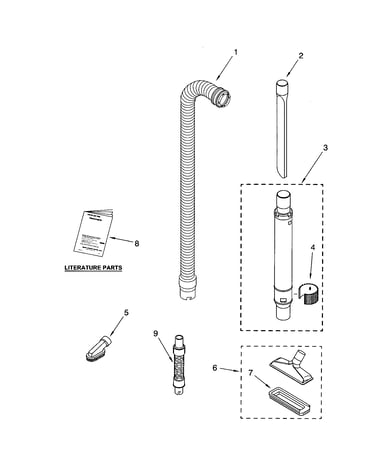

Hose and attachment Diagram

Vacuum crevice tool

Part #4368684
?
Manufacturer substitution
This part replaces 4368684. Substitute parts can look different from the original.
This part replaces 4368684
$11.09

In Stock

Vacuum Beater Bar Belt

#29

Nozzle Diagram

Vacuum beater bar belt

Part #KC28SCZPZ000
?
Manufacturer substitution
This part replaces 4369591. Substitute parts can look different from the original.
This part replaces 4369591
This item is not returnable
$4.83

Back Order

Vacuum Secondary Filter

#24

Dust compartment and motor Diagram

Vacuum secondary filter

Part #4370432
?
Manufacturer substitution
This part replaces 4370432. Substitute parts can look different from the original.
This part replaces 4370432

Get free shipping with Automatic Reorder

$40.47

In Stock

Vacuum Beater Bar

#32

Nozzle Diagram

Vacuum beater bar

Part #8192015
?
Manufacturer substitution
This part replaces 8174968. Substitute parts can look different from the original.
This part replaces 8174968
$49.36

In Stock

Vacuum Handle Release Pedal

#19

Nozzle Diagram

Vacuum handle release pedal

Part #4370394
?
Manufacturer substitution
This part replaces 4370394. Substitute parts can look different from the original.
This part replaces 4370394
This item is not returnable
$6.21

In Stock

Vacuum Light Bulb

#6

Nozzle Diagram

Vacuum light bulb

Part #5240
?
Manufacturer substitution
This part replaces 4370018. Substitute parts can look different from the original.
This part replaces 4370018
$9.15

In Stock

Vacuum Exhaust Filter

#18

Dust compartment and motor Diagram

Vacuum exhaust filter

Part #KC38KCEN1000
?
Manufacturer substitution
This part replaces 8175062. Substitute parts can look different from the original.
This part replaces 8175062

Get free shipping with Automatic Reorder

$19.77

In Stock
