Sharp R-430BK microwave

Sharp R-430BK microwave Parts

Here are the diagrams and repair parts for Sharp R-430BK microwave, as well as links to manuals and error code tables, if available.

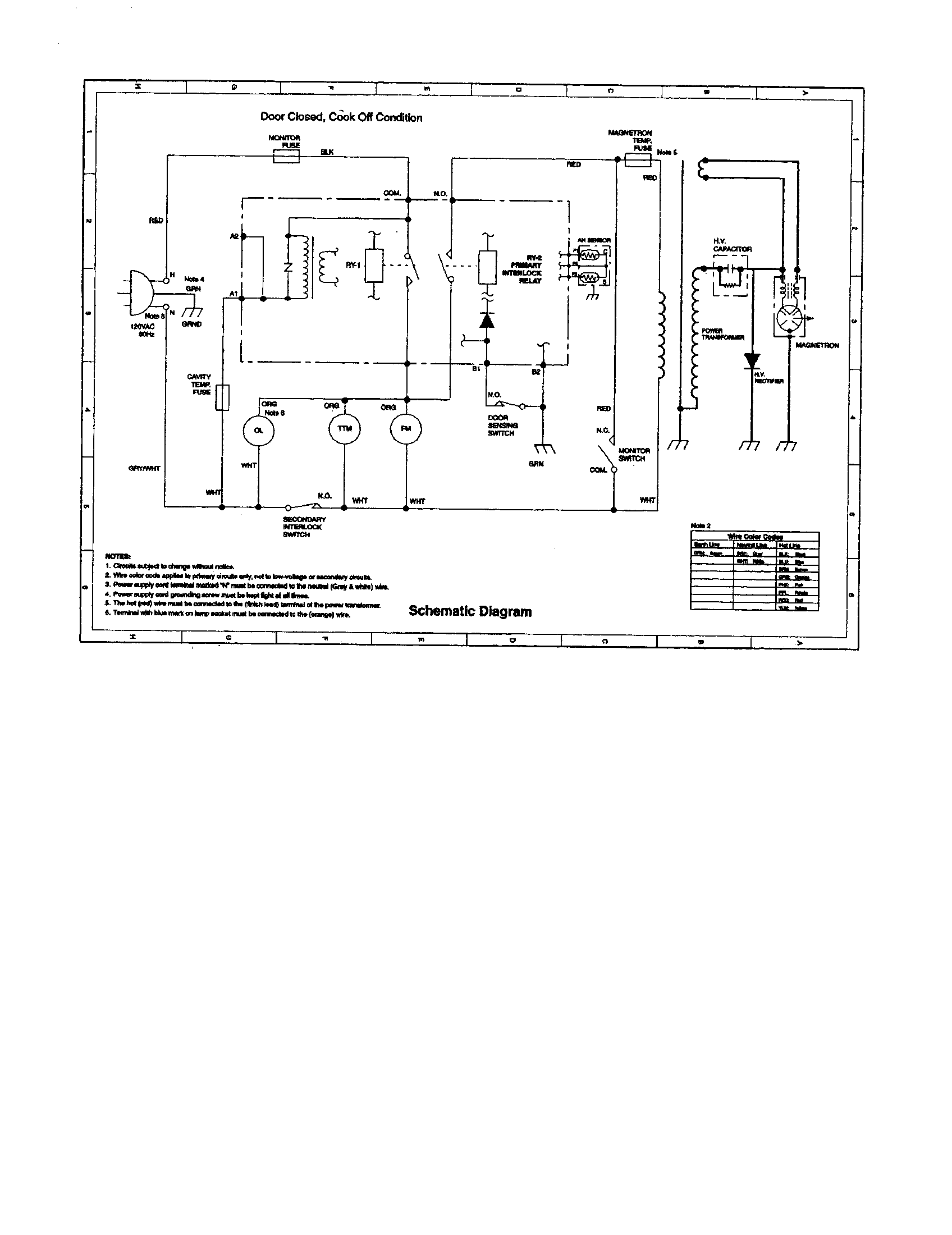

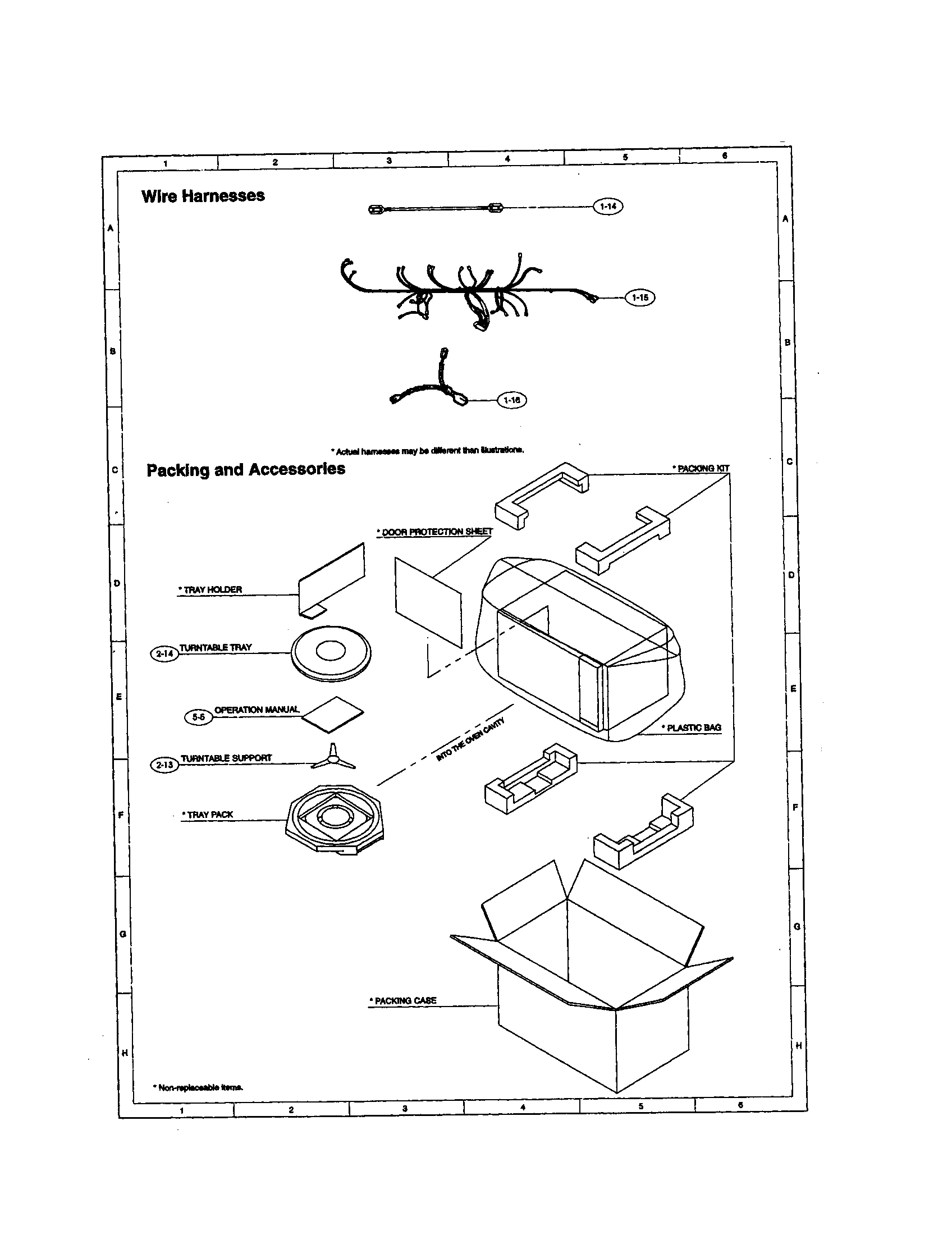

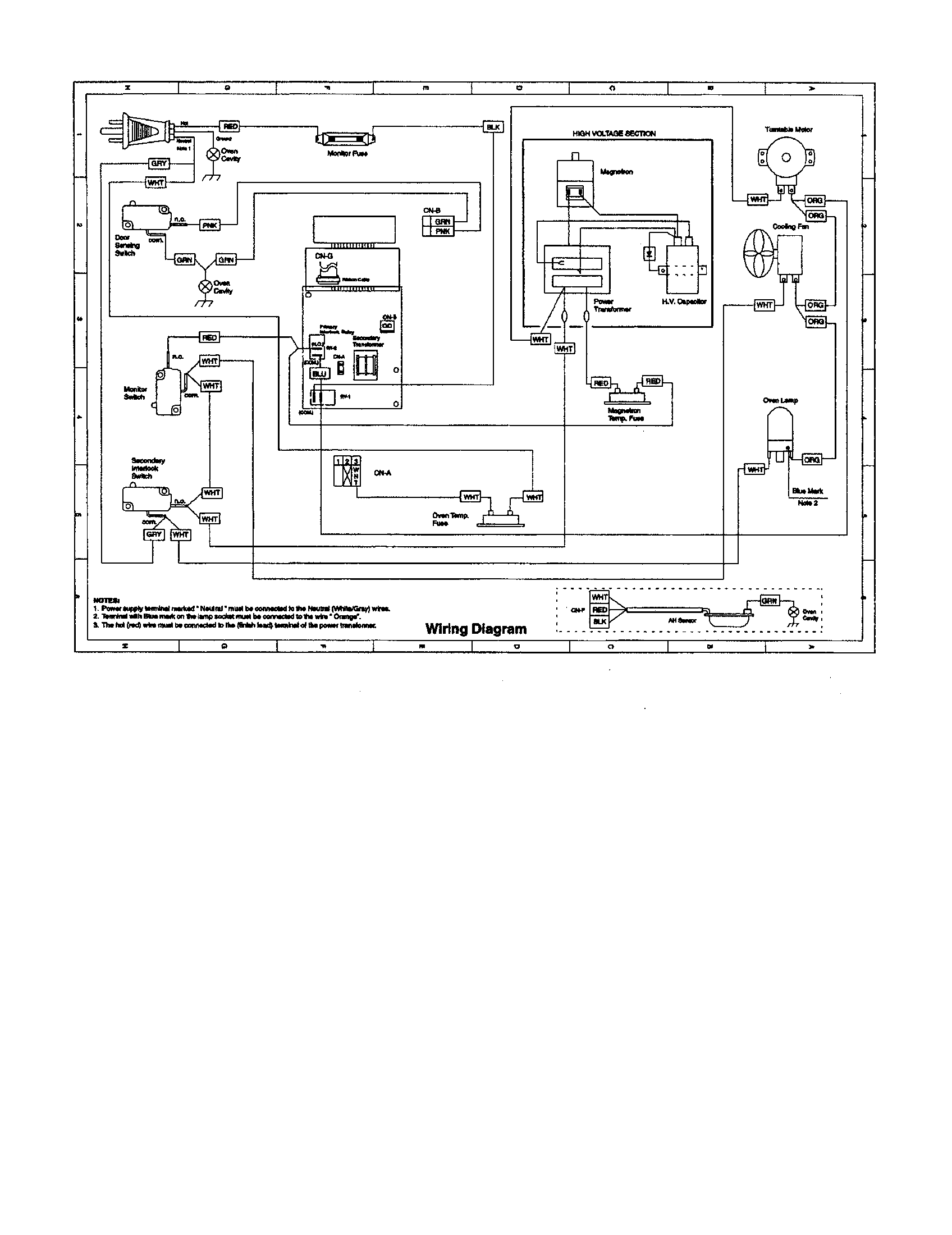

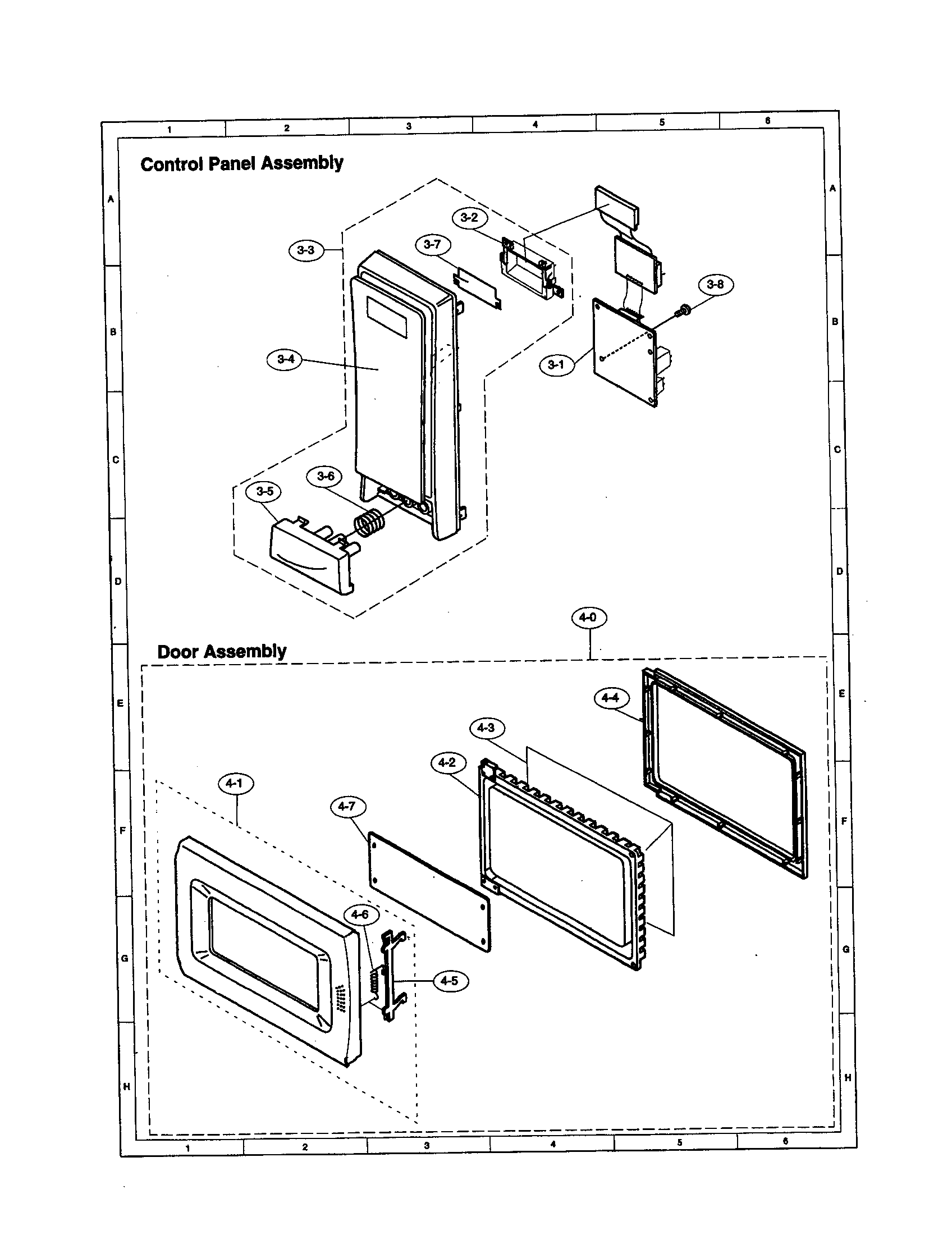

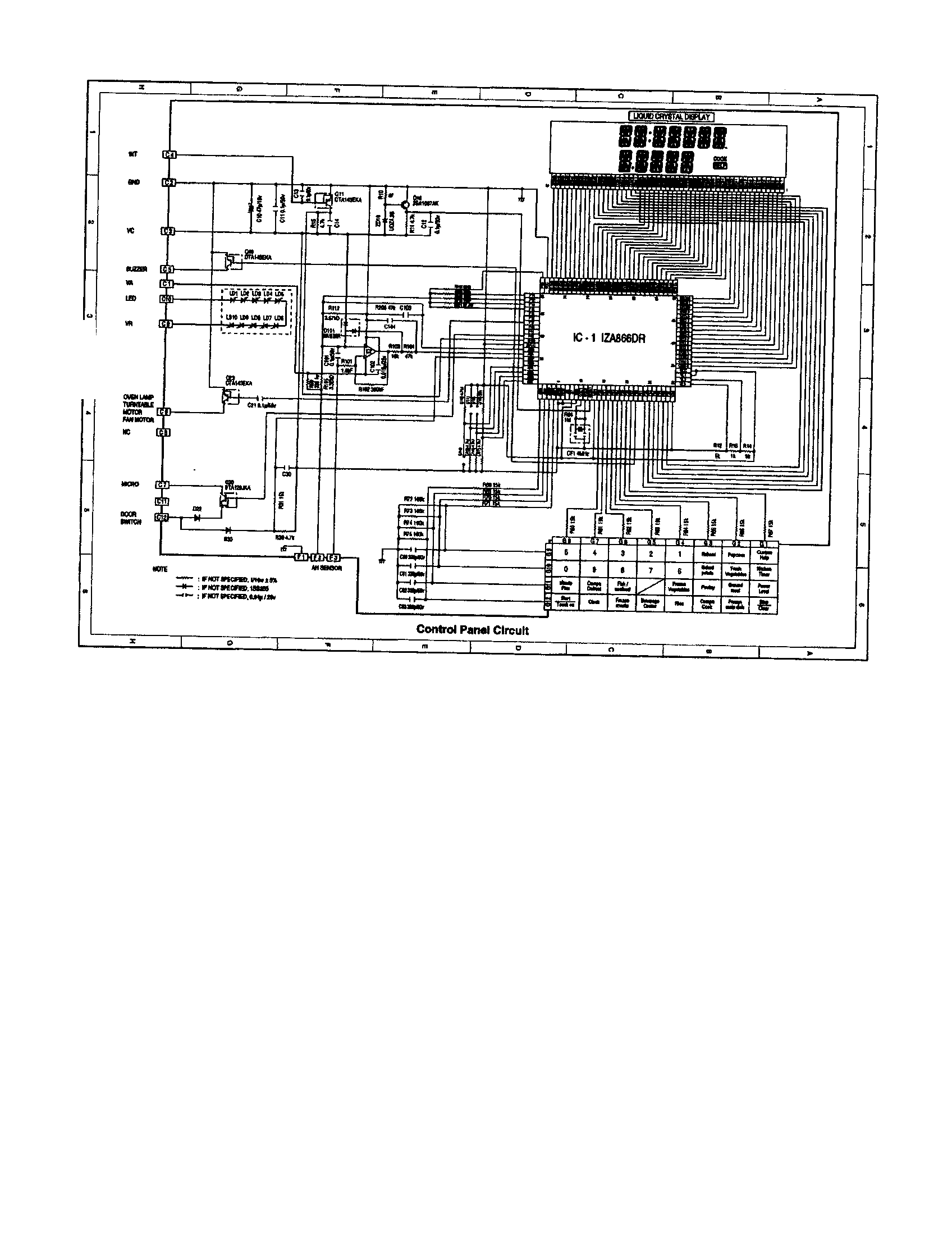

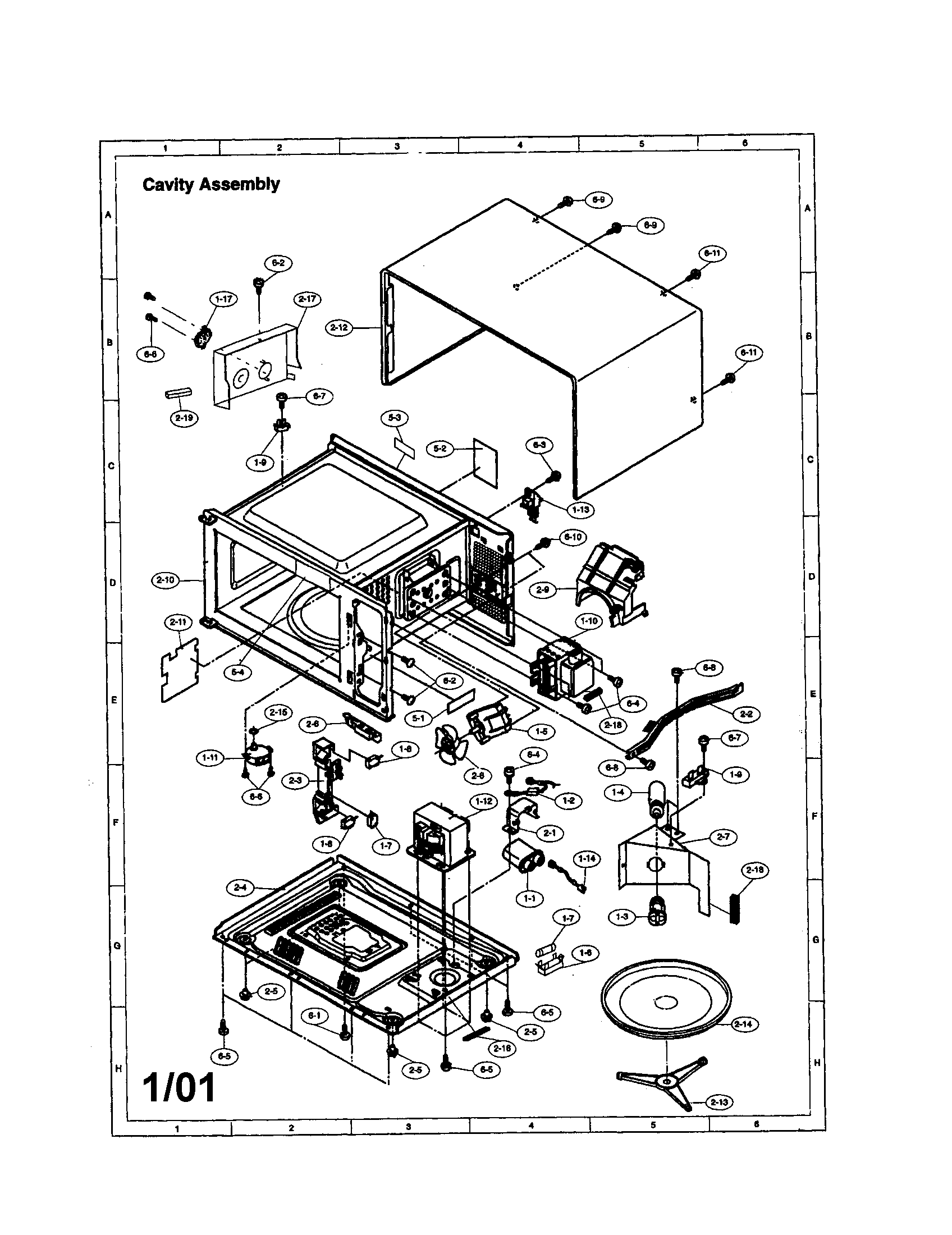

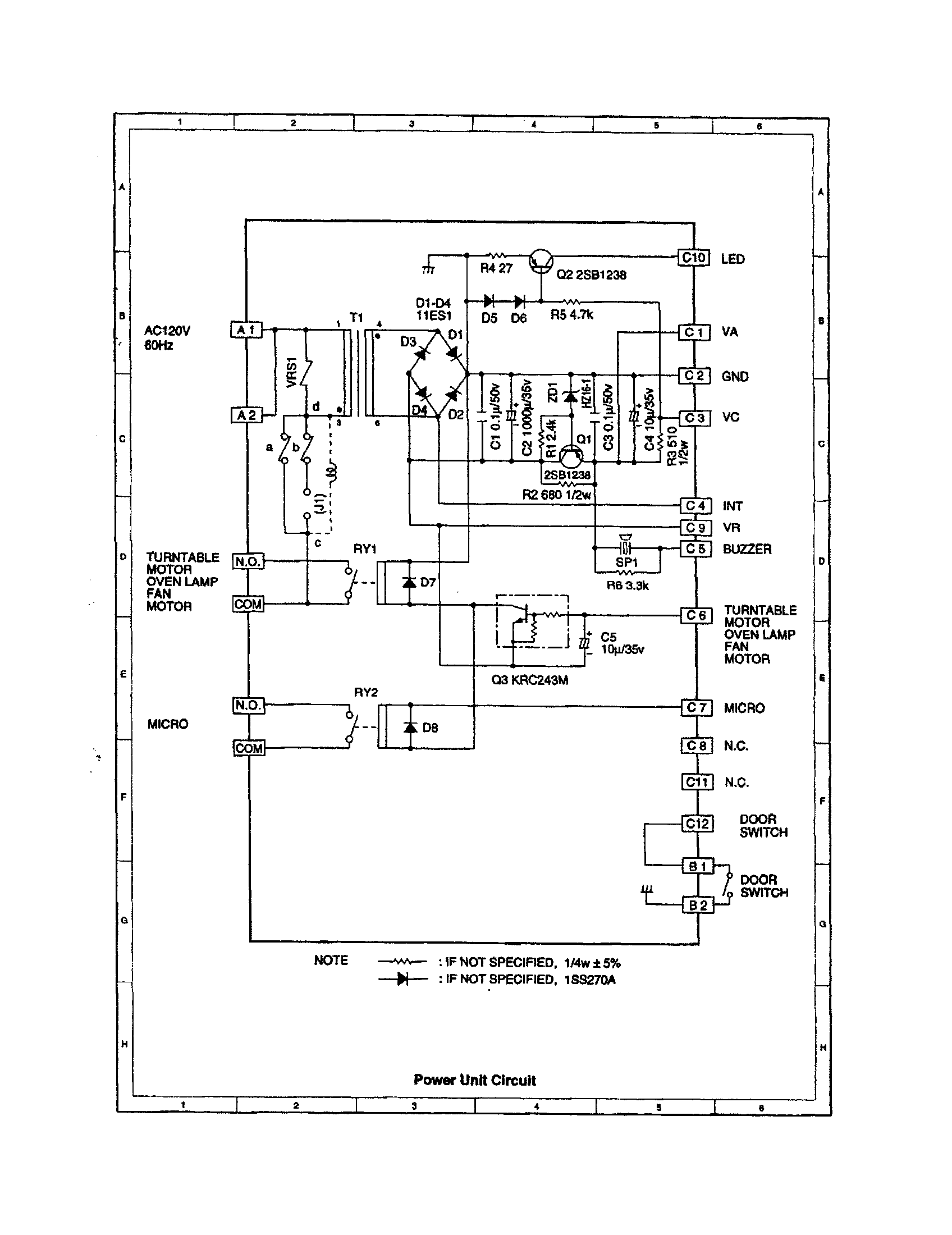

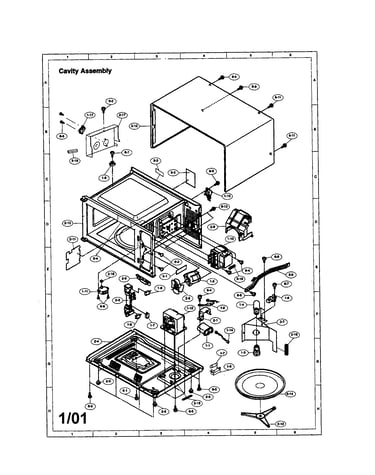

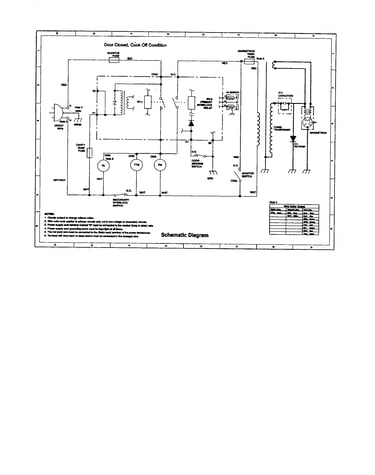

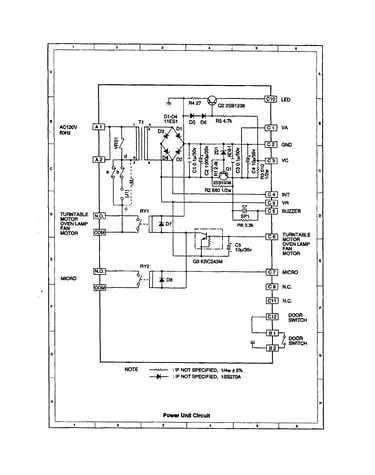

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for R-430BK Microwaves

  • Switch for Sharp R-430BK - Part FFS-BA016/KIT

    #1-07

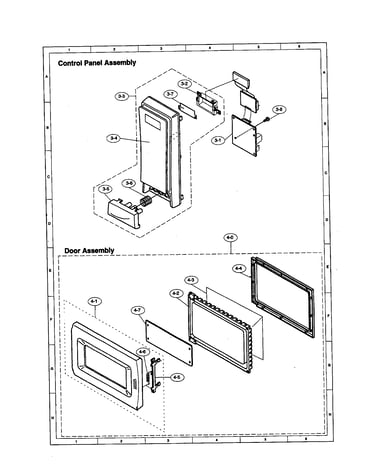

    All parts diagram

    Switch

    Part #FFS-BA016/KIT

    The manufacturer no longer makes this part, and there's no substitute part

  • Diode for Sharp R-430BK - Part FH-DZB008MRY0

    #1-02

    All parts diagram

    Diode

    Part #FH-DZB008MRY0

    The manufacturer no longer makes this part, and there's no substitute part

  • Resistor for Sharp R-430BK - Part VRD-B12EF472J

    #NI

    All parts diagram

    Resistor

    Part #VRD-B12EF472J

    The manufacturer no longer makes this part, and there's no substitute part

  • Thermal Cu for Sharp R-430BK - Part QFS-TB006MRE0

    #1-09

    All parts diagram

    Thermal Cu

    Part #QFS-TB006MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Transformer for Sharp R-430BK - Part RTRNPB009MRE0

    #NI

    All parts diagram

    Transformer

    Part #RTRNPB009MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Connector for Sharp R-430BK - Part QCNCMA446DRE0

    #3-01A

    All parts diagram

    Connector

    Part #QCNCMA446DRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Door Panel for Sharp R-430BK - Part FDORFB062MRT0

    #4-02

    All parts diagram

    Door Panel

    Part #FDORFB062MRT0

    The manufacturer no longer makes this part, and there's no substitute part

  • Lamp Socket for Sharp R-430BK - Part QSOCLB006MRE0

    #1-03

    All parts diagram

    Lamp Socket

    Part #QSOCLB006MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Sharp R-430BK - Part VRD-B12EF242J

    #NI

    All parts diagram

    Capacitor

    Part #VRD-B12EF242J

    The manufacturer no longer makes this part, and there's no substitute part

  • Latch for Sharp R-430BK - Part LSTPPB021MRF0

    #4-05

    All parts diagram

    Latch

    Part #LSTPPB021MRF0

    The manufacturer no longer makes this part, and there's no substitute part
