Kenmore
Wall Oven/Microwave Combo

Model # 79049613318 Official Kenmore wall oven/microwave combo

Here are the diagrams and repair parts for Official Kenmore 79049613318 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

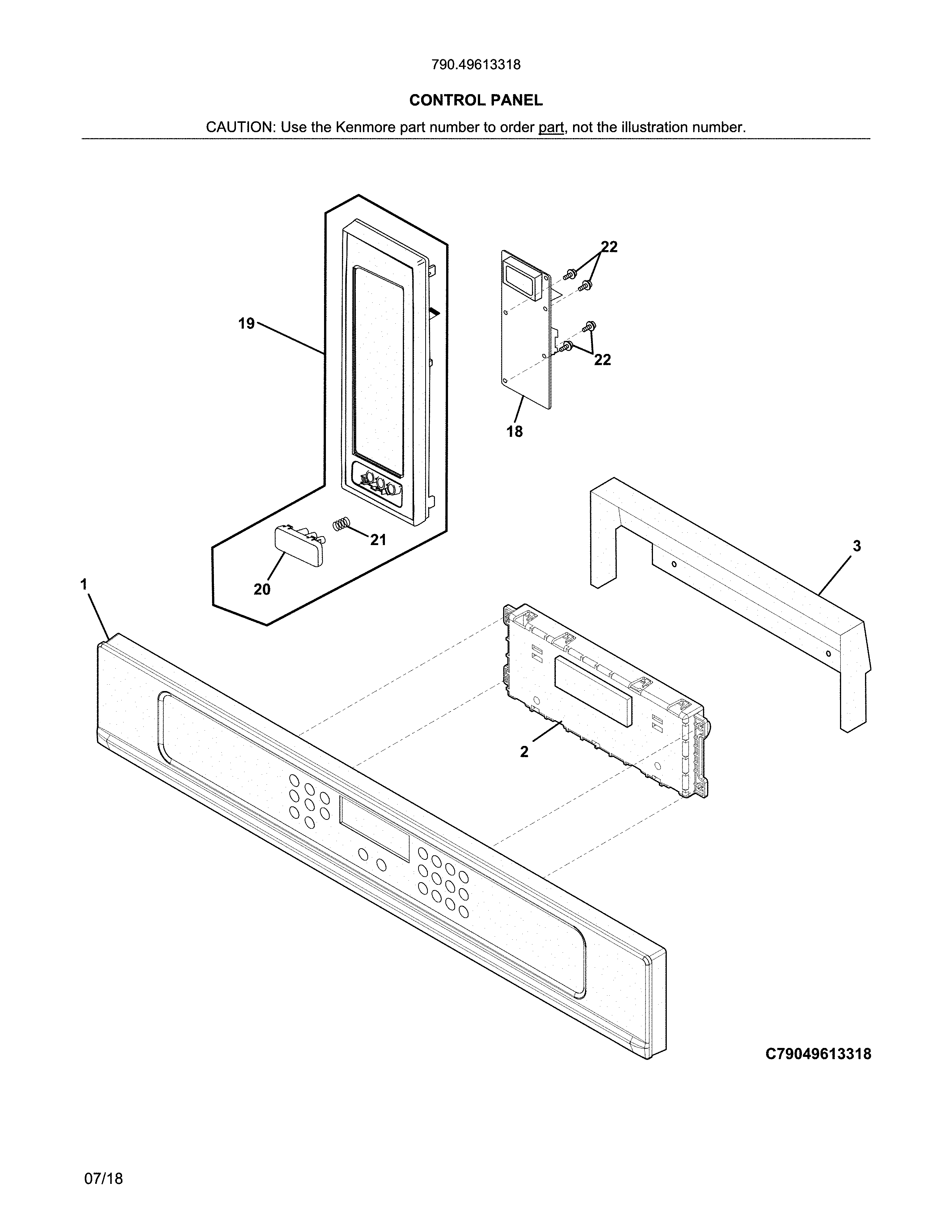

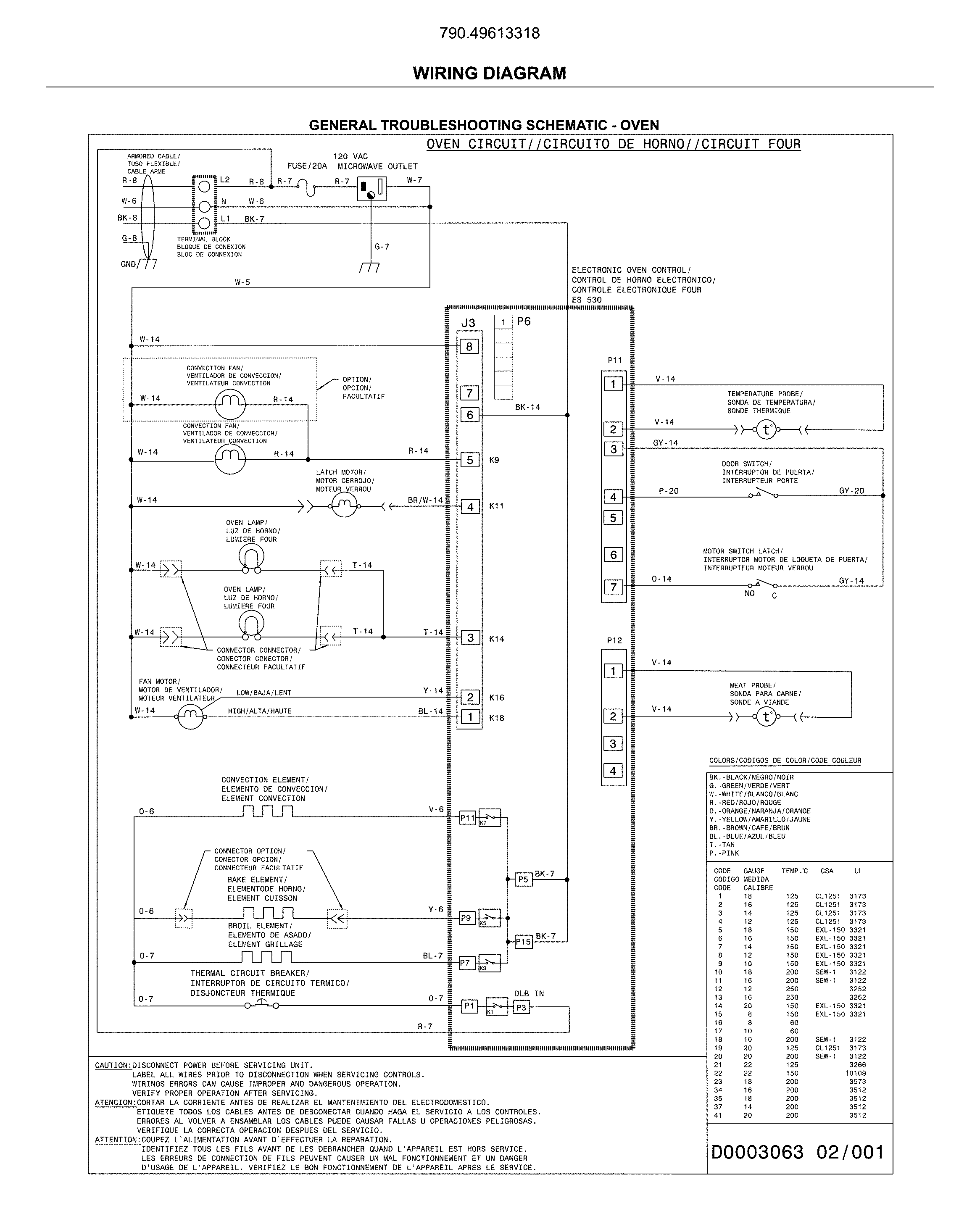

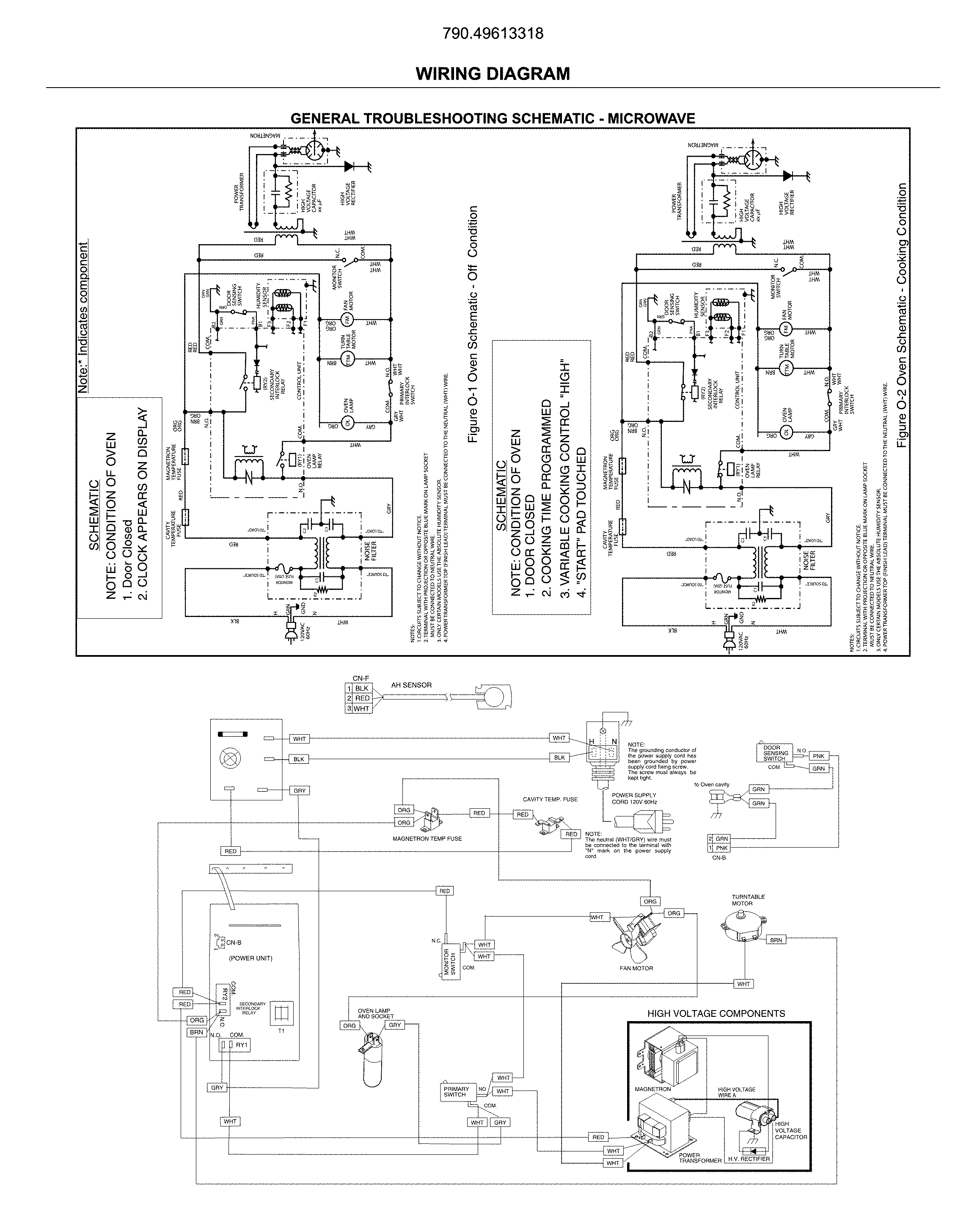

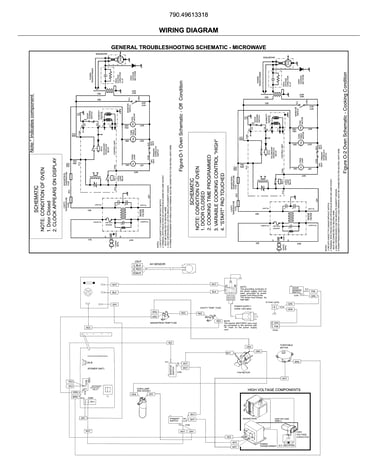

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Range Oven Door Inner Glass 316117503
#8

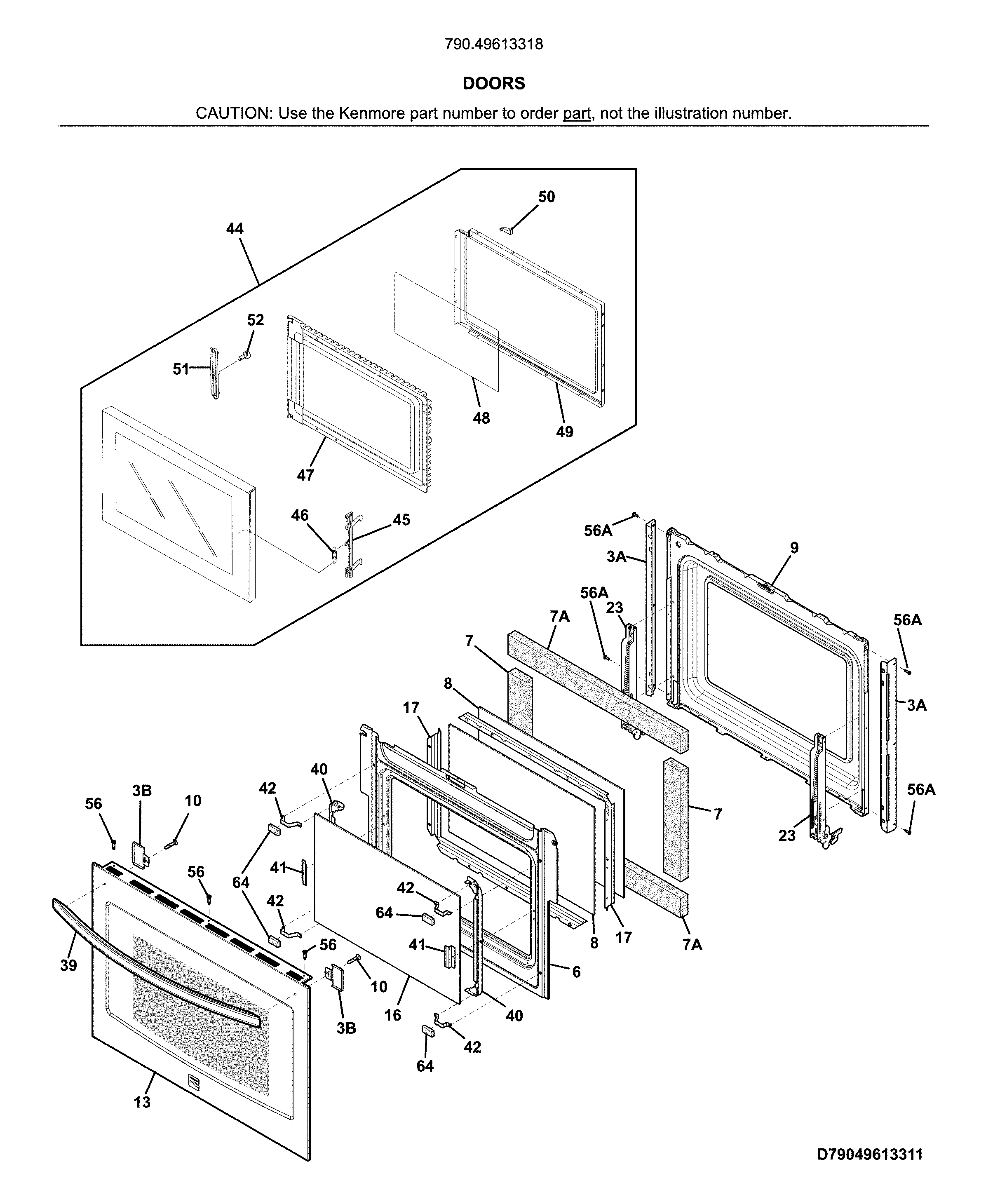

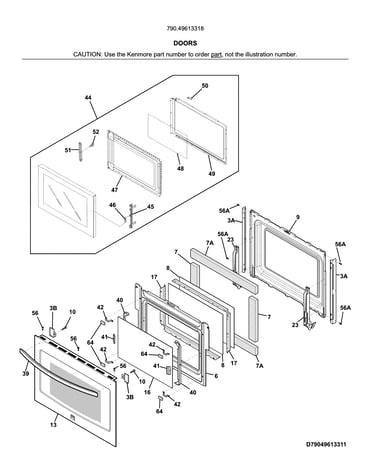

Doors diagram

Range oven door inner glass

Part #316117503

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117503. Substitute parts can look different from the original.
BEST SELLER
$84.80 |
9% OFF Was : $93.59
In Stock
Range High-limit Thermostat (replaces 318578501) 318578506
#119

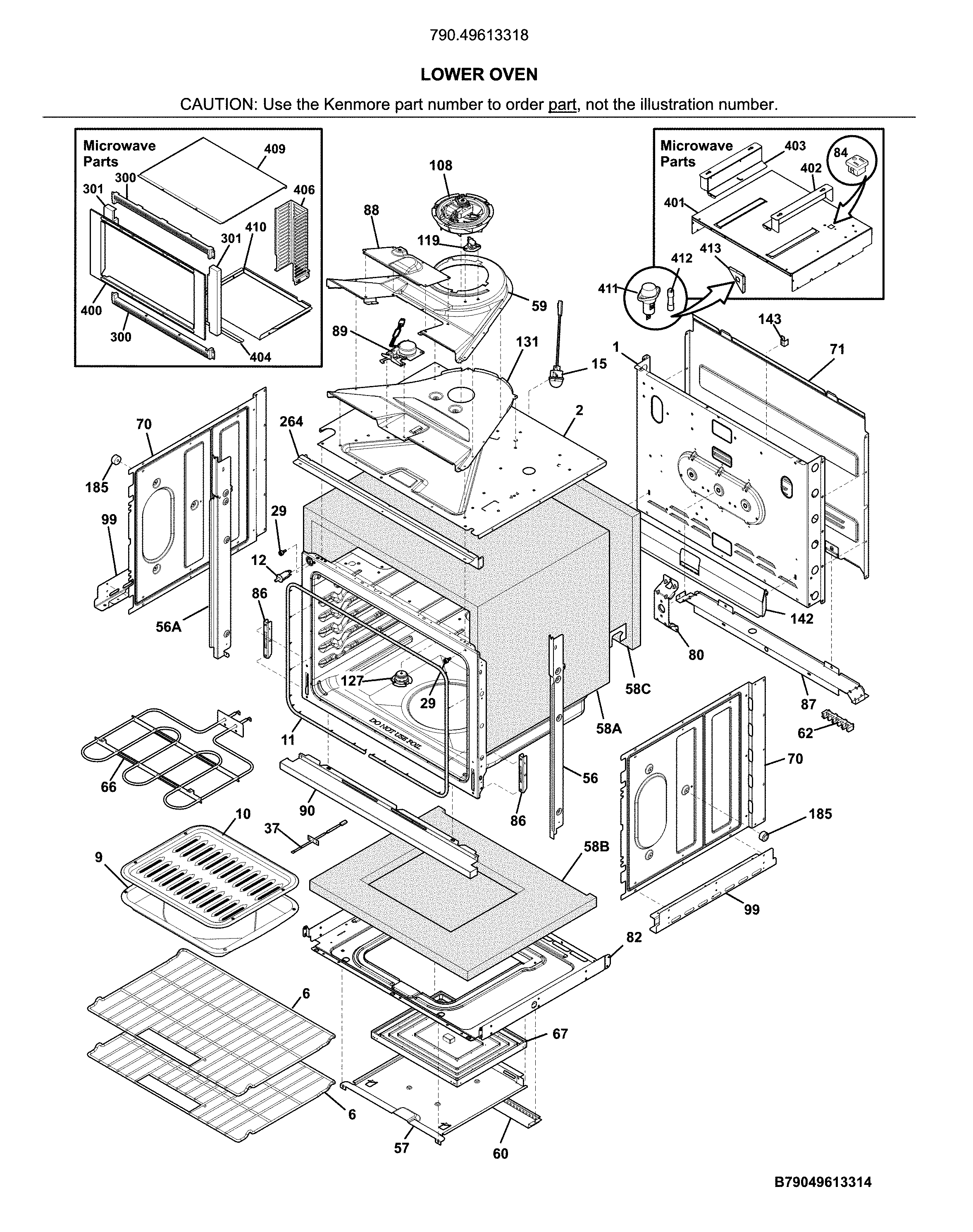

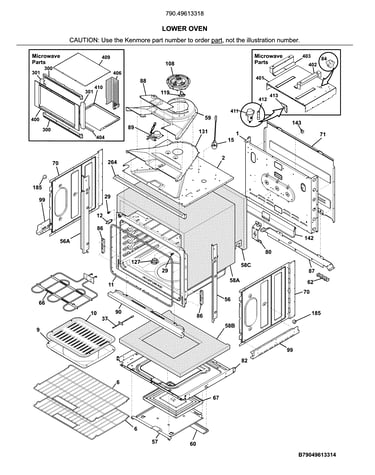

Lower oven diagram

Range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$39.74 |
11% OFF Phone Price : $44.74
In Stock
Wall Oven Bake Element 808650402
#67

Lower oven diagram

Wall oven bake element

Part #808650402

Replaced by #318601604

?
Manufacturer substitution
This part replaces 808650402. Substitute parts can look different from the original.
BEST SELLER
$202.63 |
5% OFF Phone Price : $212.63
In Stock
Terminal Block 316056000
#62

Lower oven diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Cooking Appliance Oven Temperature Sensor 5304504897
#37

Lower oven diagram

Cooking appliance oven temperature sensor

Part #5304504897

BEST SELLER
$32.64 |
18% OFF MSRP : $40.00
In Stock
Wall Oven Microwave Magnetron 5304472253
#8

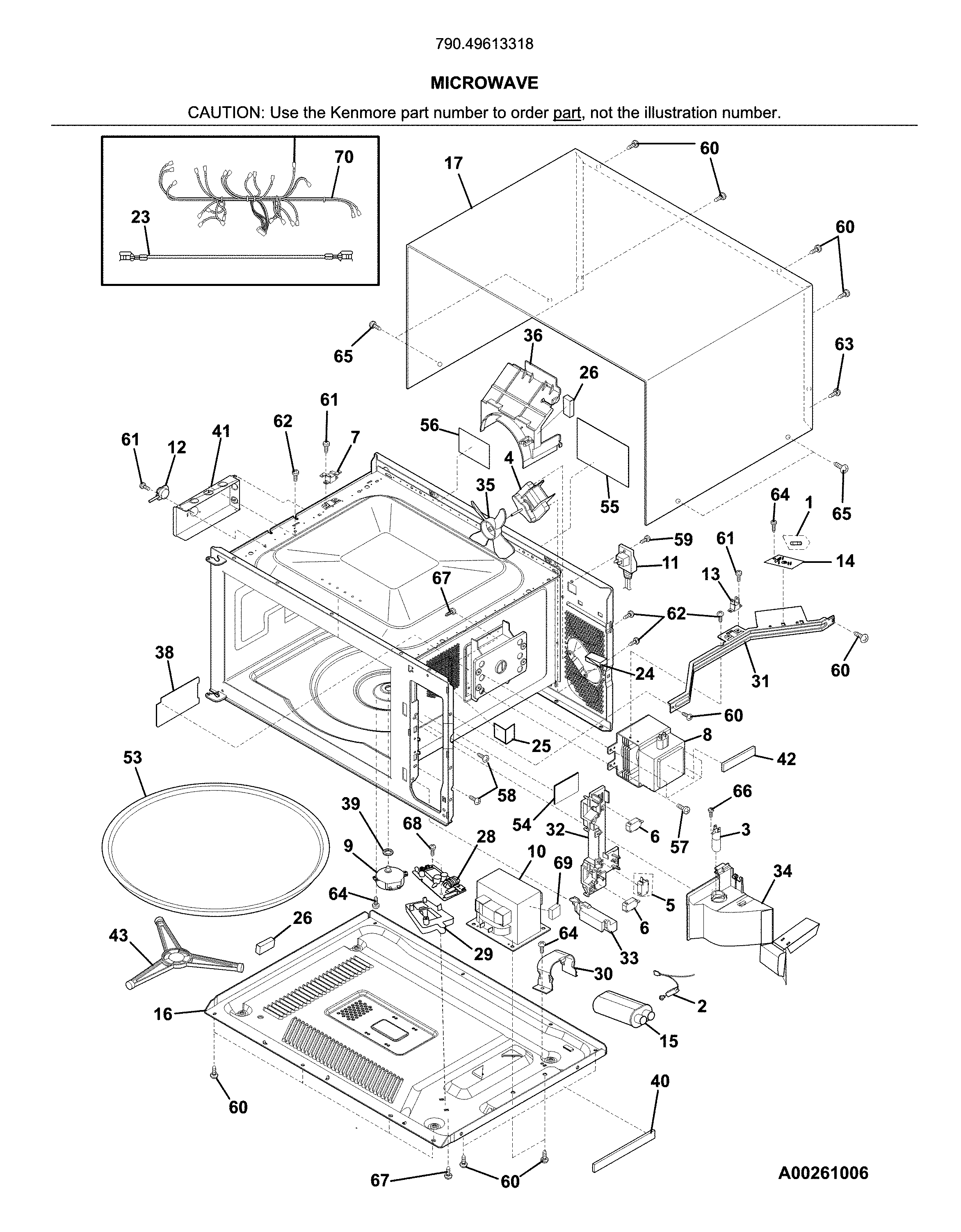

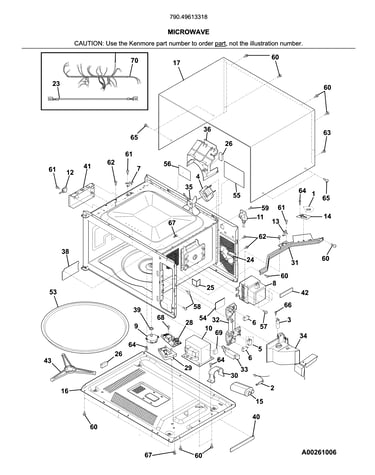

Microwave diagram

Wall oven microwave magnetron

Part #5304472253

Replaced by #5304521745

?
Manufacturer substitution
This part replaces 5304472253. Substitute parts can look different from the original.
BEST SELLER
$163.69 |
6% OFF Phone Price : $173.69
In Stock
Microwave Door Interlock Switch (replaces 5304440026) 5304493153
#6

Microwave diagram

Microwave door interlock switch (replaces 5304440026)

Part #5304493153

BEST SELLER
$28.60 |
32% OFF MSRP : $42.00
In Stock
Range Oven Door Outer Glass 316446400
#16

Doors diagram

Range oven door outer glass

Part #316446400

Replaced by #316446401

?
Manufacturer substitution
This part replaces 316446400. Substitute parts can look different from the original.
BEST SELLER
$53.67 |
9% OFF Phone Price : $58.67
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#NI

Doors diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Fuse 318576100
#412

Lower oven diagram

Fuse

Part #318576100

Replaced by #318647300

?
Manufacturer substitution
This part replaces 318576100. Substitute parts can look different from the original.
$112.88
In Stock
