Model # FGMC3065PFB Official Frigidaire wall oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire FGMC3065PFB wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

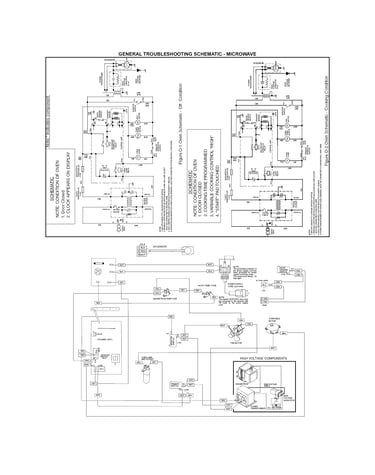

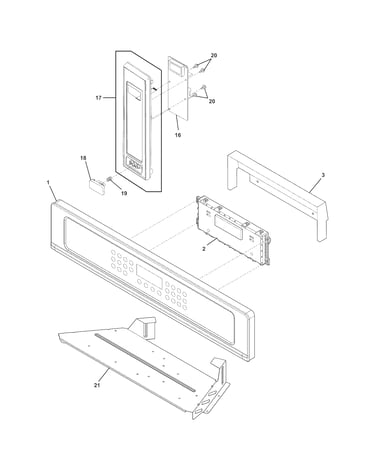

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Range Oven Temperature Sensor 318562500
#37

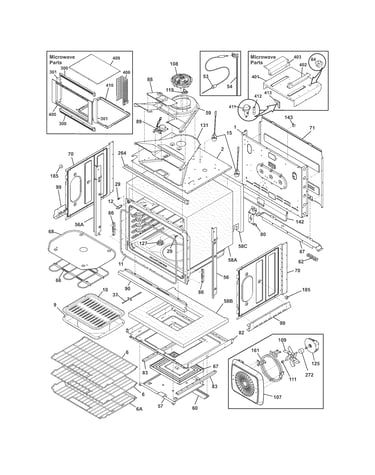

Lower oven diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$33.57 |
13% OFF Phone Price : $38.57
In Stock
Wall Oven Bake Element 808650402
#67

Lower oven diagram

Wall oven bake element

Part #808650402

Replaced by #318601604

?
Manufacturer substitution
This part replaces 808650402. Substitute parts can look different from the original.
BEST SELLER
$202.63 |
5% OFF Phone Price : $212.63
In Stock
Wall Oven Microwave Magnetron 5304472253
#8

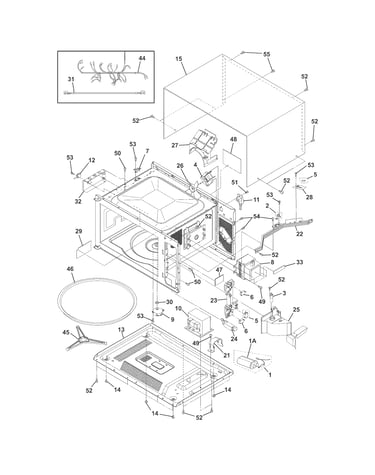

Microwave diagram

Wall oven microwave magnetron

Part #5304472253

Replaced by #5304521745

?
Manufacturer substitution
This part replaces 5304472253. Substitute parts can look different from the original.
BEST SELLER
$163.69 |
6% OFF Phone Price : $173.69
In Stock
Range Oven Door Outer Glass 316446400
#16

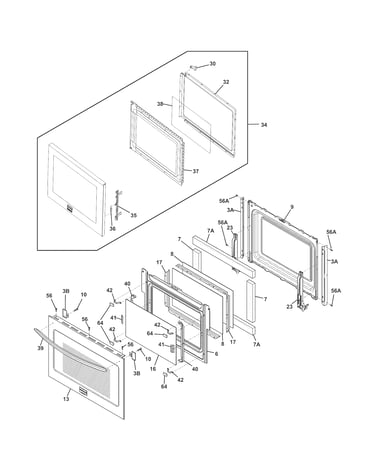

Doors diagram

Range oven door outer glass

Part #316446400

Replaced by #316446401

?
Manufacturer substitution
This part replaces 316446400. Substitute parts can look different from the original.
BEST SELLER
$52.11 |
9% OFF Phone Price : $57.11
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

Lower oven diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Lever 5304464899
#24

Microwave diagram

Lever

Part #5304464899

Replaced by #5304485407

?
Manufacturer substitution
This part replaces 5304464899. Substitute parts can look different from the original.
$51.29 |
9% OFF Phone Price : $56.29
In Stock
Range Control Panel Cooling Fan 318575612
#108

Lower oven diagram

Range control panel cooling fan

Part #318575612

$167.94 |
6% OFF Phone Price : $177.94
In Stock
Cover 5304478947
#29

Microwave diagram

Cover

Part #5304478947

Replaced by #5304462314

?
Manufacturer substitution
This part replaces 5304478947. Substitute parts can look different from the original.
$49.09 |
9% OFF Phone Price : $54.09
In Stock
Microwave Door Interlock Switch And Fuse (replaces 75303319559) 5303319559
#5

Microwave diagram

Microwave door interlock switch and fuse (replaces 75303319559)

Part #5303319559

$77.69 |
6% OFF Phone Price : $82.69
In Stock
Range Oven Vent And Smoke Eliminator 139042600
#127

Lower oven diagram

Range oven vent and smoke eliminator

Part #139042600

$35.19 |
12% OFF Phone Price : $40.19
In Stock
