Model # UT20042A Official Homelite 25-cc string trimmer

Here are the diagrams and repair parts for Official Homelite UT20042A 25-cc string trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Plate Rein 07185
#42

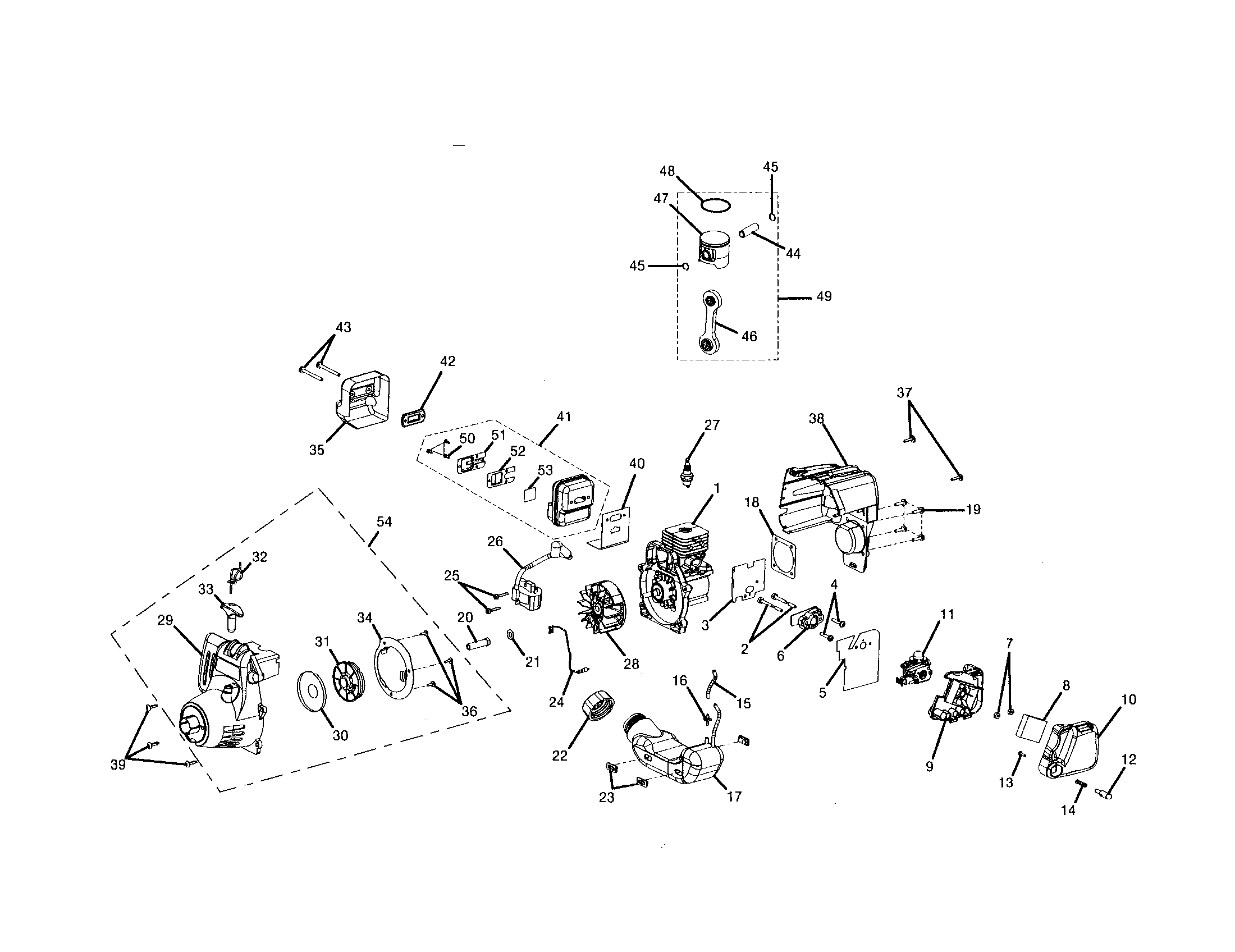

Short block/carburetor/crankcase diagram

Plate rein

Part #07185

The manufacturer no longer makes this part, and there's no substitute part

Screen 984753001
#53

Short block/carburetor/crankcase diagram

Screen

Part #984753001

The manufacturer no longer makes this part, and there's no substitute part

Short Block 985394001
#1

Short block/carburetor/crankcase diagram

Short block

Part #985394001

The manufacturer no longer makes this part, and there's no substitute part

Spark Plug PS02227
#27

Short block/carburetor/crankcase diagram

Spark plug

Part #PS02227

The manufacturer no longer makes this part, and there's no substitute part

Glass Shield 984822001
#14

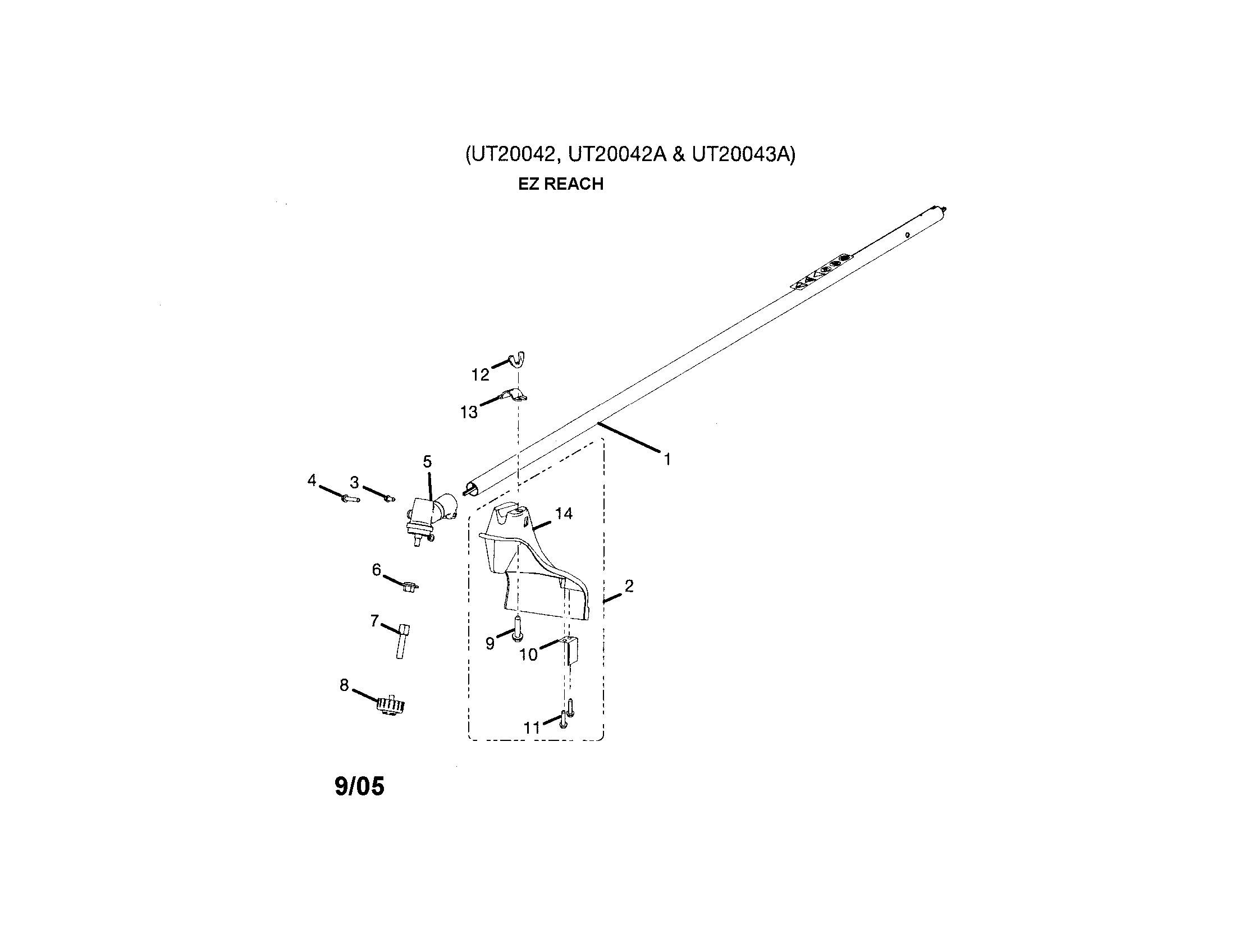

Straight shaft / shield diagram

Glass shield

Part #984822001

The manufacturer no longer makes this part, and there's no substitute part

Ignition Module 4306401
#26A

Short block/carburetor/crankcase diagram

Ignition module

Part #4306401

The manufacturer no longer makes this part, and there's no substitute part

Screw 04474
#2

Short block/carburetor/crankcase diagram

Screw

Part #04474

The manufacturer no longer makes this part, and there's no substitute part

Screw 1/4- 983381007
#4

Straight shaft / shield diagram

Screw 1/4-

Part #983381007

The manufacturer no longer makes this part, and there's no substitute part

Screw 82540
#25

Short block/carburetor/crankcase diagram

Screw

Part #82540

The manufacturer no longer makes this part, and there's no substitute part

Fuel Tank PA00116
#17

Short block/carburetor/crankcase diagram

Fuel tank

Part #PA00116

The manufacturer no longer makes this part, and there's no substitute part
