Model # 68911202 Official Kenmore 52" ceiling fan with light

Here are the diagrams and repair parts for Official Kenmore 68911202 52" ceiling fan with light, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

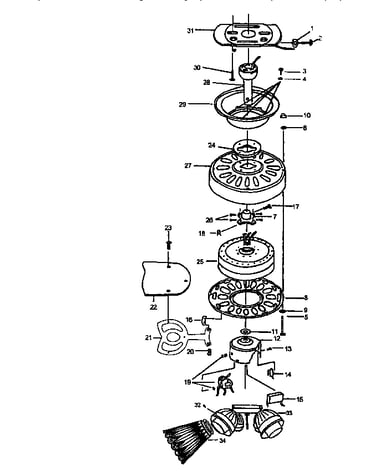

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Screw 91100157202
#26

Functional replacement parts diagram

Screw

Part #91100157202

The manufacturer no longer makes this part, and there's no substitute part

Screw 91160157207
#3

Functional replacement parts diagram

Screw

Part #91160157207

The manufacturer no longer makes this part, and there's no substitute part

Housing 51231303108
#8

Functional replacement parts diagram

Housing

Part #51231303108

The manufacturer no longer makes this part, and there's no substitute part

Screw 91100124108
#5

Functional replacement parts diagram

Screw

Part #91100124108

The manufacturer no longer makes this part, and there's no substitute part

Hanger Pin 92827072100
#17

Functional replacement parts diagram

Hanger pin

Part #92827072100

The manufacturer no longer makes this part, and there's no substitute part

Washer 92416212100
#11

Functional replacement parts diagram

Washer

Part #92416212100

The manufacturer no longer makes this part, and there's no substitute part

Light Fixt C800203L313
#33

Functional replacement parts diagram

Light fixt

Part #C800203L313

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 93115005508
#15

Functional replacement parts diagram

Capacitor

Part #93115005508

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 92422111109
Lock washer

Part #92422111109

The manufacturer no longer makes this part, and there's no substitute part

Screw 91170215306
#32

Functional replacement parts diagram

Screw

Part #91170215306

The manufacturer no longer makes this part, and there's no substitute part
