Model # 113242720 Official Craftsman 9" motorized saw

Here are the diagrams and repair parts for Official Craftsman 113242720 9" motorized saw, as well as links to manuals and error code tables, if available.

By Schematic

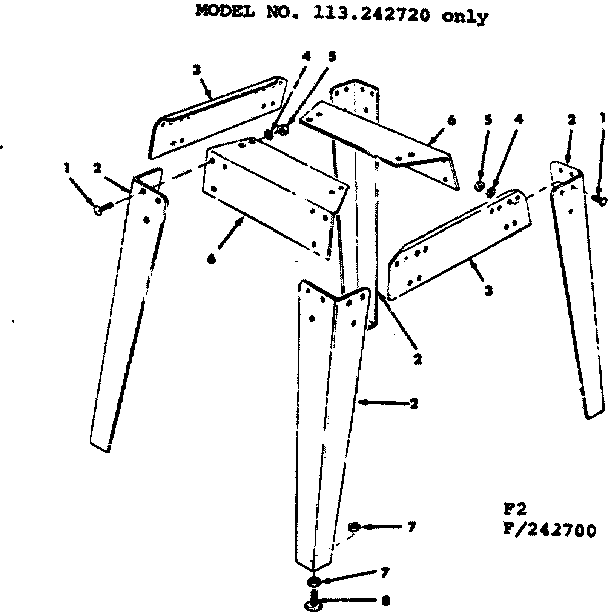

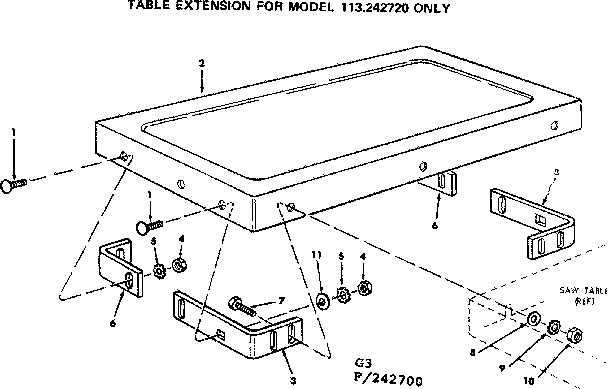

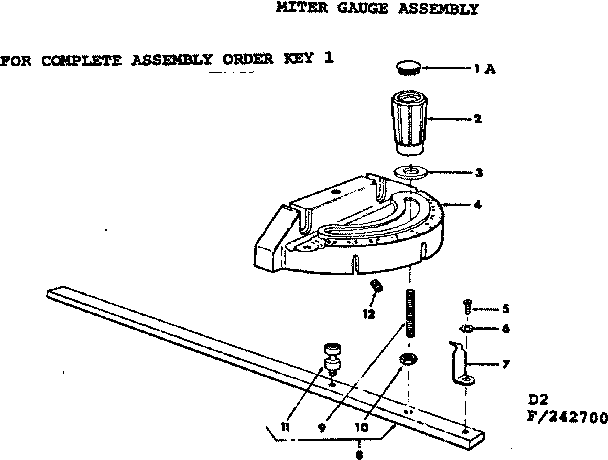

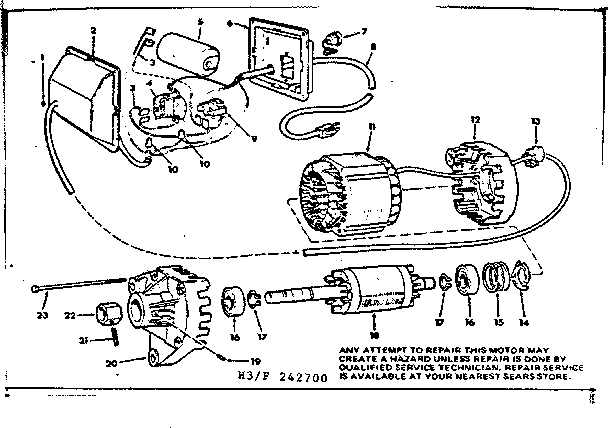

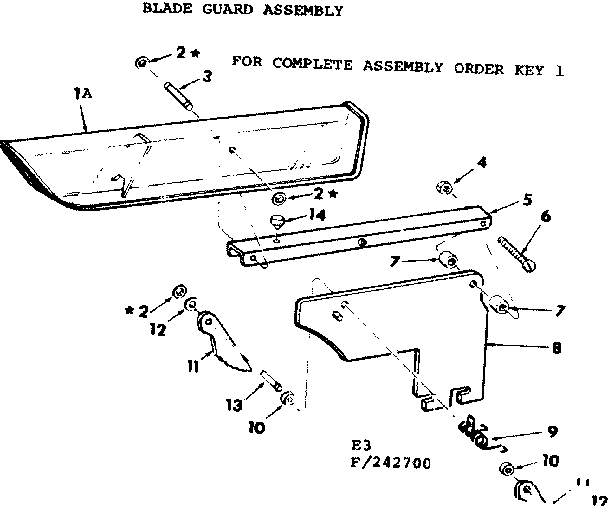

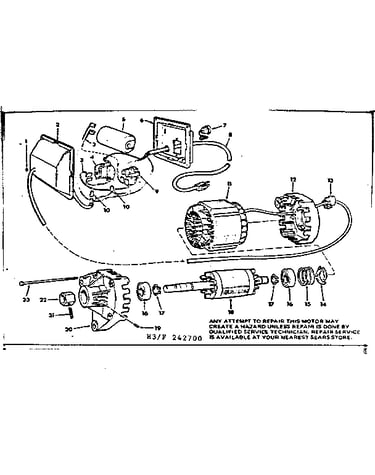

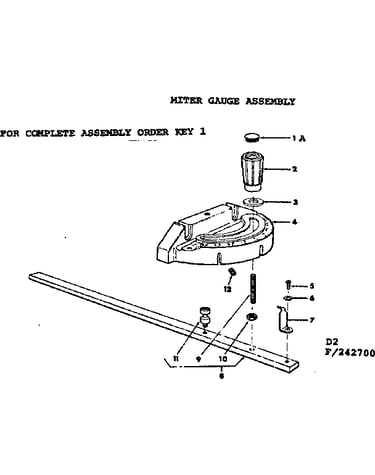

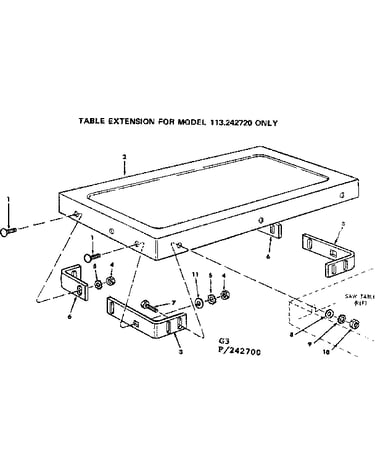

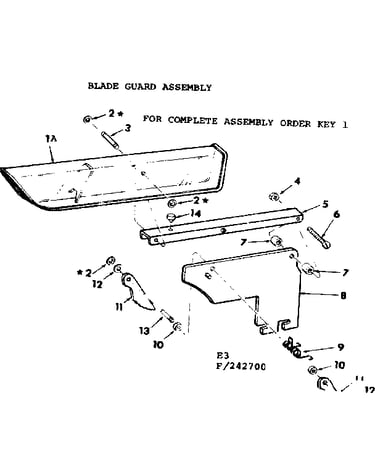

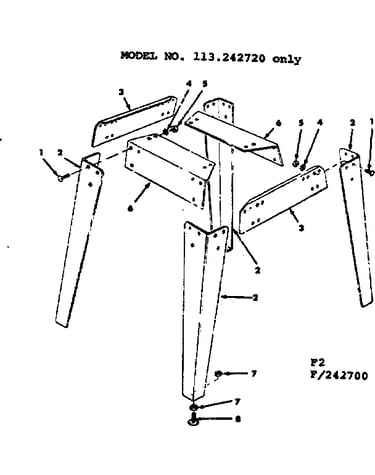

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for113242720 Power Tools

  • Table Saw Rip Fence Handle 62692
    Table saw rip fence handle

    Part #62692

    The manufacturer no longer makes this part, and there's no substitute part

  • Power Tool Self-threading Nut 60388
    #18

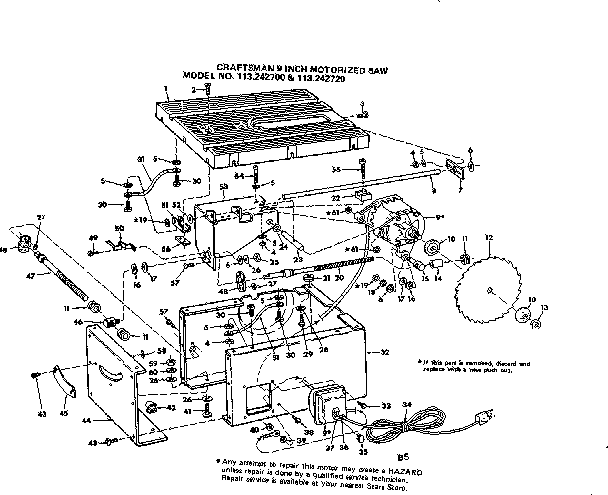

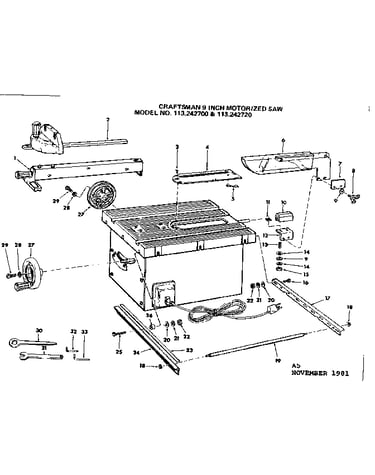

    Unit housing diagram

    Power tool self-threading nut

    Part #60388

    The manufacturer no longer makes this part, and there's no substitute part

  • Emerson Table Saw Arbor Nut 6362
    #13

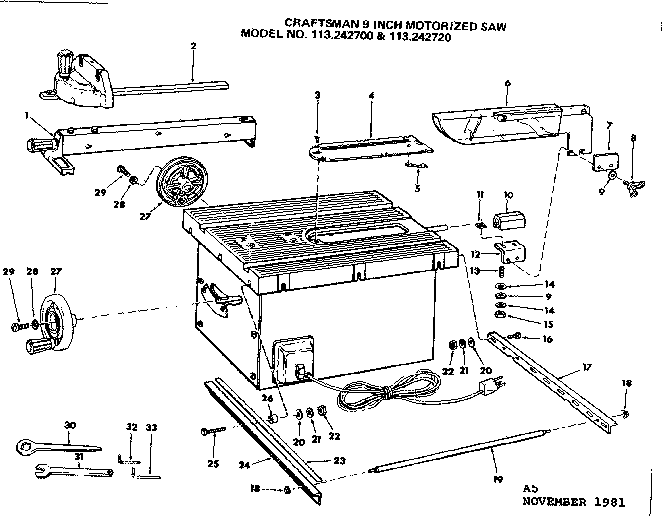

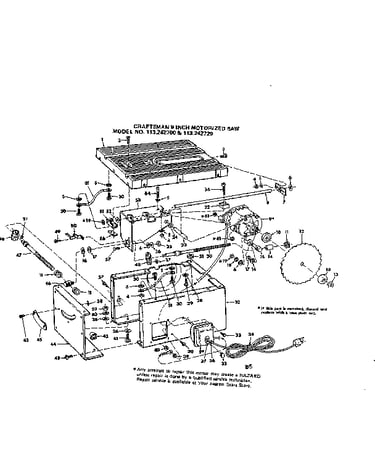

    Unit breakdown diagram

    Emerson table saw arbor nut

    Part #6362

    The manufacturer no longer makes this part, and there's no substitute part

  • Table Saw Screw 9404336
    #5

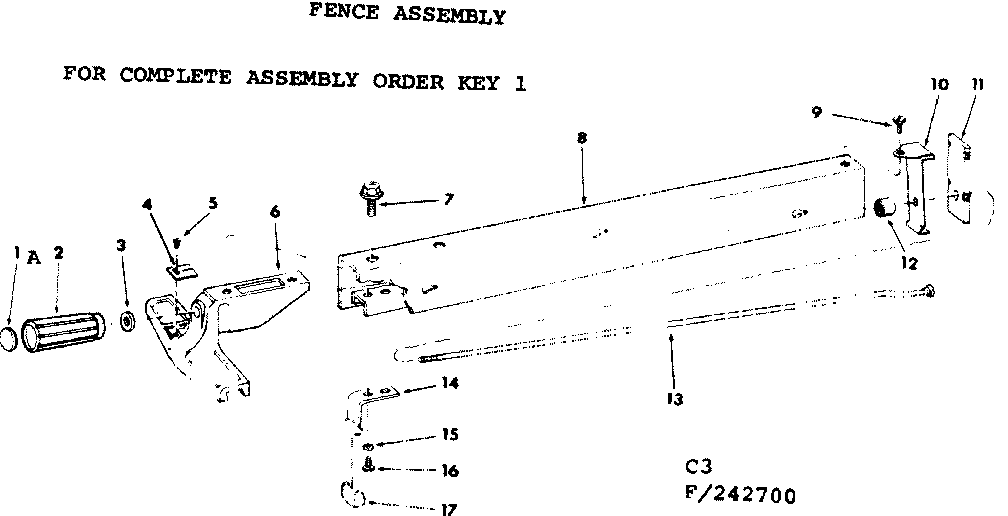

    Fence assembly diagram

    Table saw screw

    Part #9404336

    The manufacturer no longer makes this part, and there's no substitute part

  • Table Saw Knob Cap 62693
    Table saw knob cap

    Part #62693

    The manufacturer no longer makes this part, and there's no substitute part

  • Speed Nut 60354
    #58

    Unit breakdown diagram

    Speed nut

    Part #60354

    The manufacturer no longer makes this part, and there's no substitute part

  • Power Tool Wing Screw, 1/4-in 30540
    #8

    Unit housing diagram

    Power tool wing screw, 1/4-in

    Part #30540

    The manufacturer no longer makes this part, and there's no substitute part

  • Table Saw Table Insert Screw 447441
    #3

    Unit housing diagram

    Table saw table insert screw

    Part #447441

    The manufacturer no longer makes this part, and there's no substitute part

  • Table Saw Base Grommet 62649
    #21

    Unit breakdown diagram

    Table saw base grommet

    Part #62649

    The manufacturer no longer makes this part, and there's no substitute part

  • Table Saw Blade Guard Clamp 62643
    #7

    Unit housing diagram

    Table saw blade guard clamp

    Part #62643

    The manufacturer no longer makes this part, and there's no substitute part
