Kenmore
Room Air Conditioner

Model # 58074100400 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 58074100400 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Room Air Conditioner Accordion Filler Assembly, Right 3211AR3239A
#2-E

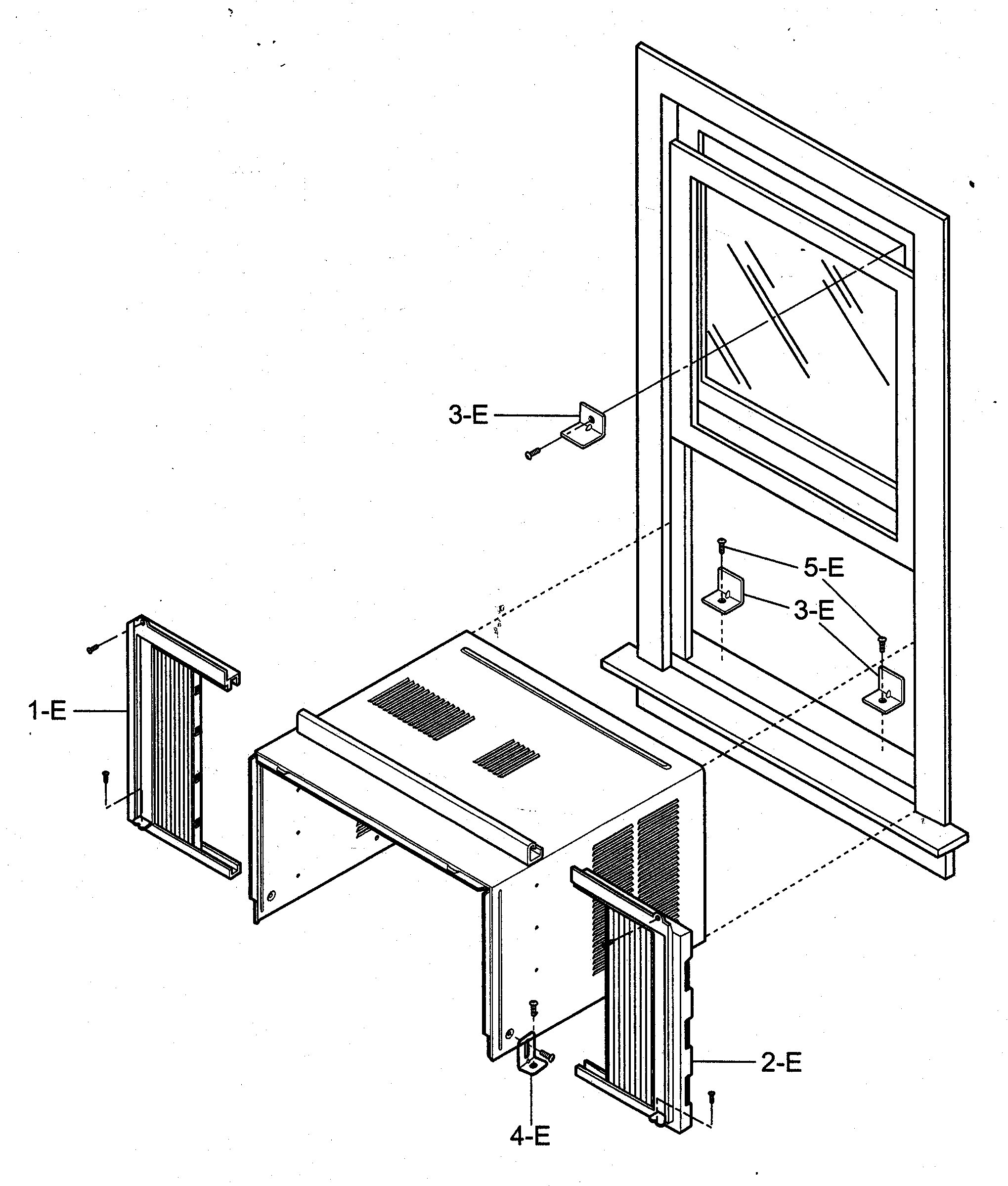

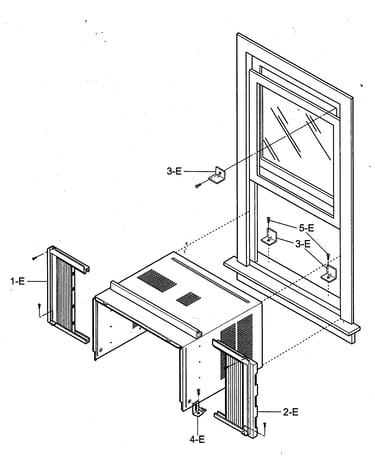

Installation kit assy diagram

Room air conditioner accordion filler assembly, right

Part #3211AR3239A

Replaced by #AET73732404

?
Manufacturer substitution
This part replaces 3211AR3239A. Substitute parts can look different from the original.
BEST SELLER
$27.01 |
16% OFF Phone Price : $32.01
In Stock
Room Air Conditioner Accordion Fillter Assembly, Left 3211AR3239B
#1-E

Installation kit assy diagram

Room air conditioner accordion fillter assembly, left

Part #3211AR3239B

Replaced by #AET73732404

?
Manufacturer substitution
This part replaces 3211AR3239B. Substitute parts can look different from the original.
BEST SELLER
$27.01 |
16% OFF Phone Price : $32.01
In Stock
Room Air Conditioner Drain Pipe 3H02773A
#17-C

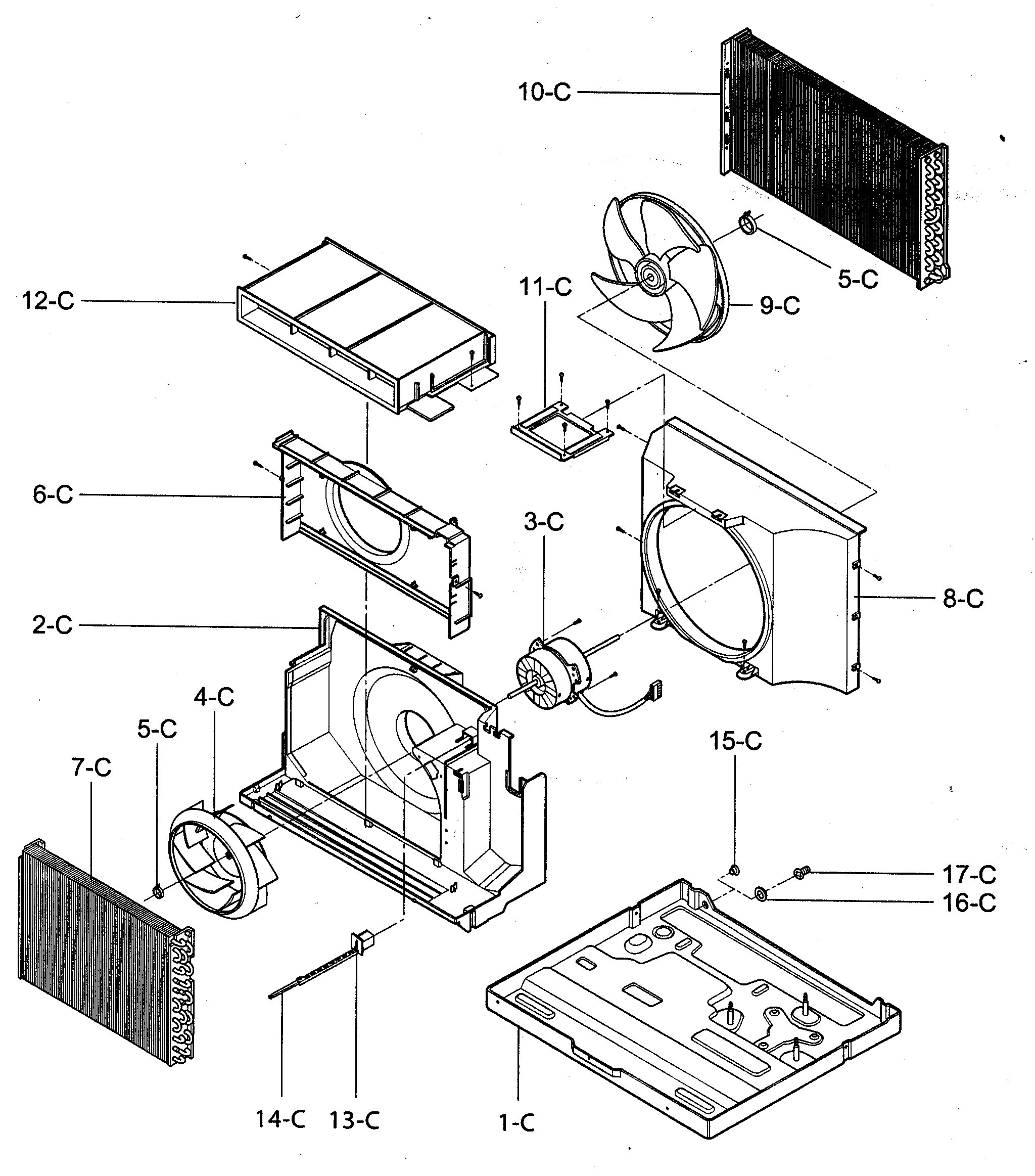

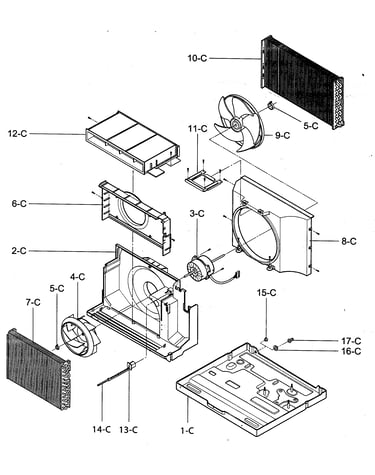

Air handling/cycle parts diagram

Room air conditioner drain pipe

Part #3H02773A

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#5-C

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Fan Motor Capacitor (replaces Oczza20001n) 0CZZA20001N
#6-B

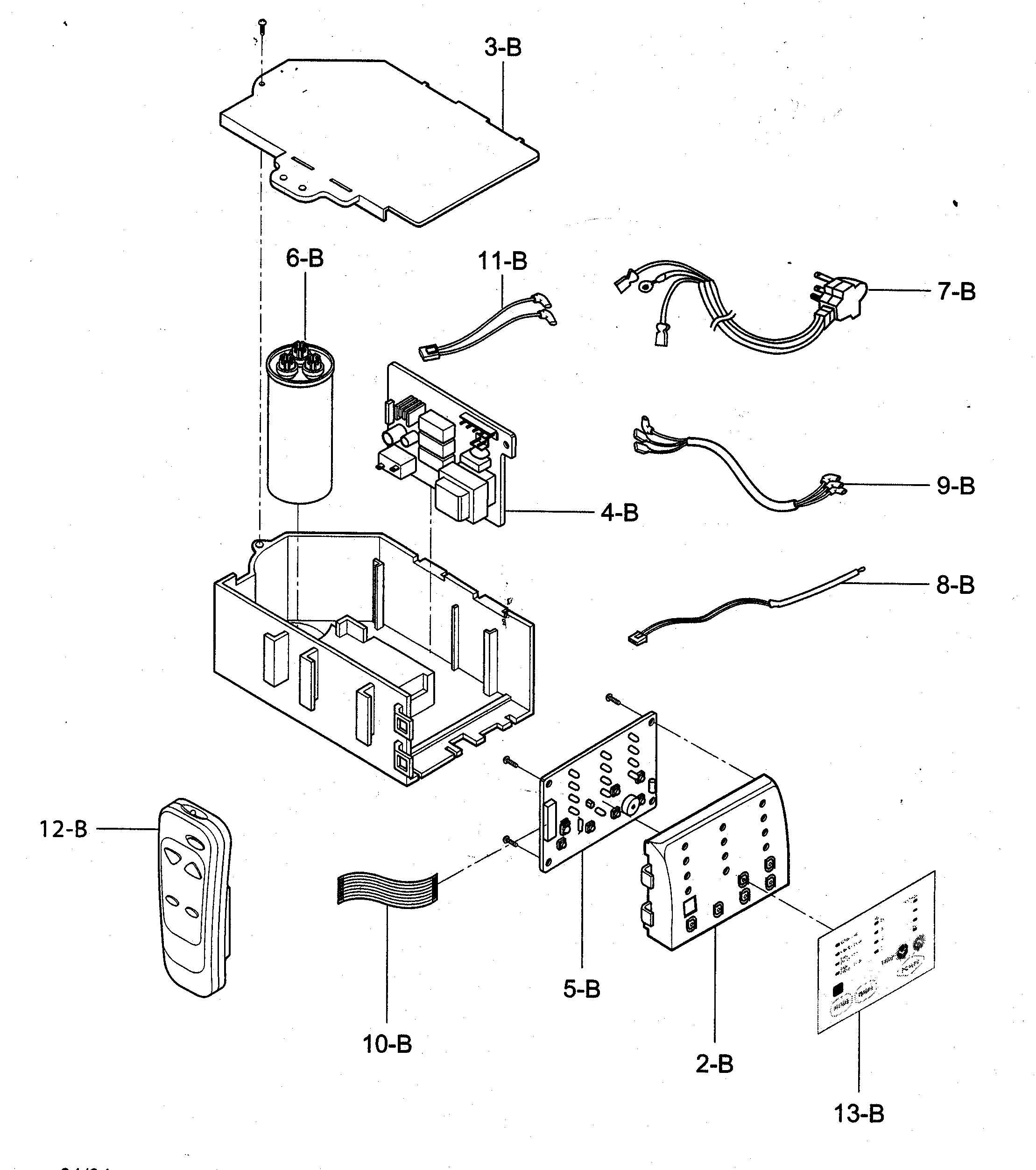

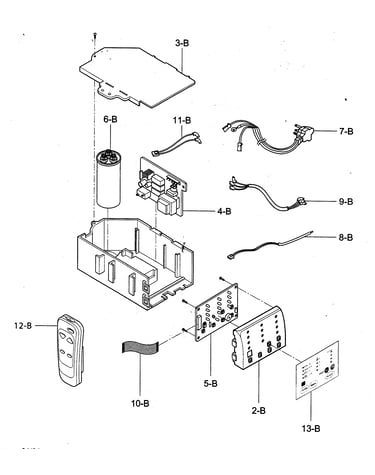

Control box assy diagram

Room air conditioner fan motor capacitor (replaces oczza20001n)

Part #0CZZA20001N

$33.61 |
13% OFF Phone Price : $38.61
In Stock
Room Air Conditioner Air Filter 5231A20023A
#3-A

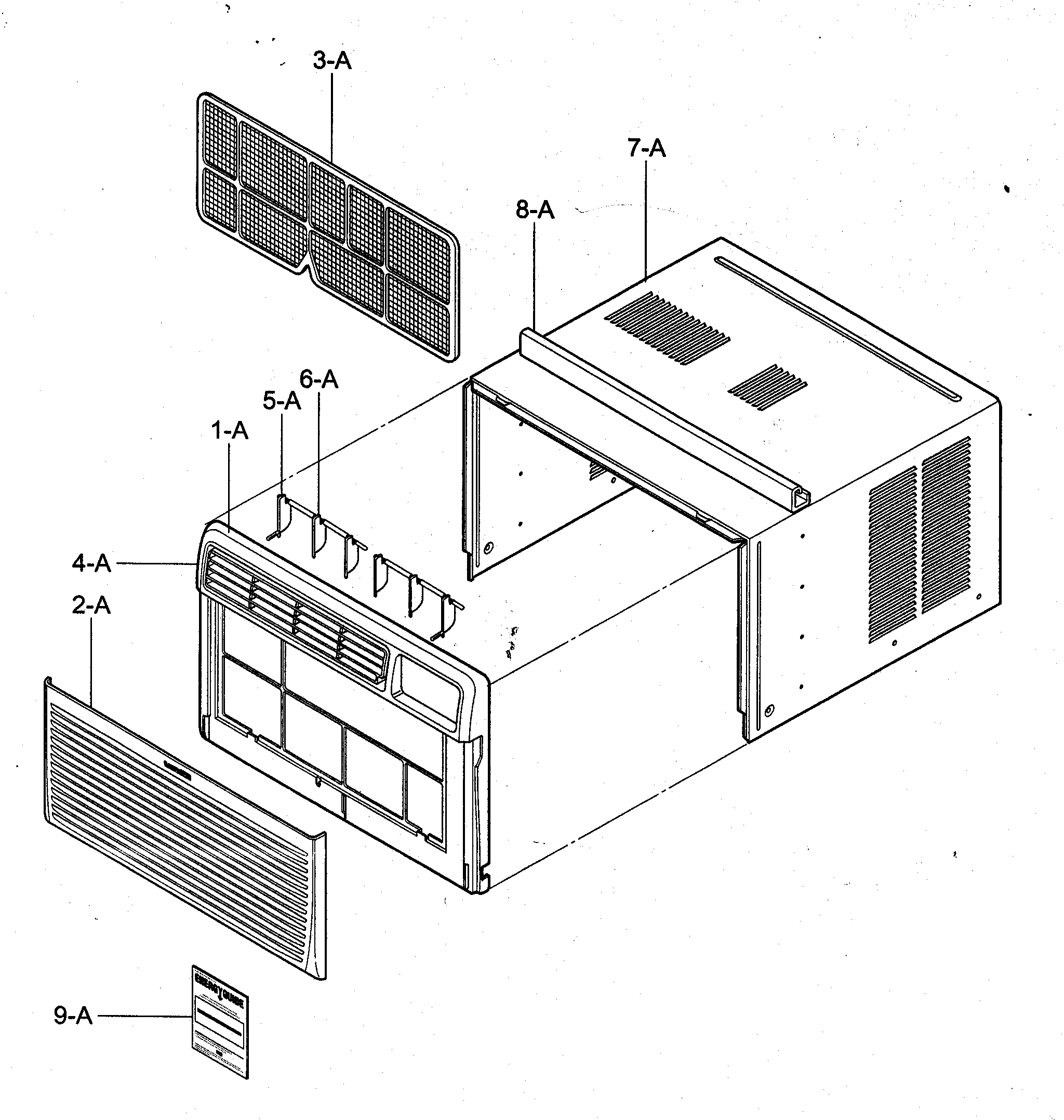

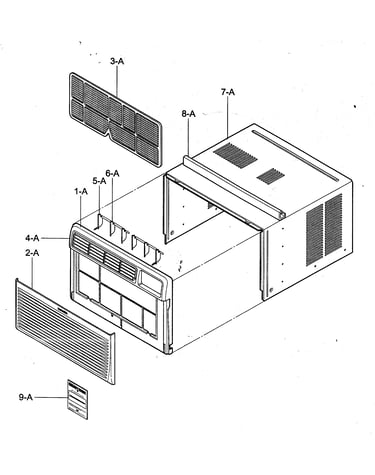

Cabinet/front grille assy diagram

Room air conditioner air filter

Part #5231A20023A

This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Room Air Conditioner Window Lock Bracket 4810A30113A
#3-E

Installation kit assy diagram

Room air conditioner window lock bracket

Part #4810A30113A

This item is not returnable
$3.51 |
22% OFF Phone Price : $4.51
In Stock
Bushing 4830AR4335A
#1-D

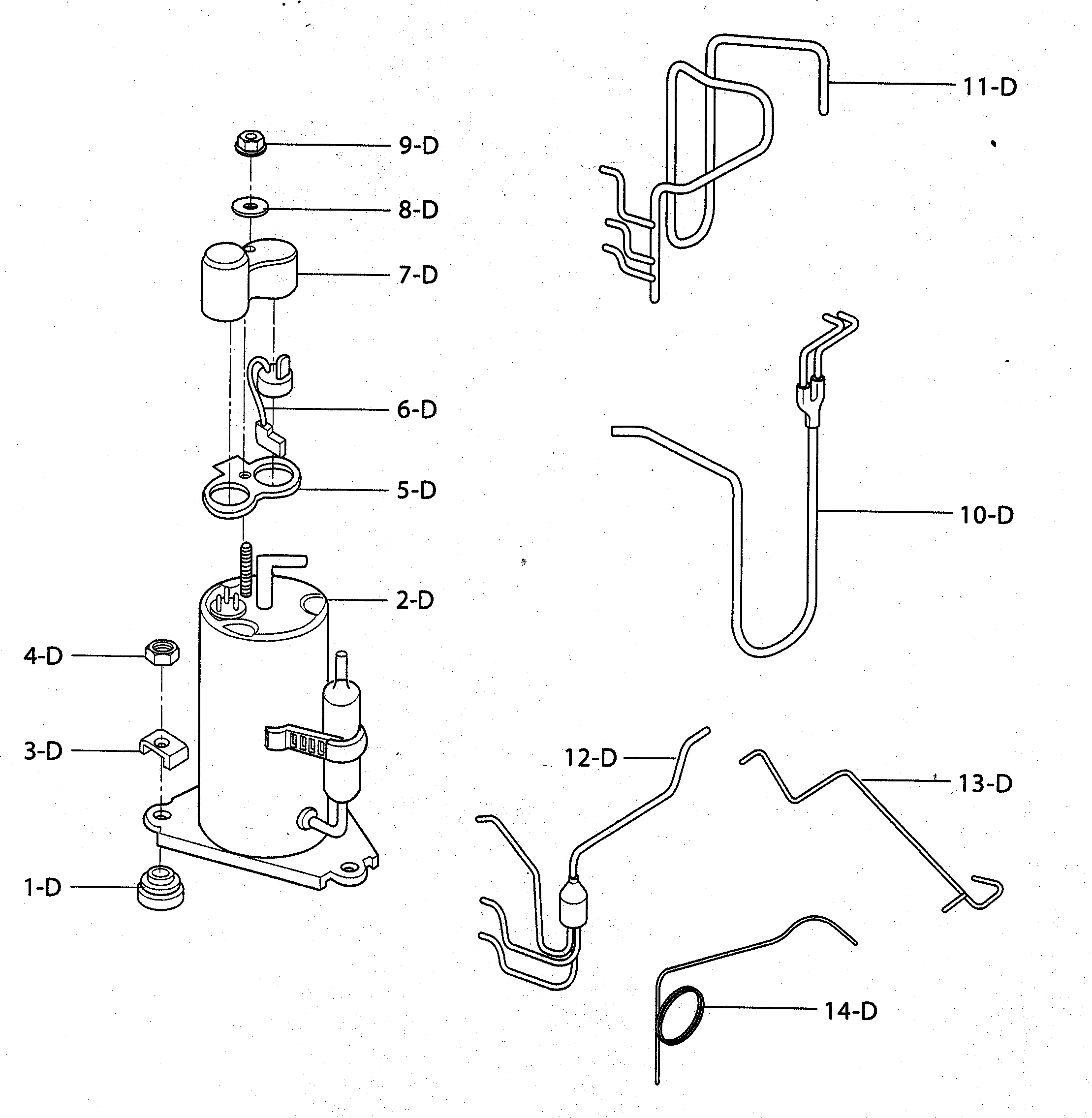

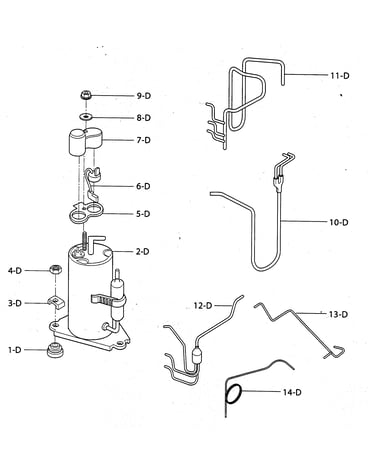

Compressor parts diagram

Bushing

Part #4830AR4335A

This item is not returnable
$4.51
In Stock
Hex Nut 1NHA0801206
#4-D

Compressor parts diagram

Hex nut

Part #1NHA0801206

This item is not returnable
$4.51
In Stock
Room Air Conditioner Electronic Control Wiring Harness 6631A30003A
#11-B

Control box assy diagram

Room air conditioner electronic control wiring harness

Part #6631A30003A

This item is not returnable
$7.00
In Stock
