Model # EW30GF65GBB Official Electrolux gas range

Here are the diagrams and repair parts for Official Electrolux EW30GF65GBB gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

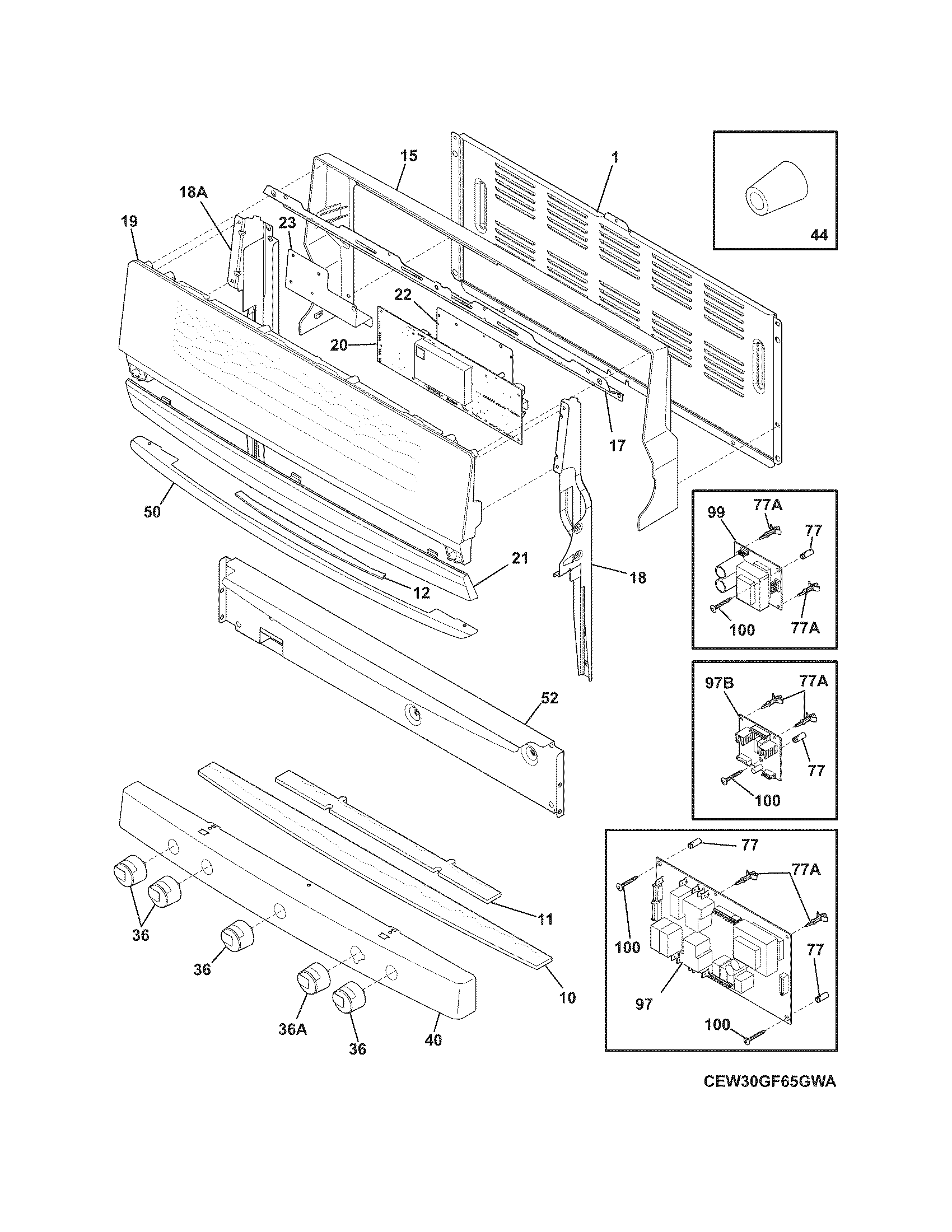

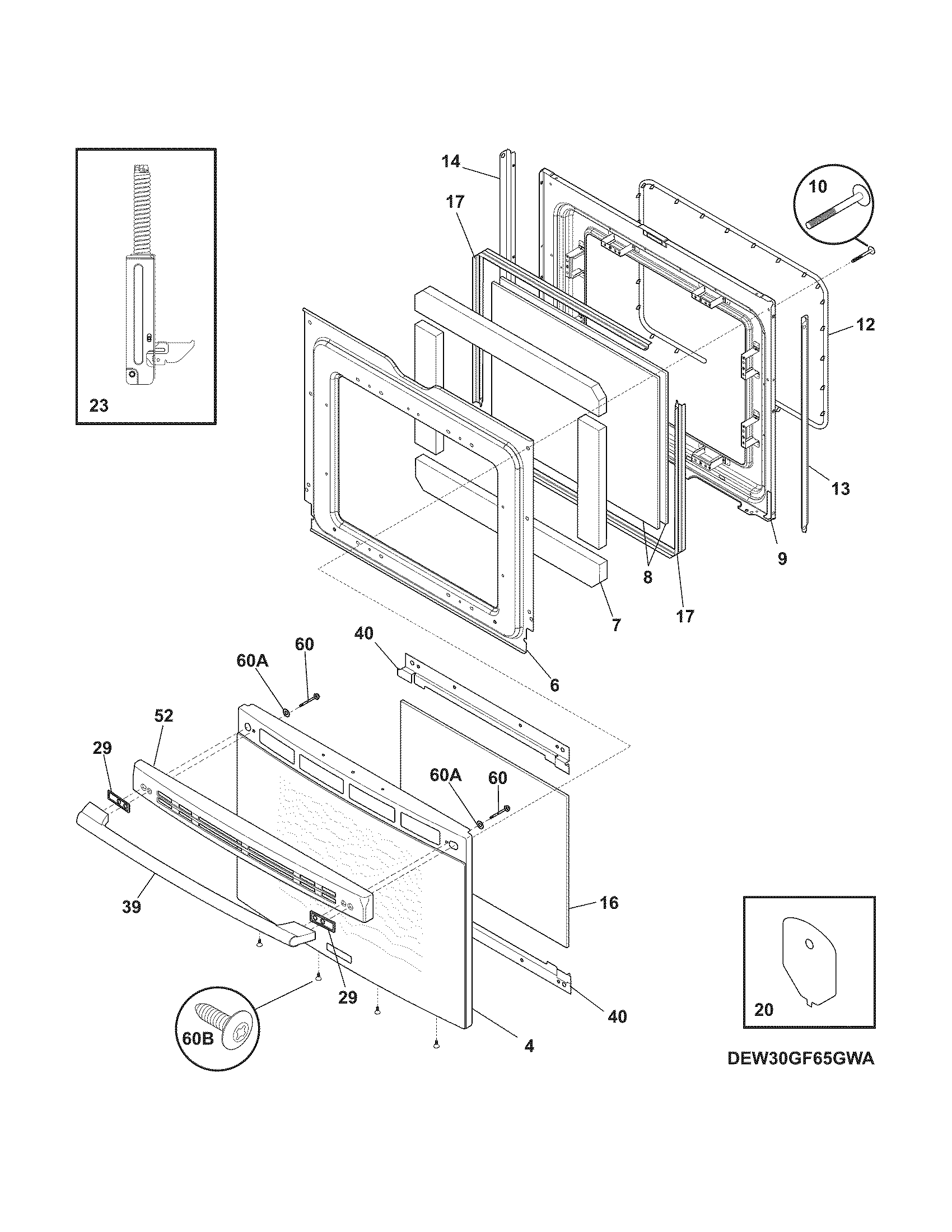

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 232 parts  |

Igniter 7316489400
#19

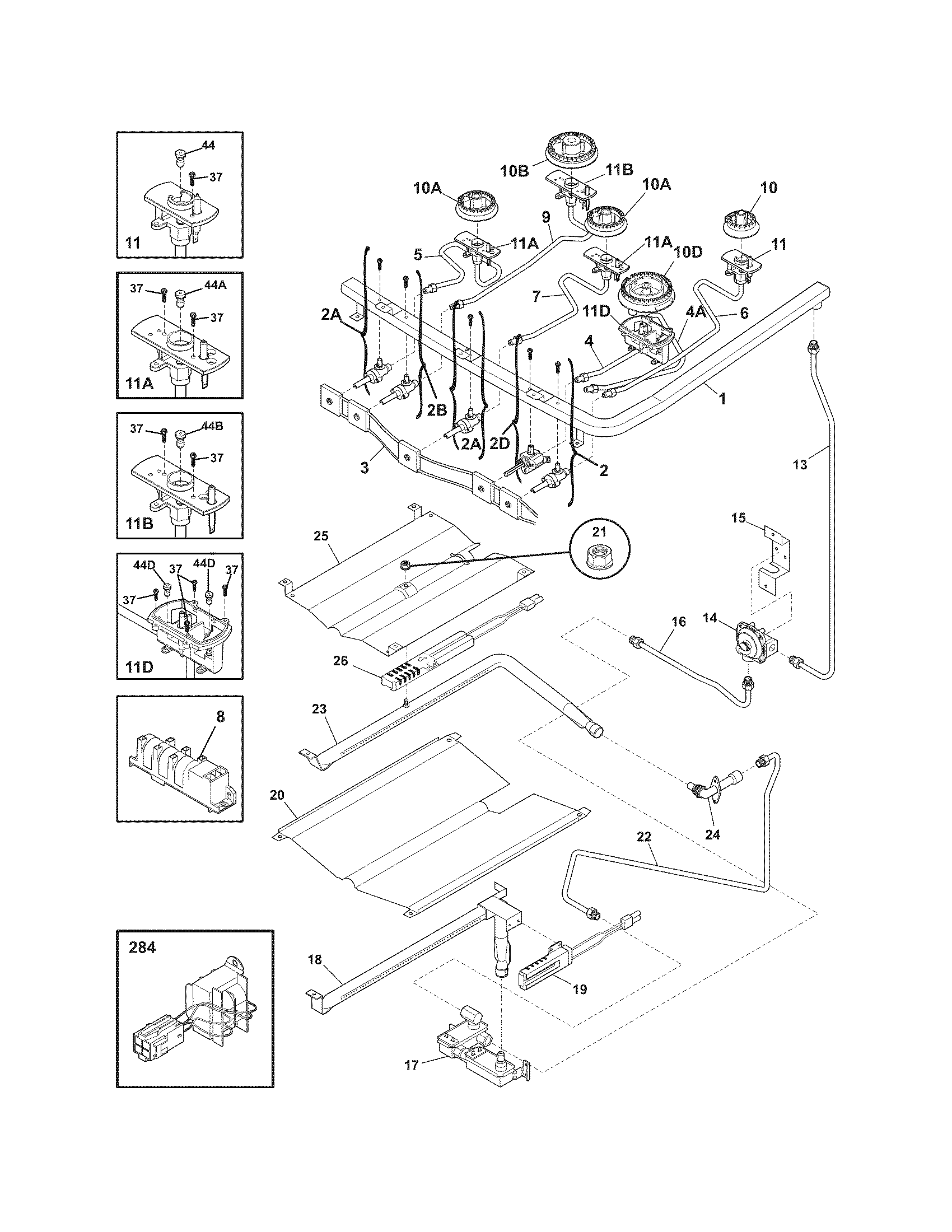

Burner diagram

Igniter

Part #7316489400

Replaced by #316489400

?
Manufacturer substitution
This part replaces 7316489400. Substitute parts can look different from the original.
BEST SELLER
$133.88
7% OFF Phone Price : $143.88
In Stock
Screw 7316518100
#37

Burner diagram

Screw

Part #7316518100

Replaced by #316540900

?
Manufacturer substitution
This part replaces 7316518100. Substitute parts can look different from the original.
BEST SELLER
$14.45
15% OFF MSRP : $17.00
In Stock
Block 7318079001
#8

Burner diagram

Block

Part #7318079001

Replaced by #808608804

?
Manufacturer substitution
This part replaces 7318079001. Substitute parts can look different from the original.
BEST SELLER
$58.45
8% OFF Phone Price : $63.45
In Stock
Motor 7316464300
#89

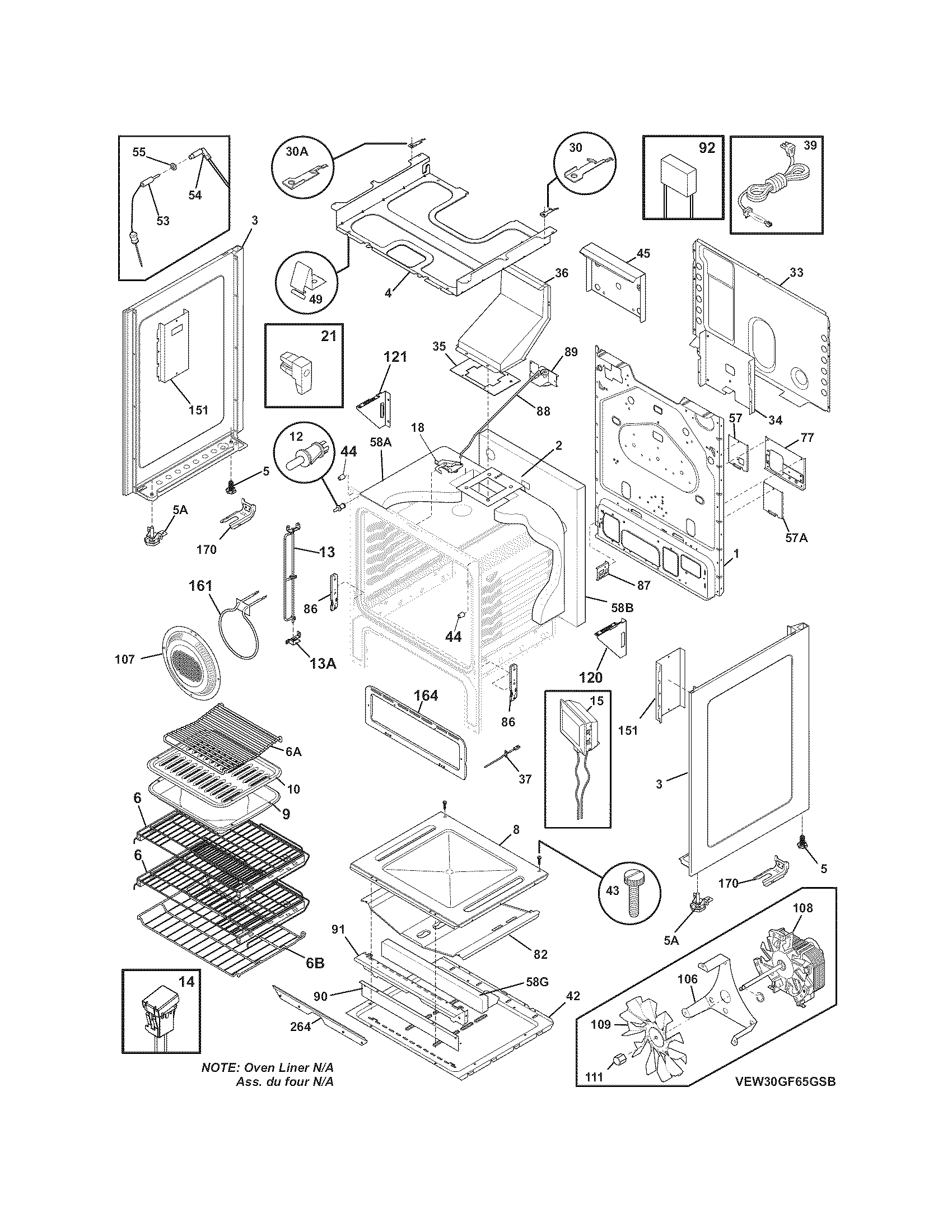

Body diagram

Motor

Part #7316464300

Replaced by #5304528973

?
Manufacturer substitution
This part replaces 7316464300. Substitute parts can look different from the original.
BEST SELLER
$44.59
10% OFF Phone Price : $49.59
In Stock
Washer 7316008401
Washer

Part #7316008401

Replaced by #316008401

?
Manufacturer substitution
This part replaces 7316008401. Substitute parts can look different from the original.
BEST SELLER
$12.32
14% OFF Phone Price : $14.32
In Stock
Range Level 7316498900
#5A

Body diagram

Range level

Part #7316498900

Replaced by #5304509869

?
Manufacturer substitution
This part replaces 7316498900. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.89
15% OFF Phone Price : $6.89
In Stock
Blade 7316136400
#109

Body diagram

Blade

Part #7316136400

Replaced by #318398302

?
Manufacturer substitution
This part replaces 7316136400. Substitute parts can look different from the original.
BEST SELLER
$23.89
17% OFF Phone Price : $28.89
In Stock
Screw 7316513301
#60

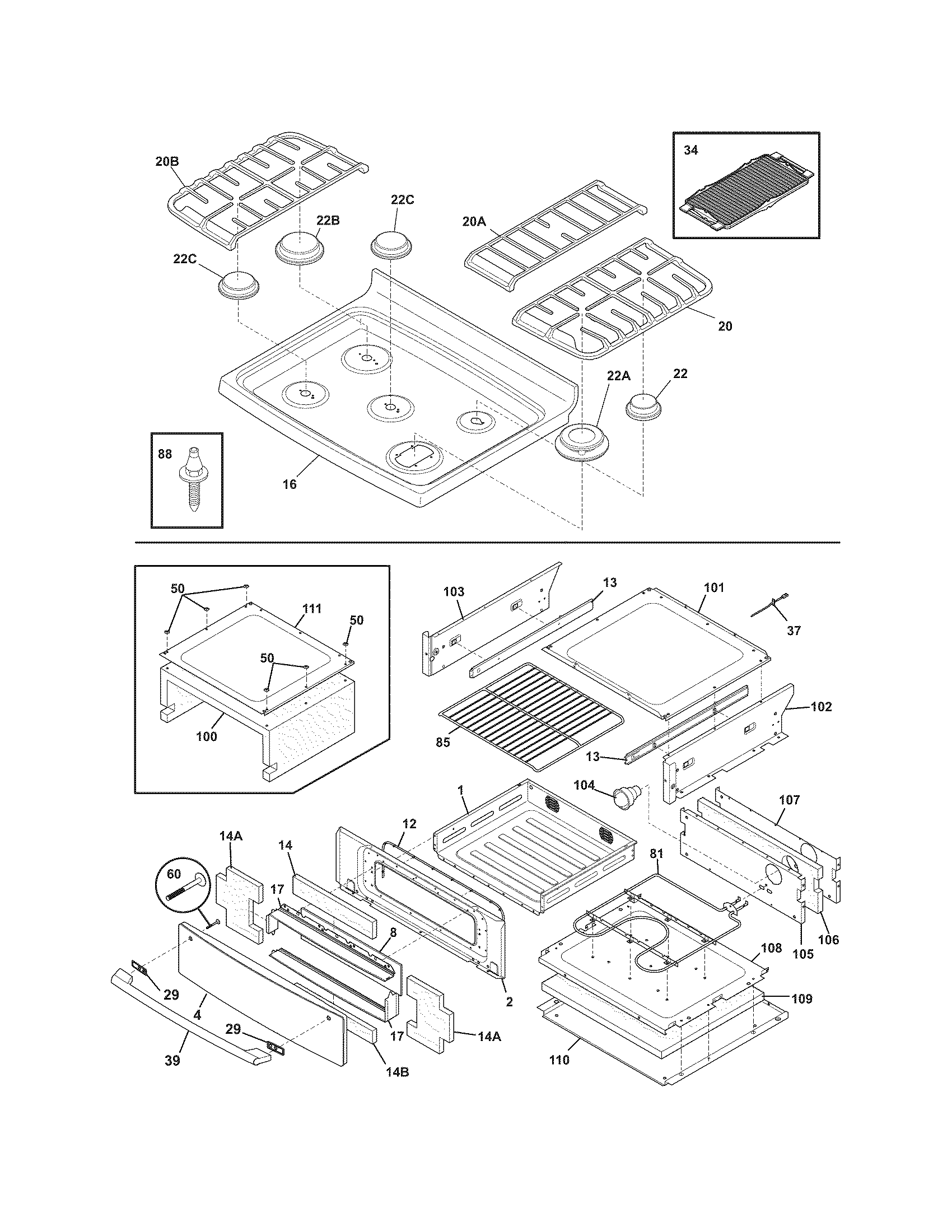

Top/drawer diagram

Screw

Part #7316513301

Replaced by #5304507924

?
Manufacturer substitution
This part replaces 7316513301. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.39
12% OFF Phone Price : $8.39
In Stock
Burner 7316404400
#18

Burner diagram

Burner

Part #7316404400

Replaced by #316404400

?
Manufacturer substitution
This part replaces 7316404400. Substitute parts can look different from the original.
BEST SELLER
$90.07
5% OFF Phone Price : $95.07
In Stock
Light Switch 7316445500
#12

Body diagram

Light switch

Part #7316445500

Replaced by #316445500

?
Manufacturer substitution
This part replaces 7316445500. Substitute parts can look different from the original.
BEST SELLER
$50.55
9% OFF Phone Price : $55.55
In Stock
