Whirlpool 7EL87TRRRV03 compact refrigerator Parts
Here are the diagrams and repair parts for Whirlpool 7EL87TRRRV03 compact refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

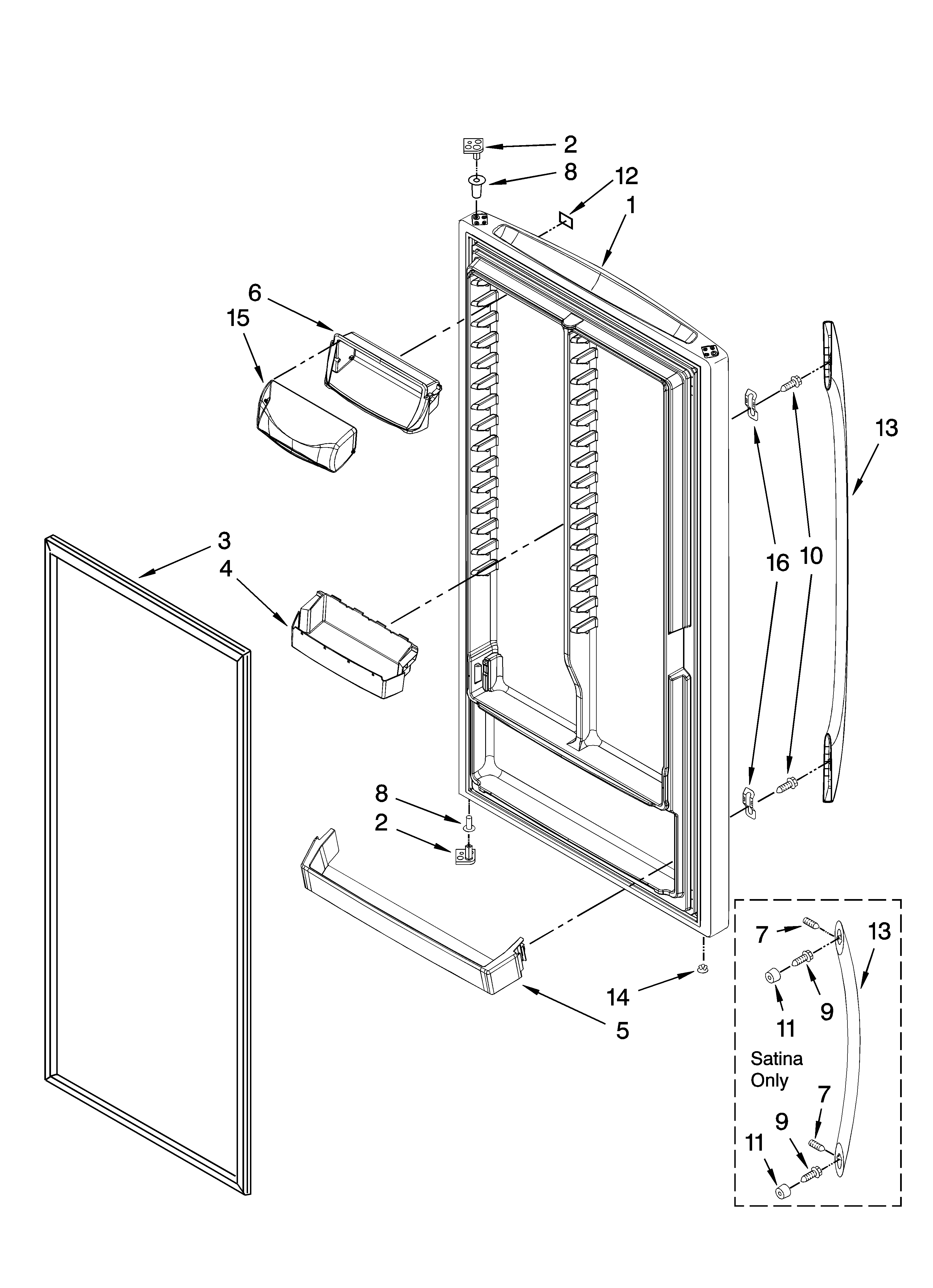

Browse Parts for 7EL87TRRRV03 Refrigerators

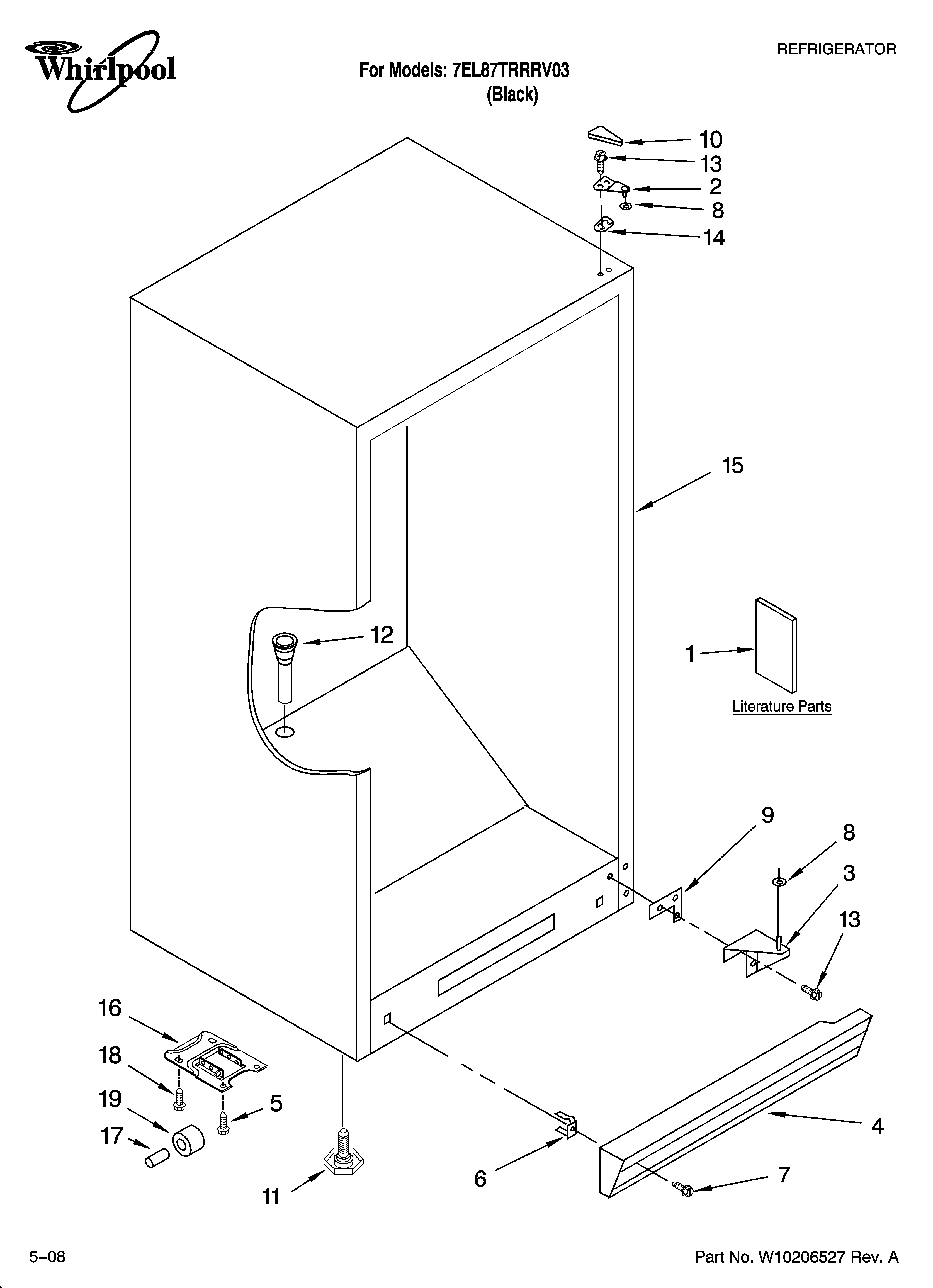

Cabinet parts diagram
Refrigerator Washer
Part #4390520Replaced by #W10851331
Manufacturer substitutionThis part replaces 4390520. Substitute parts can look different from the original.In Stock$8.3111% OFF Phone Price : $9.31
Qty
Cabinet Roller
Part #4390754Replaced by #3-60315-001

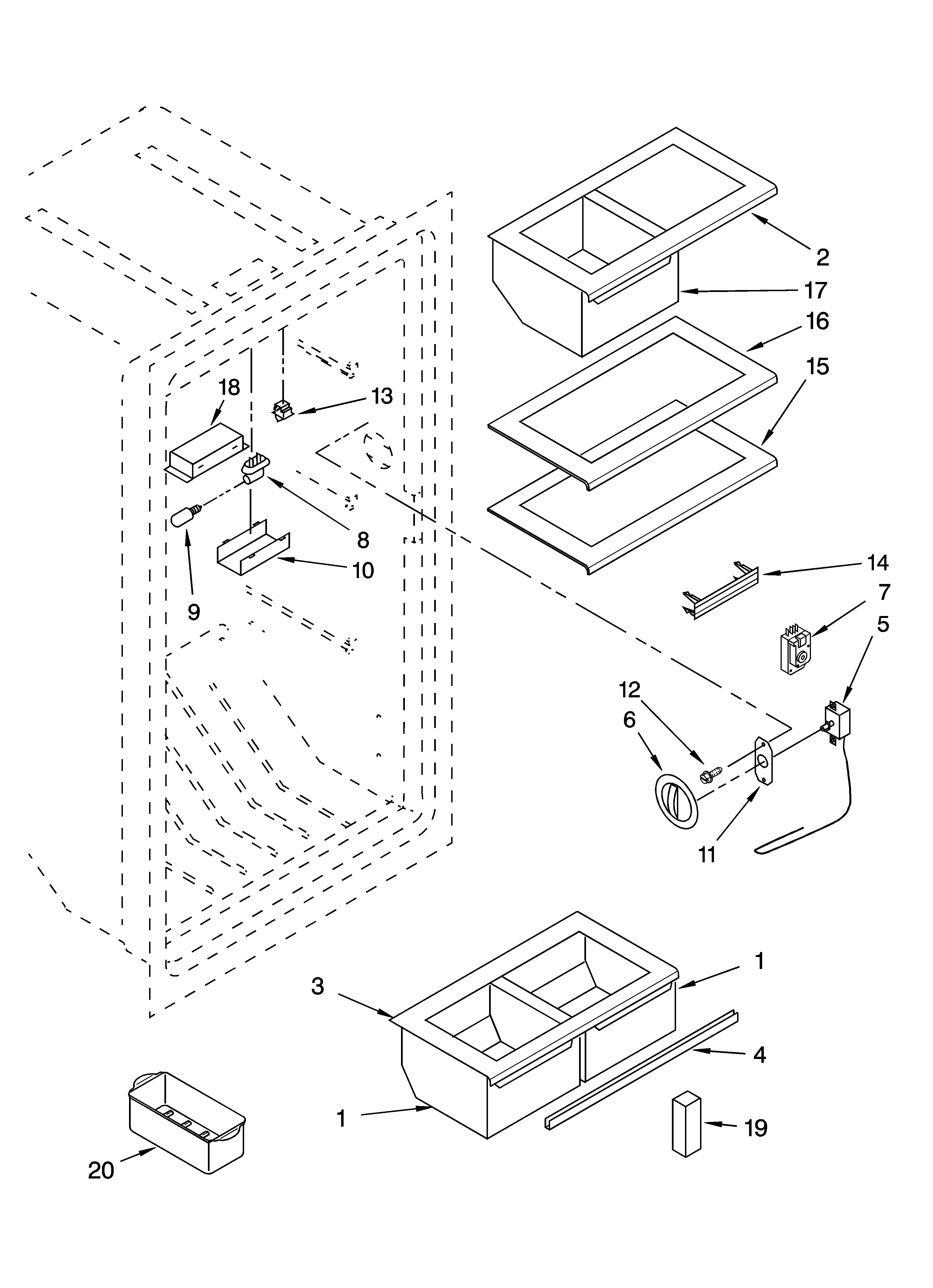

Manufacturer substitutionThis part replaces 4390754. Substitute parts can look different from the original.In Stock$21.8522% OFF Phone Price : $27.85QtyLiner parts diagram
Refrigerator Support
Part #4390774Replaced by #3-34715-004

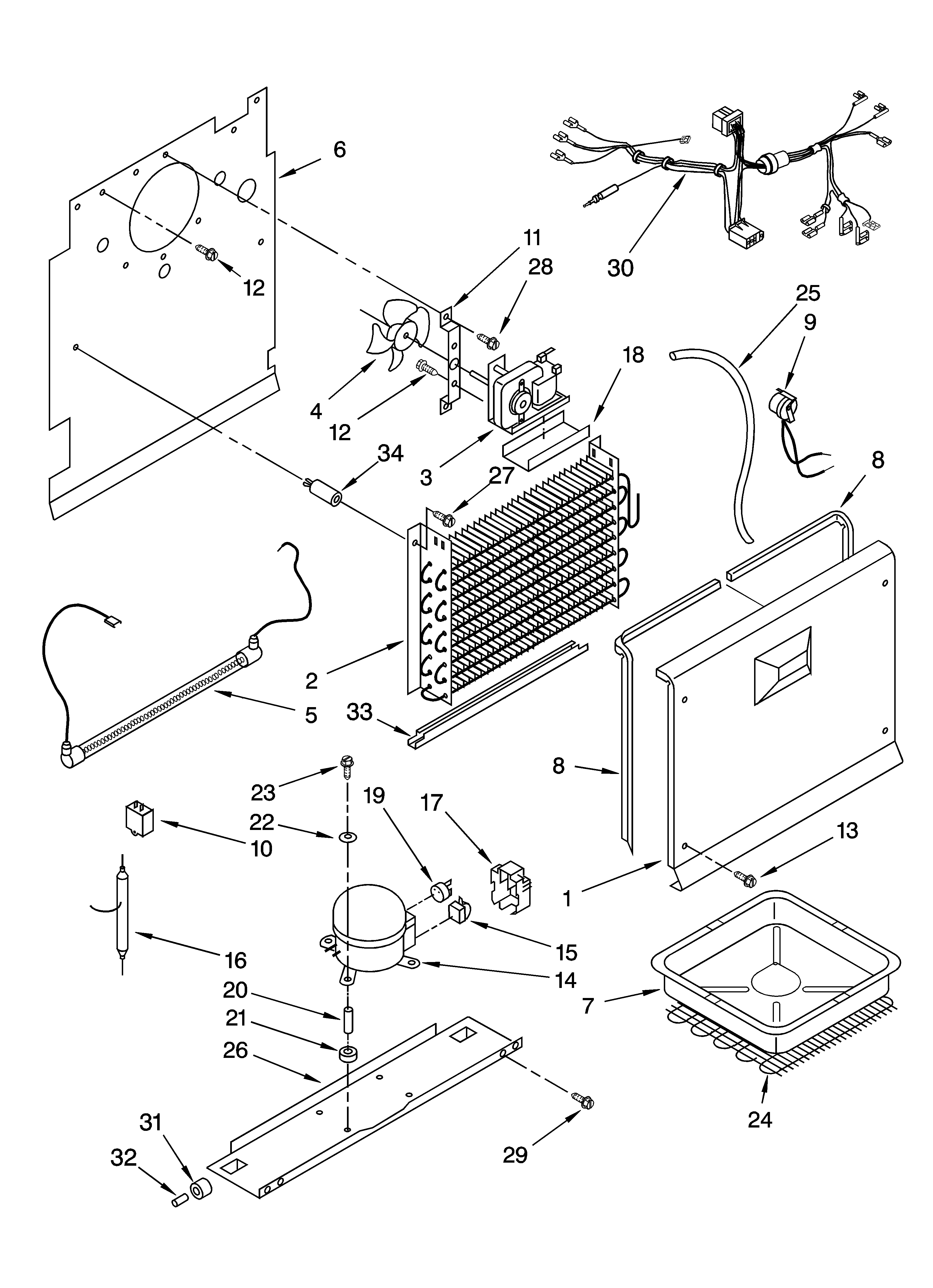

Manufacturer substitutionThis part replaces 4390774. Substitute parts can look different from the original.In Stock$59.13QtyUnit parts, optional parts (not included) diagram
Spray Paint (white)
Part #350930Replaced by #350930
Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnableIn Stock$26.0019% OFF Phone Price : $32.00QtyLiner parts diagram
Center Rail
Part #4390773Replaced by #2-33516-003
Manufacturer substitutionThis part replaces 4390773. Substitute parts can look different from the original.In Stock$74.387% OFF Phone Price : $80.38QtyCabinet parts diagram
Screw
Part #4356830Replaced by #WP8204624
Manufacturer substitutionThis part replaces 4356830. Substitute parts can look different from the original.In Stock$37.16QtyLiner parts diagram
Socket
Part #8210350Replaced by #WP3-82393-001
Manufacturer substitutionThis part replaces 8210350. Substitute parts can look different from the original.In Stock$109.82QtyUnit parts, optional parts (not included) diagram
Heater
Part #W10179594Replaced by #W11175809
Manufacturer substitutionThis part replaces W10179594. Substitute parts can look different from the original.In Stock$105.6710% OFF Phone Price : $117.67QtyUnit parts, optional parts (not included) diagram
Exchanger
Part #4357245Replaced by #WP4357245
Manufacturer substitutionThis part replaces 4357245. Substitute parts can look different from the original.In Stock$135.528% OFF Phone Price : $147.52QtyLiner parts diagram
Switch
Part #4390513Replaced by #W11384469
Manufacturer substitutionThis part replaces 4390513. Substitute parts can look different from the original.In Stock$25.1319% OFF Phone Price : $31.13Qty
