Tappan TGB504CCB2 gas wall oven - 5995280558 Parts
Here are the diagrams and repair parts for Tappan TGB504CCB2 gas wall oven - 5995280558, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for TGB504CCB2 Ranges

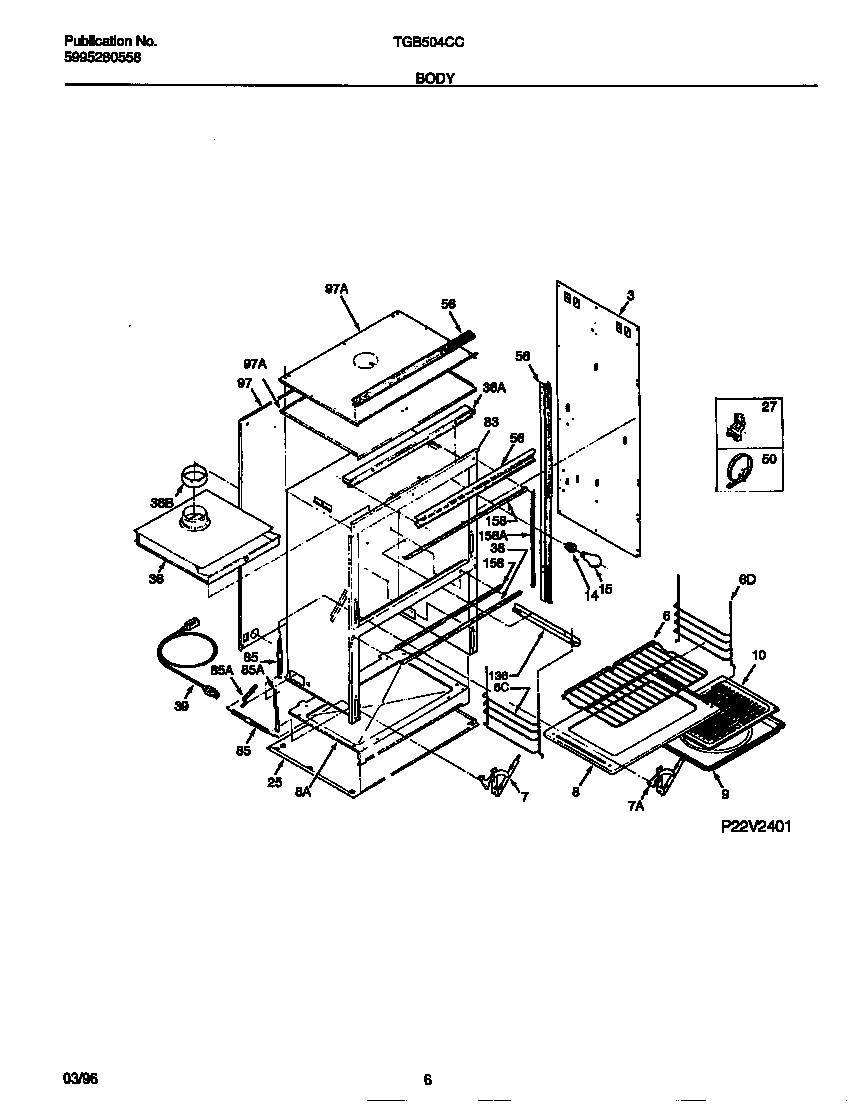

Body diagram
Range Oven Control Thermostat Bulb Clip
Part #5303284616This item is not returnableIn Stock$10.5416% OFF Phone Price : $12.54
Qty

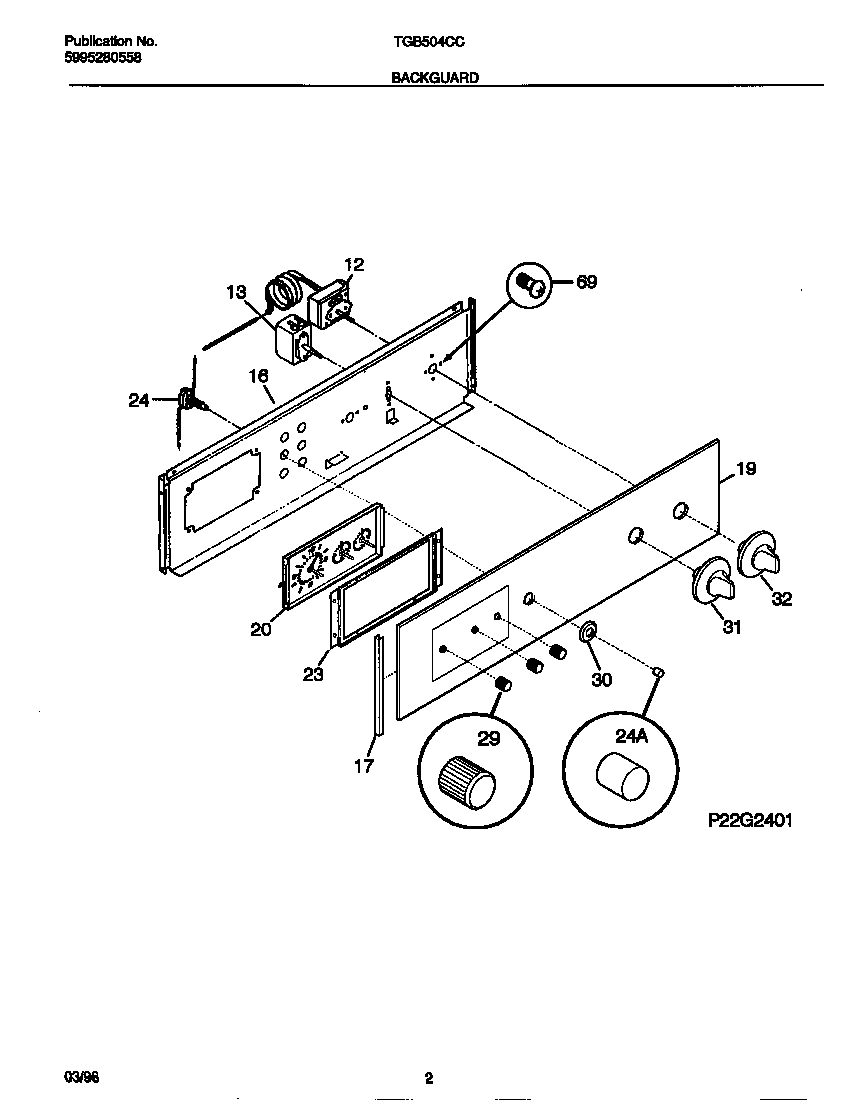

Backguard diagram
Screw
Part #5303292005Replaced by #5304501948
Manufacturer substitutionThis part replaces 5303292005. Substitute parts can look different from the original.In Stock$31.57Qty#NI
All parts diagram
Screw
Part #5303211311Replaced by #5303211311
Manufacturer substitutionThis part replaces 5303211311. Substitute parts can look different from the original.In Stock$38.66QtyBody diagram
Glide
Part #3018717Replaced by #318355200
Manufacturer substitutionThis part replaces 3018717. Substitute parts can look different from the original.In Stock$95.19QtyBody diagram
Ov Sock Lite
Part #08011171Replaced by #08011683
Manufacturer substitutionThis part replaces 08011171. Substitute parts can look different from the original.In Stock$41.89QtyBody diagram
Clip
Part #5303012323Replaced by #3203010
Manufacturer substitutionThis part replaces 5303012323. Substitute parts can look different from the original.In Stock$39.76QtyBody diagram
Range Oven Door Seal
Part #5303207644
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Bracket Spring
Part #5303317125
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Rack
Part #3201495
The manufacturer no longer makes this part, and there's no substitute part
Backguard diagram
Oven Knob Clock
Part #316029000
The manufacturer no longer makes this part, and there's no substitute part
