Kenmore 587701300 undercounter dishwasher Parts
Here are the diagrams and repair parts for Kenmore 587701300 undercounter dishwasher, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 587701300 Undercounter Dishwasher

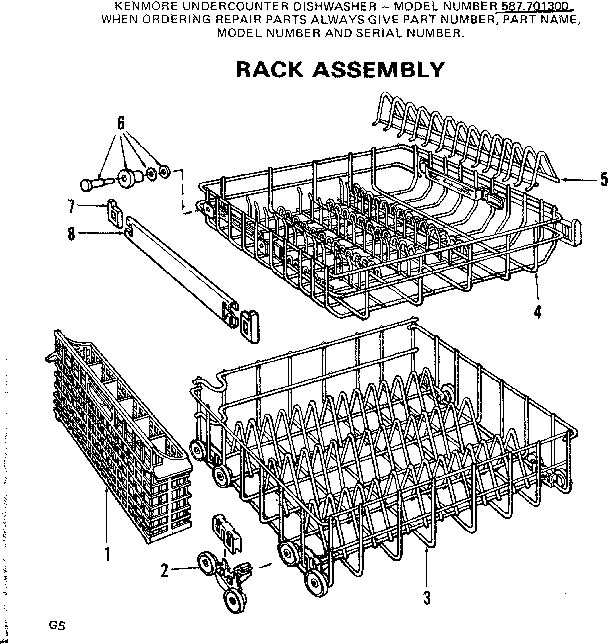

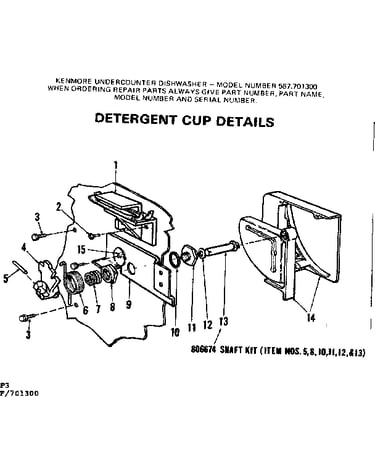

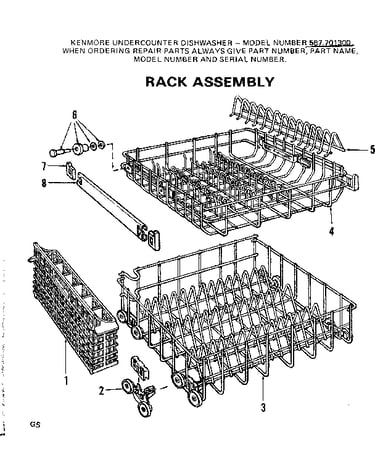

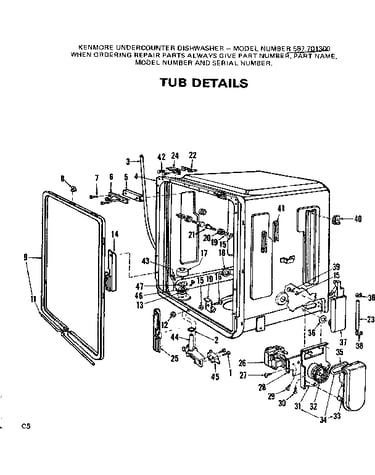

Tub details diagram
Screw
Part #806890Replaced by #131302901
Manufacturer substitutionThis part replaces 806890. Substitute parts can look different from the original.This item is not returnableIn Stock$5.7115% OFF Phone Price : $6.71
Qty
Tub details diagram
Tube
Part #808064Replaced by #5300808064
Manufacturer substitutionThis part replaces 808064. Substitute parts can look different from the original.In Stock$29.15QtyFrame details diagram

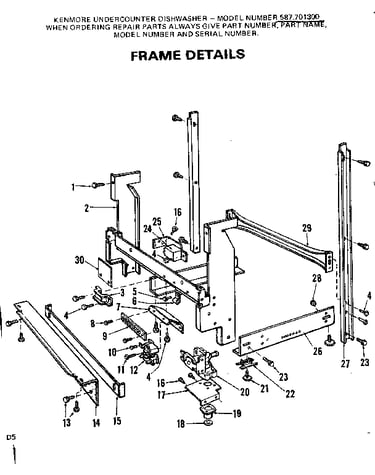

Terminal Block
Part #807486Replaced by #5300807486

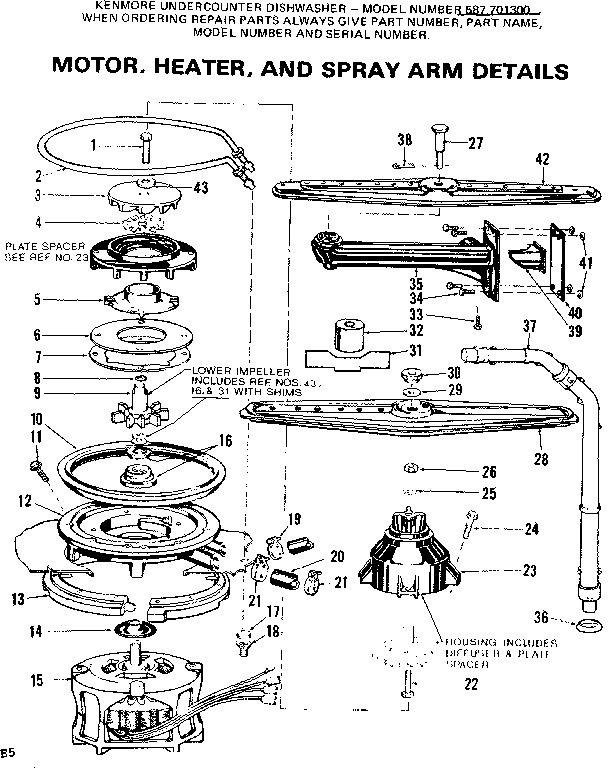

Manufacturer substitutionThis part replaces 807486. Substitute parts can look different from the original.In Stock$37.83QtyMoror, heater, and spray arm details diagram
Lock Washer
Part #804526Replaced by #5300804526

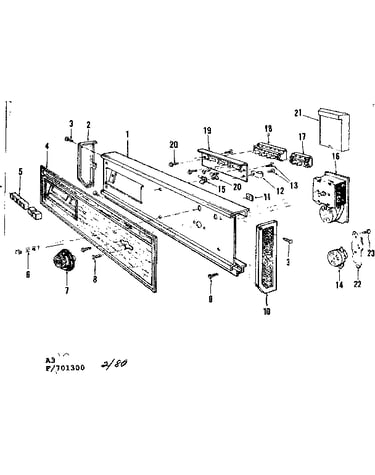

Manufacturer substitutionThis part replaces 804526. Substitute parts can look different from the original.This item is not returnableIn Stock$5.4216% OFF Phone Price : $6.42QtyControl panel details diagram
Pan Splash
Part #807425Replaced by #5300807425

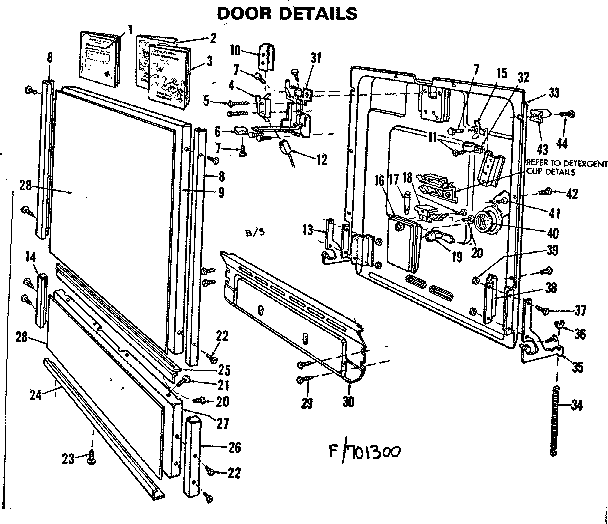

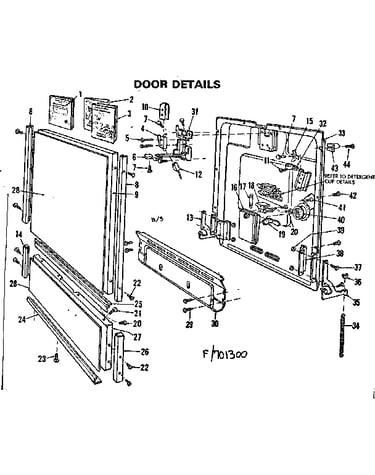

Manufacturer substitutionThis part replaces 807425. Substitute parts can look different from the original.In Stock$34.41QtyDoor details diagram
Trim
Part #808104Replaced by #5303272125
Manufacturer substitutionThis part replaces 808104. Substitute parts can look different from the original.In Stock$67.75QtyMoror, heater, and spray arm details diagram
Nut
Part #806834Replaced by #154106202
Manufacturer substitutionThis part replaces 806834. Substitute parts can look different from the original.In Stock$8.4911% OFF Phone Price : $9.49QtyFrame details diagram
Wire Retainer
Part #806723Replaced by #5300806723
Manufacturer substitutionThis part replaces 806723. Substitute parts can look different from the original.In Stock$26.42QtyFrame details diagram
Screw
Part #807001Replaced by #5300807001
Manufacturer substitutionThis part replaces 807001. Substitute parts can look different from the original.In Stock$28.11QtyControl panel details diagram
Pilot Light
Part #807763Replaced by #5300807764
Manufacturer substitutionThis part replaces 807763. Substitute parts can look different from the original.In Stock$44.87Qty
