Model # CGC3M6DXD Official Gibson gas range - 5995213450

Here are the diagrams and repair parts for Official Gibson CGC3M6DXD gas range - 5995213450, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |

Igniter 5303131300
#13

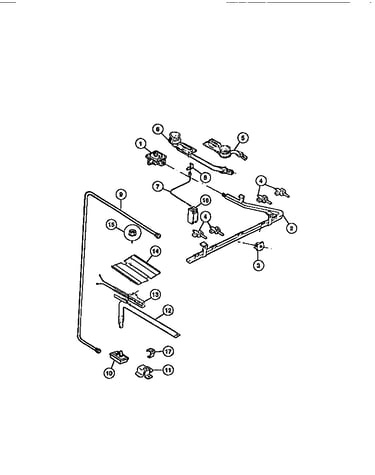

Burners diagram

Igniter

Part #5303131300

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 5303131300. Substitute parts can look different from the original.
BEST SELLER
$33.27
24% OFF MSRP : $44.00
In Stock
Range Oven Gas Valve (replaces 316066400, 3201101, 5303131449) 3203459
#10

Burners diagram

Range oven gas valve (replaces 316066400, 3201101, 5303131449)

Part #3203459

BEST SELLER
$248.90
7% OFF Phone Price : $266.60
In Stock
Range Screw 3131732
#10

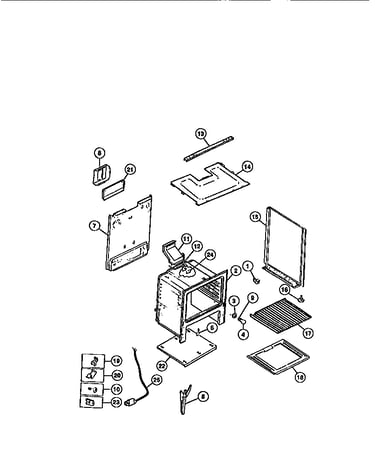

Body diagram

Range screw

Part #3131732

This item is not returnable
$11.19
15% OFF Phone Price : $13.19
Back Order
Thermostat 5303271464
#10

Cooktop diagram

Thermostat

Part #5303271464

Replaced by #316032411

?
Manufacturer substitution
This part replaces 5303271464. Substitute parts can look different from the original.
$95.19
10% OFF Phone Price : $105.19
In Stock
Thermostat Oven Griddle 5303272103
#10

Cooktop diagram

Thermostat oven griddle

Part #5303272103

Replaced by #316032411

?
Manufacturer substitution
This part replaces 5303272103. Substitute parts can look different from the original.
$95.19
10% OFF Phone Price : $105.19
In Stock
Burner 3204960
#6

Burners diagram

Burner

Part #3204960

Replaced by #5304506426

?
Manufacturer substitution
This part replaces 3204960. Substitute parts can look different from the original.
$74.99
6% OFF Phone Price : $79.99
In Stock
Clock Timer 5303212519
#3

Backguard diagram

Clock timer

Part #5303212519

In Stock
Plate Instruction 5303274449
#4

Backguard diagram

Plate instruction

Part #5303274449

In Stock
Manifold Panel 5303212556
#1

Cooktop diagram

Manifold panel

Part #5303212556

In Stock
Bumper 3131903
#21A

Body diagram

Bumper

Part #3131903

In Stock
