KitchenAid KGST307HBS3 gas slide-in range Parts
Here are the diagrams and repair parts for KitchenAid KGST307HBS3 gas slide-in range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

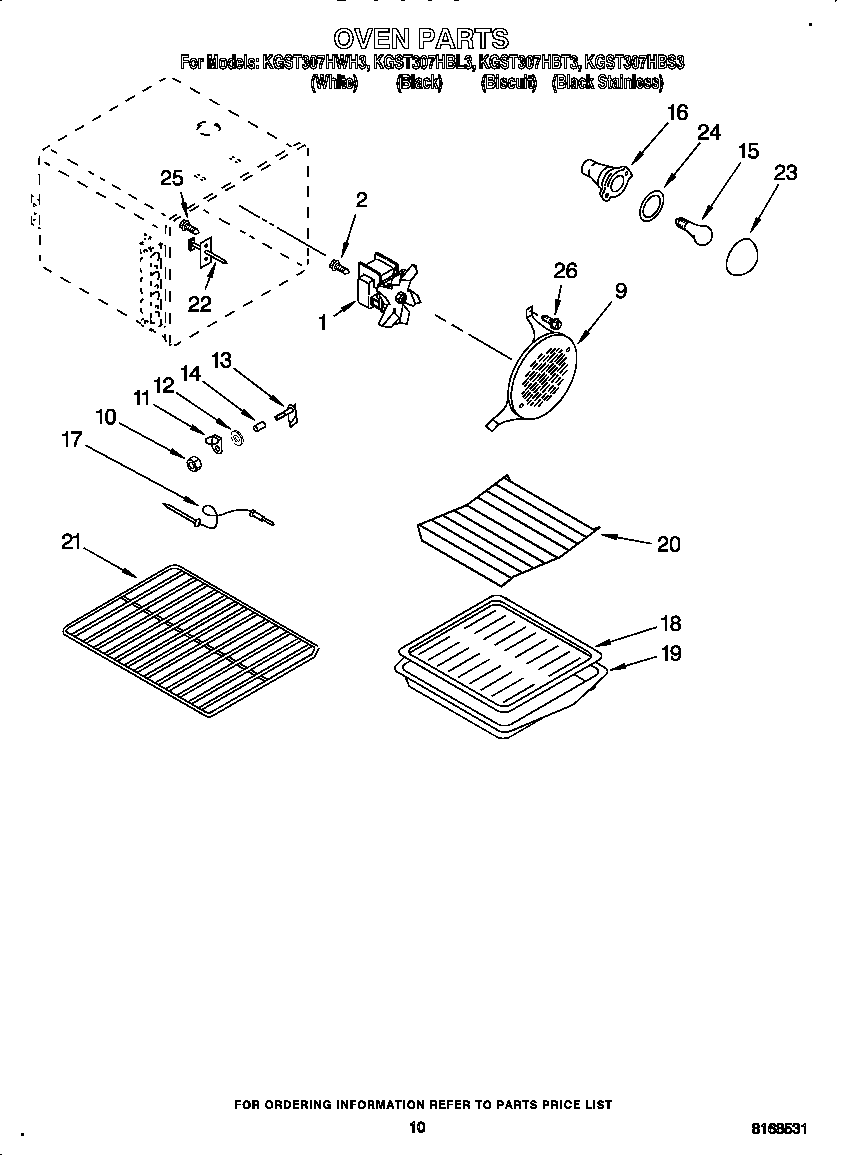

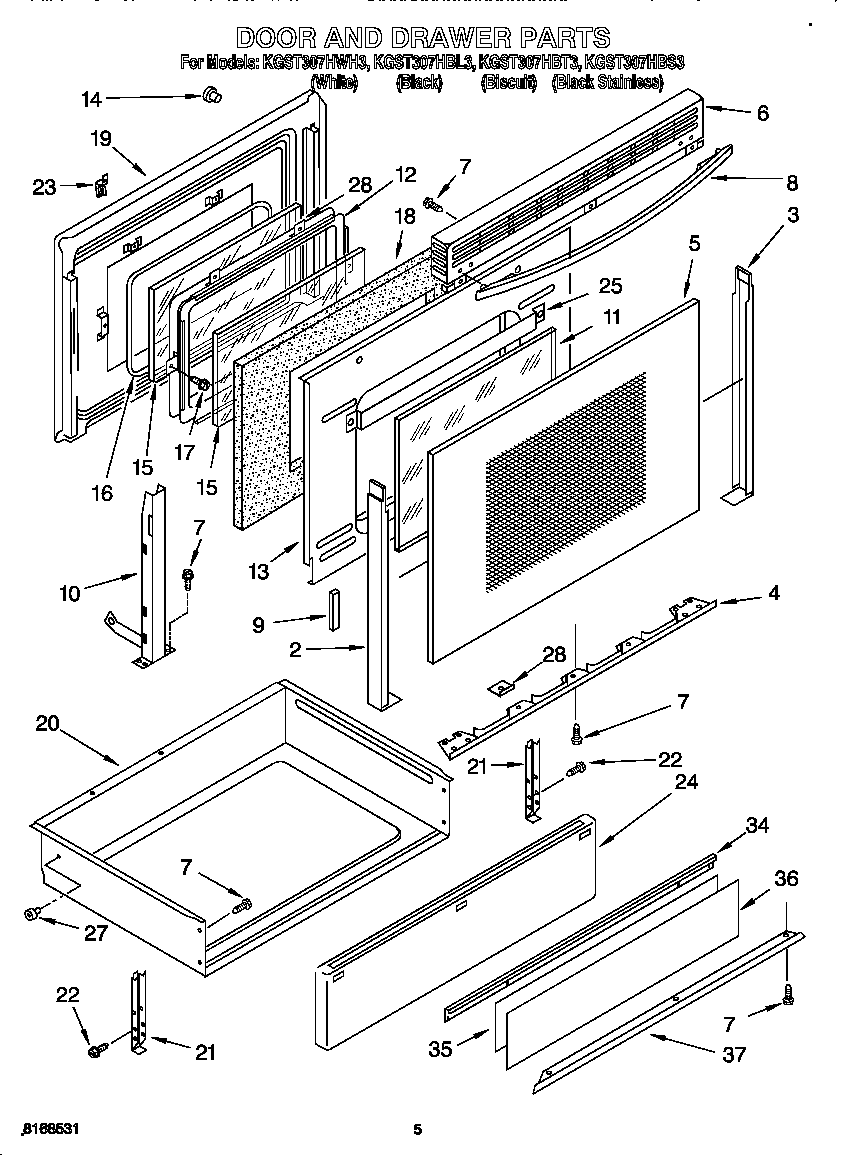

Browse Parts for KGST307HBS3 Ranges

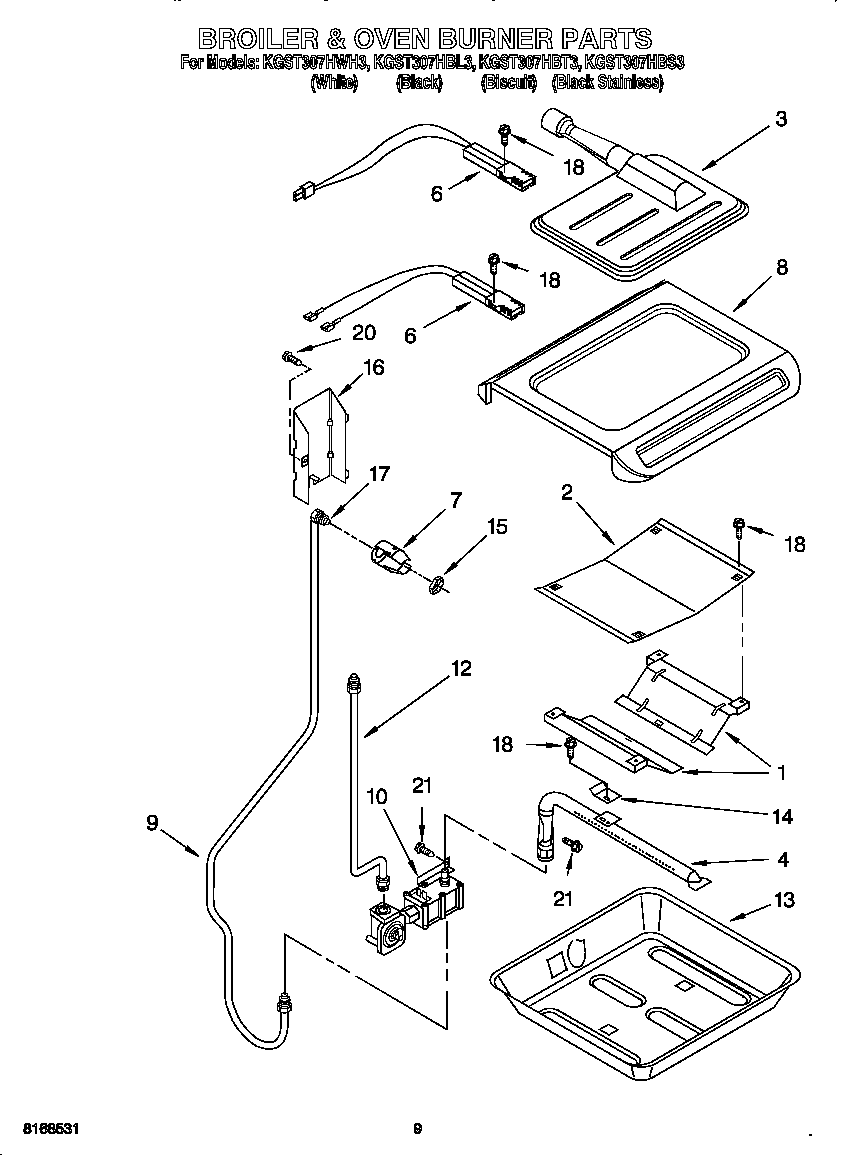

Broiler and oven burner diagram
Gas Valve
Part #9752698Replaced by #WP9755424
Manufacturer substitutionThis part replaces 9752698. Substitute parts can look different from the original.In Stock$244.925% OFF Phone Price : $256.92
Qty
#NI
All parts diagram
Porc-white
Part #511873Replaced by #511873
Manufacturer substitutionThis part replaces 511873. Substitute parts can look different from the original.In Stock$31.0216% OFF Phone Price : $37.02QtyCooktop diagram

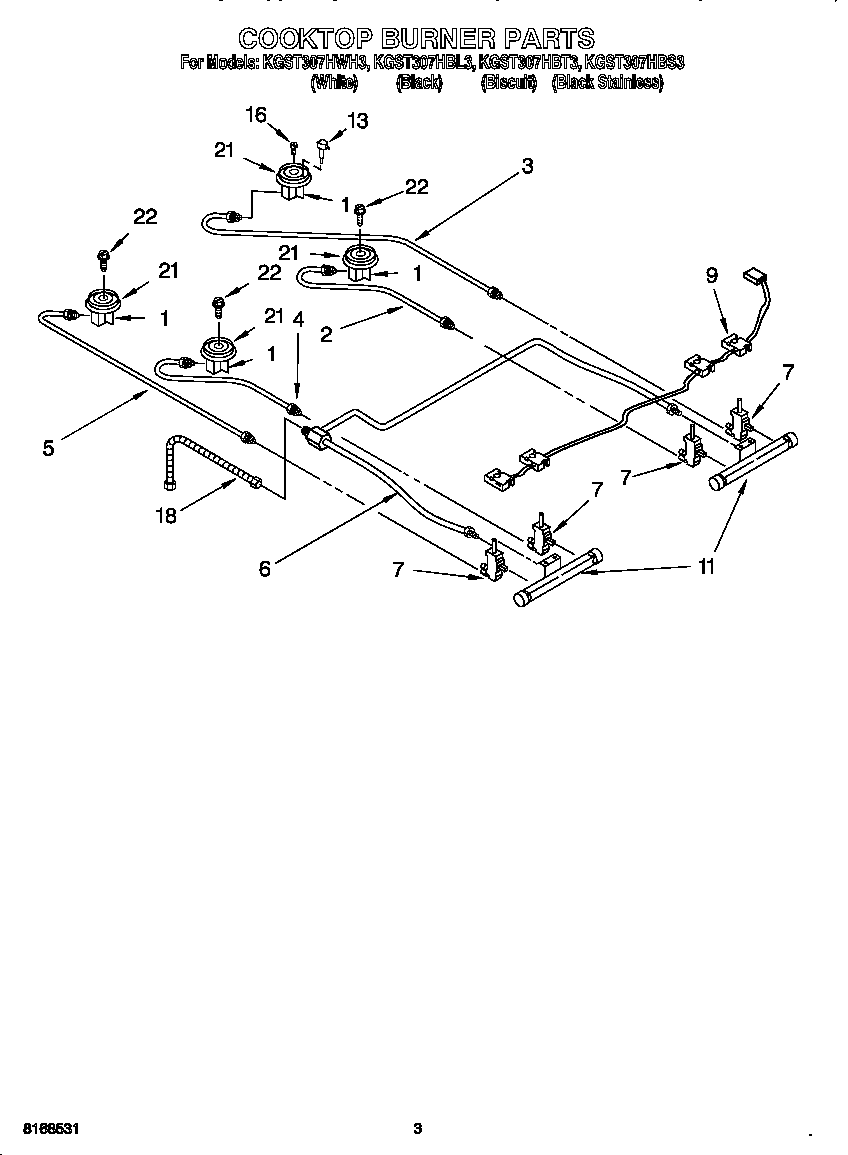

Cooktop Burner Cap
Part #9753939GSReplaced by #WP9753939GS
Manufacturer substitutionThis part replaces 9753939GS. Substitute parts can look different from the original.In Stock$64.638% OFF Phone Price : $70.63Qty#NI
All parts diagram
Wire (red)
Part #242825
The manufacturer no longer makes this part, and there's no substitute part

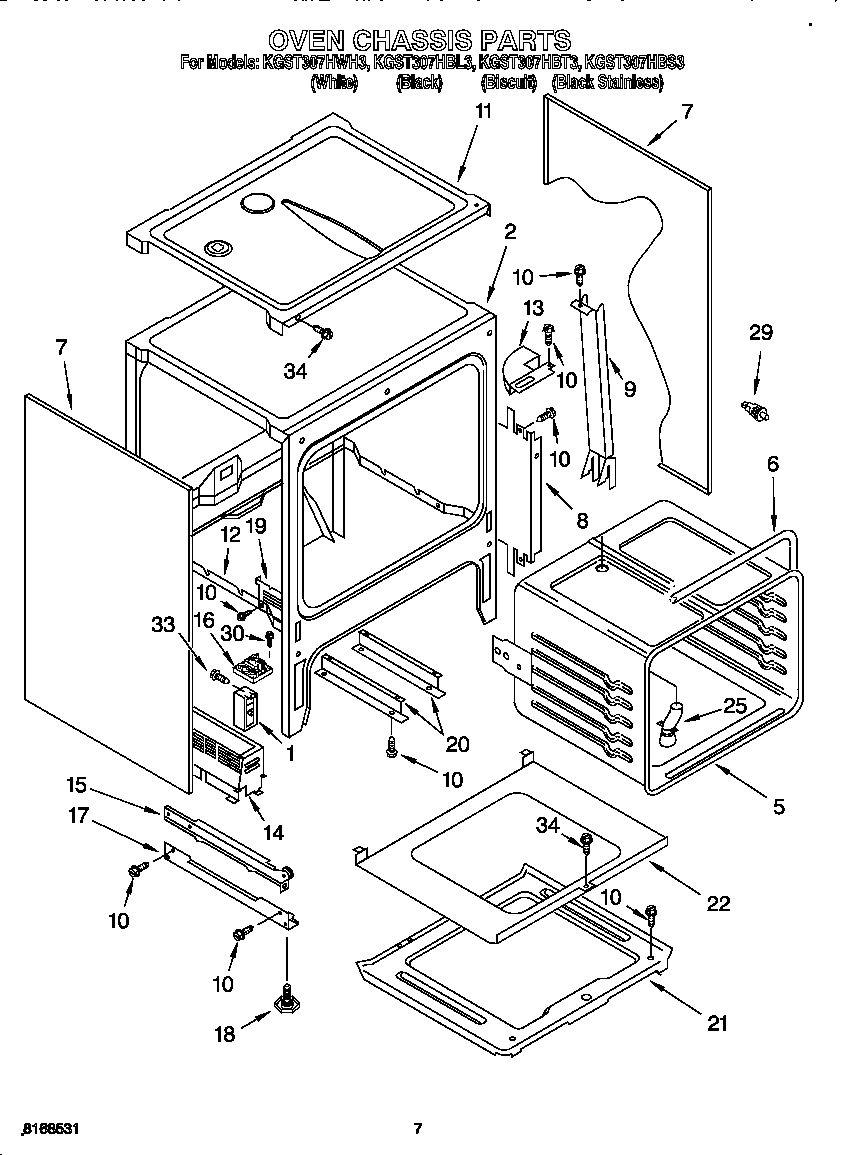

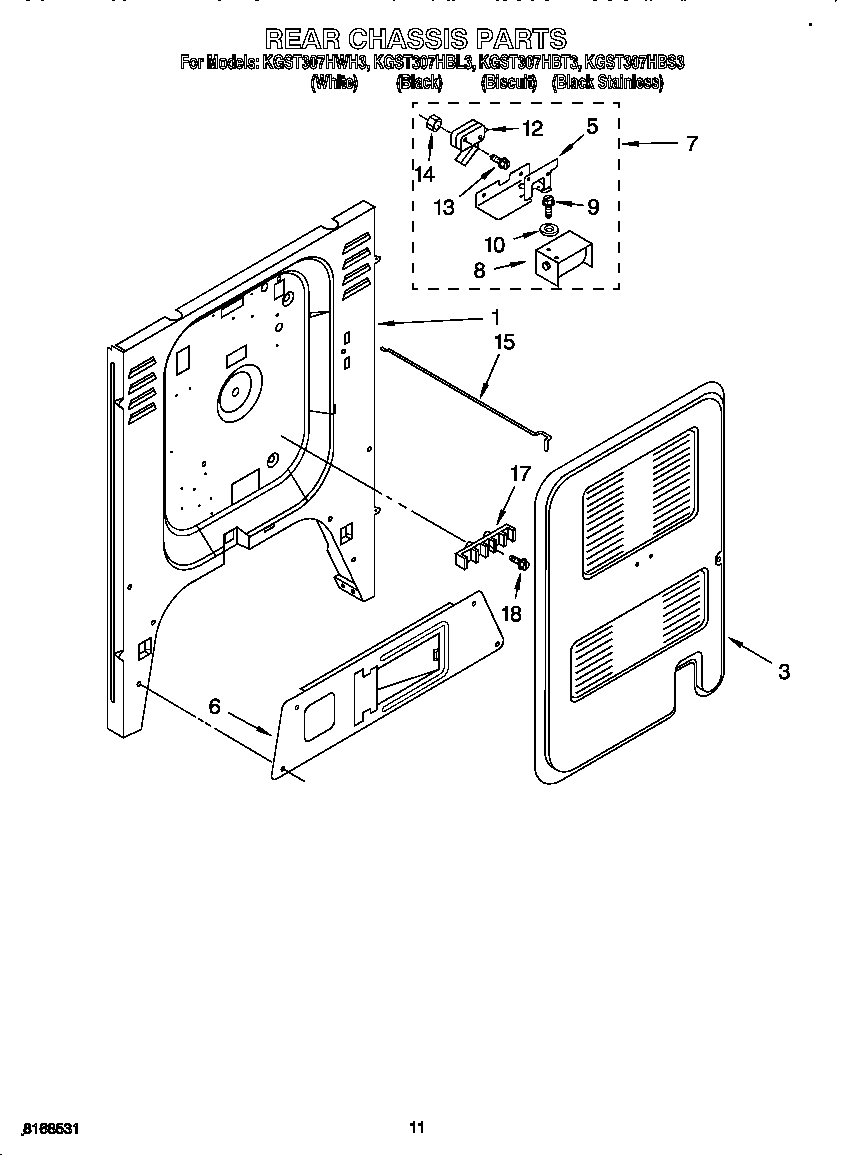

Oven chassis diagram
Base
Part #9750147
The manufacturer no longer makes this part, and there's no substitute part

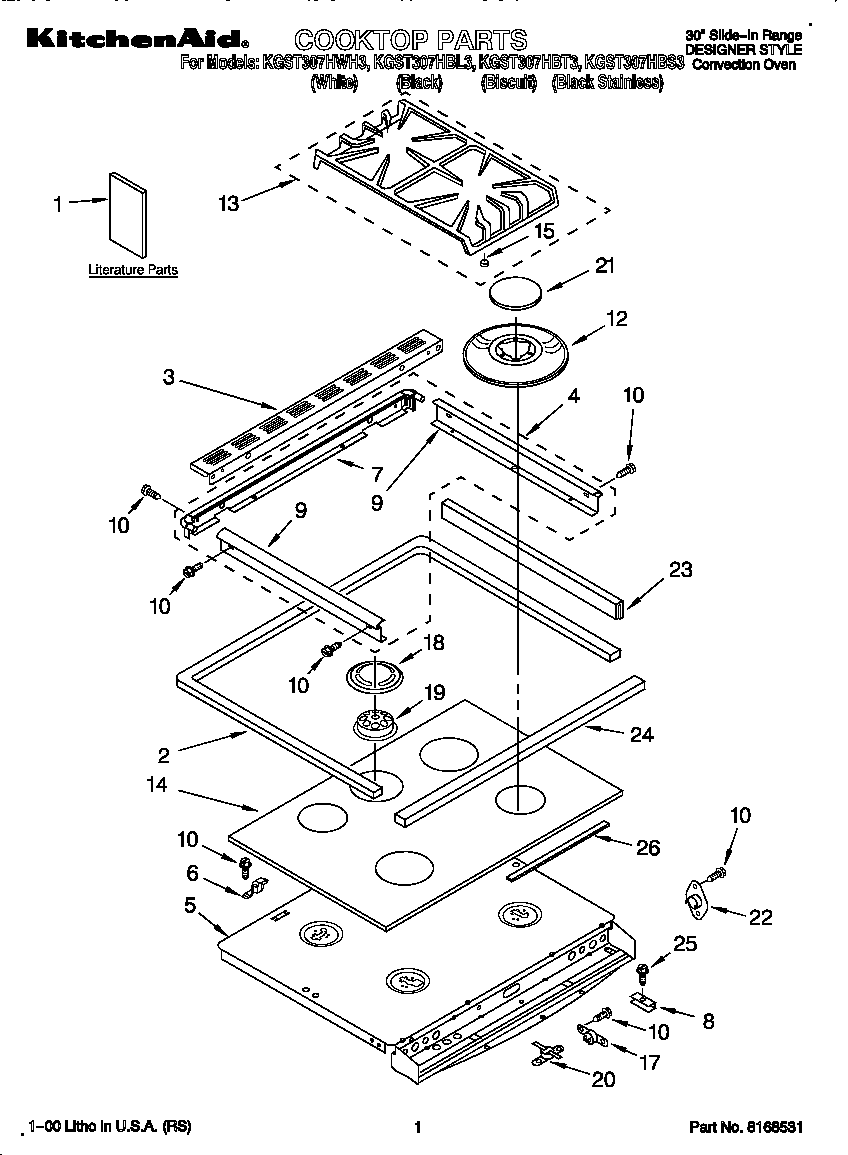

Cooktop diagram
Vent Trim
Part #9752090PC
The manufacturer no longer makes this part, and there's no substitute part

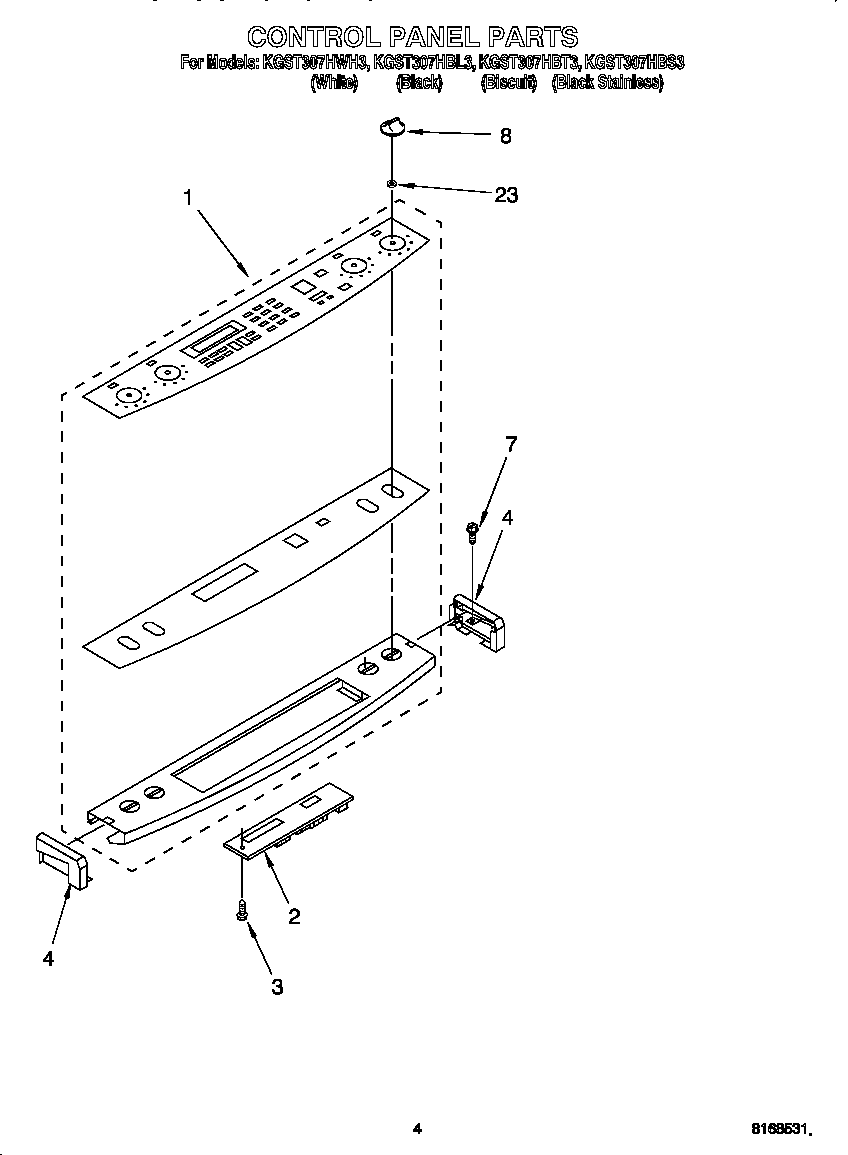

Control panel diagram
End Cap Panel
Part #9751040FW
The manufacturer no longer makes this part, and there's no substitute part
Oven chassis diagram
Burner Box
Part #9752637
The manufacturer no longer makes this part, and there's no substitute part
Cooktop diagram
Cktop-bl
Part #9753606CB
The manufacturer no longer makes this part, and there's no substitute part
Cooktop diagram
Cap Vent
Part #9751271GW
The manufacturer no longer makes this part, and there's no substitute part
