Model # UH30010COM Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH30010COM vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |

Vacuum Handle Tube Assembly 002062001
#5

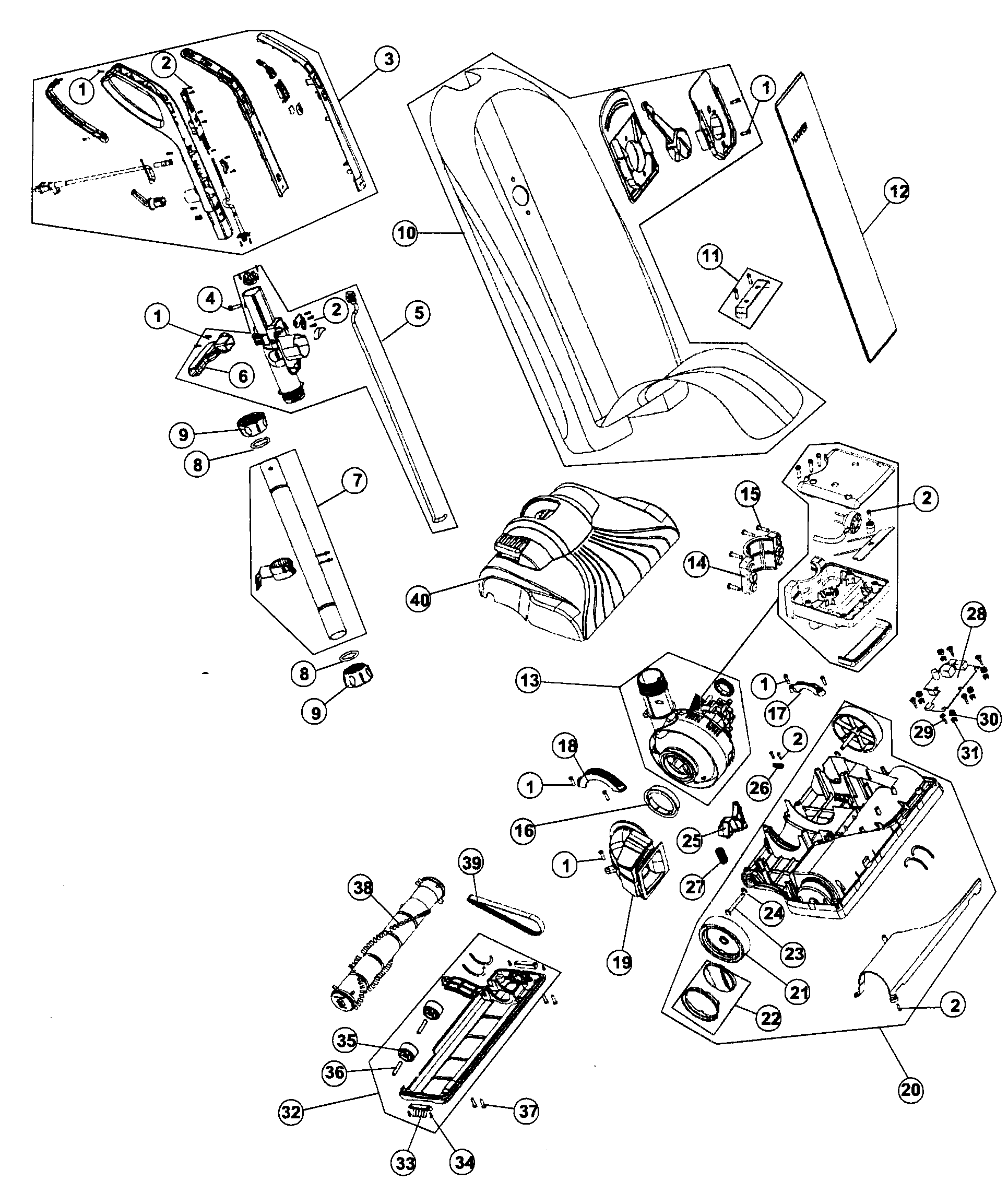

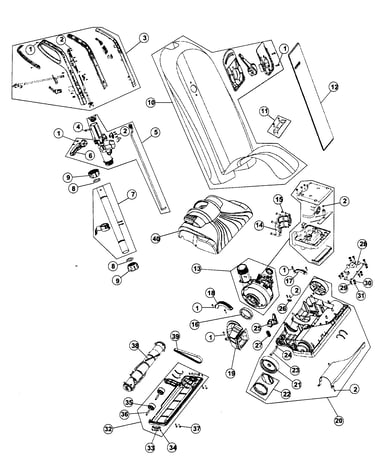

Upright vacuum diagram

Vacuum handle tube assembly

Part #002062001

The manufacturer no longer makes this part, and there's no substitute part

Duct Assembly 002065001
#19

Upright vacuum diagram

Duct assembly

Part #002065001

The manufacturer no longer makes this part, and there's no substitute part

Logo-hoovr 2000850590
#9

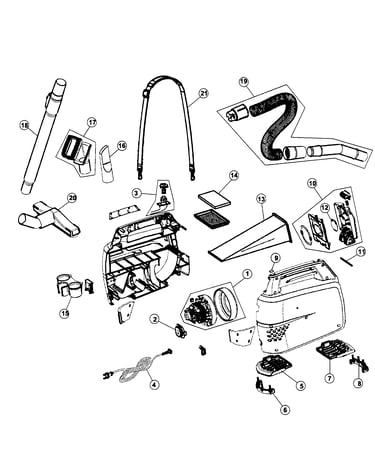

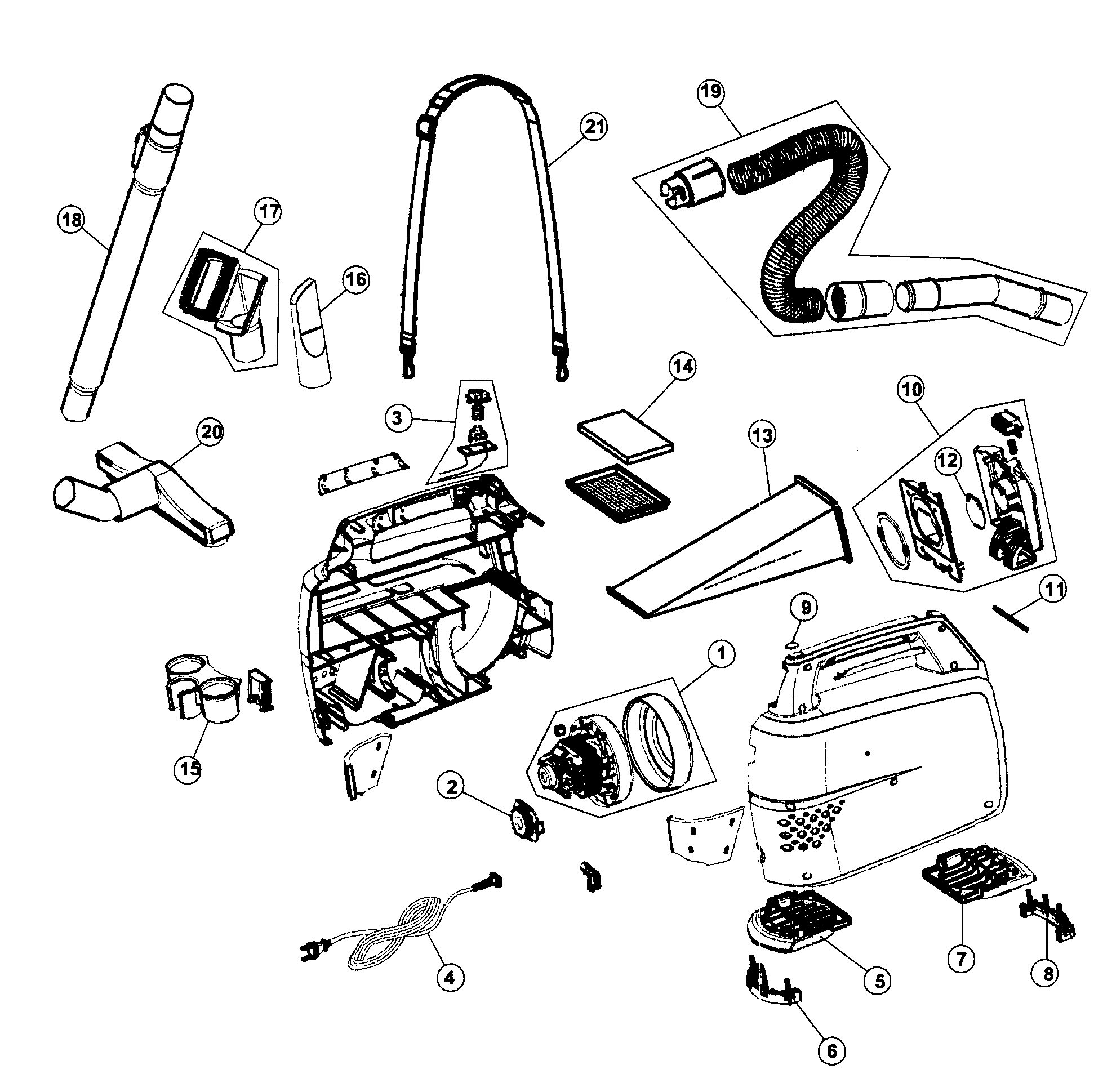

Canister vacuum diagram

Logo-hoovr

Part #2000850590

The manufacturer no longer makes this part, and there's no substitute part

Washer 561690001
#30

Upright vacuum diagram

Washer

Part #561690001

The manufacturer no longer makes this part, and there's no substitute part

Spring 690394001
#27

Upright vacuum diagram

Spring

Part #690394001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Screw 660165010
#4

Upright vacuum diagram

Vacuum handle screw

Part #660165010

The manufacturer no longer makes this part, and there's no substitute part

Hoover Vacuum Bag, Type I 985059002
#13

Canister vacuum diagram

Hoover vacuum bag, type i

Part #985059002

The manufacturer no longer makes this part, and there's no substitute part

Mtr Clmp-l 517941001
#18

Upright vacuum diagram

Mtr clmp-l

Part #517941001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Bag, Type Q 302982002
#12

Upright vacuum diagram

Vacuum bag, type q

Part #302982002

The manufacturer no longer makes this part, and there's no substitute part

Cord Gromm 510368001
#26

Upright vacuum diagram

Cord gromm

Part #510368001

The manufacturer no longer makes this part, and there's no substitute part
