Most Frigidaire dishwashers, including model GDPP4515AF0A, do not have a dedicated “reset” button; the normal reset is to cancel the cycle (often by pressing and holding Cancel/Drain for about 3 seconds) or to power-cycle the dishwasher. If the controls will not respond, a door-latch issue can also prevent a reset from working.

How to reset (most common methods)

• Cancel/Drain reset: Press and hold Cancel/Drain (or Cancel) for about 3 seconds until the display changes or the cycle stops.
• Power-cycle reset: Turn the dishwasher off at the breaker (or unplug it) for 1 minute, then restore power.
• Door reset: Open the door, wait 10 seconds, close it firmly, then try Cancel/Drain again.
• Control lock check: If your model has Control Lock enabled, turn it off first, then retry the reset.

If “reset” does not work, check these quick causes

A dishwasher that will not cancel or respond is usually missing one of the basics: a fully latched door, proper water fill, or a working drain path.

• Make sure the door closes and latches with a solid click
• Confirm the unit has power (no tripped breaker, no dead outlet)
• Listen for a drain pump sound during Cancel/Drain
• Check for standing water that suggests a drain restriction
• If the door feels loose or pops open, inspect the latch area

Parts that commonly affect cancel/reset symptoms

If the dishwasher will not start, will not cancel, or stops mid-cycle, these model-matched parts are common suspects:

Symptom	What to check	Model-matched part to consider
Buttons respond but cycle will not cancel/drain	Drain pump operation, drain path	Drain pump a A00126401

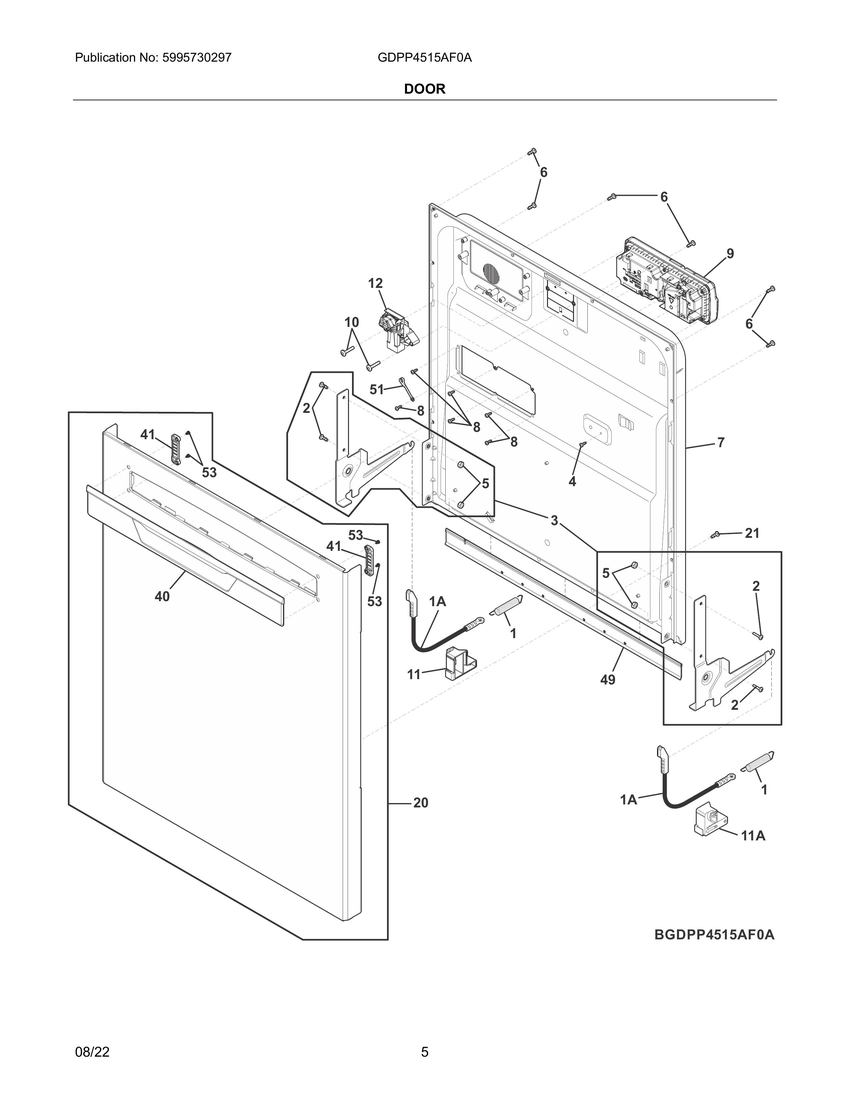

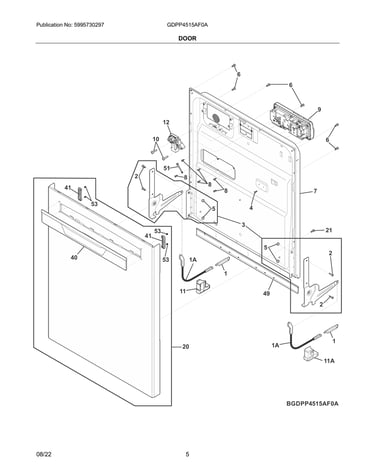

Unit acts dead or stops when door is moved	Door latch engagement	Frigidaire dishwasher door latch 5304525218
Won’t fill, then beeps or stops early	Water supply and inlet valve	Crosley dishwasher water inlet valve 5304525044

Why it matters

A proper reset clears a stuck cycle and forces a drain, which helps prevent odor, standing water, and repeat error behavior. If the dishwasher cannot cancel, it usually points to a door-latch, drain, or control issue that needs attention.

You can order replacement parts for Frigidaire GDPP4515AF0A from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

PF on a dishwasher display stands for power failure. On a Frigidaire GDPP4515AF0A dishwasher, it means the control detected an interruption or drop in incoming power; the cycle may pause and then resume once stable voltage returns.

What to do when you see PF

• Press Cancel/Drain (or Cancel) to clear the display, then restart the cycle.
• Check the dishwasher is firmly plugged in and the outlet is not loose.
• Reset the circuit by turning the dishwasher breaker OFF for 1 minute, then back ON.
• Avoid running the dishwasher on the same circuit as high-draw loads (microwave, space heater) if possible.
• If PF returns repeatedly, inspect for a tripped breaker, failing outlet, or loose wiring at the junction box.

Quick checks that often fix repeat PF codes

Check	What you are looking for	Why it helps
Breaker	Not tripped, firmly set	A weak or tripping breaker can cause brief outages
Outlet/plug	Tight fit, no scorch marks	Poor contact causes voltage drop
Junction box wiring	Tight wire nuts, no heat damage	Loose connections create intermittent power loss
Door closure	Door fully latched	Some models stop the cycle if the door opens during a power event

When PF is actually a symptom of another problem

If the dishwasher powers on but acts erratic after PF (won’t start, stops mid-cycle, won’t drain), the issue can be a component that is sensitive to low voltage or a separate failure that happened at the same time. These parts are commonly involved in “stops mid-cycle” complaints:

• Frigidaire dishwasher door latch 5304525218 (door switch function)

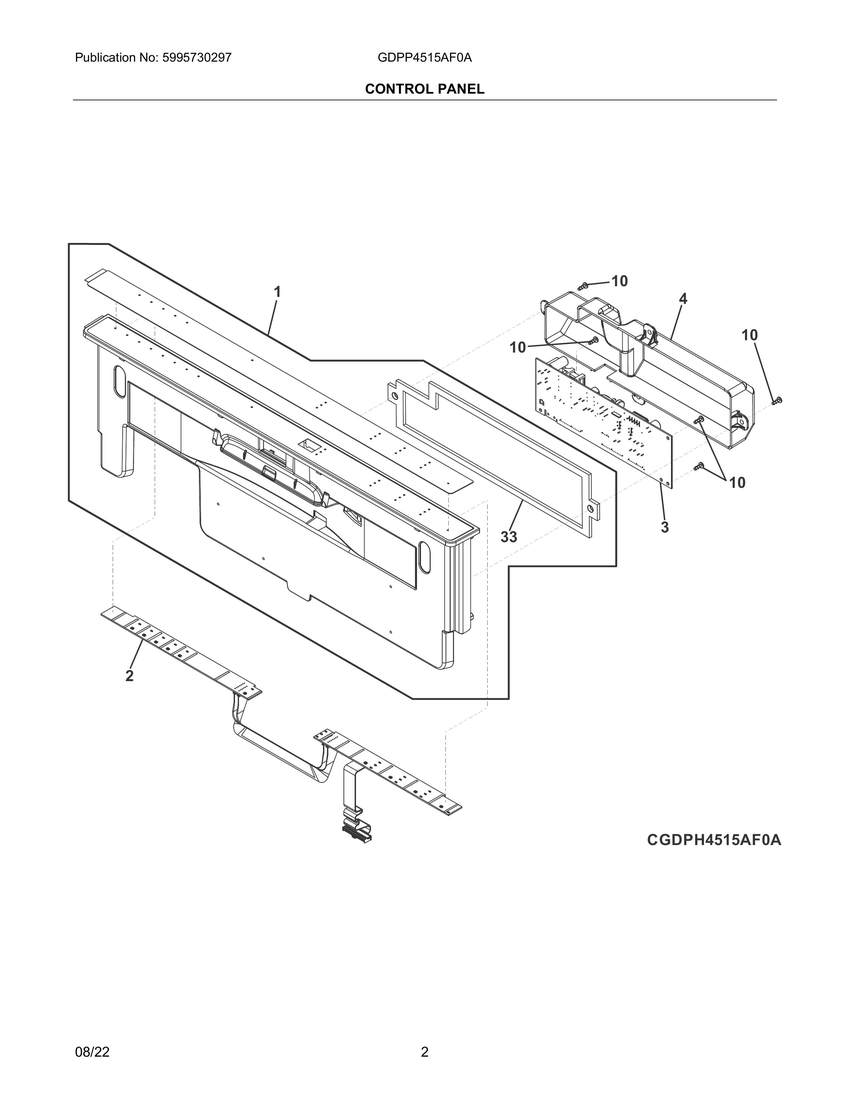

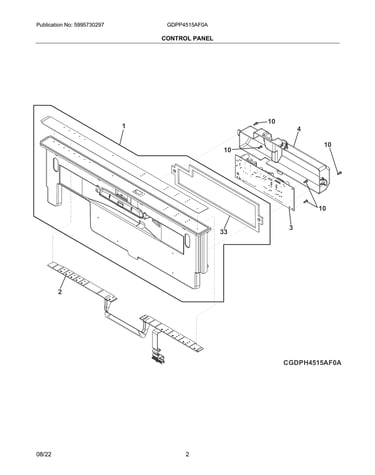

• Control boar 5304536579 (main control)
• Drain pump a A00126401 (if it won’t drain after a reset)

Why it matters

A single PF event is usually just a brief outage. Repeated PF codes can point to an electrical supply issue that can interrupt washing, prevent heating, or leave water in the tub. Ordering the correct replacement parts for GDPP4515AF0A is easiest from the parts list for this model, or by searching your model number on Sears PartsDirect.

Last updated: February 2026

If your Frigidaire GDPP4515AF0A dishwasher won’t drain, we fix it by clearing the filter and sump area first, then checking the drain path for a blockage (hose, air gap, disposer inlet). If the drain path is clear, the drain pump is the next most likely cause.

Step-by-step checks (start with the easiest)

• Turn off power at the breaker and shut off the water supply before accessing internal parts.
• Remove standing water (cup or wet/dry vac) so you can see the sump area clearly.
• Clean the filter and sump: remove food debris, labels, and broken glass.
• Check the drain hose for kinks, crushing, or a high loop that has fallen down.
• If connected to a garbage disposer, confirm the disposer inlet knockout plug was removed.
• Check the sink air gap (if you have one) for clogs.

When a part is likely needed

A dishwasher that hums but doesn’t move water out often has a jammed or failed drain pump. If you’ve cleared the hose and sump and it still won’t drain, replacing the pump is a common repair.

• Drain pump symptoms: humming, intermittent draining, drains only after restarting
• Control or latch symptoms: cycle won’t start or stops early (less common for a pure “won’t drain” complaint)

Parts that commonly solve “won’t drain” on GDPP4515AF0A

What you’re seeing	Most likely area	Part to consider

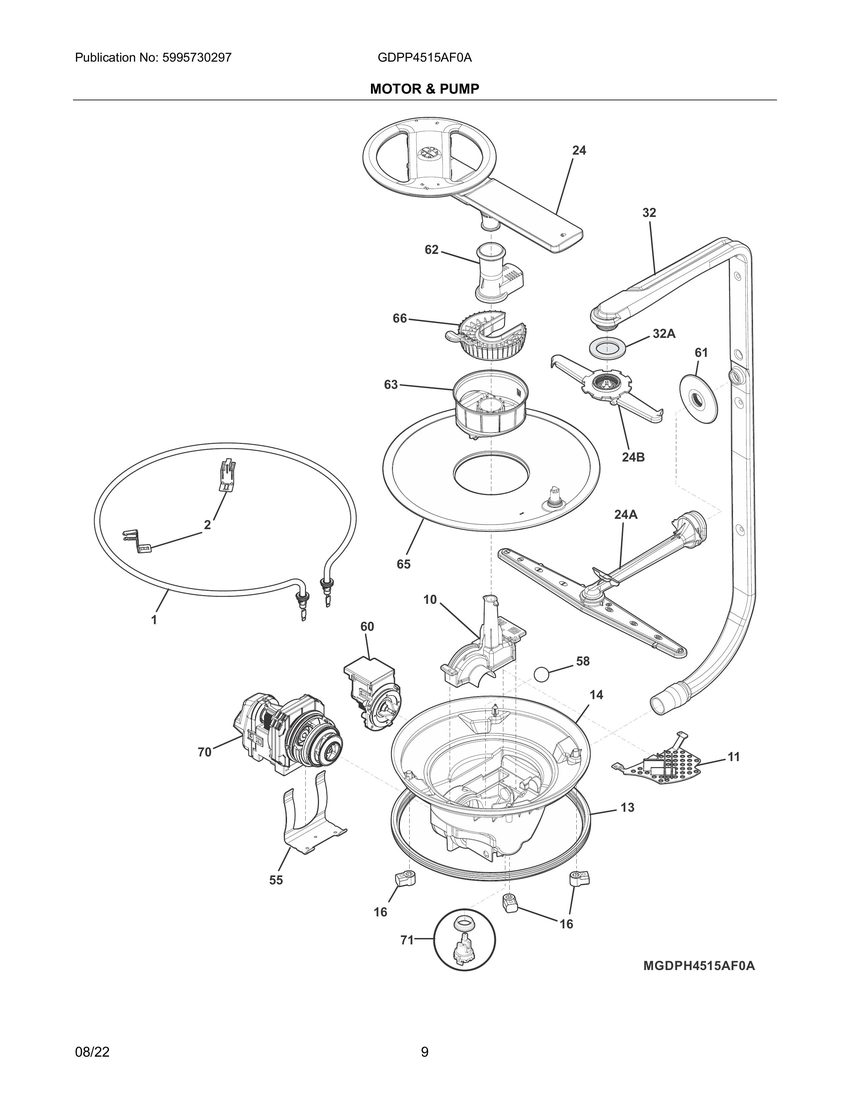

Water stays in tub, pump hums	Drain pump	Drain pump a A00126401
Slow drain, debris found in sump	Sump seal or restriction	Dishwasher sump gasket 154246801
Poor wash plus drain issues	Main pump/motor	Crosley dishwasher pump and motor assembly 5304519906

Why it matters

A dishwasher that can’t drain often leaves dirty water in the sump, which can cause odors, poor cleaning, and repeated cycle interruptions. Clearing the drain path early prevents unnecessary part replacement.

Ordering the right replacement part

We recommend matching parts to the exact model number GDPP4515AF0A and ordering from the parts list for this model; you can also search by model on Sears PartsDirect.

Last updated: February 2026

The most common Frigidaire dishwasher problems (including model GDPP4515AF0A) are poor cleaning from restricted water flow (clogged filters or spray arms), draining problems from a blocked drain path, and leaks around the door or sump area. You can order model-matched replacement parts from this page or search by model at Sears PartsDirect.

Most common issues we see (and what to check first)

• Not cleaning well: clear debris from the filter area, confirm the spray arm spins freely, and avoid blocking it with tall items.
• Not draining: check the drain hose for kinks, clear the sink/disposer connection, and inspect the drain path for food or glass.
• Leaking: look for a door that is not latching fully, a door that drops or feels loose, or seepage from the sump area.
• Not filling or weak wash pressure: verify the water supply valve is fully open and the inlet screen is not restricted.
• No heat or poor drying: symptoms often show up as cool water, wet dishes, or a cycle that seems to run oddly long.

Parts that commonly solve these symptoms on GDPP4515AF0A

Symptom	Common suspect part	What it affects
Won’t drain, water left in tub	Drain pump a A00126401	Pumps water out to the drain hose
Poor wash, weak spray, noisy wash motor	Crosley dishwasher pump and motor assembly 5304519906	Circulation and spray pressure
Door won’t close or unit won’t start	Frigidaire dishwasher door latch 5304525218	Door closure sensing and secure latch
Slow fill, no fill, or fill errors	Crosley dishwasher water inlet valve 5304525044	Lets water into the dishwasher

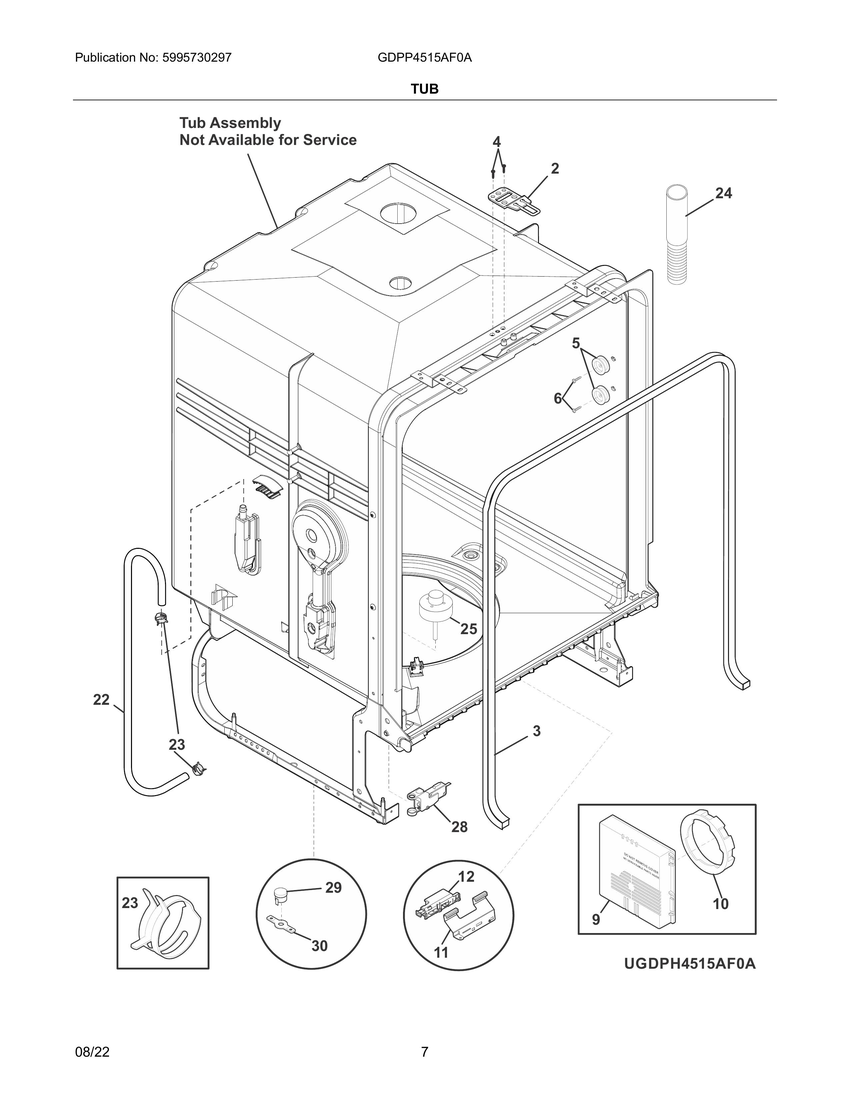

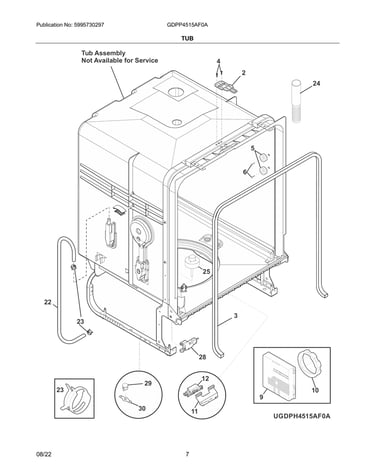

Leaks from bottom center area	Dishwasher sump gasket 154246801	Seals sump to prevent seepage

Quick troubleshooting order (fastest wins first)

• Reset power (turn off at breaker for 1 minute, then restore).
• Remove standing water and check the drain path for a blockage.
• Inspect the spray arm for clogs and confirm it rotates without hitting dishes.
• Confirm the door closes firmly and the latch engages.
• If symptoms persist, test components before replacing (especially pumps and valves).

Why it matters

Most “Frigidaire dishwasher not cleaning” and “won’t drain” complaints come down to water movement: the dishwasher must fill, circulate, and drain correctly. A restriction or a weak pump can mimic several different failures, so checking the basics first prevents unnecessary part replacement.
