KitchenAid
Electric Cooktop

Model # KECX260SWH1 Official KitchenAid 30" electric cooktop

Here are the diagrams and repair parts for Official KitchenAid KECX260SWH1 30" electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

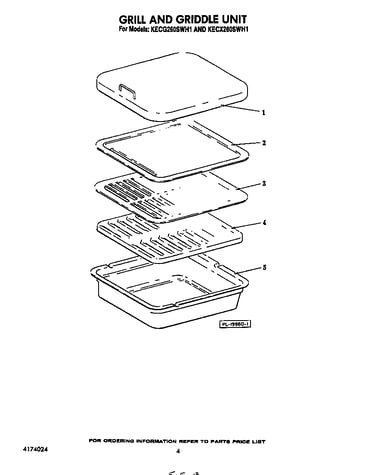

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Burner Bowl 4164315
#5

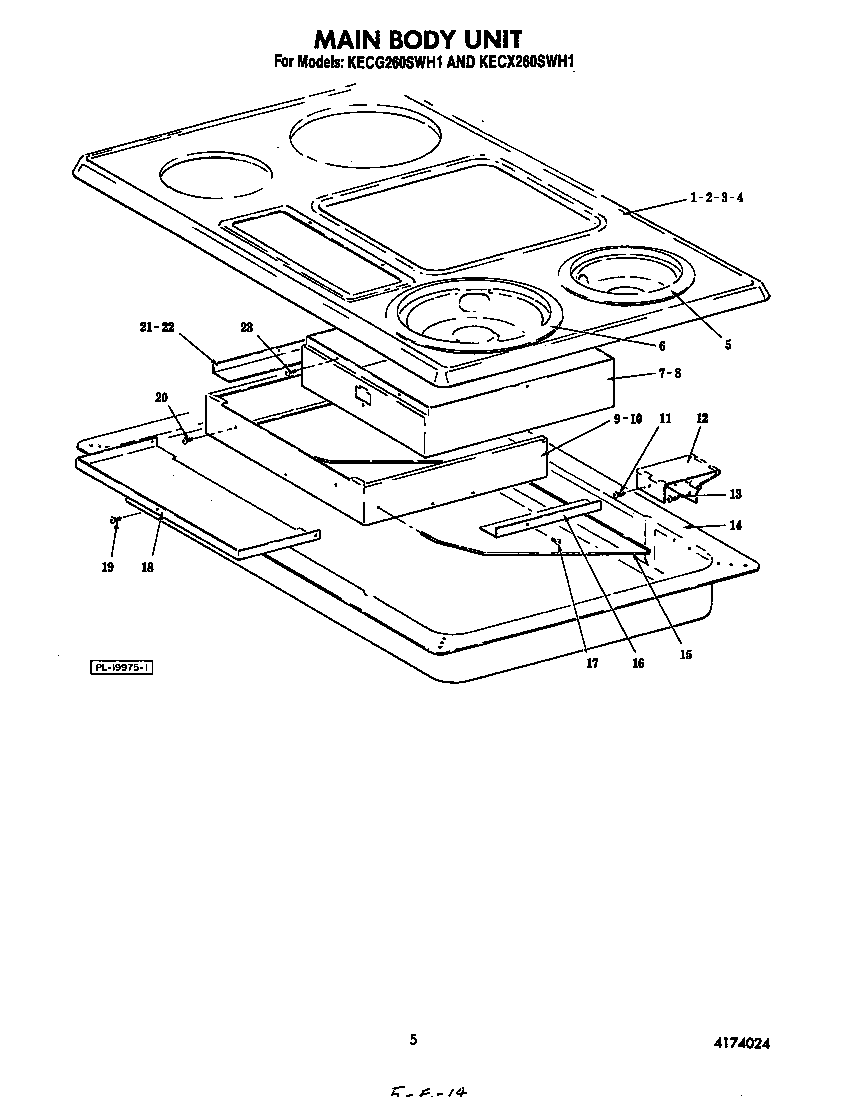

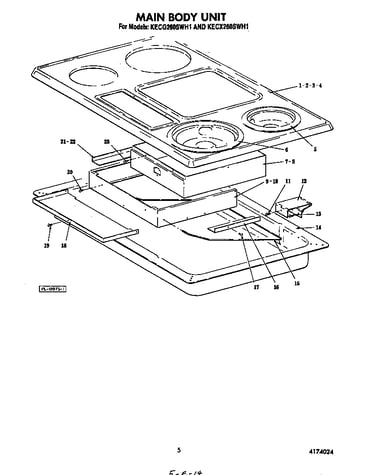

Main body unit diagram

Burner bowl

Part #4164315

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 4164315. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Surface Element 4164222
Surface element

Part #4164222

Replaced by #WPY04100165

?
Manufacturer substitution
This part replaces 4164222. Substitute parts can look different from the original.
$43.94 |
10% OFF Phone Price : $48.94
In Stock
Burner Bowl 4164314
#6

Main body unit diagram

Burner bowl

Part #4164314

Replaced by #W10196405RW

?
Manufacturer substitution
This part replaces 4164314. Substitute parts can look different from the original.
This item is not returnable
$10.52 |
16% OFF Phone Price : $12.52
In Stock
Washer 4166436
#41

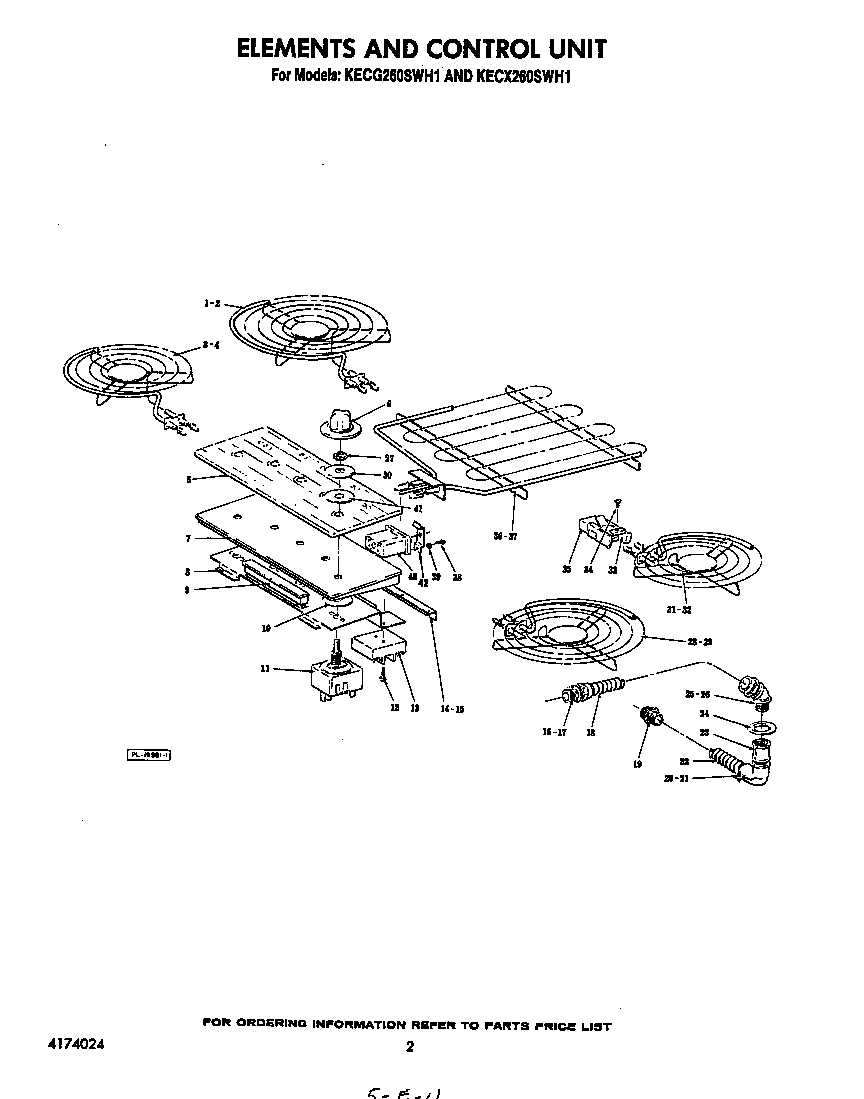

Elements and control unit diagram

Washer

Part #4166436

Replaced by #WP3188425

?
Manufacturer substitution
This part replaces 4166436. Substitute parts can look different from the original.
$32.89 |
13% OFF Phone Price : $37.89
In Stock
Surface Body 4164317
#35

Elements and control unit diagram

Surface body

Part #4164317

Replaced by #330031

?
Manufacturer substitution
This part replaces 4164317. Substitute parts can look different from the original.
$10.44 |
16% OFF Phone Price : $12.44
In Stock
Surface Element 4163771
#1

Elements and control unit diagram

Surface element

Part #4163771

Replaced by #WP660533

?
Manufacturer substitution
This part replaces 4163771. Substitute parts can look different from the original.
$27.06 |
48% OFF MSRP : $52.00
In Stock
Surface Element 4173203
#28

Elements and control unit diagram

Surface element

Part #4173203

Replaced by #WP3177565

?
Manufacturer substitution
This part replaces 4173203. Substitute parts can look different from the original.
$88.09 |
5% OFF Phone Price : $93.09
In Stock
Clamp 4159037
#23

Elements and control unit diagram

Clamp

Part #4159037

Replaced by #7111P002-60

?
Manufacturer substitution
This part replaces 4159037. Substitute parts can look different from the original.
This item is not returnable
$6.39
In Stock
Screw 4159230
#11

Main body unit diagram

Screw

Part #4159230

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces 4159230. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Washer 4164405
#24

Elements and control unit diagram

Washer

Part #4164405

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your cooktops

Choose a symptom to see related cooktop repairs.

View all

Why isn't my cooktop working at all?
