Homelite
Gas Leaf Blower

Model # BP250-UT08017-F Official Homelite blower

Here are the diagrams and repair parts for Official Homelite BP250-UT08017-F blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |

Tubing 9477232
#10

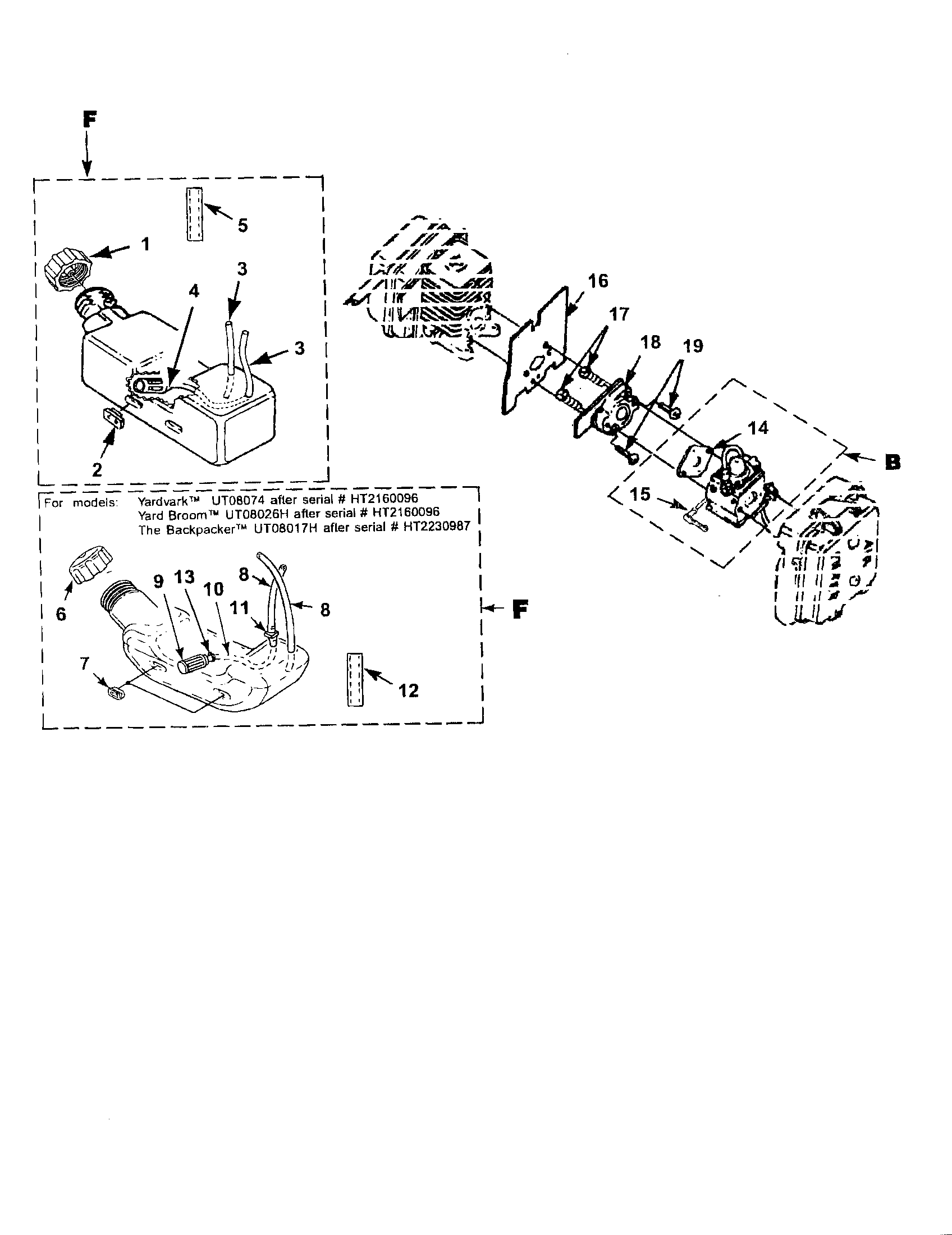

Carburetor and fuel tank diagram

Tubing

Part #9477232

The manufacturer no longer makes this part, and there's no substitute part

Lever-choke UP00389
#15B

Carburetor and fuel tank diagram

Lever-choke

Part #UP00389

The manufacturer no longer makes this part, and there's no substitute part

Carburetor A08636
#BB

Carburetor and fuel tank diagram

Carburetor

Part #A08636

The manufacturer no longer makes this part, and there's no substitute part

Spacer PS03566
#7

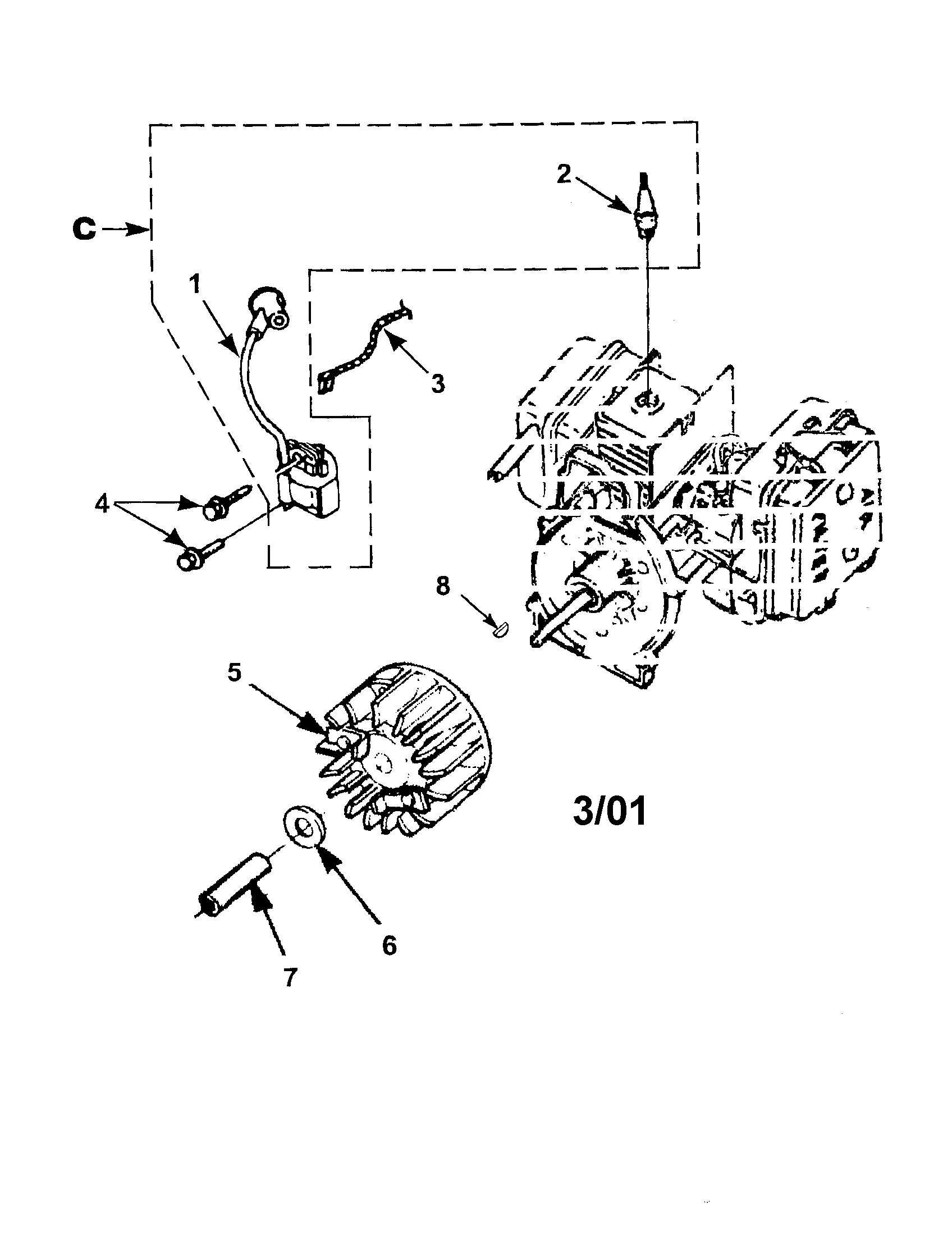

Ignition with rotor diagram

Spacer

Part #PS03566

The manufacturer no longer makes this part, and there's no substitute part

Muffler Body 04710
#10

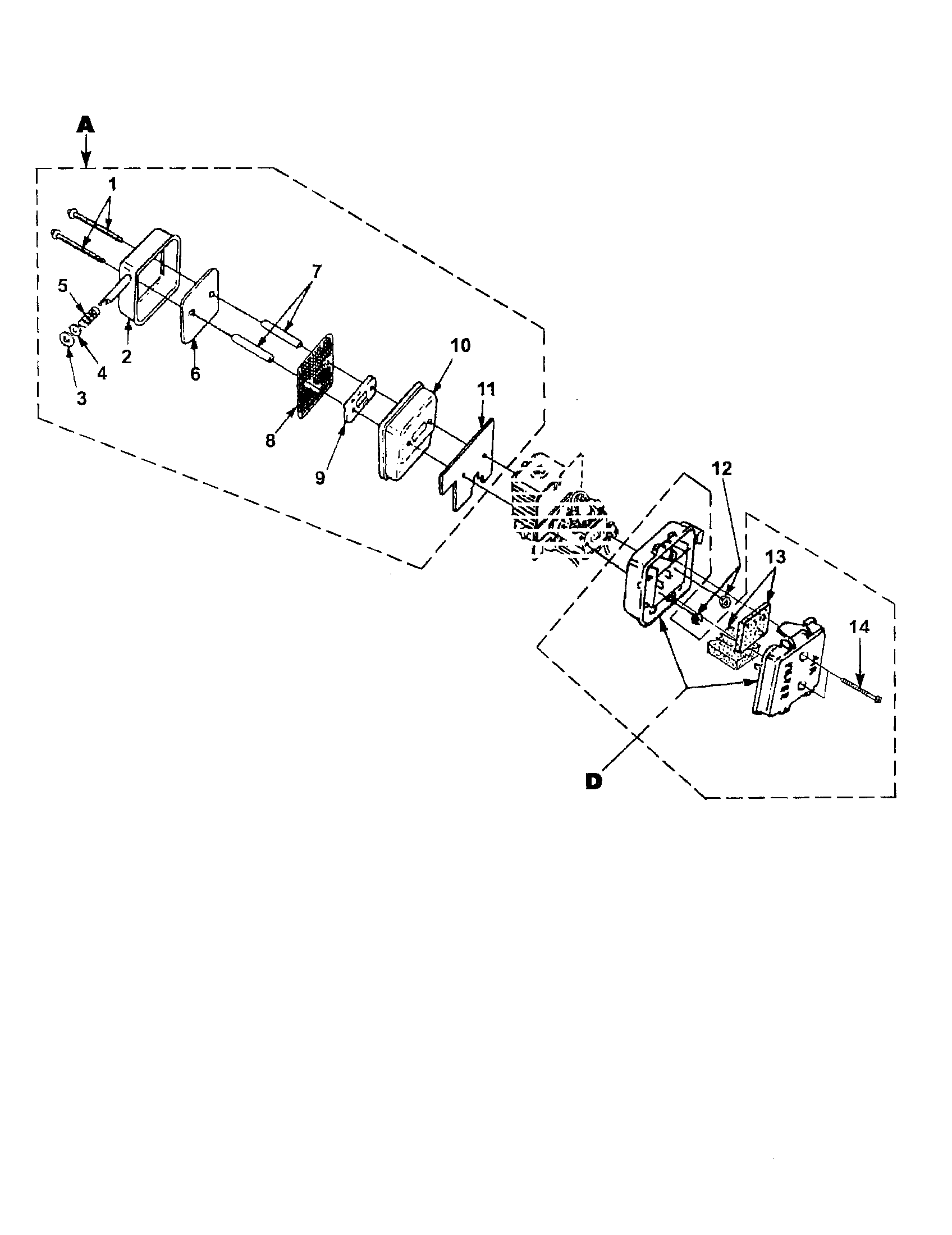

Muffler and air cleaner diagram

Muffler body

Part #04710

The manufacturer no longer makes this part, and there's no substitute part

Fitting Inlet 07332
#11

Carburetor and fuel tank diagram

Fitting inlet

Part #07332

The manufacturer no longer makes this part, and there's no substitute part

Insulation-tubing 4283304
Insulation-tubing

Part #4283304

The manufacturer no longer makes this part, and there's no substitute part

Fuel Tank A04447D
#F

Carburetor and fuel tank diagram

Fuel tank

Part #A04447D

The manufacturer no longer makes this part, and there's no substitute part

Key 69250
Key

Part #69250

The manufacturer no longer makes this part, and there's no substitute part

Screw, Sems (10-24 X .810) (use With Aluminum C/case Cover) (4) PS00216
#10A

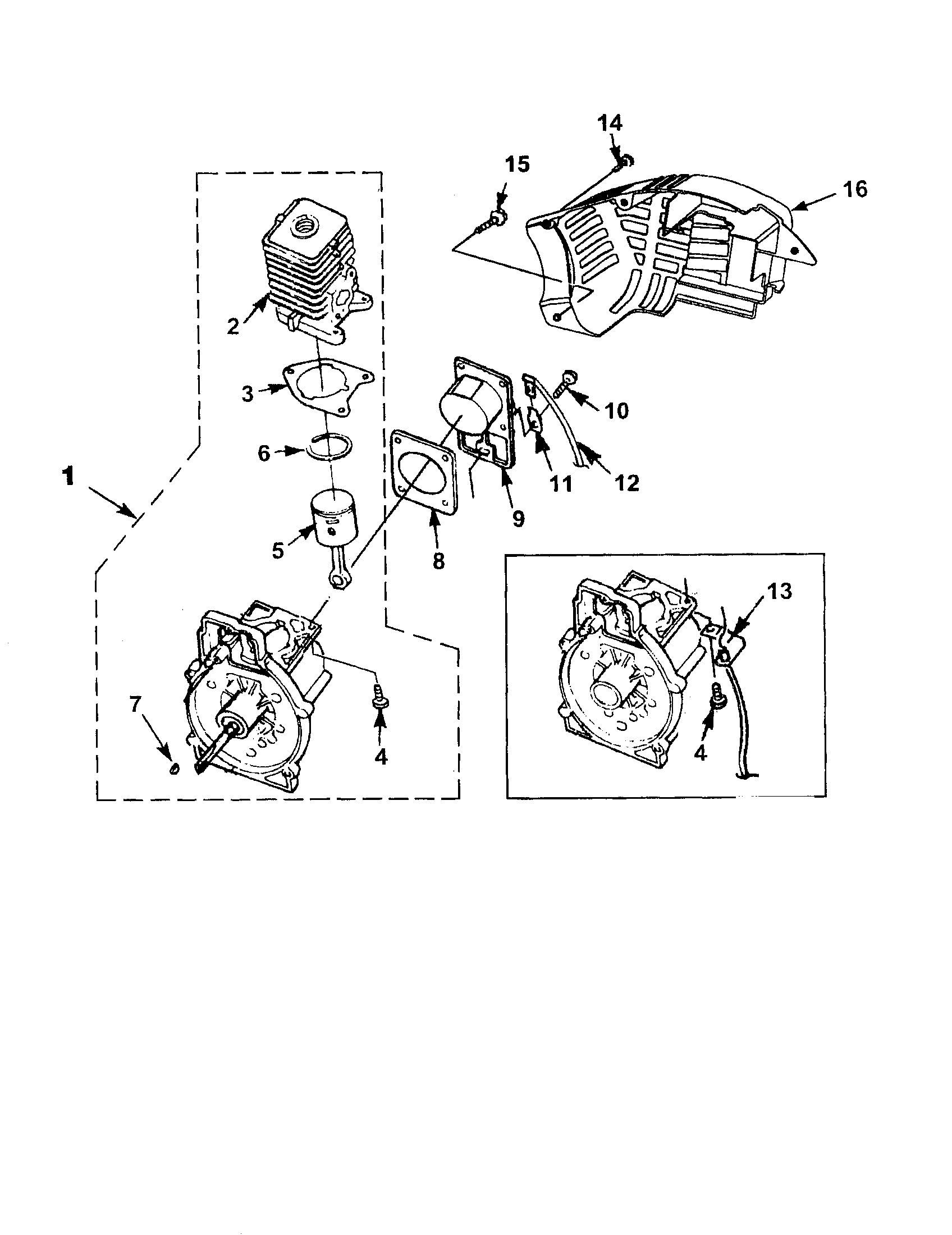

Engine internal diagram

Screw, sems (10-24 x .810) (use with aluminum c/case cover) (4)

Part #PS00216

The manufacturer no longer makes this part, and there's no substitute part
