Singer
Mechanical Sewing Machine

Model # 1025 Official Singer sewing machine

Here are the diagrams and repair parts for Official Singer 1025 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

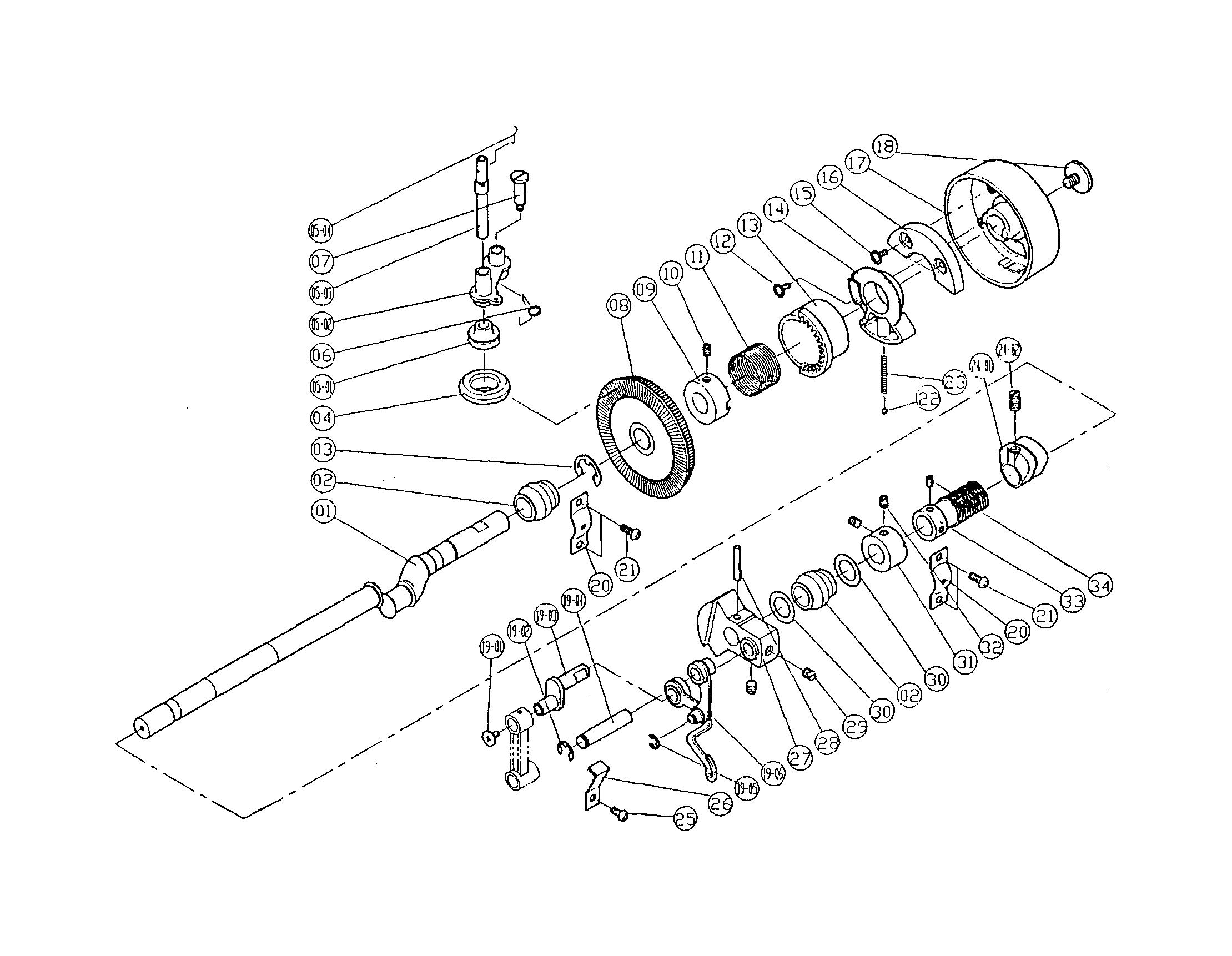

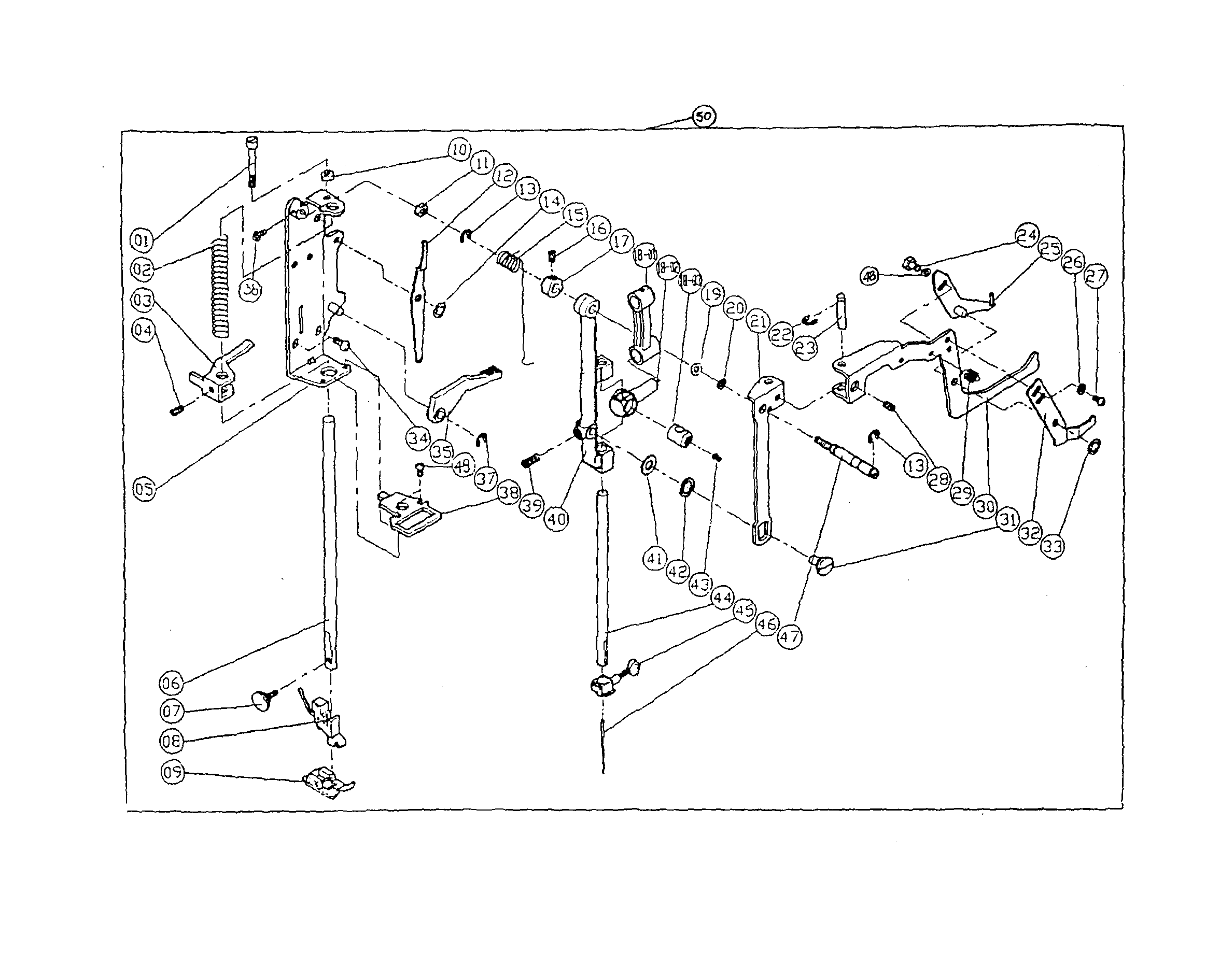

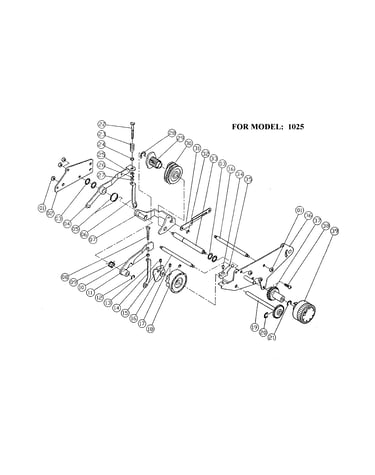

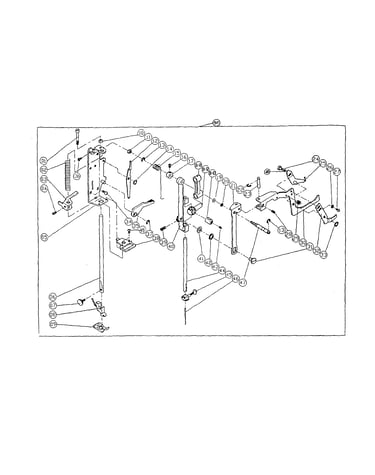

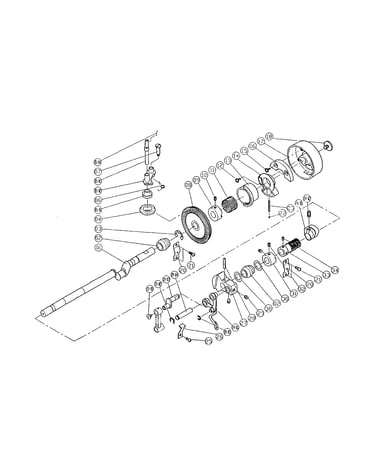

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 348 parts  |
Needle Pack 353364
#13

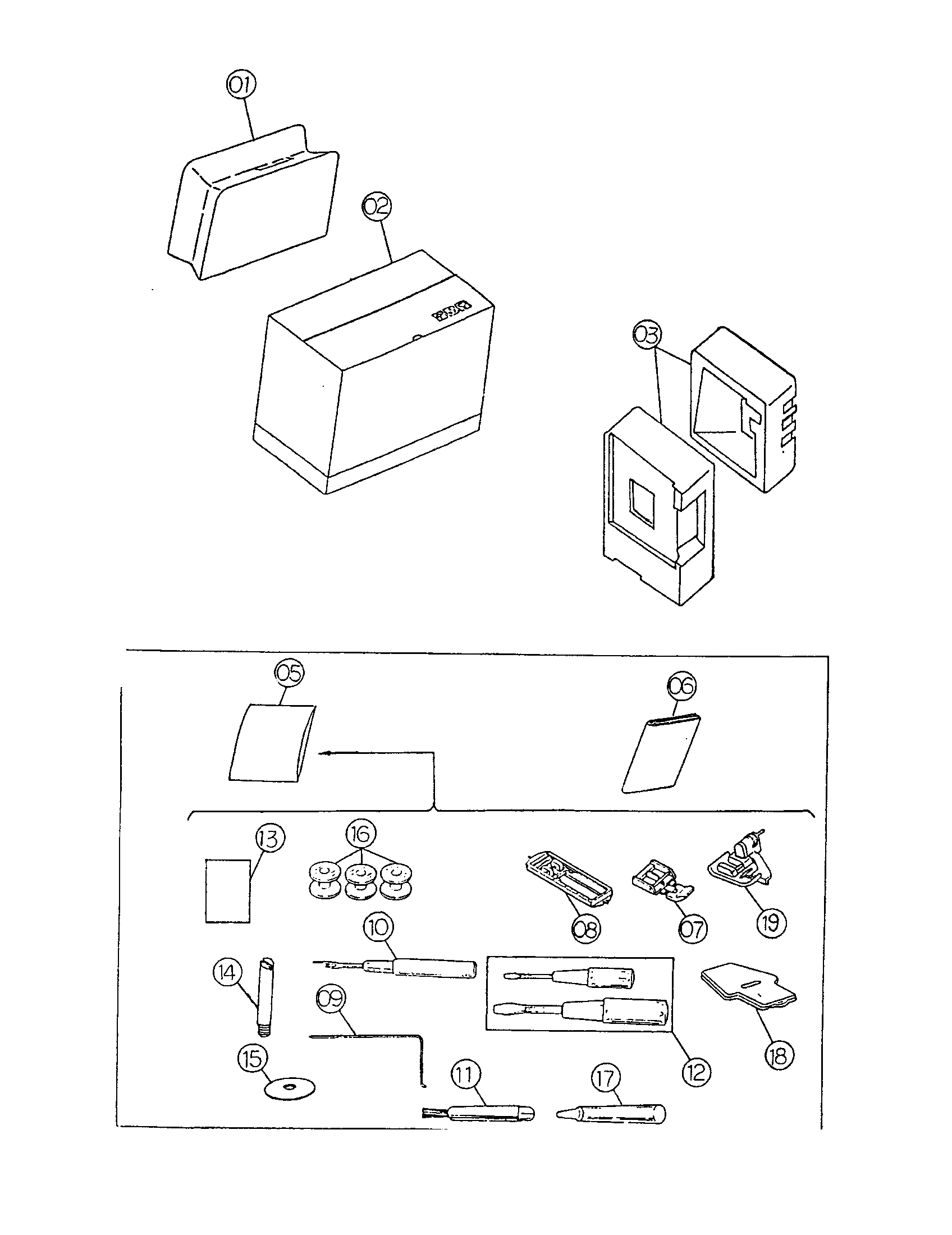

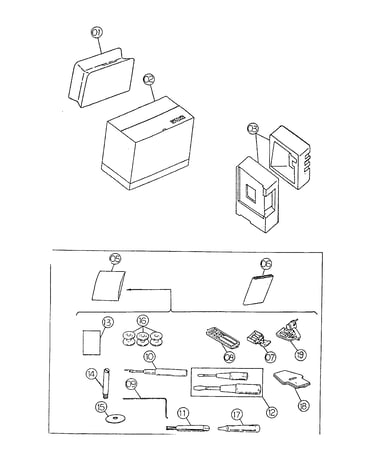

Accessory and packing diagram

Needle pack

Part #353364

The manufacturer no longer makes this part, and there's no substitute part

Collar, Feed Regulator Connecting Stud 403559
#39

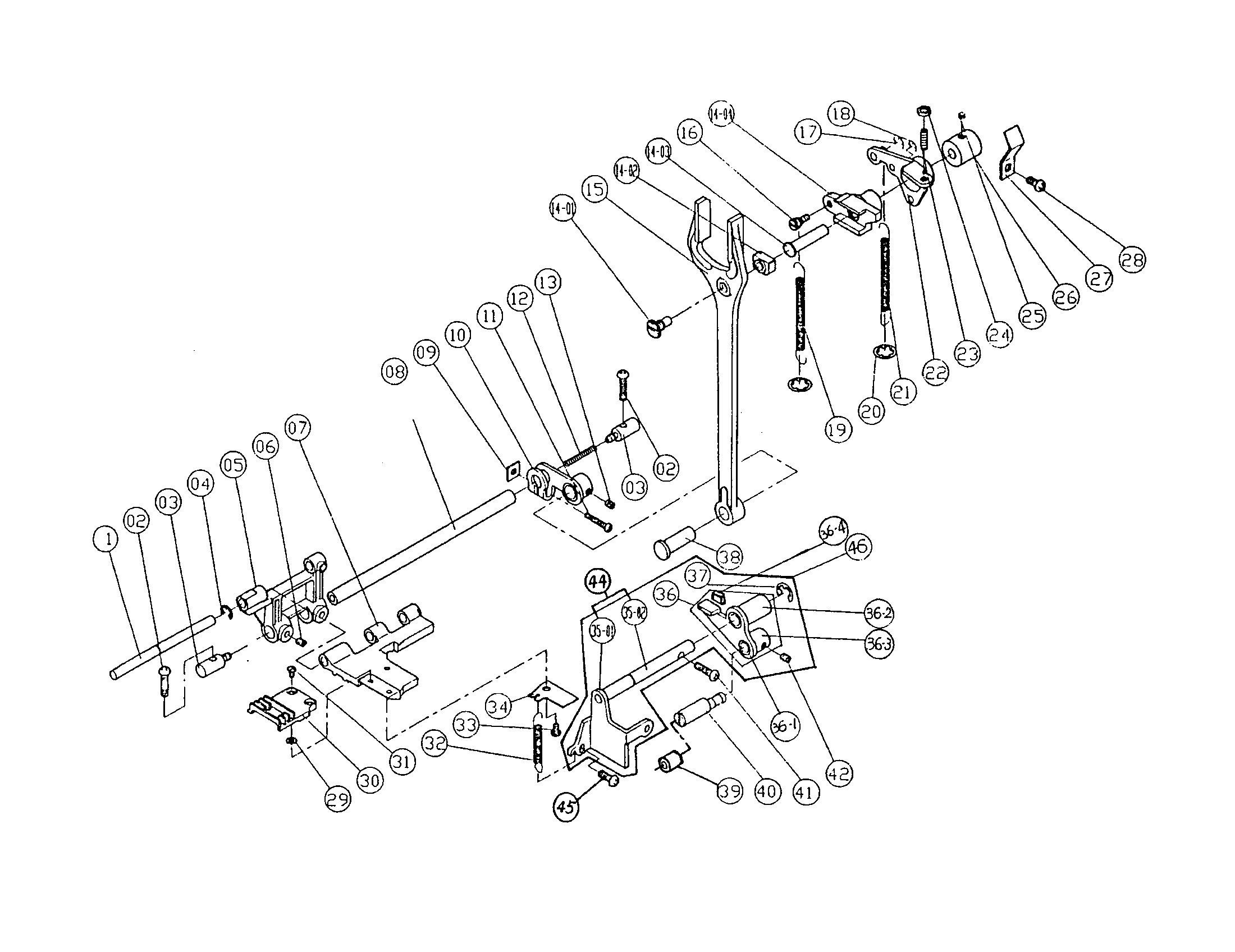

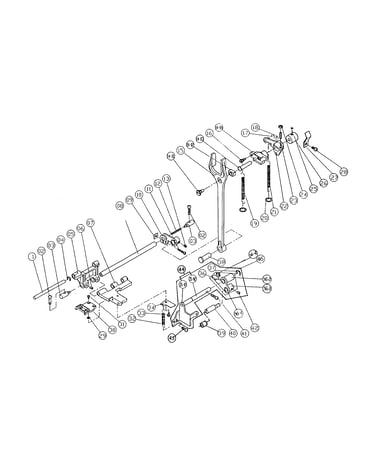

Switch length drive diagram

Collar, feed regulator connecting stud

Part #403559

The manufacturer no longer makes this part, and there's no substitute part

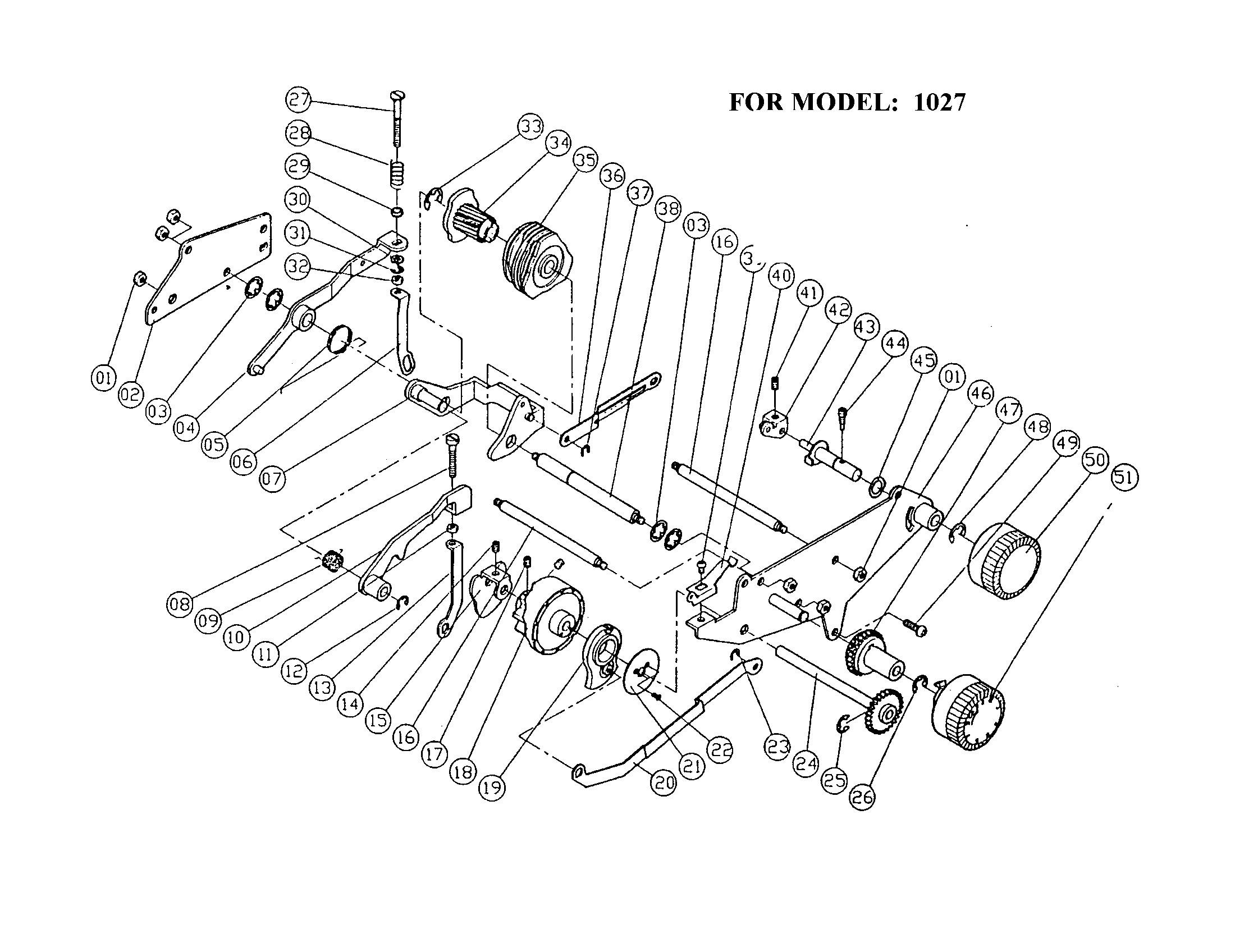

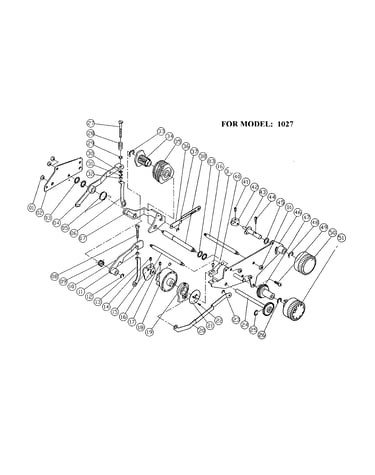

Pattern Selector Gear Mounting Pin (right) 403529-900
#31

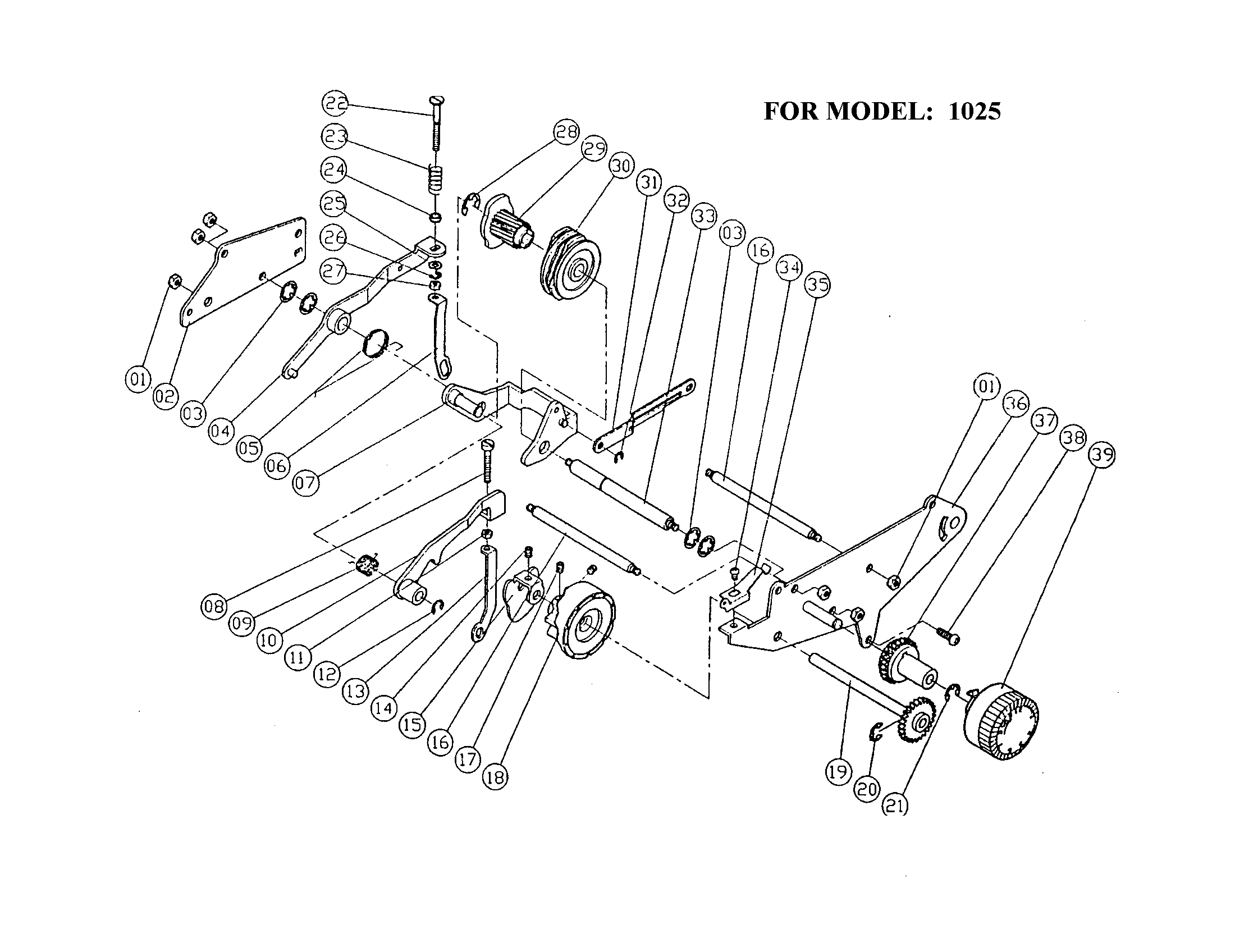

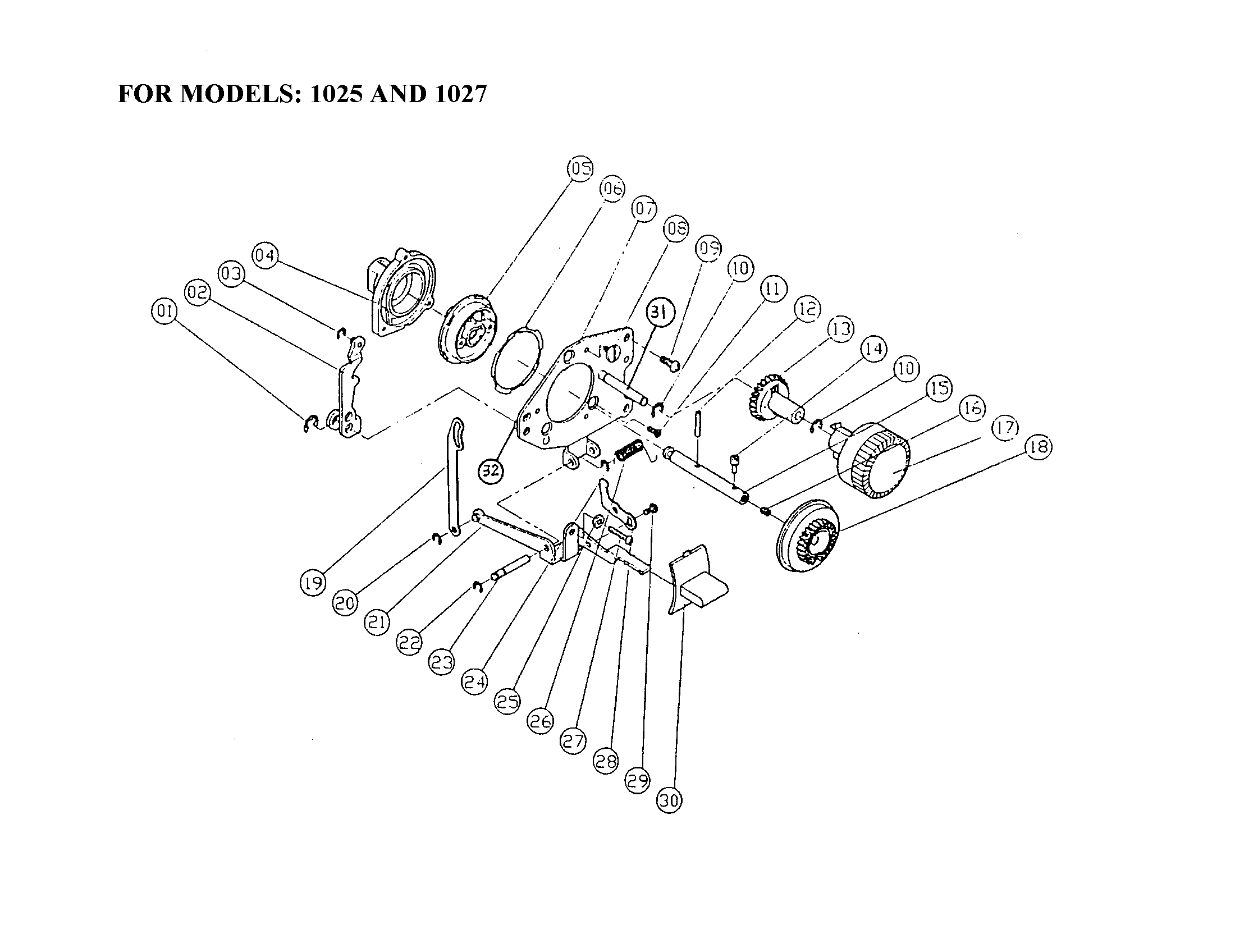

Stitch length adjustment-1025/1027 diagram

Pattern selector gear mounting pin (right)

Part #403529-900

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb (120v) 403402-001
#5

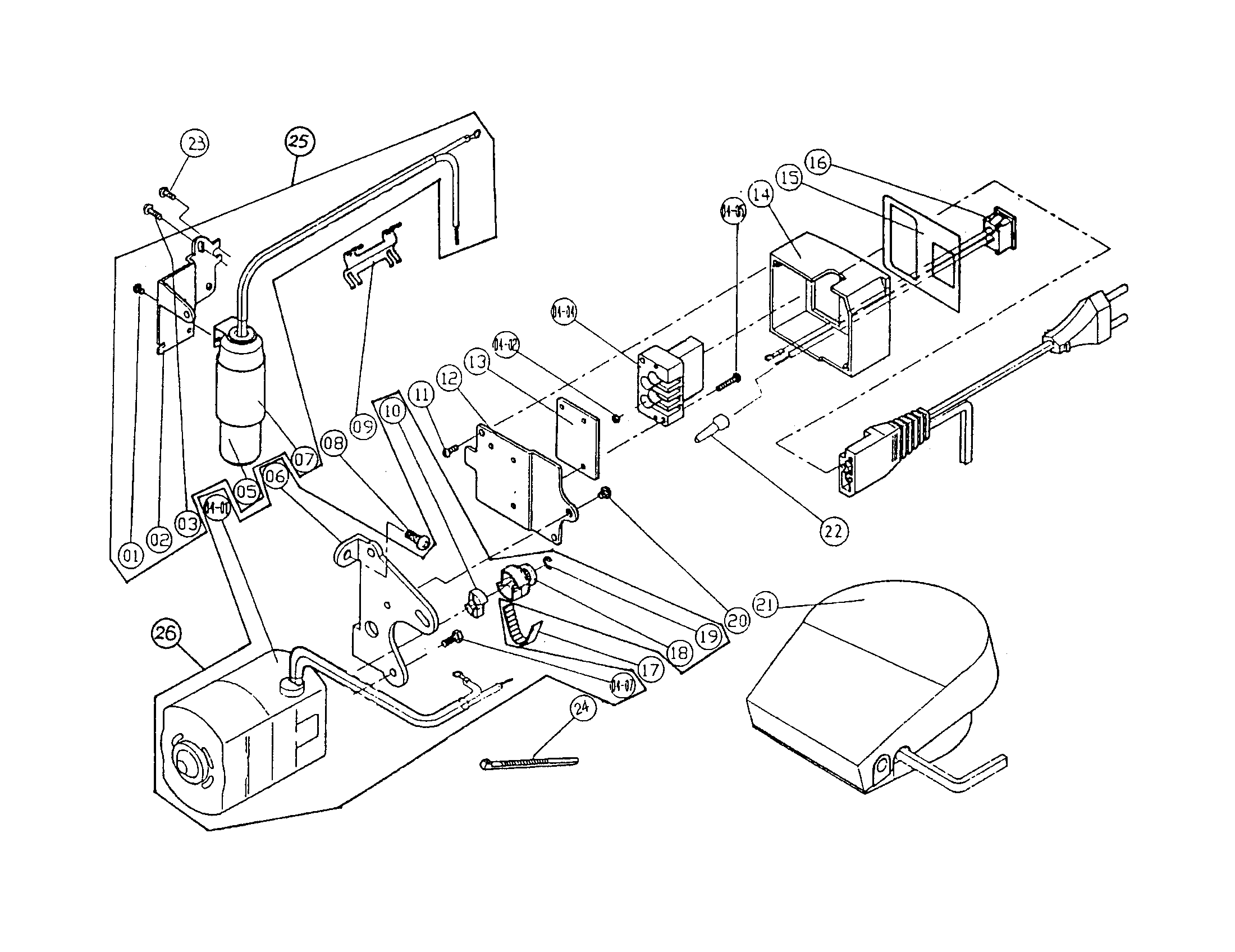

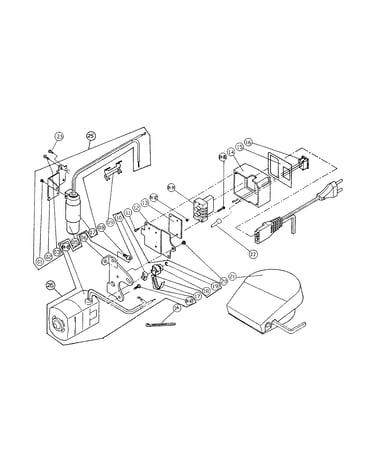

Electrical parts diagram

Light bulb (120v)

Part #403402-001

The manufacturer no longer makes this part, and there's no substitute part

Pin, Pattern Selector Gear Shaft 403148
#14

Stitch length adjustment-1025/1027 diagram

Pin, pattern selector gear shaft

Part #403148

The manufacturer no longer makes this part, and there's no substitute part

Pattern Selector Housing Shaft 403168
Pattern selector housing shaft

Part #403168

The manufacturer no longer makes this part, and there's no substitute part

Tension Disc Guide 403032
#7-07

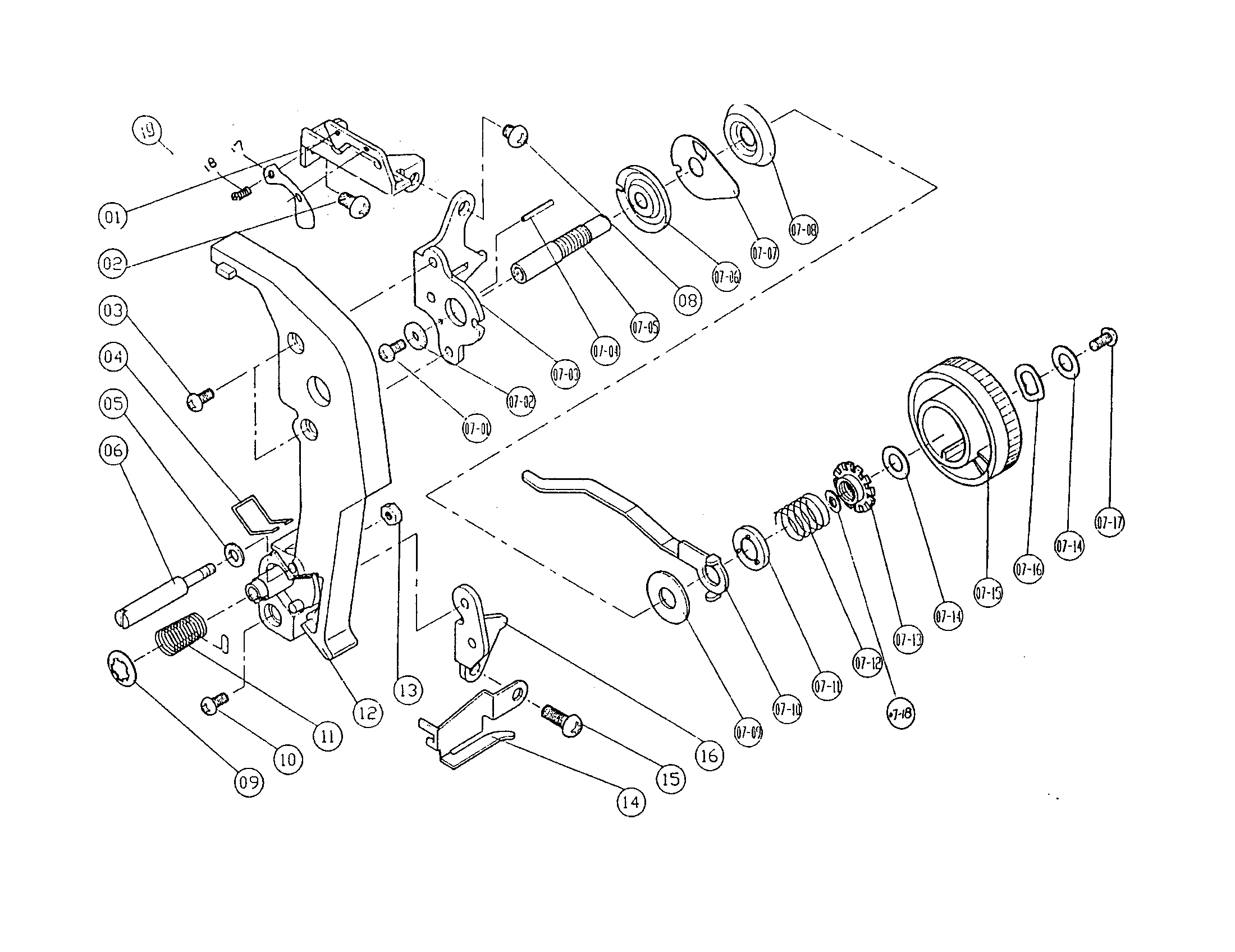

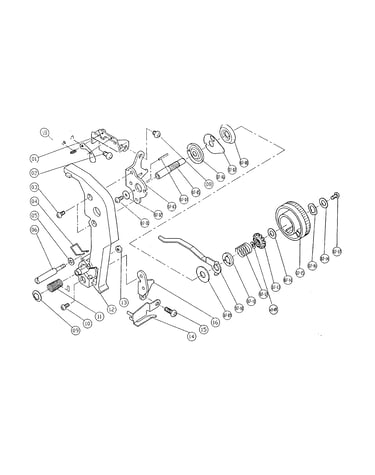

Thread tension diagram

Tension disc guide

Part #403032

The manufacturer no longer makes this part, and there's no substitute part

Screw 403020
#2

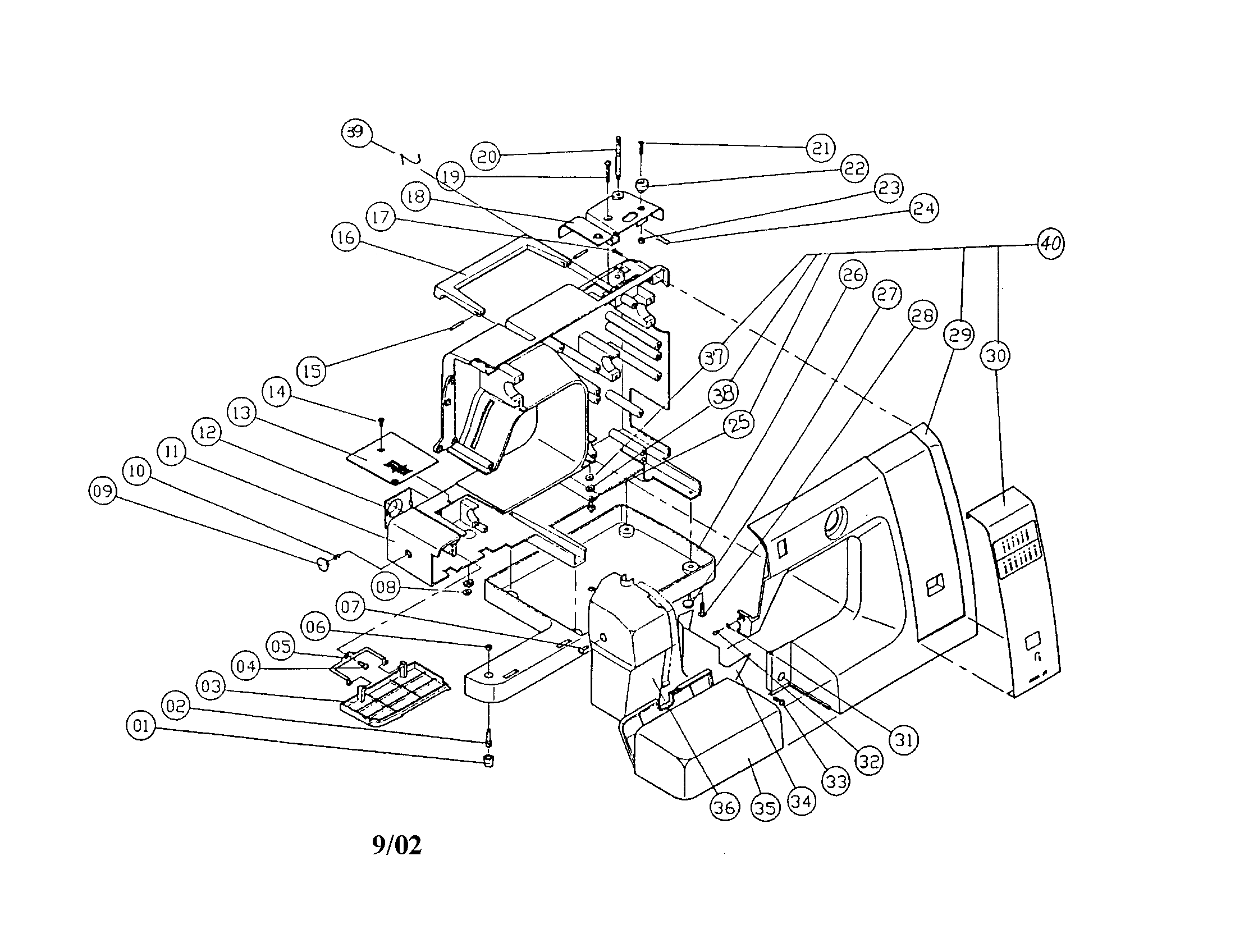

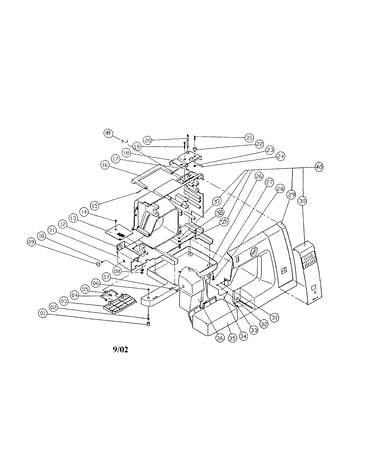

Housing diagram

Screw

Part #403020

The manufacturer no longer makes this part, and there's no substitute part

Shuttle Drive Shaft Bushing Clamp (right) 403562
#30

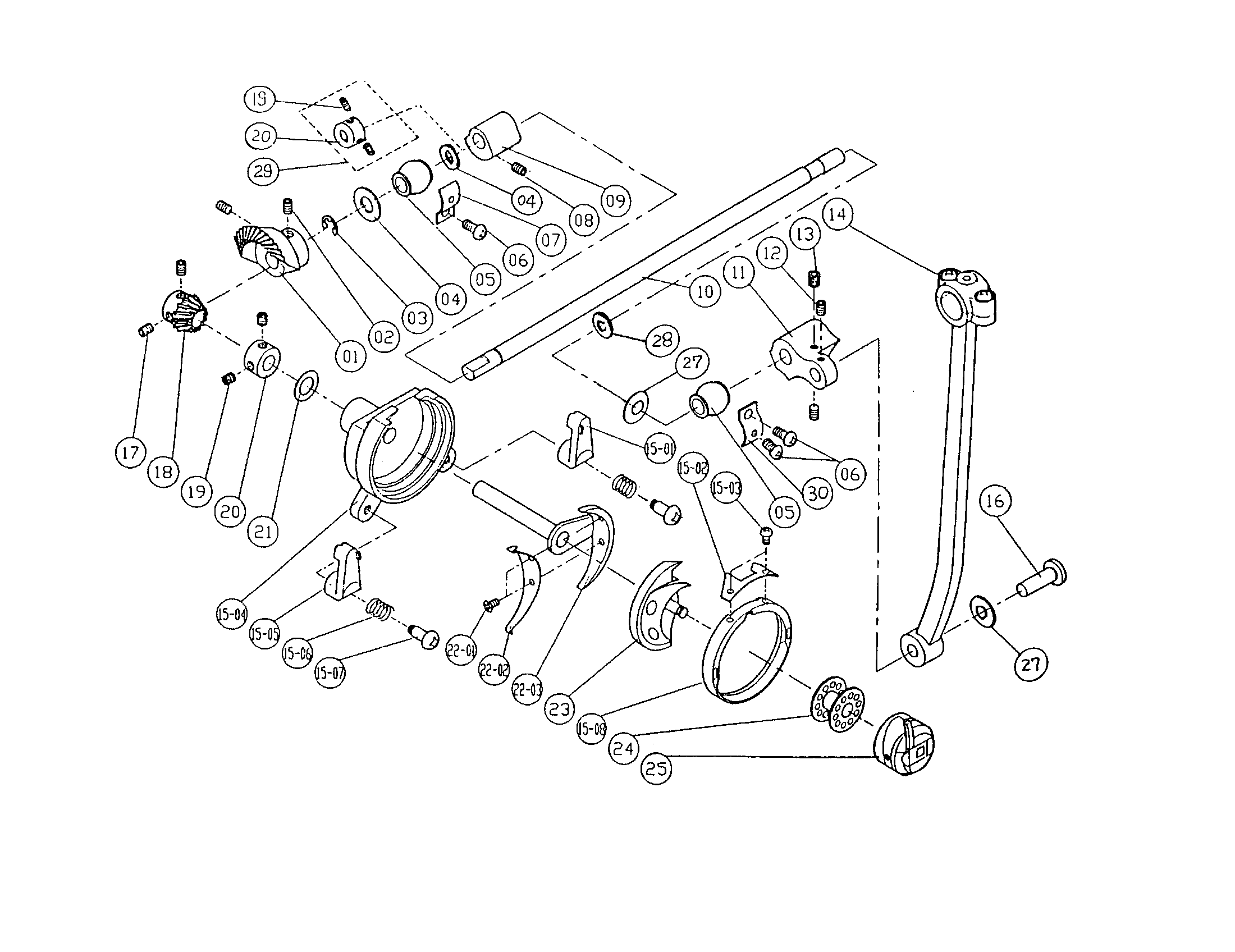

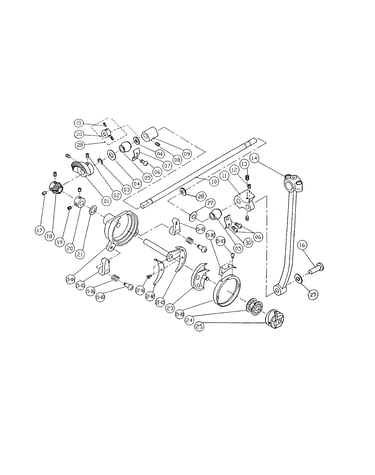

Hook drive system diagram

Shuttle drive shaft bushing clamp (right)

Part #403562

The manufacturer no longer makes this part, and there's no substitute part

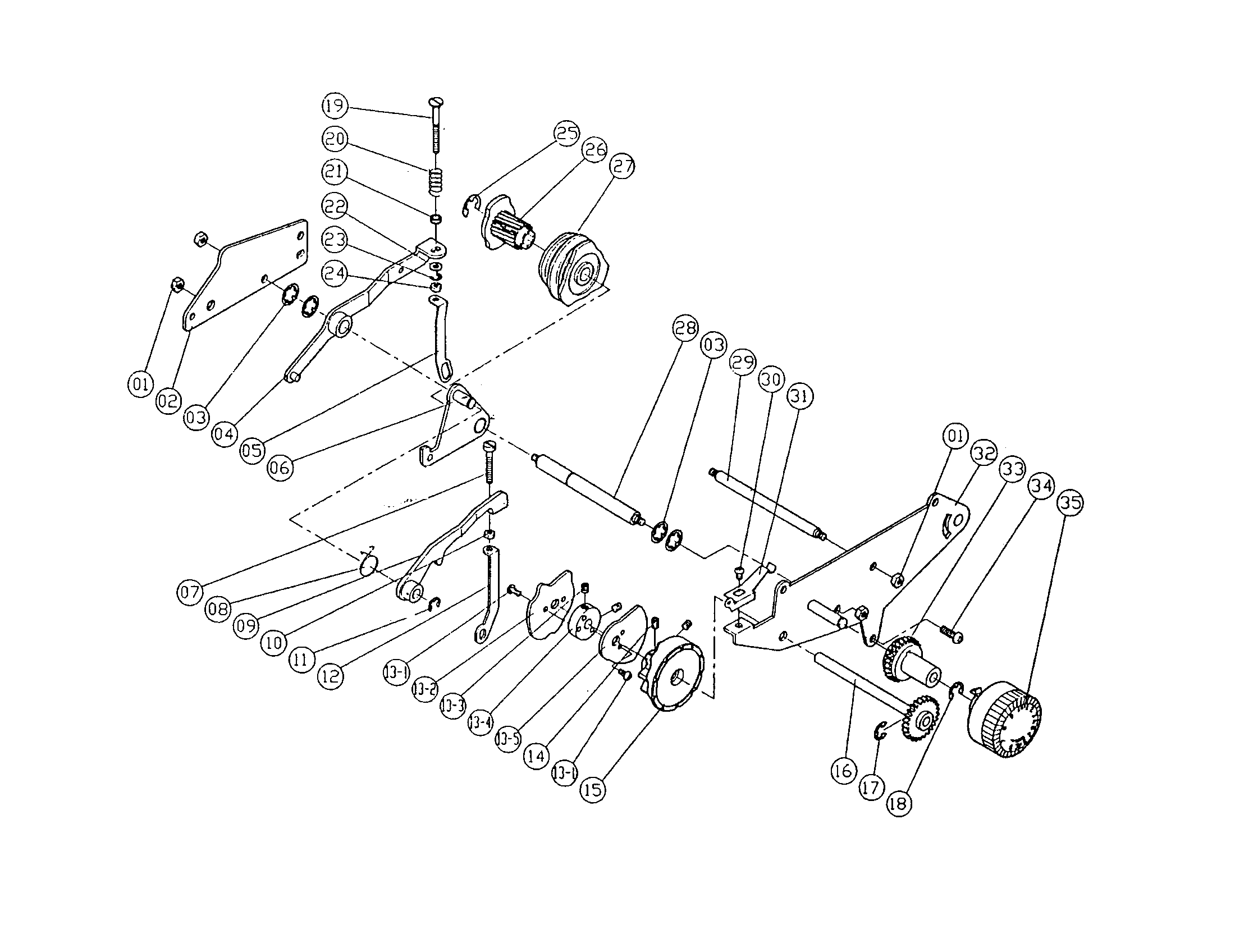

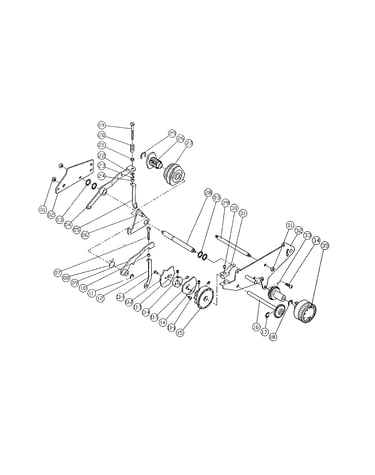

Pattern Selector Gear Mounting Plate 403528
#6

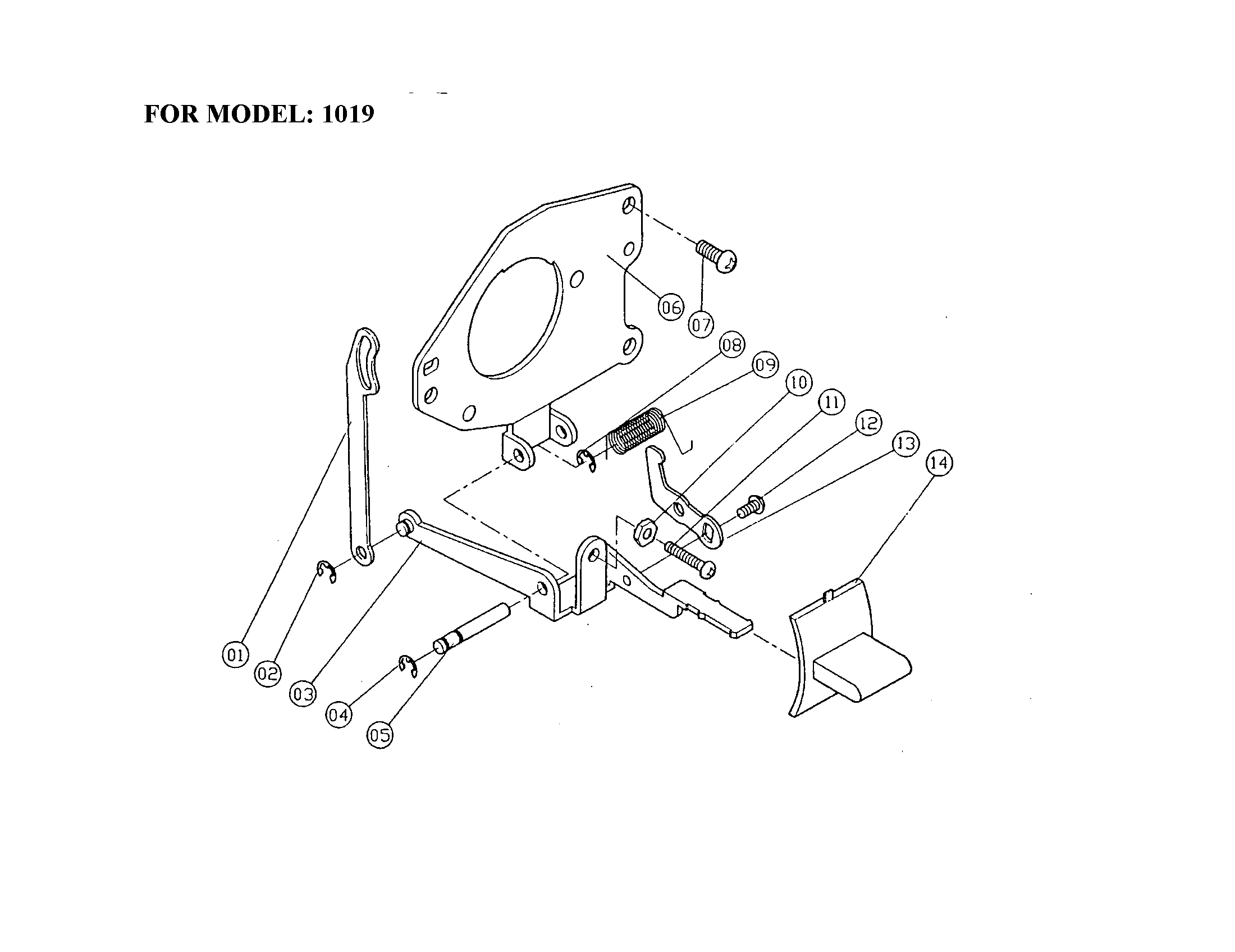

Reverse control - 1019 diagram

Pattern selector gear mounting plate

Part #403528

The manufacturer no longer makes this part, and there's no substitute part
