GE JBP70WC1WW electric range Parts

For your GE JBP70WC1WW electric range, the right part number comes from matching the model number first, then confirming the exact part on the illustrated parts list for that model. This prevents ordering a lookalike part that will not fit or wire up correctly.

Step-by-step: how we recommend finding the correct part

• Find the model tag and confirm it reads JBP70WC1WW (letter and number order matters).

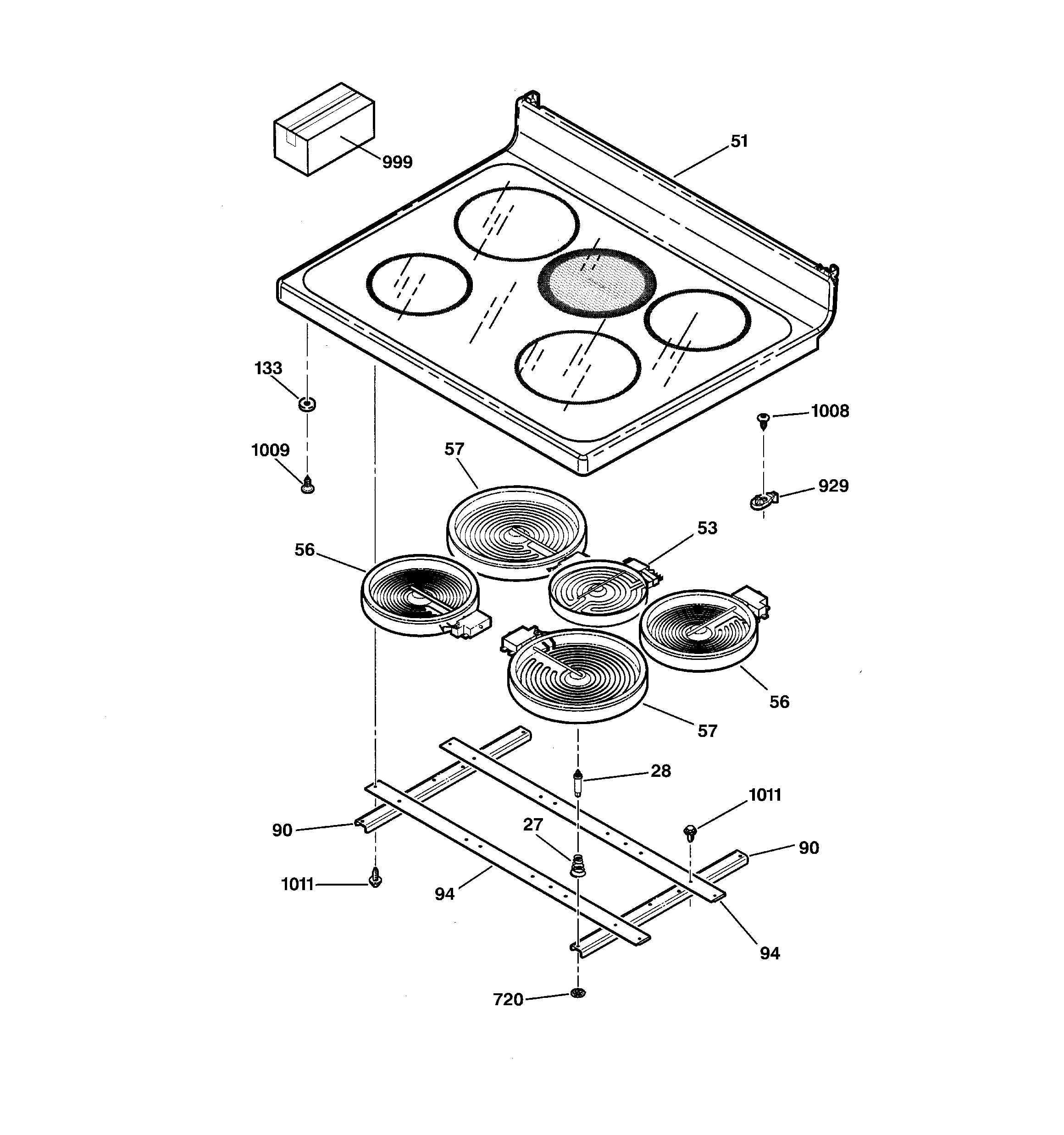

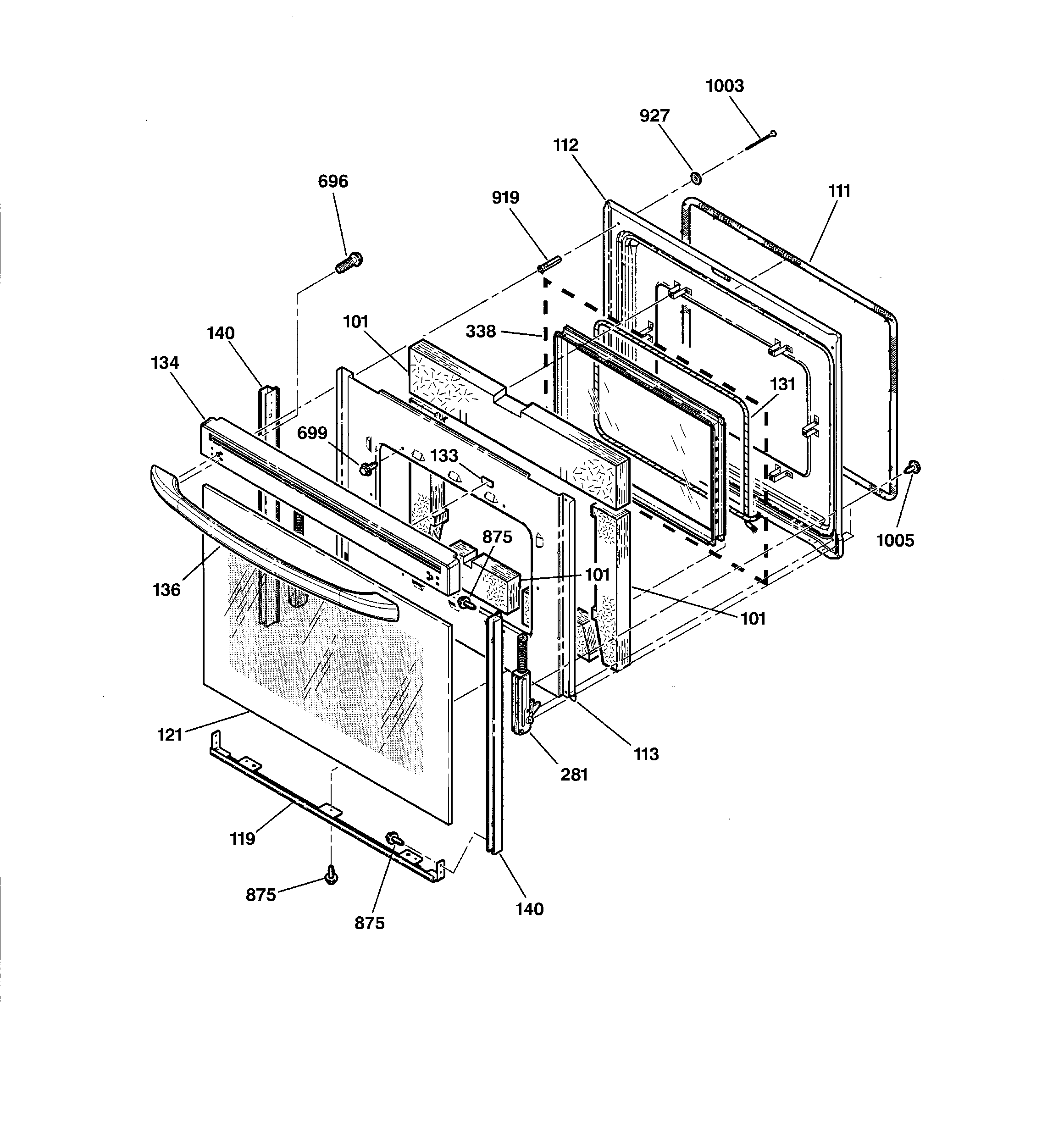

• Use the model-based parts breakdown to locate the exact section (oven, cooktop, door, wiring).
• Match the part by name + location + shape in the diagram, not by appearance alone.
• Cross-check the listing details (size, terminals, finish color, left vs. right orientation).
• If multiple versions are shown, match any notes about serial range or revision.

Common examples for this model

If you already know what failed, these are examples of model-matched parts you can use as a reference point:

What is not working	Part type to look up	Example part for JBP70WC1WW
Oven will not bake	Bake element	GE range bake element WB44T10010
Oven will not broil	Broil element	Range broil element WB44T10009
Oven light out	Bulb or socket	Range oven light bulb 40A15 and range light socket WB08T10026
Oven runs hot/cold	Temperature sensing	Wall oven temperature sensor WB23X5340

Why it matters

GE ranges often use similar-looking components across many models, but terminal style, wattage, mounting points, and harness connections can differ. Using the JBP70WC1WW model breakdown helps ensure the replacement part is truly compatible and restores safe, normal heating.

Related help for GE ranges

If you are choosing a part because the range is showing a fault code, use GE freestanding range error codes to identify the failure area before ordering.

Last updated: February 2026

For a GE JBP70WC1WW electric range, replacing the oven control board typically costs $200 to $600 total. The control board itself commonly runs about $150 to $400, and professional labor is usually $150 to $250, depending on service rates and diagnosis time.

What changes the price the most

• Exact board needed (some models use a clock/timer style control, others use an electronic oven control).
• New vs. refurbished board availability.
• Service call and diagnosis fee (often separate from labor).
• Wiring or connector damage found during install.
• Related failures (keypad, temperature sensor, or harness issues).

Typical cost breakdown

Cost item	Typical range	Notes
Diagnosis/service call	$75 to $150	Sometimes credited toward repair
Control board part	$150 to $400	Model-specific pricing varies
Labor (install + test)	$150 to $250	Usually 1 to 2 hours
Estimated total	$200 to $600	Higher if multiple parts are needed

Before you buy a control board

A “dead” or inaccurate oven is often caused by a different part. On the JBP70WC1WW, these checks help avoid an unnecessary board purchase:

• If the oven won’t heat in bake, inspect the GE range bake element WB44T10010 for visible breaks or blistering.
• If broil is also weak or dead, check the range broil element WB44T10009.
• If temperatures are consistently off (overheats or underheats), the wall oven temperature sensor WB23X5340 is a common culprit.
• If the display works but a surface burner acts up, the issue is often an infinite switch, not the oven board.

Why it matters

Control boards are one of the higher-cost electric range parts, and they are often non-returnable once installed. Confirming whether the failure is heat-related (element or sensor) versus control-related helps keep the repair cost down.

Last updated: February 2026

To order parts for your GE JBP70WC1WW electric range, start with the full model number and then match the exact part you need by part name and part ID. Order directly from the parts list for JBP70WC1WW; for help confirming fit, contact Sears PartsDirect support.

The fastest way to order the right part

• Find the model and serial number on the range (commonly on the oven frame behind the door, or on a side frame).
• Identify the failed component (for example: bake element, broil element, temperature sensor, or surface element switch).
• Match the part using the exact part ID and description to avoid ordering the wrong revision.
• If the part is listed as in stock, order it directly.
• If you are unsure which part fits, contact Sears PartsDirect support with your model and serial.

Common JBP70WC1WW parts customers order

Here are a few frequently replaced parts for this model:

Symptom	Likely part	Example part
Oven will not bake or heats unevenly	Bake element	GE range bake element WB44T10010
Oven will not broil	Broil element	Range broil element WB44T10009
Oven light not working	Bulb or socket	Range oven light bulb 40A15
Oven temperature seems off	Temperature sensor	Wall oven temperature sensor WB23X5340

Why it matters

Ordering by model number alone is not enough for many GE ranges; matching the exact part ID and part name helps ensure the wiring connectors, mounting points, and electrical ratings fit your JBP70WC1WW correctly.

Last updated: February 2026

If you cannot find a part for your GE JBP70WC1WW electric range, we recommend confirming the model number, then searching by the part name or part number. If it still does not appear, we can help you identify the correct replacement and compatible options.

Quick checks that usually solve it

• Recheck the full model number on the range ID tag: JBP70WC1WW (letters and numbers must match)
• Search using a shorter term (example: “bake element” instead of “lower oven heating element”)
• Try the manufacturer part number if you have it (example: WB44T10010)
• Look for common naming variations (example: “oven light bulb” vs. “appliance light bulb”)
• Confirm you are shopping in the correct appliance type: GE electric range

Common parts customers look for on this model

If you are unsure what the part is called, these are frequent replacements for the JBP70WC1WW:

• Range oven light bulb 40A15
• GE range bake element WB44T10010
• Range broil element WB44T10009
• Range oven door gasket WB04T10086
• Range surface element control switch WB24T10027

Match the symptom to the part (fast guide)

Symptom	Most likely part type	Example part on this model
Oven will not bake	Bake element	WB44T10010
Oven will not broil	Broil element	WB44T10009
Oven light not working	Bulb or socket	40A15 or WB08T10026
Heat leaking, poor baking	Door gasket	WB04T10086
Burner not regulating heat	Infinite switch	WB24T10027 or WB24T10058

Why it matters

Using the exact model number and the correct part identifier prevents ordering a look-alike part that does not fit your GE range, and it reduces repeat repairs caused by mismatched electrical ratings or mounting styles.

Last updated: February 2026

On the GE electric range model JBP70WC1WW, the model number is typically found on the frame behind the rear control panel area. If you cannot access that area easily, check common backup locations around the oven door opening and storage drawer frame.

Common places to check on a freestanding GE range

Look for a model and serial tag (often a sticker or metal plate) in these spots:

• Behind the rear control panel (backguard) area
• Along the oven door frame when you open the oven door
• On the front frame behind the storage drawer (pull the drawer out)
• On the lower side trim near the front of the range
• On the back of the range near the power cord entry

Quick tips to find it faster

These steps help you locate the tag without disassembly:

• Turn on a flashlight and look for a white or silver label
• Wipe greasy dust off the frame so the print is readable
• Pull the storage drawer straight out and look on the front frame rails
• Open the oven door and scan the left and right frame edges
• Write down the full model number and serial number exactly as shown

What the label usually looks like

What you see	What it means	What to record
Model No.	Identifies the exact range design	JBP70WC1WW (full string)
Serial No.	Production code used for date and build info	Full serial string
Electrical ratings	Voltage/amps info for service	Optional, but helpful

Why it matters

We use the exact model number to match the correct GE electric range parts and diagrams for your appliance. That prevents ordering the wrong bake element, temperature sensor, or control switch for JBP70WC1WW.

If you are replacing an oven light while you have the label information handy, match the part to your model before ordering the range oven light bulb 40A15.

Last updated: February 2026
