Model # 900277040 Official Craftsman 7" angle grinder

Here are the diagrams and repair parts for Official Craftsman 900277040 7" angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

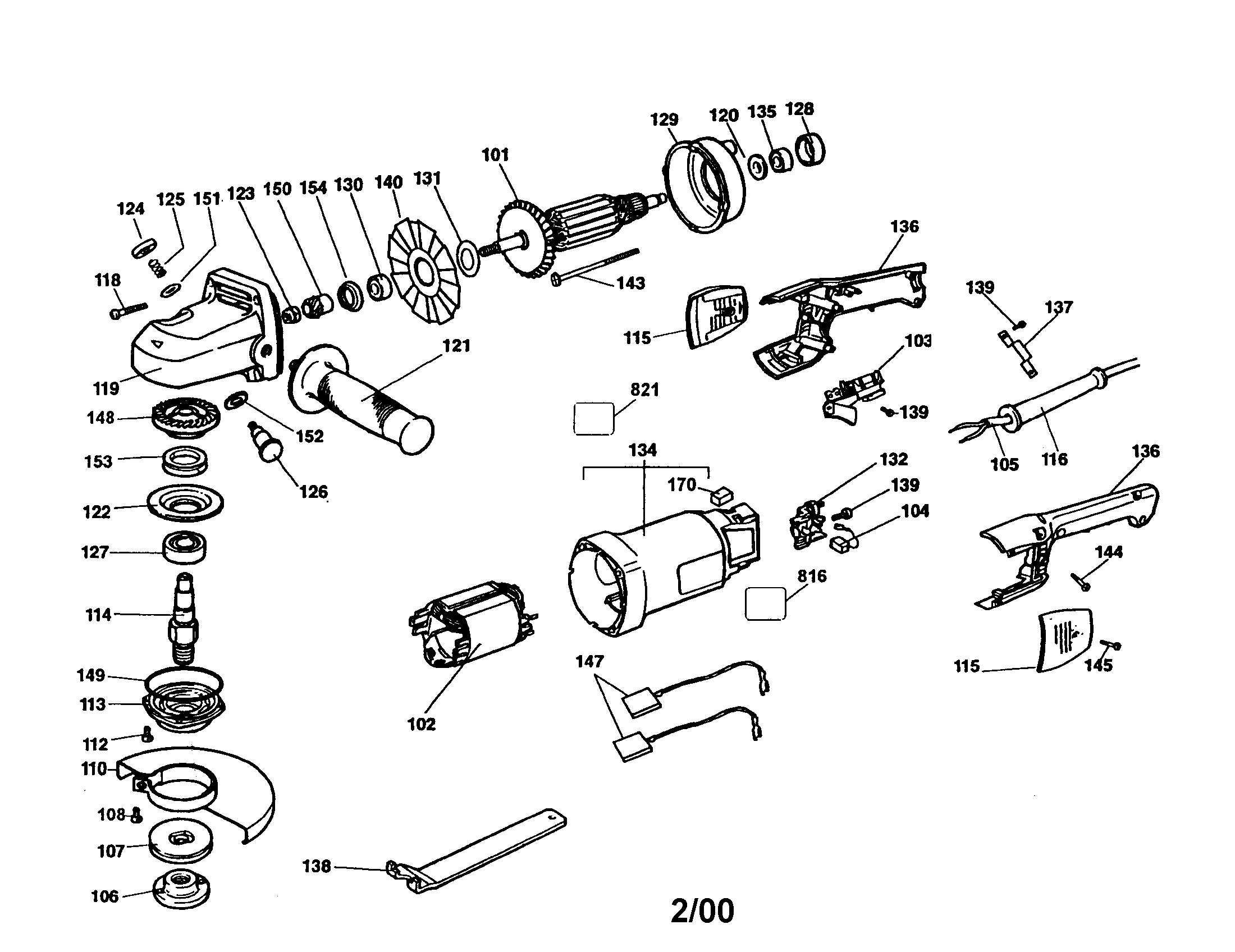

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Angle Grinder Pinion Gear 403125-00
#150

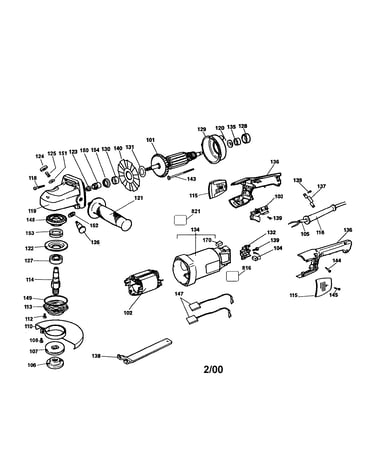

7" angle grinder diagram

Angle grinder pinion gear

Part #403125-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Washer 403148-00
#151

7" angle grinder diagram

Angle grinder washer

Part #403148-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Spindle Lock 391018-00
#126

7" angle grinder diagram

Angle grinder spindle lock

Part #391018-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Guard 403142-02
#110

7" angle grinder diagram

Angle grinder guard

Part #403142-02

The manufacturer no longer makes this part, and there's no substitute part

Screw 945280-00
#145

7" angle grinder diagram

Screw

Part #945280-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Cutting Wheel Flange, Outer 390426-00
#106

7" angle grinder diagram

Angle grinder cutting wheel flange, outer

Part #390426-00

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp 930103-00
#137

7" angle grinder diagram

Cord clamp

Part #930103-00

The manufacturer no longer makes this part, and there's no substitute part

O-ring 403123-01
#149

7" angle grinder diagram

O-ring

Part #403123-01

The manufacturer no longer makes this part, and there's no substitute part

Fan 403121-00
#140

7" angle grinder diagram

Fan

Part #403121-00

The manufacturer no longer makes this part, and there's no substitute part

Lead 402878-01
#147

7" angle grinder diagram

Lead

Part #402878-01

The manufacturer no longer makes this part, and there's no substitute part
