Model #3639636214 Kenmore refrigerator

Here are the diagrams and repair parts for Kenmore 3639636214 refrigerator, as well as links to manuals and error code tables, if available.

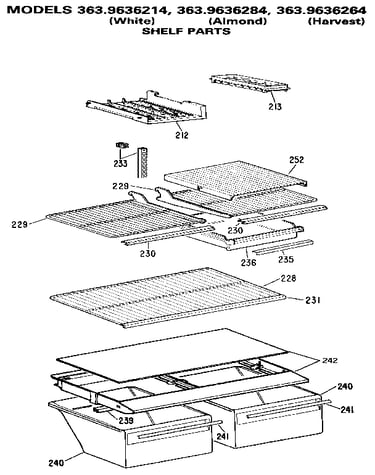

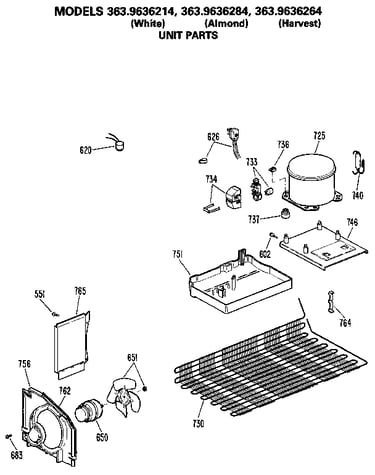

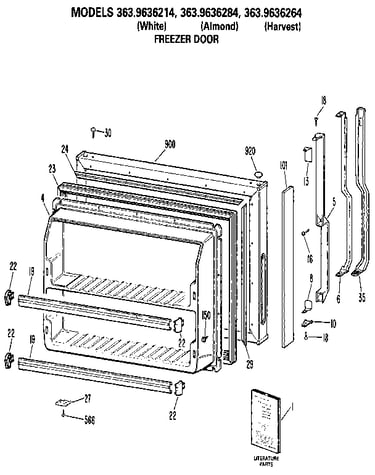

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 179 parts

    Refrigerator Freezer Bottom Panel

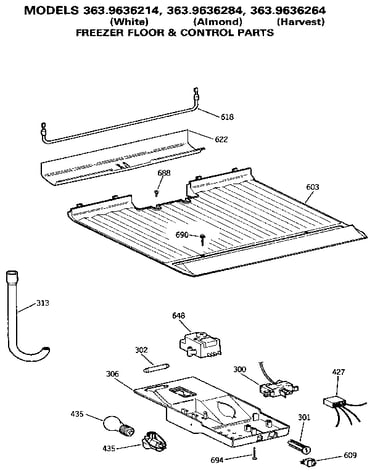

    Freezer floor & control Diagram


    In Stock

    Refrigerator Drain Trough


    Freezer floor & control Diagram


    In Stock

    Refrigerator Mounting Screw

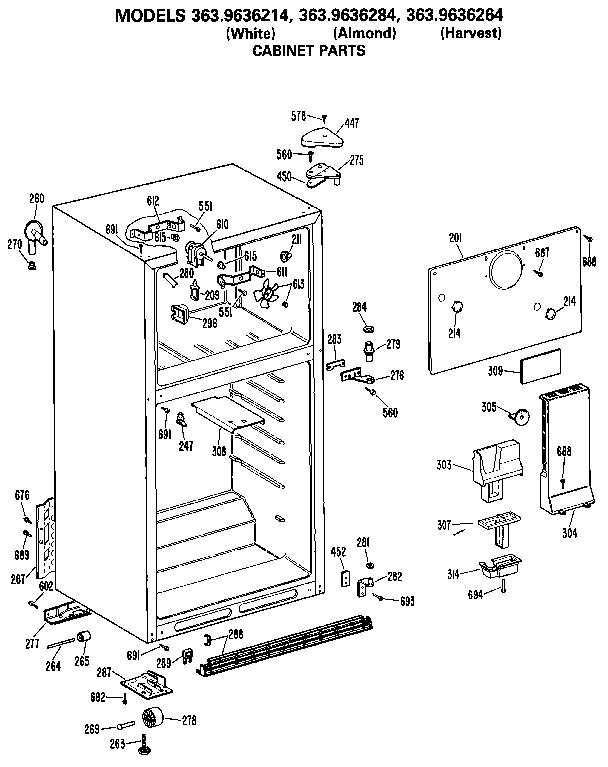

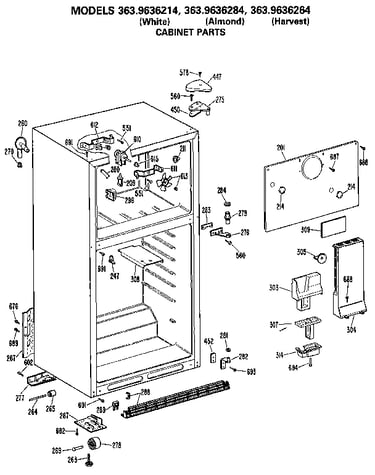

    Cabinet Diagram

    Refrigerator mounting screw

    Part #WZ05X0246
    This item is not returnable

    In Stock

    F Door Shelf

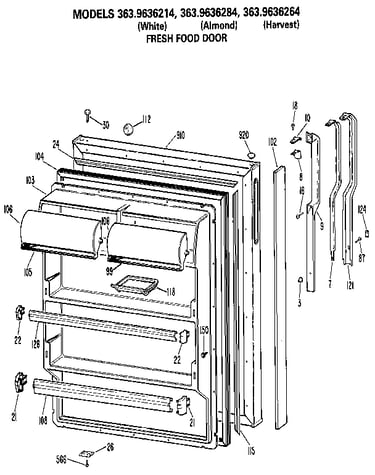

    Fresh food door Diagram
