Whirlpool WRS315SDHM13 side-by-side refrigerator

Whirlpool WRS315SDHM13 side-by-side refrigerator Parts

Here are the diagrams and repair parts for Whirlpool WRS315SDHM13 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WRS315SDHM13 Refrigerators

  • Whirlpool Everydrop 1 Refrigerator Water Filter for Whirlpool WRS315SDHM13 - Part EDR1RXD1

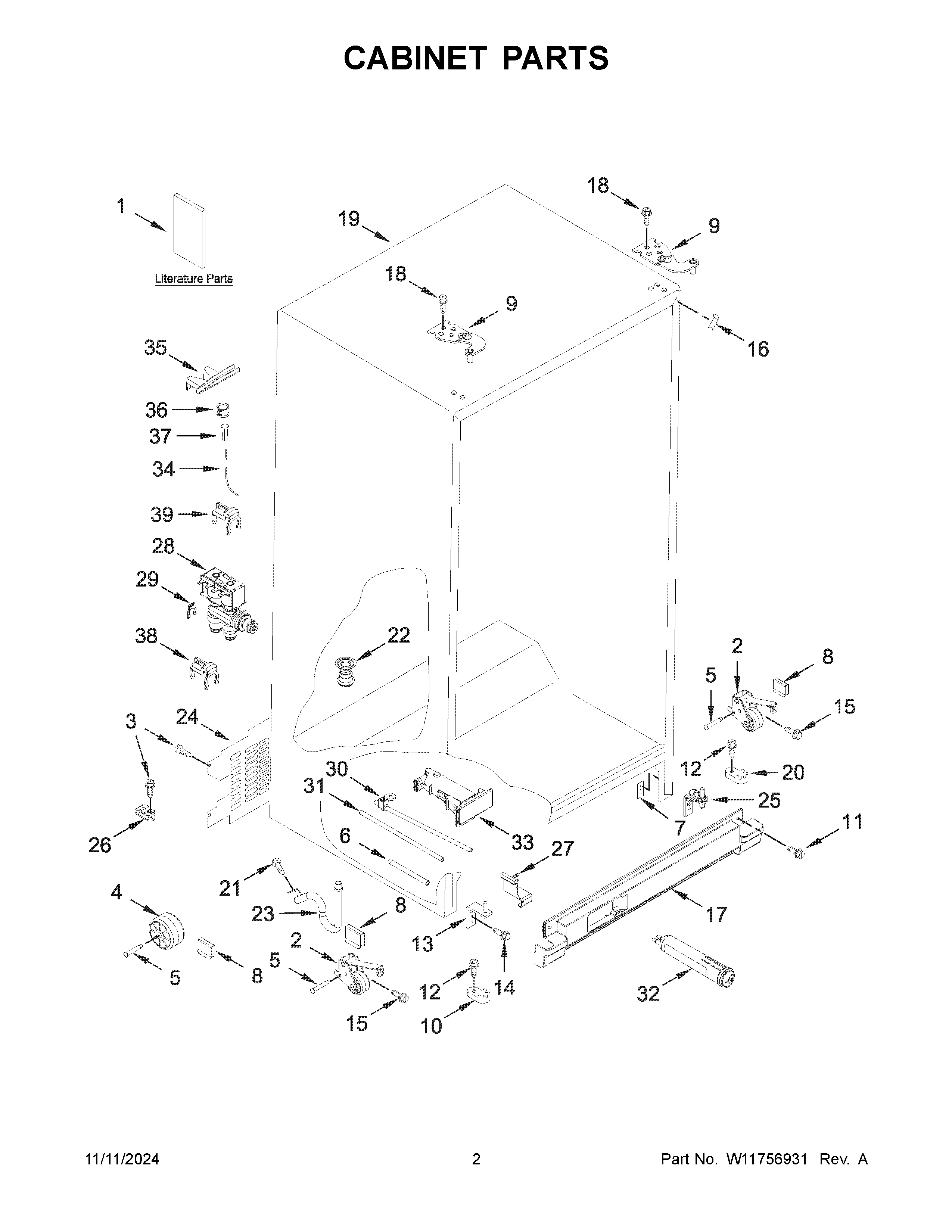

    Cabinet parts diagram

    Refrigerator Cartridge

    Part #W10735398

    Replaced by #EDR1RXD1

    Info Icon
    Manufacturer substitution
    This part replaces W10735398. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $77.46
    7% OFF Phone Price : $83.46Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Ice Maker Assembly for Whirlpool WRS315SDHM13 - Part W11700250

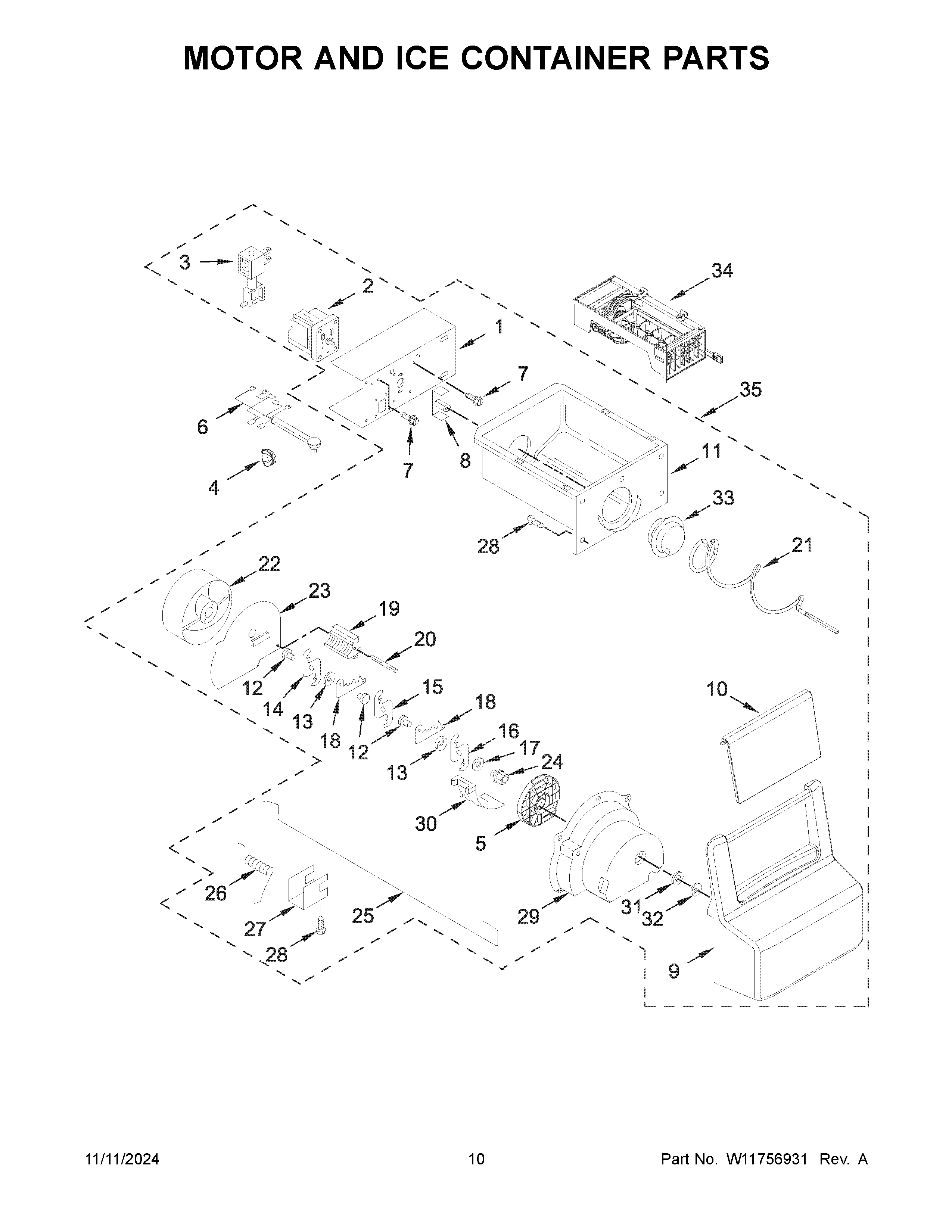

    Motor and ice container parts diagram

    Ice Maker As

    Part #W11633658

    Replaced by #W11700250

    Info Icon
    Manufacturer substitution
    This part replaces W11633658. Substitute parts can look different from the original.
    In Stock
    $188.35
    6% OFF Phone Price : $200.35Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Switch for Whirlpool WRS315SDHM13 - Part W11396033

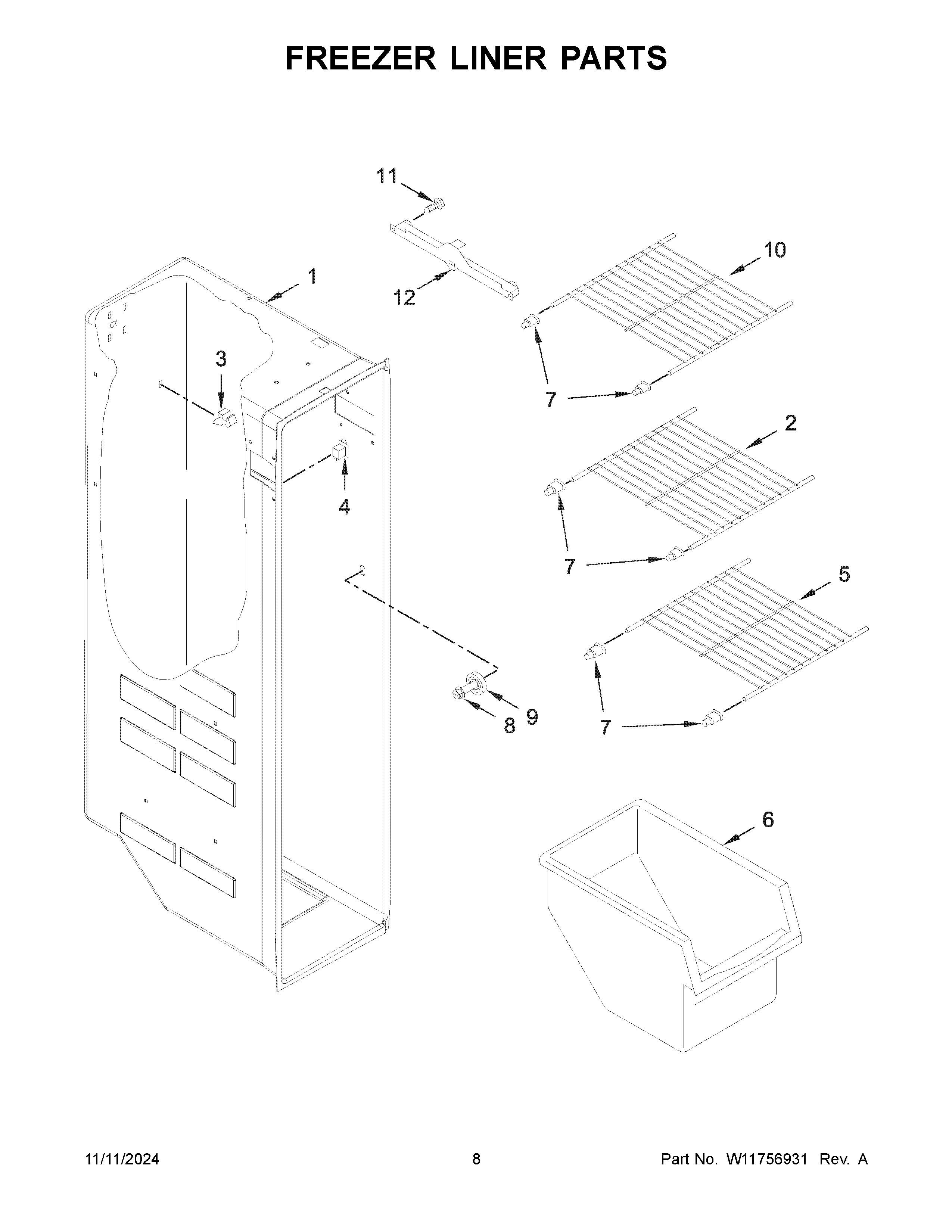

    Freezer liner parts diagram

    Refrigerator Door Switch

    Part #W10847849

    Replaced by #W11396033

    Info Icon
    Manufacturer substitution
    This part replaces W10847849. Substitute parts can look different from the original.
    In Stock
    $25.91
    19% OFF Phone Price : $31.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Blade for Whirlpool WRS315SDHM13 - Part WP2169142

    Air flow parts diagram

    Refrigerator Evaporator Fan Blade

    Part #2169142

    Replaced by #WP2169142

    Info Icon
    Manufacturer substitution
    This part replaces 2169142. Substitute parts can look different from the original.
    In Stock
    $24.25
    20% OFF Phone Price : $30.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Ice Container for Whirlpool WRS315SDHM13 - Part WPW10670845

    Motor and ice container parts diagram

    Refrigerator Ice Container

    Part #W10670845

    Replaced by #WPW10670845

    Info Icon
    Manufacturer substitution
    This part replaces W10670845. Substitute parts can look different from the original.
    In Stock
    $88.52
    6% OFF Phone Price : $94.52Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Led Light for Whirlpool WRS315SDHM13 - Part W11602886

    Hemera 30deg

    Part #W11549780

    Replaced by #W11602886

    Info Icon
    Manufacturer substitution
    This part replaces W11549780. Substitute parts can look different from the original.
    In Stock
    $32.45
    16% OFF Phone Price : $38.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing for Whirlpool WRS315SDHM13 - Part W10823511

    Cabinet parts diagram

    Refrigerator Water Tube

    Part #W10357076

    Replaced by #W10823511

    Info Icon
    Manufacturer substitution
    This part replaces W10357076. Substitute parts can look different from the original.
    In Stock
    $37.48
    14% OFF Phone Price : $43.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Drier Tube for Whirlpool WRS315SDHM13 - Part W11109499

    Unit parts diagram

    Drier Tube

    Part #W10805035

    Replaced by #W11109499

    Info Icon
    Manufacturer substitution
    This part replaces W10805035. Substitute parts can look different from the original.
    In Stock
    $32.55
    16% OFF Phone Price : $38.55Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Motor for Whirlpool WRS315SDHM13 - Part WP2315549

    Air flow parts diagram

    Refrigerator Evaporator Fan Motor

    Part #2315549

    Replaced by #WP2315549

    Info Icon
    Manufacturer substitution
    This part replaces 2315549. Substitute parts can look different from the original.
    In Stock
    $178.31
    6% OFF Phone Price : $190.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Thermistor for Whirlpool WRS315SDHM13 - Part W10384183

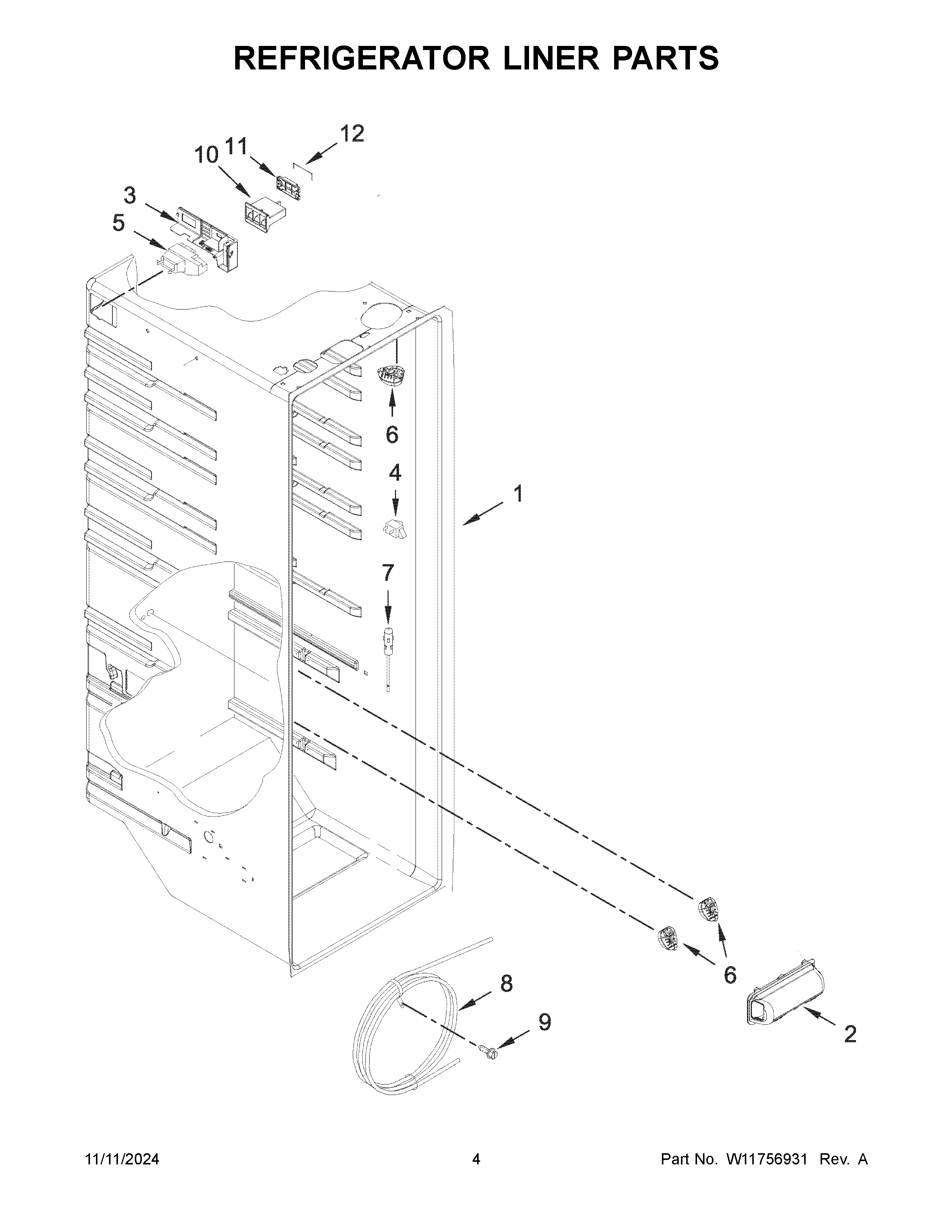

    Refrigerator liner parts diagram

    Refrigerator Thermistor

    Part #W10384183

    The manufacturer no longer makes this part, and there's no substitute part

Whirlpool Side-by-Side Refrigerator WRS315SDHM13 FAQs

A side-by-side refrigerator like the Whirlpool WRS315SDHM13 typically lasts 15 to 20 years with normal household use, proper temperatures (about 37°F fresh food, 0°F freezer), and routine cleaning. Most “end of life” issues come from cooling, defrost, or ice and water system wear.

What affects lifespan the most
  • Condenser airflow and cleanliness (dust buildup makes the compressor work harder)
  • Door seal condition (warm air leaks increase run time)
  • Evaporator fan performance (poor circulation causes warm spots and icing)
  • Ice maker and dispenser use (more moving parts, more wear)
  • Power quality (surges and brownouts stress electronics and the compressor circuit)
Typical lifespan by major system
System Typical service life What you notice when it’s failing
Sealed cooling system (compressor, refrigerant loop) 15 to 20 years Not cooling, constant running, warm freezer
Evaporator fan and airflow parts 8 to 15 years Noisy fan, weak cooling in fridge section
Ice maker and dispenser components 5 to 10 years No ice, clumping, dispenser not dispensing
Door gaskets and door hardware 5 to 12 years Frost, sweating, doors not sealing
Practical ways to help your WRS315SDHM13 reach 20 years
Why it matters

Knowing the 15 to 20 year average helps you decide whether to repair or replace. On a WRS315SDHM13 that is cooling well, replacing wear items like a door gasket or fan parts often restores performance for far less than the cost of a new Whirlpool refrigerator.

Last updated: February 2026

If your Whirlpool WRS315SDHM13 side-by-side refrigerator dispenses water but will not make ice, the most common causes are the ice maker being switched off, the freezer not cold enough to freeze, a restricted water path to the ice maker (filter or frozen fill tube), or a weak/failed inlet valve feeding the ice maker.

Quick checks we recommend first
  • Confirm the ice maker is turned ON (bail arm down or switch on, depending on the style).
  • Set freezer temperature to 0°F (typical target for ice production).
  • Dump old/clumped ice and fully reseat the bin; a jam can stop cycling.
  • Replace the water filter if flow is reduced or the filter is overdue.
  • Look for a frozen fill tube at the back of the ice maker (ice blockage where water enters).
What to test next (in order)
  1. Freezer temperature and airflow: If the freezer is warmer than about 10°F, the ice maker often will not cycle.
  2. Fill tube freeze-up: Thaw the tube with a hair dryer on low (do not overheat plastics), then monitor for refreezing.
  3. Water inlet valve performance: The dispenser can still work even when the ice maker side of the valve is weak. If the ice maker mold stays dry, suspect the valve and consider replacing the water valve W11645245.
  4. Ice maker assembly: If the mold fills but never harvests, the ice maker module can be failing; replacement is typically the fix.
Symptoms and likely causes
What you see Most likely cause What to do
No ice, mold is dry Frozen fill tube or weak inlet valve Thaw tube; test/replace valve
Small/hollow cubes Low water fill, restricted filter, low supply pressure Replace filter; verify supply valve fully open
Ice maker cycles but no ice drops Jammed ejector or bin issue Clear jam; reseat bin
Freezer food is soft Cooling/airflow problem Check vents; listen for fan operation
Why it matters

The dispenser and ice maker share the same household water supply, but the ice maker needs the freezer to be cold enough and the dedicated fill path to be clear. A partial restriction or a weak valve can show up as “no ice” even when water still dispenses.

Helpful DIY guidance

For step-by-step prevention and troubleshooting tips, use how to prevent water dispenser and ice maker problems.

Last updated: February 2026

A common disadvantage of a side-by-side refrigerator like the Whirlpool WRS315SDHM13 is reduced usable width in both compartments; wide items (pizza boxes, party platters, sheet pans) often do not fit well, even when total cubic feet seems adequate.

Common drawbacks (what you notice day to day)
  • Narrow shelves limit storage of wide or bulky foods.
  • Freezer space is tall and narrow; large frozen boxes can be awkward to stack.
  • More door bins and vertical sections can make organization feel “busy.”
  • Ice and water in the door can reduce interior door-bin space.
  • If airflow is blocked, temperature can vary more from top to bottom.
Side-by-side vs other layouts (quick comparison)
Layout Main strength Main drawback
Side-by-side Easy access to both fresh and frozen foods at eye level Narrow shelf width for wide items
French door Wide fresh-food shelves for platters and trays Freezer access is lower; often more bending
Top freezer Simple, efficient layout Fresh food is lower; more bending for daily items
Tips to reduce the disadvantages
  • Store wide items on adjustable shelves by removing one shelf and using the taller space.
  • Use slim bins to “square off” narrow shelves and prevent items from tipping.
  • Keep vents clear; do not pack food tightly against the back wall.
  • If cooling seems weak or noisy, check the evaporator fan area; a damaged blade can reduce airflow (see refrigerator evaporator fan blade WP2169142).
  • For dispenser-related space and usability issues, keep the ice bucket seated correctly and not overfilled (see refrigerator ice container WPW10670845).
Why it matters

Most side-by-side complaints come down to shelf geometry, not total capacity. If you regularly store wide leftovers, meal-prep trays, or frozen pizzas, the narrow compartment design can create daily frustration even when the refrigerator is otherwise working normally.

Last updated: February 2026
