Model #N4A348AKB200 ICP split-system air conditioner - r410a

Here are the diagrams and repair parts for ICP N4A348AKB200 split-system air conditioner - r410a, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 35 parts

Cap 1-1/16

#NI

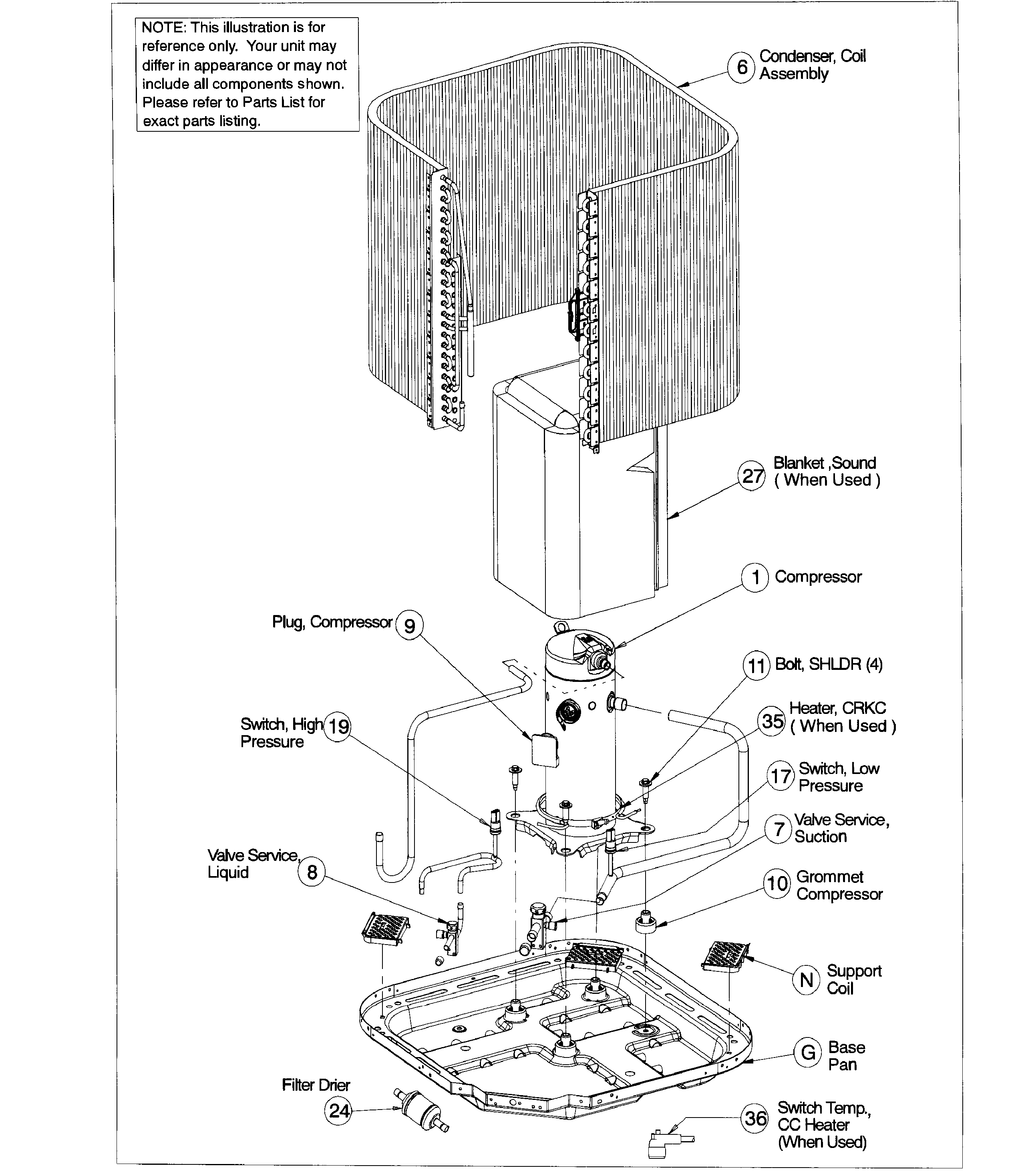

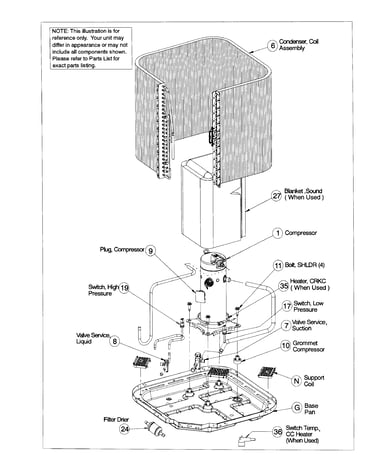

Main asy 1 Diagram

Cap 1-1/16

Part #1175652
$43.85

In Stock

KIT COIL

#6

Main asy 1 Diagram

Kit coil

Part #1178055
$1957.23

In Stock

Pan Base

#G

Main asy 1 Diagram

Pan base

Part #1178308
$184.09

In Stock

Paint Gray

#NI

Main asy 1 Diagram

Paint gray

Part #1178322
$19.66

In Stock

Contactor

#4

Main asy 1 Diagram

Contactor

Part #1172472
$42.76

In Stock

Service Kit

#NI

Main asy 1 Diagram

Service kit

Part #1175650
$42.58

In Stock

Screw 5/8

#NI

Main asy 1 Diagram

Screw 5/8

Part #1178281
This item is not returnable
$2.16

In Stock

Ser Panel

#F

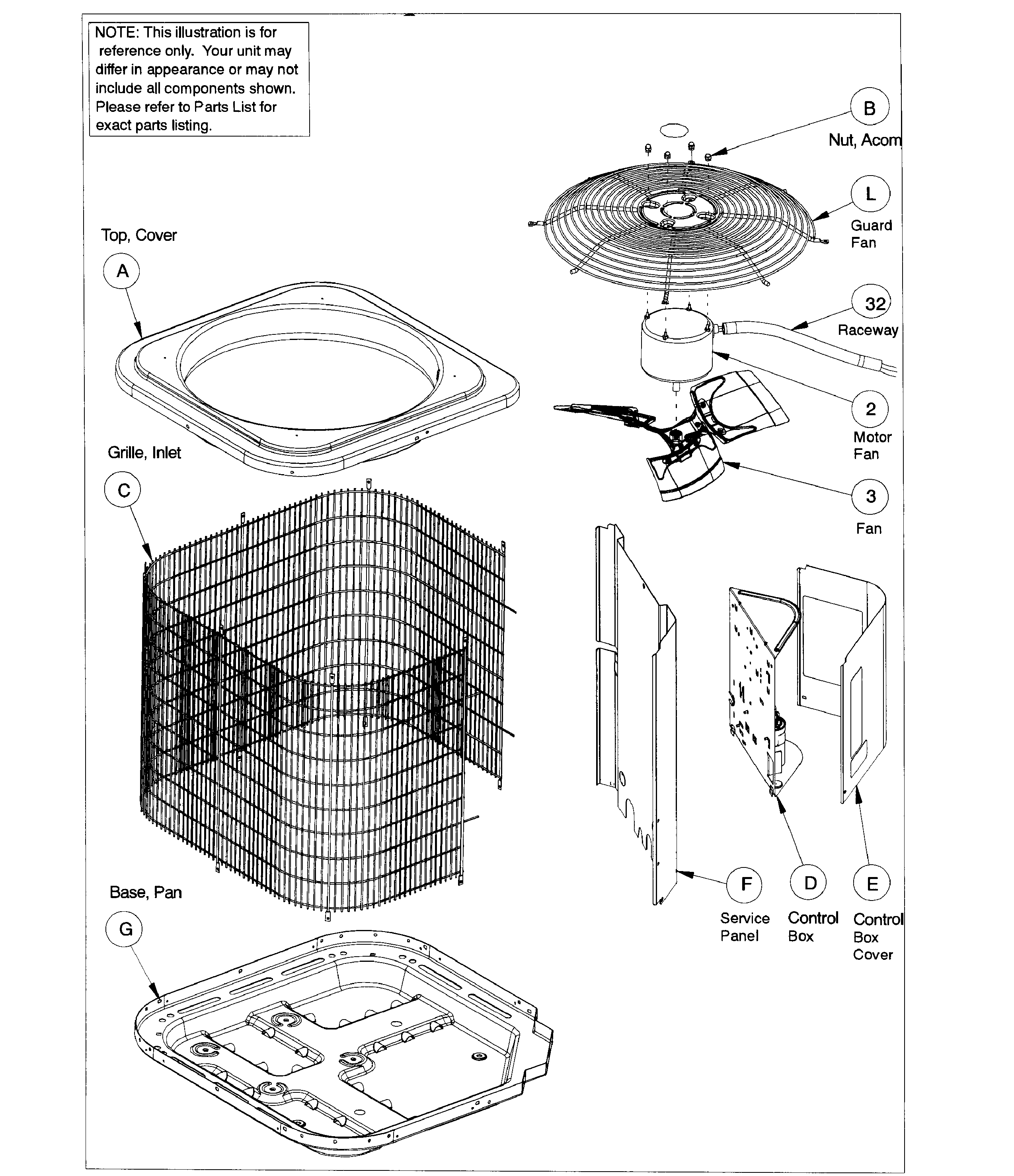

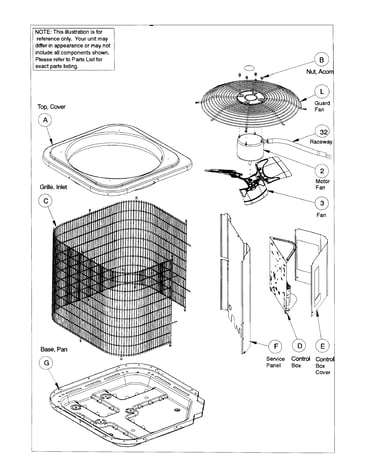

Main asy 2 Diagram

Ser panel

Part #1178325
$31.00

In Stock

Top Cover

#A

Main asy 2 Diagram

Top cover

Part #1178643
$87.43

In Stock

Fan Blade

#3

Main asy 2 Diagram

Fan blade

Part #1173854
$75.54

In Stock
