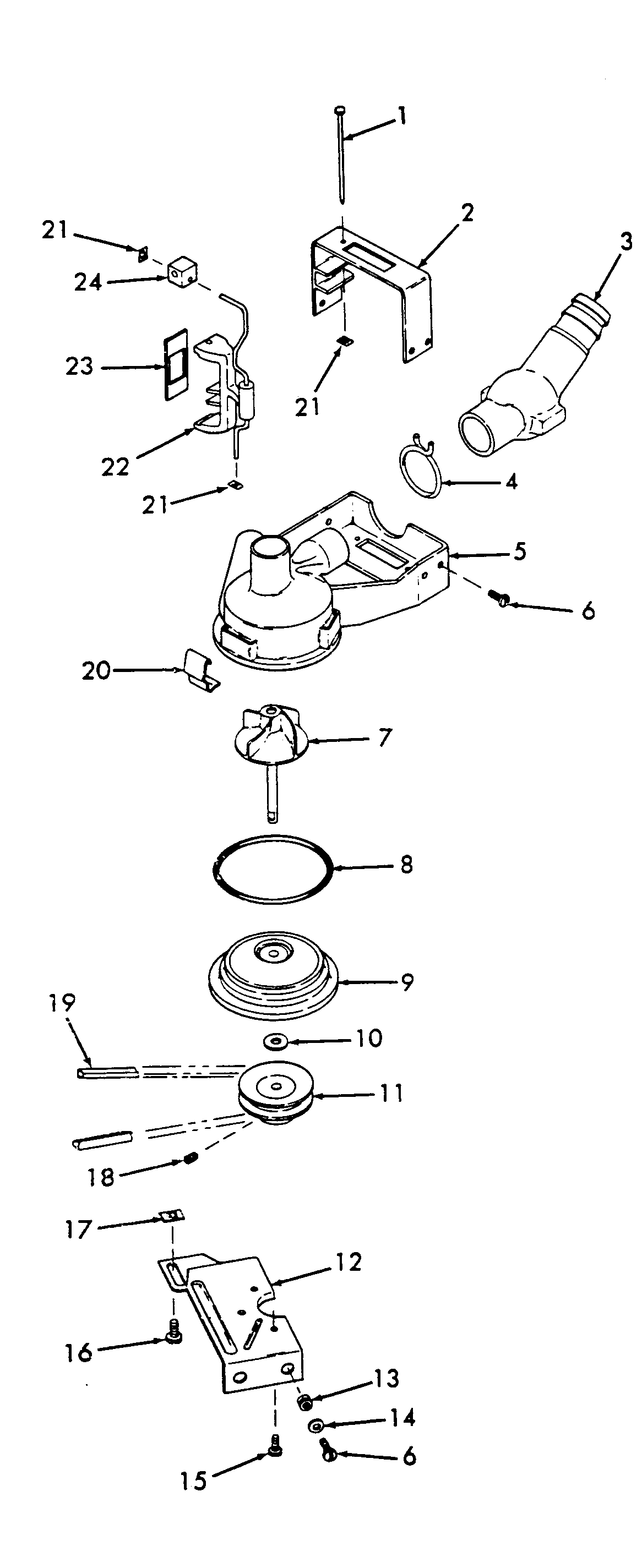

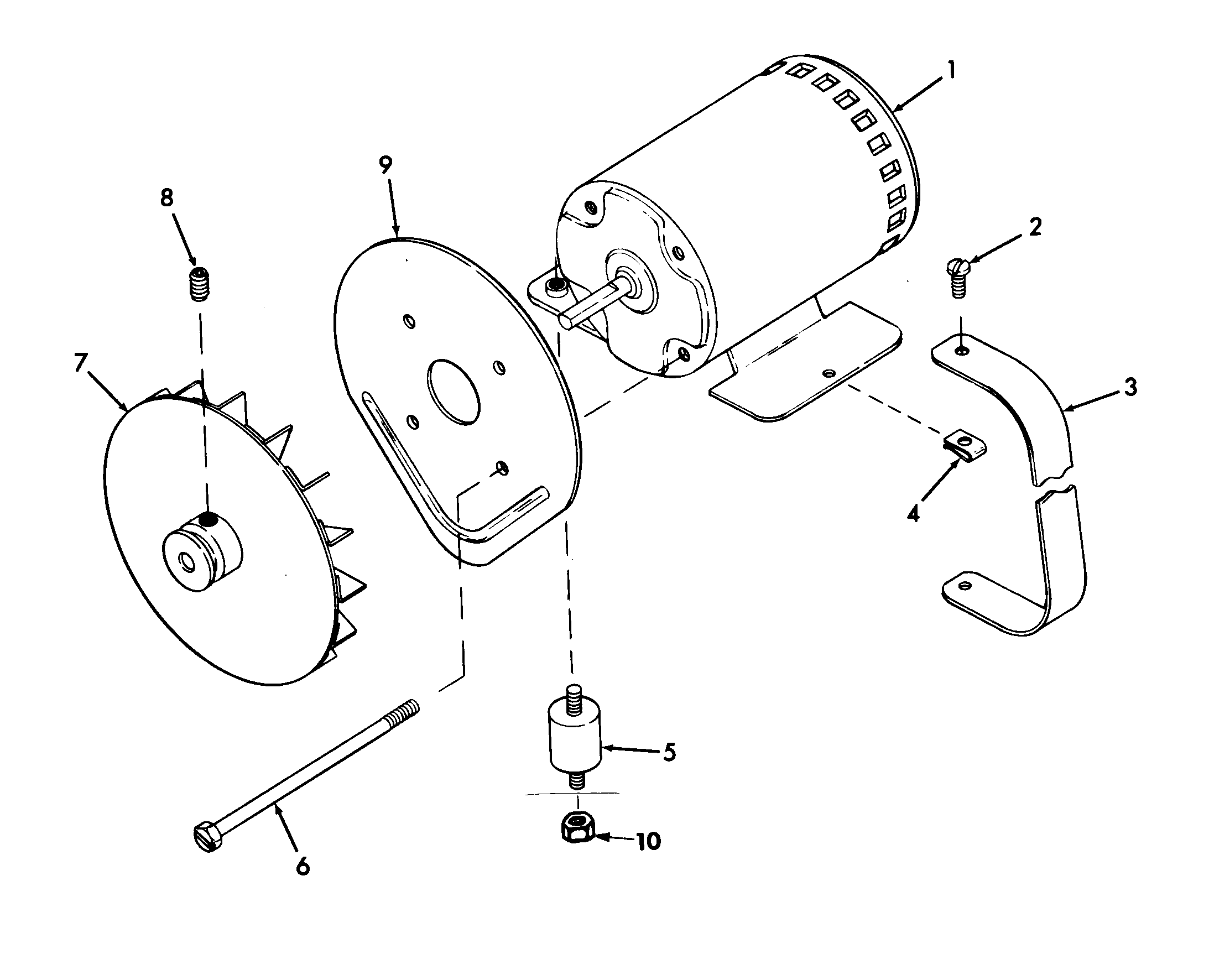

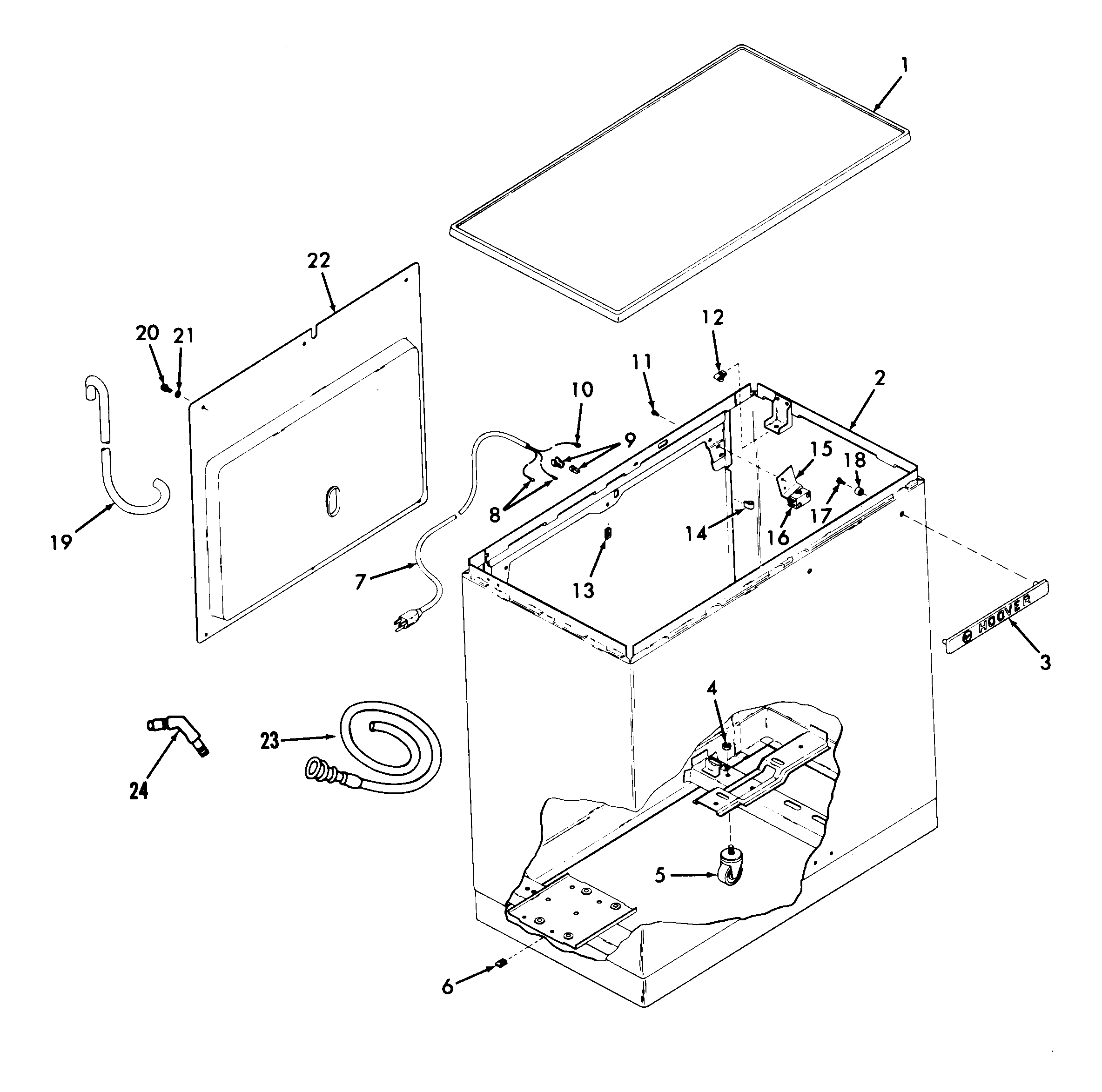

Model #T1023-2 Official Hoover washer

Here are the diagrams and repair parts for Hoover T1023-2 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 16 parts

Pulsator#72

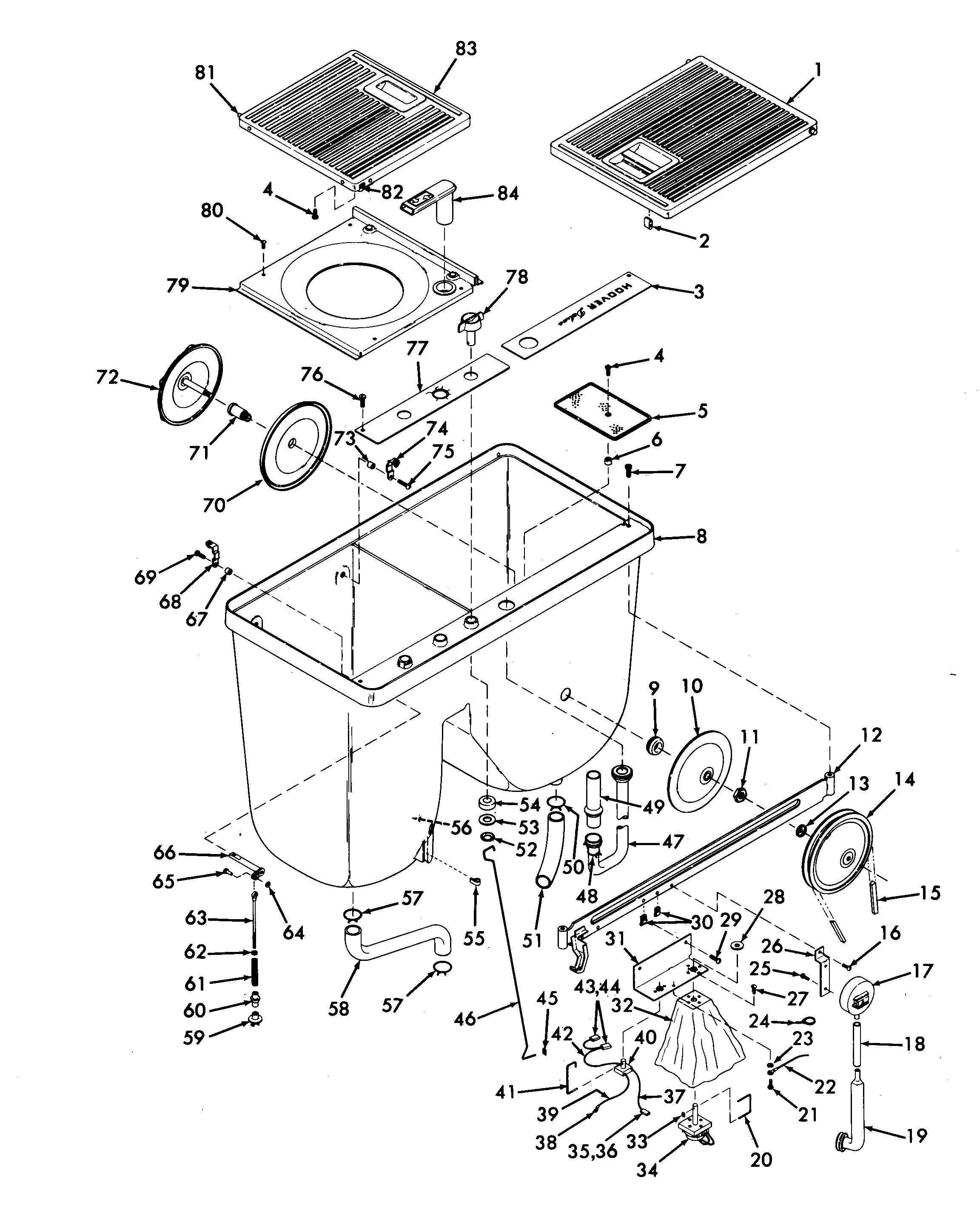

Pump, pulsatorbelt, hoses, microswitch Diagram

Pulsator

Part #161047AG

The manufacturer no longer makes this part, and there's no substitute part

Wire Holder

See All Related Diagrams

Wire holder

Part #045517--

The manufacturer no longer makes this part, and there's no substitute part

Pulley#14

Pump, pulsatorbelt, hoses, microswitch Diagram

Pulley

Part #160910--

The manufacturer no longer makes this part, and there's no substitute part

TIMER - WASH MACHINE#34

Pump, pulsatorbelt, hoses, microswitch Diagram

Timer - wash machine

Part #28389205

The manufacturer no longer makes this part, and there's no substitute part

TERMINAL-0910

See All Related Diagrams

Terminal-0910

Part #163055--

The manufacturer no longer makes this part, and there's no substitute part

DRIVE BELT-T1001#15

Pump, pulsatorbelt, hoses, microswitch Diagram

Drive belt-t1001

Part #169360--

The manufacturer no longer makes this part, and there's no substitute part

MOTOR BRUSH ASSEM -#27

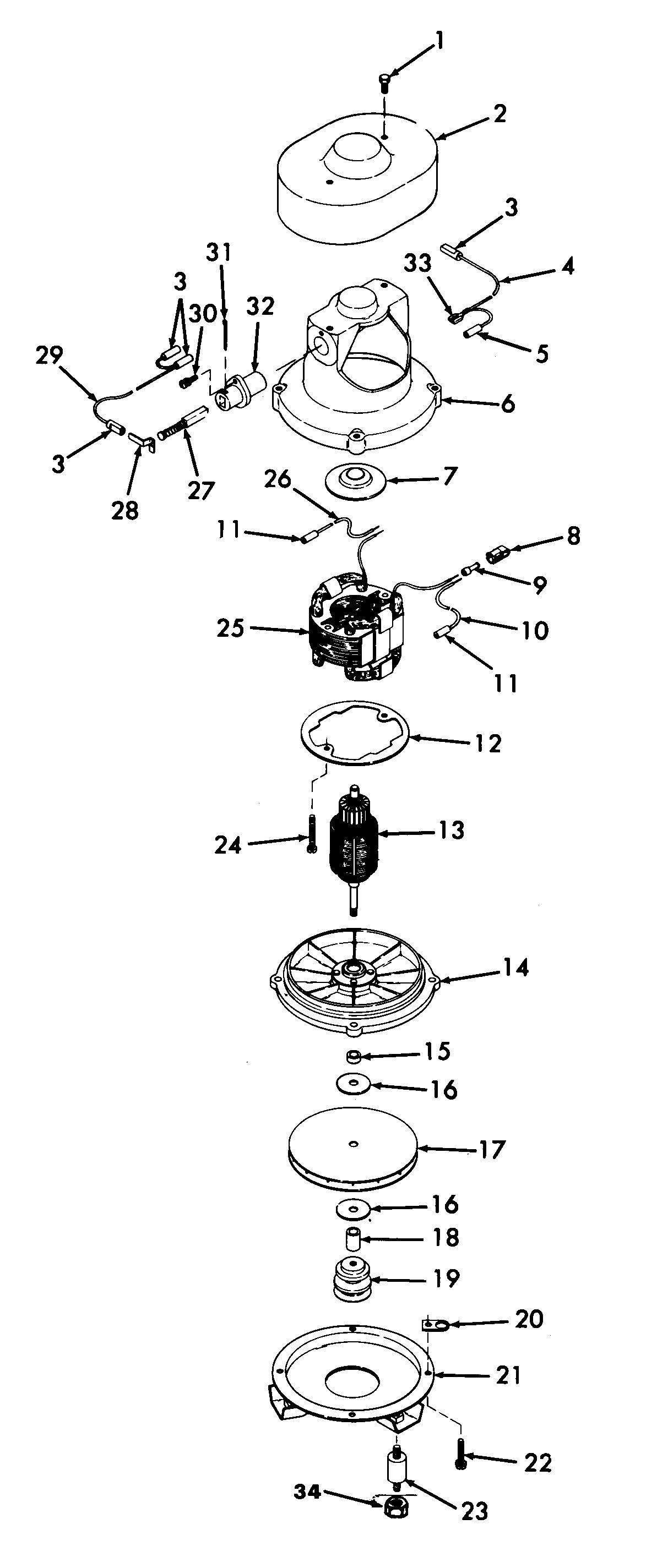

Spinmotor Diagram

Motor brush assem -

Part #046100--

The manufacturer no longer makes this part, and there's no substitute part

PULSATOR PULLEY/CUP#14A

Pump, pulsatorbelt, hoses, microswitch Diagram

Pulsator pulley/cup

Part #43251005

The manufacturer no longer makes this part, and there's no substitute part

Spin Belt#6

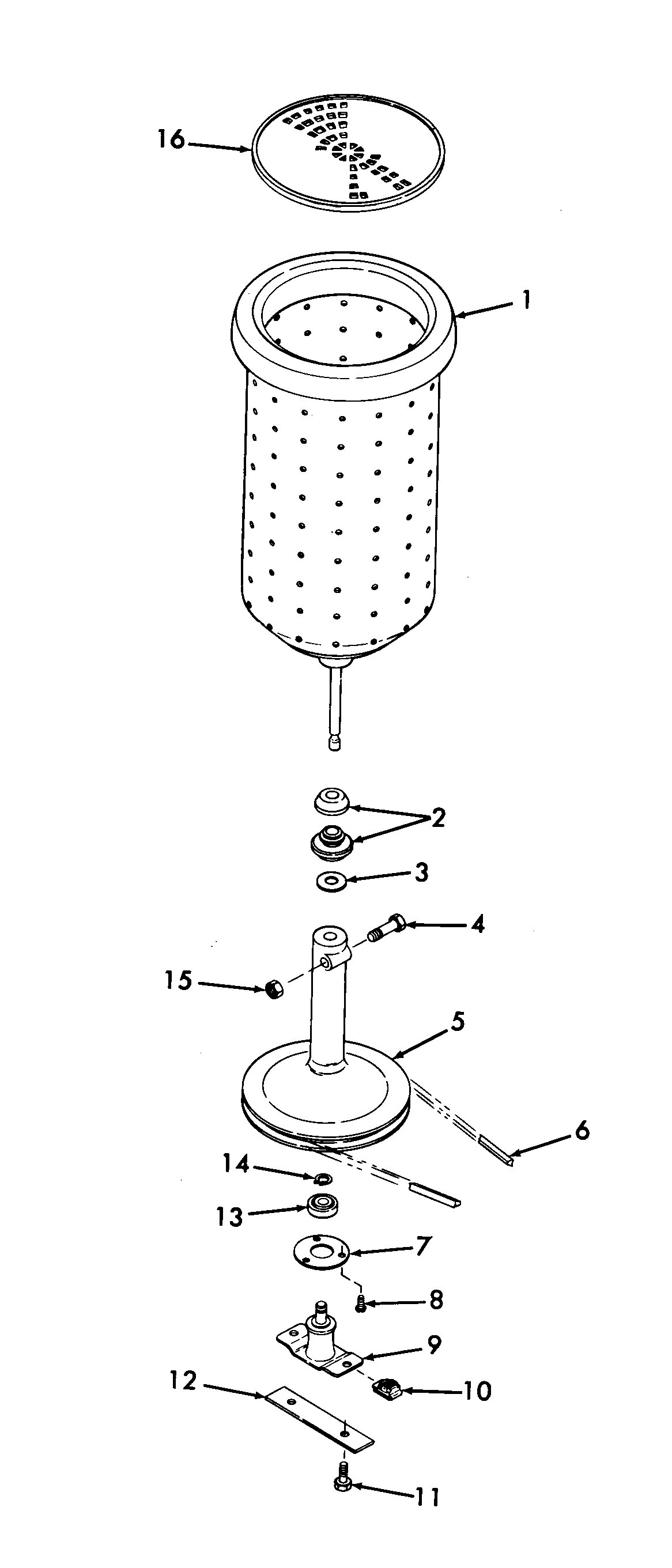

Switch, spinbelt Diagram

Spin belt

Part #716882--

The manufacturer no longer makes this part, and there's no substitute part

Washer#3

Switch, spinbelt Diagram

Washer

Part #21312708

The manufacturer no longer makes this part, and there's no substitute part
