Kenmore
Gas Grill

Model # 141155401 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 141155401 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Cart Leg P0862A
#38

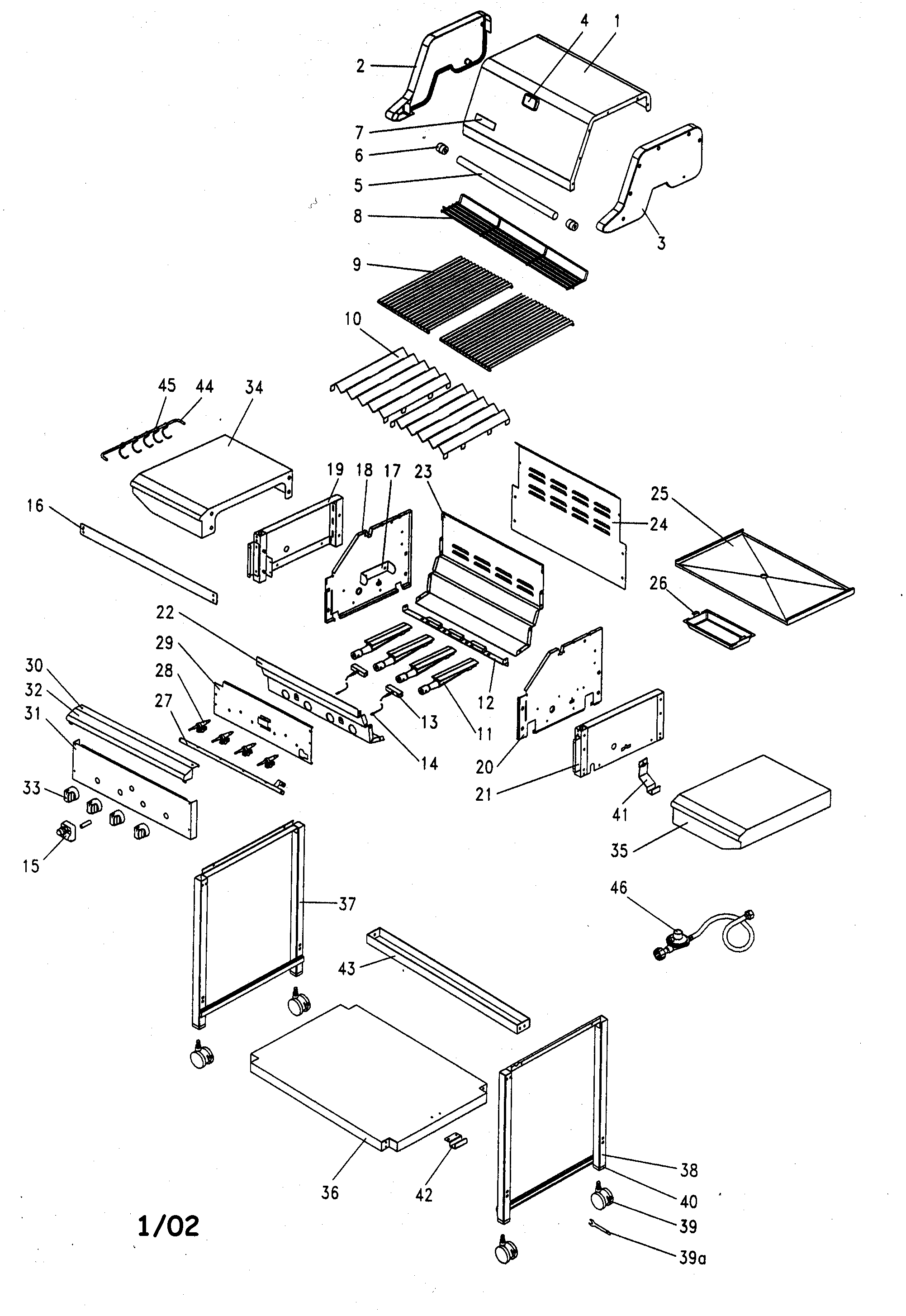

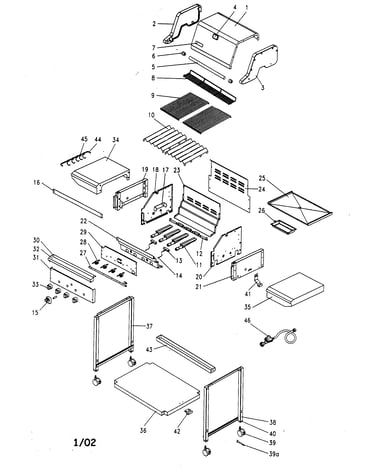

Grill diagram

Cart leg

Part #P0862A

The manufacturer no longer makes this part, and there's no substitute part

Bracket P4413B
#43

Grill diagram

Bracket

Part #P4413B

The manufacturer no longer makes this part, and there's no substitute part

Holder P4032B
#42

Grill diagram

Holder

Part #P4032B

The manufacturer no longer makes this part, and there's no substitute part

Handle P0251A
#5

Grill diagram

Handle

Part #P0251A

The manufacturer no longer makes this part, and there's no substitute part

Cart Leg P0861A
#37

Grill diagram

Cart leg

Part #P0861A

The manufacturer no longer makes this part, and there's no substitute part

Bowl Panel P0799B
#18

Grill diagram

Bowl panel

Part #P0799B

The manufacturer no longer makes this part, and there's no substitute part

Heat Pads P80L5A
#30

Grill diagram

Heat pads

Part #P80L5A

The manufacturer no longer makes this part, and there's no substitute part

Grill Knob P3430A
#33

Grill diagram

Grill knob

Part #P3430A

The manufacturer no longer makes this part, and there's no substitute part

Bracket P80P1A
#16

Grill diagram

Bracket

Part #P80P1A

The manufacturer no longer makes this part, and there's no substitute part

Bowl Panel P07A1B
#20

Grill diagram

Bowl panel

Part #P07A1B

The manufacturer no longer makes this part, and there's no substitute part
