Craftsman
Air Compressor

Model # 106154480 Official Craftsman single-cylinder tank-type paint sprayer

Here are the diagrams and repair parts for Official Craftsman 106154480 single-cylinder tank-type paint sprayer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |

Flapper Valve VS-0018
#9

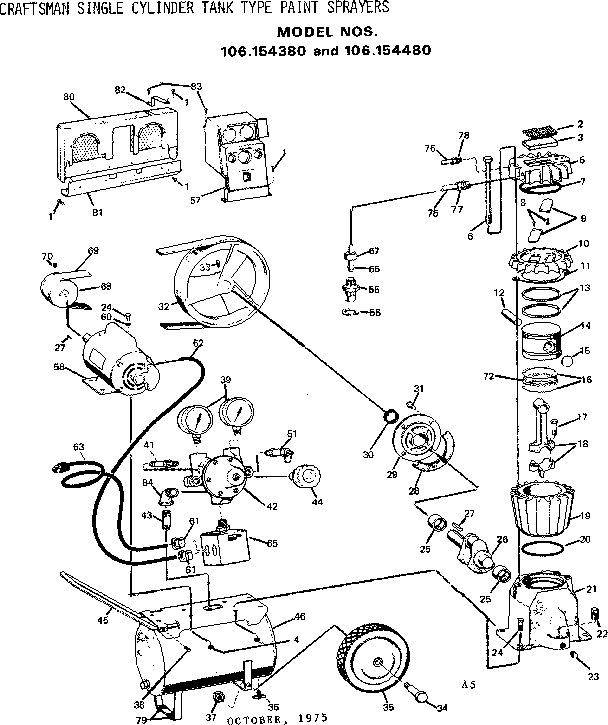

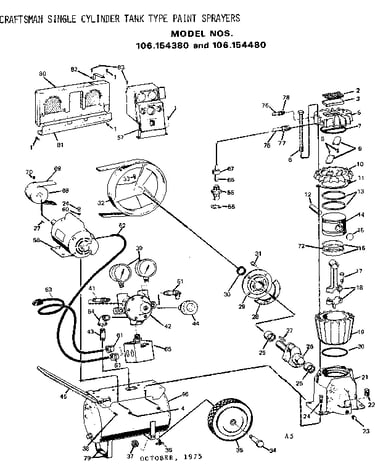

Unit diagram

Flapper valve

Part #VS-0018

The manufacturer no longer makes this part, and there's no substitute part

Piston VT-0055
#14

Unit diagram

Piston

Part #VT-0055

The manufacturer no longer makes this part, and there's no substitute part

Valve V-2017
#51

Unit diagram

Valve

Part #V-2017

The manufacturer no longer makes this part, and there's no substitute part

Brg Cap Asm VS-2053
#29

Unit diagram

Brg cap asm

Part #VS-2053

The manufacturer no longer makes this part, and there's no substitute part

Overhaul Kit VS-2051

#NI

All parts diagram

Overhaul kit

Part #VS-2051

The manufacturer no longer makes this part, and there's no substitute part

Screw ST-0203
#8

Unit diagram

Screw

Part #ST-0203

The manufacturer no longer makes this part, and there's no substitute part

Valve CV-2014
#55

Unit diagram

Valve

Part #CV-2014

The manufacturer no longer makes this part, and there's no substitute part

Pulley PU-0049
#32

Unit diagram

Pulley

Part #PU-0049

The manufacturer no longer makes this part, and there's no substitute part

Drain Cock ST-0301
#36

Unit diagram

Drain cock

Part #ST-0301

The manufacturer no longer makes this part, and there's no substitute part

Bolt ST-0160
#24

Unit diagram

Bolt

Part #ST-0160

The manufacturer no longer makes this part, and there's no substitute part
