Craftsman
Gas Walk-Behind Mower

Model # 917370536 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917370536 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 239 parts  |
Lawn & Garden Equipment Nut 409148
#33

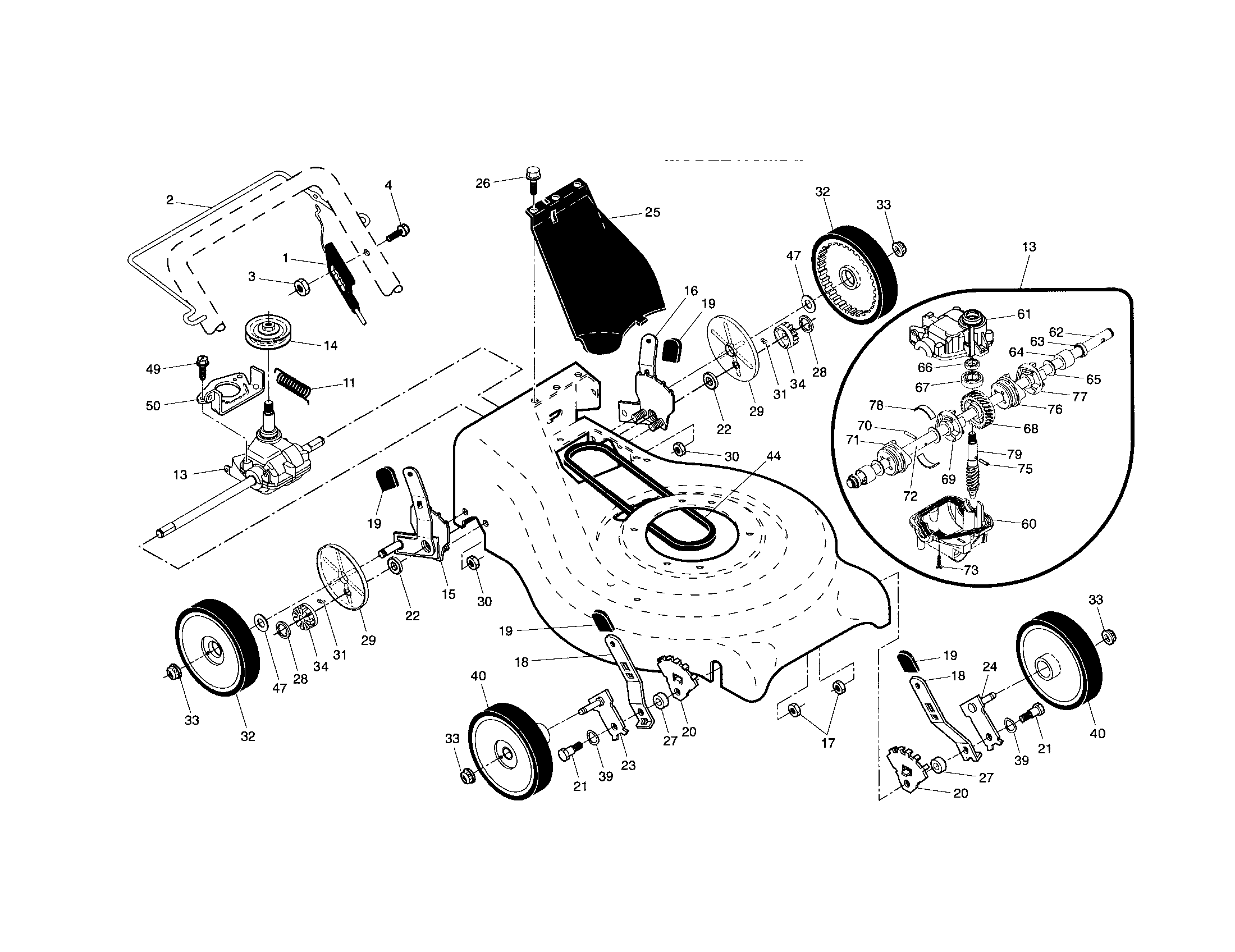

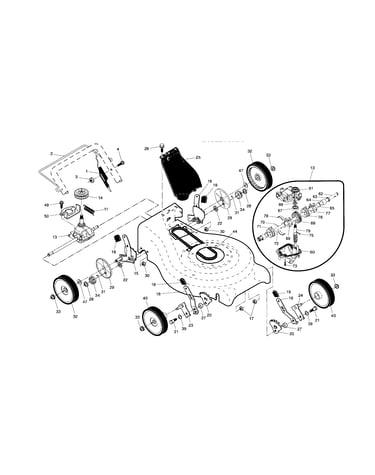

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
Lawn Mower Blade 406712
#31

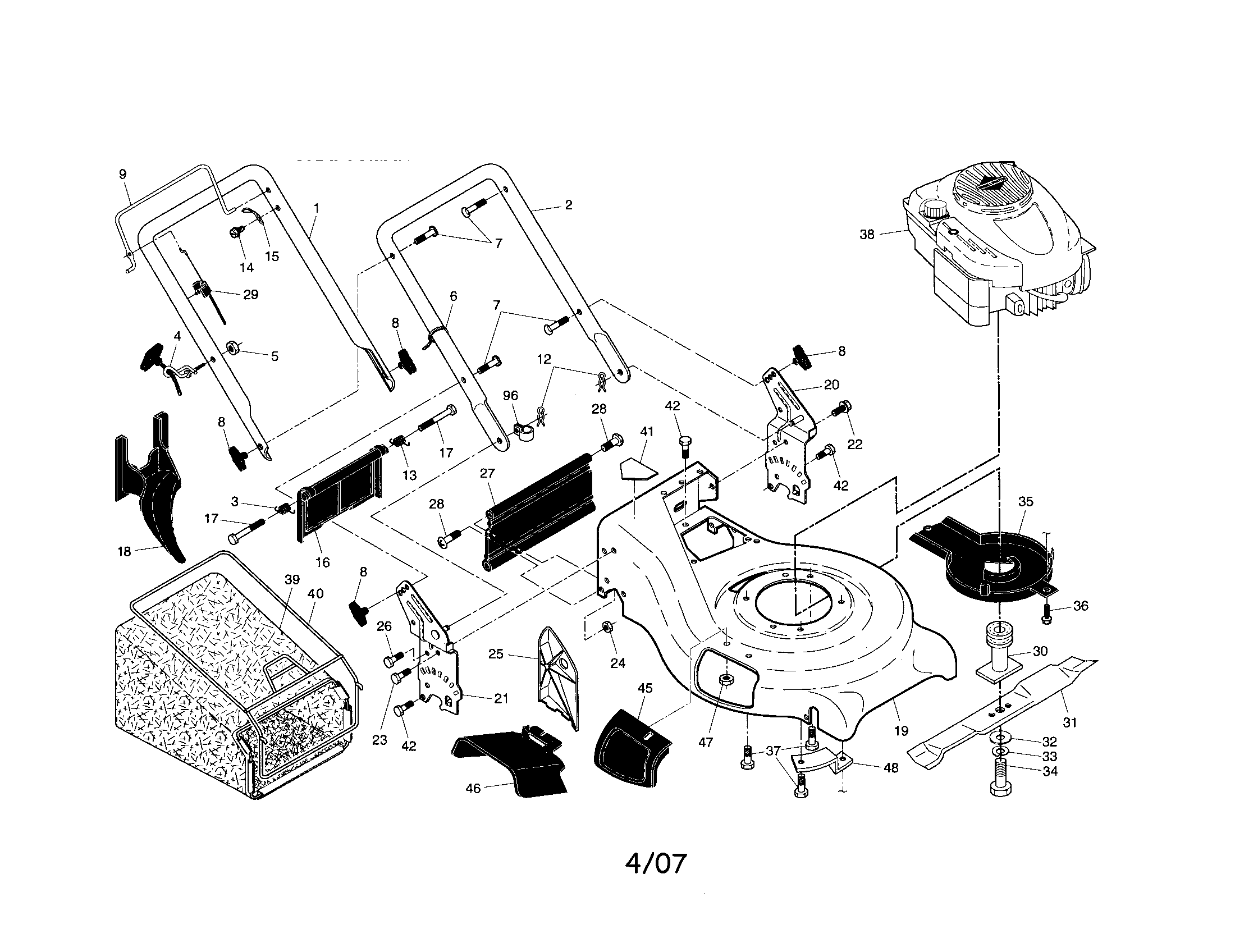

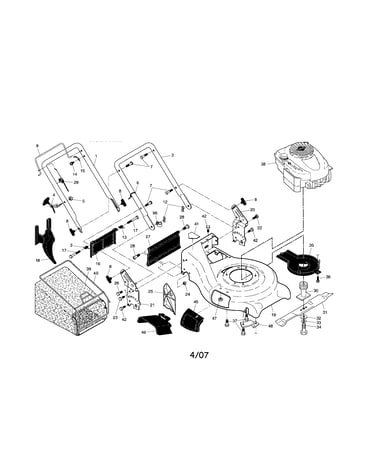

Engine/housing/handles diagram

Lawn mower blade

Part #406712

Replaced by #532406712

?
Manufacturer substitution
This part replaces 406712. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$14.05 |
12% OFF Phone Price : $16.05
In Stock
Hndl.knob.bl 189713X428
#8

Engine/housing/handles diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Mower Wheel Dust Cover 189403
#29

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.77 |
21% OFF Phone Price : $4.77
In Stock
Bearing 191039
#22

Drive control/gear case/wheels diagram

Bearing

Part #191039

Replaced by #421836

?
Manufacturer substitution
This part replaces 191039. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.82 |
15% OFF Phone Price : $6.82
Back Order
Lawn & Garden Equipment Screw 851084
#34

Engine/housing/handles diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532435345

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
In Stock
Handle Bolt 191574
#7

Engine/housing/handles diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.89 |
26% OFF Phone Price : $3.89
Back Order
Lawn Mower E-ring (replaces 12000057) 12000058
#28

Drive control/gear case/wheels diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

BEST SELLER
This item is not returnable
$2.79 |
26% OFF Phone Price : $3.79
In Stock
Lawn Mower Ground Drive Belt 406557
#44

Drive control/gear case/wheels diagram

Lawn mower ground drive belt

Part #406557

Replaced by #580364604

?
Manufacturer substitution
This part replaces 406557. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$10.79 |
16% OFF Phone Price : $12.79
In Stock
Lawn Mower Height Adjuster Knob 701037
#19

Drive control/gear case/wheels diagram

Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
