Bissell
Upright Vacuum

Model # 1950 Official Bissell quick steamer upright deep cleaner

Here are the diagrams and repair parts for Official Bissell 1950 quick steamer upright deep cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |

Lever 6037801
#23

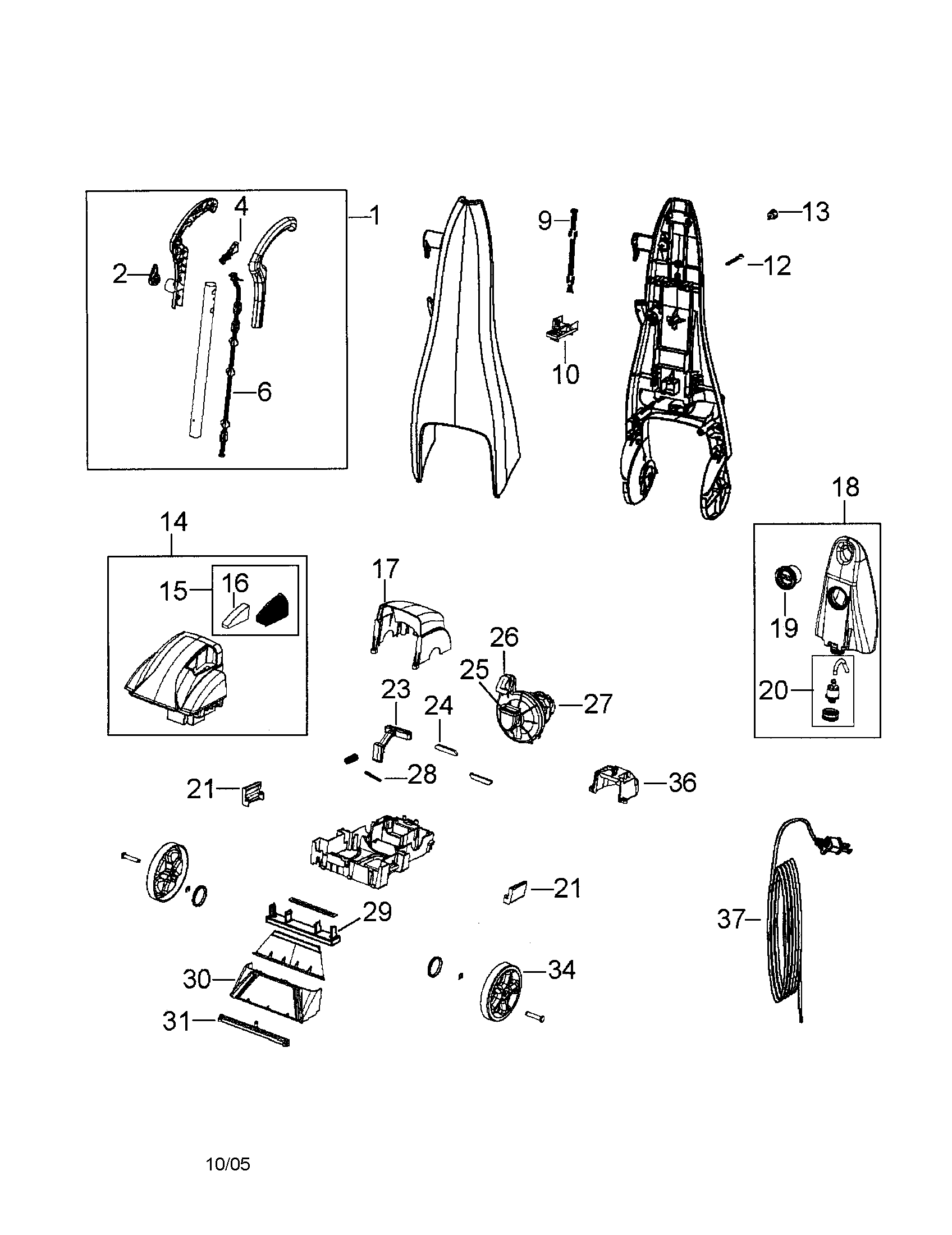

Quicksteamer diagram

Lever

Part #6037801

The manufacturer no longer makes this part, and there's no substitute part

Tubing 6037806

#(NI)

All parts diagram

Tubing

Part #6037806

The manufacturer no longer makes this part, and there's no substitute part

Wheel 6037802
#34

Quicksteamer diagram

Wheel

Part #6037802

The manufacturer no longer makes this part, and there's no substitute part

Handle Screw 2035616
#12

Quicksteamer diagram

Handle screw

Part #2035616

The manufacturer no longer makes this part, and there's no substitute part

User Guide 2106322

#(NI)

All parts diagram

User guide

Part #2106322

The manufacturer no longer makes this part, and there's no substitute part

Water Tank 2035603
#18A

Quicksteamer diagram

Water tank

Part #2035603

The manufacturer no longer makes this part, and there's no substitute part

Bottle Insert 2041111
#20

Quicksteamer diagram

Bottle insert

Part #2041111

The manufacturer no longer makes this part, and there's no substitute part

Metal Detent Dowel 2041115
#28

Quicksteamer diagram

Metal detent dowel

Part #2041115

The manufacturer no longer makes this part, and there's no substitute part

Housng-mtr 0106356
#36

Quicksteamer diagram

Housng-mtr

Part #0106356

The manufacturer no longer makes this part, and there's no substitute part

Receiver 2041126
#10

Quicksteamer diagram

Receiver

Part #2041126

The manufacturer no longer makes this part, and there's no substitute part
