Magic Chef CM47JW-14T microwave Parts

Name: Magic Chef CM47JW-14T Parts | Diagrams | Sears PartsDirect
Brand: Magic Chef
SKU: CM47JW-14T
Availability: InStock

Here are the diagrams and repair parts for Magic Chef CM47JW-14T microwave, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

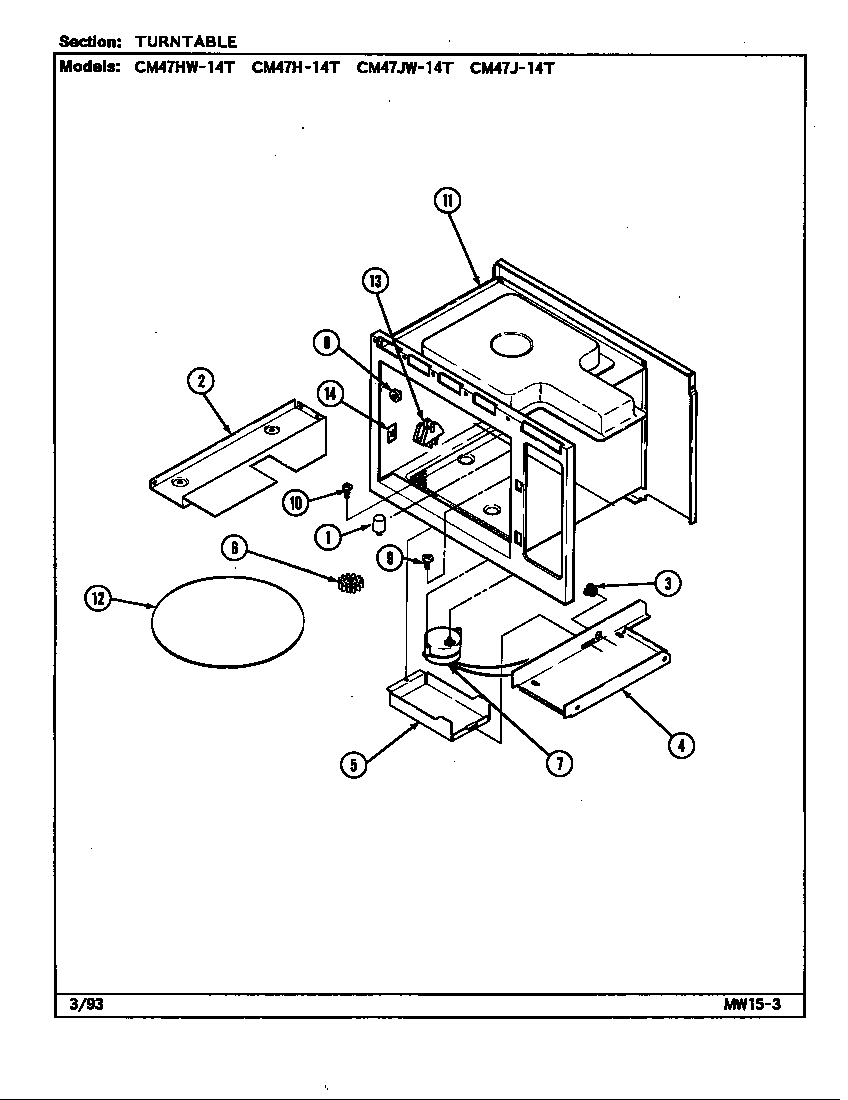

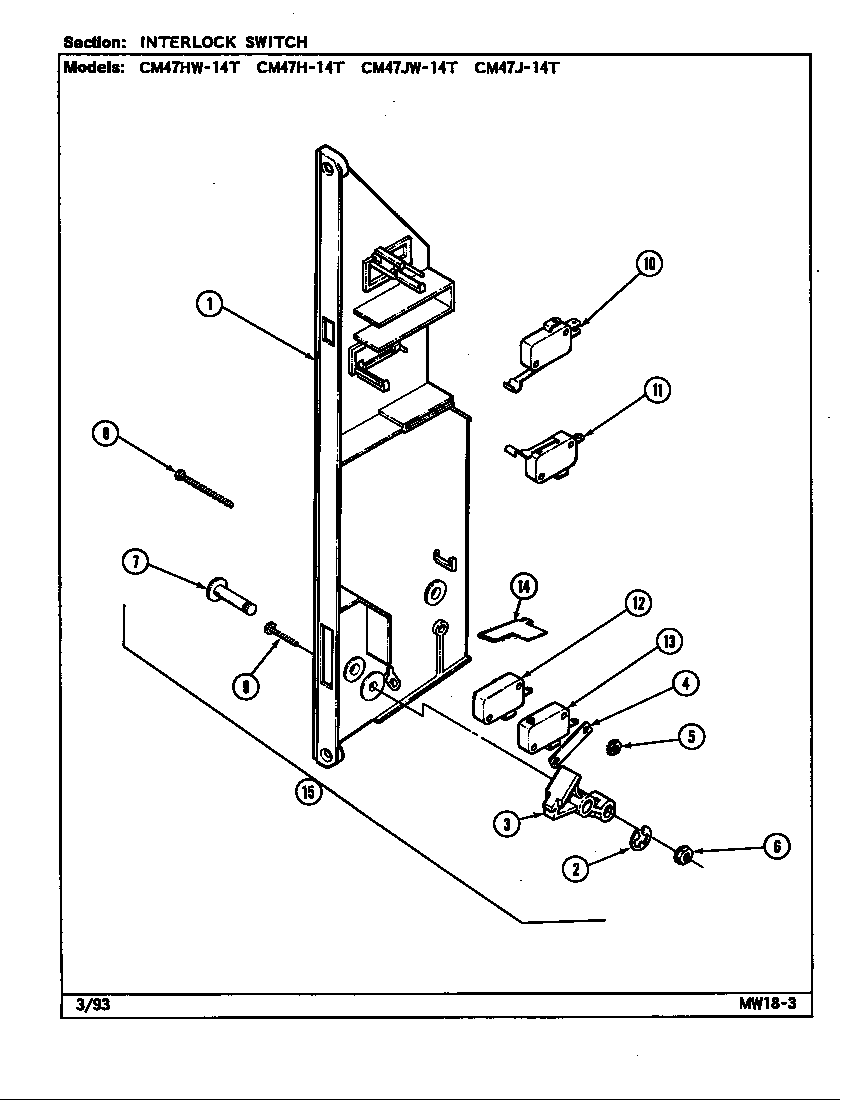

Browse Parts for CM47JW-14T Microwaves

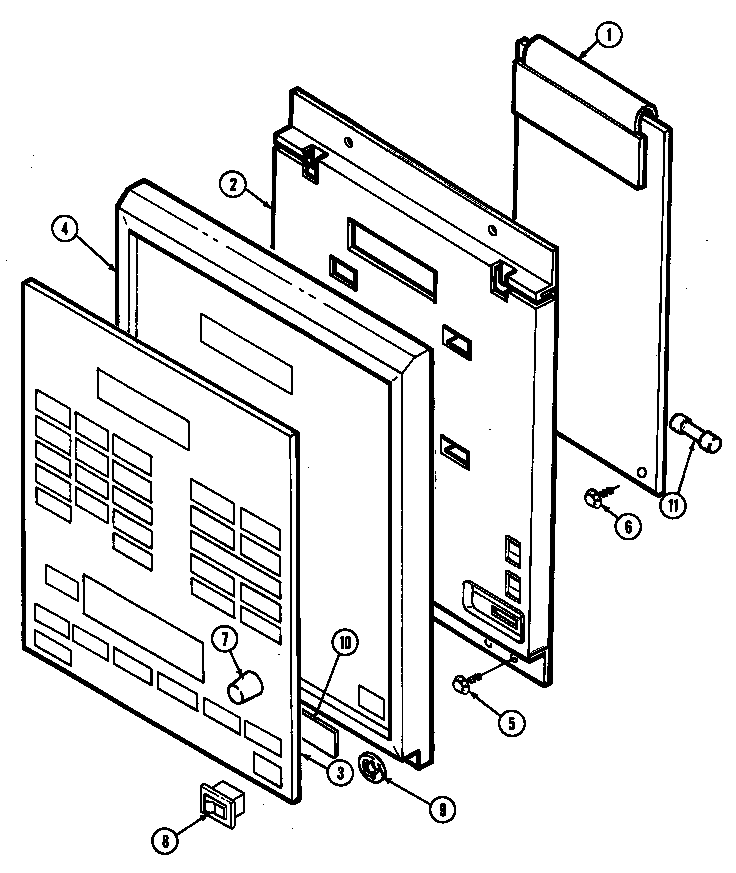

Control panel diagram
Clock Knob
Part #7711P431-60
Replaced by #WP7711P492-60
Manufacturer substitution
This part replaces 7711P431-60. Substitute parts can look different from the original.
This item is not returnable
In Stock
$15.38
12% OFF Phone Price : $17.38
Qty

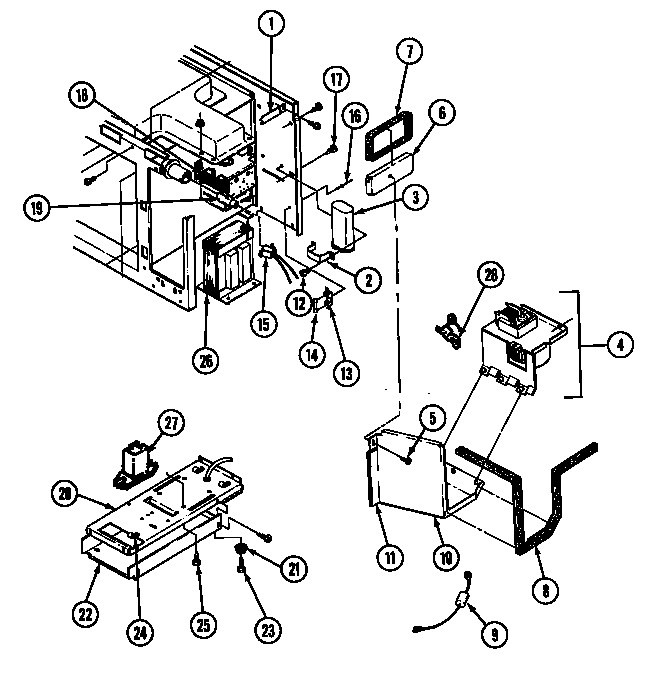

Internal controls diagram
Screw
Part #03020068
Replaced by #W11233072
Manufacturer substitution
This part replaces 03020068. Substitute parts can look different from the original.
In Stock
$17.63
Qty
Control panel diagram
Clock Knob
Part #7711P432-60
Replaced by #WP7711P492-60
Manufacturer substitution
This part replaces 7711P432-60. Substitute parts can look different from the original.
This item is not returnable
In Stock
$15.38
12% OFF Phone Price : $17.38
Qty
Screw
Part #03010144
Replaced by #WP8281227
Manufacturer substitution
This part replaces 03010144. Substitute parts can look different from the original.
This item is not returnable
In Stock
$9.48
10% OFF Phone Price : $10.48
Qty

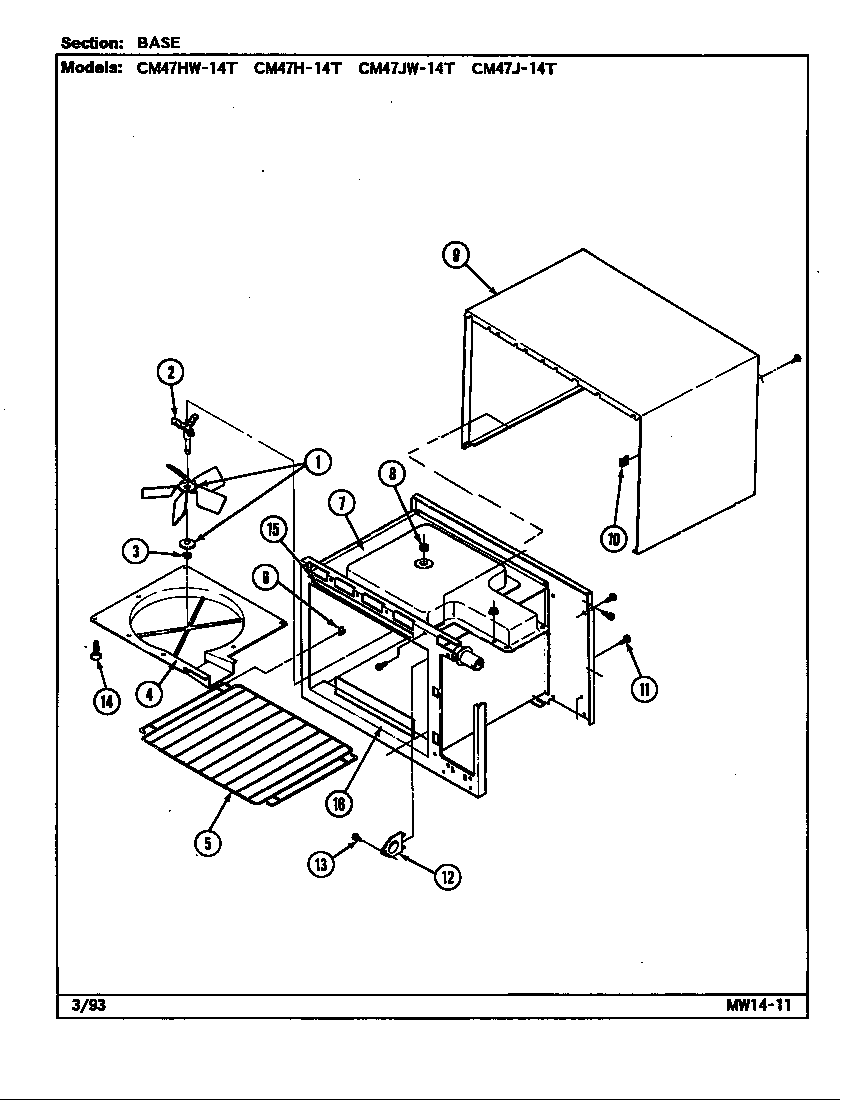

Base diagram
Stirrer Cover
Part #02300045
In Stock
$31.06
Qty

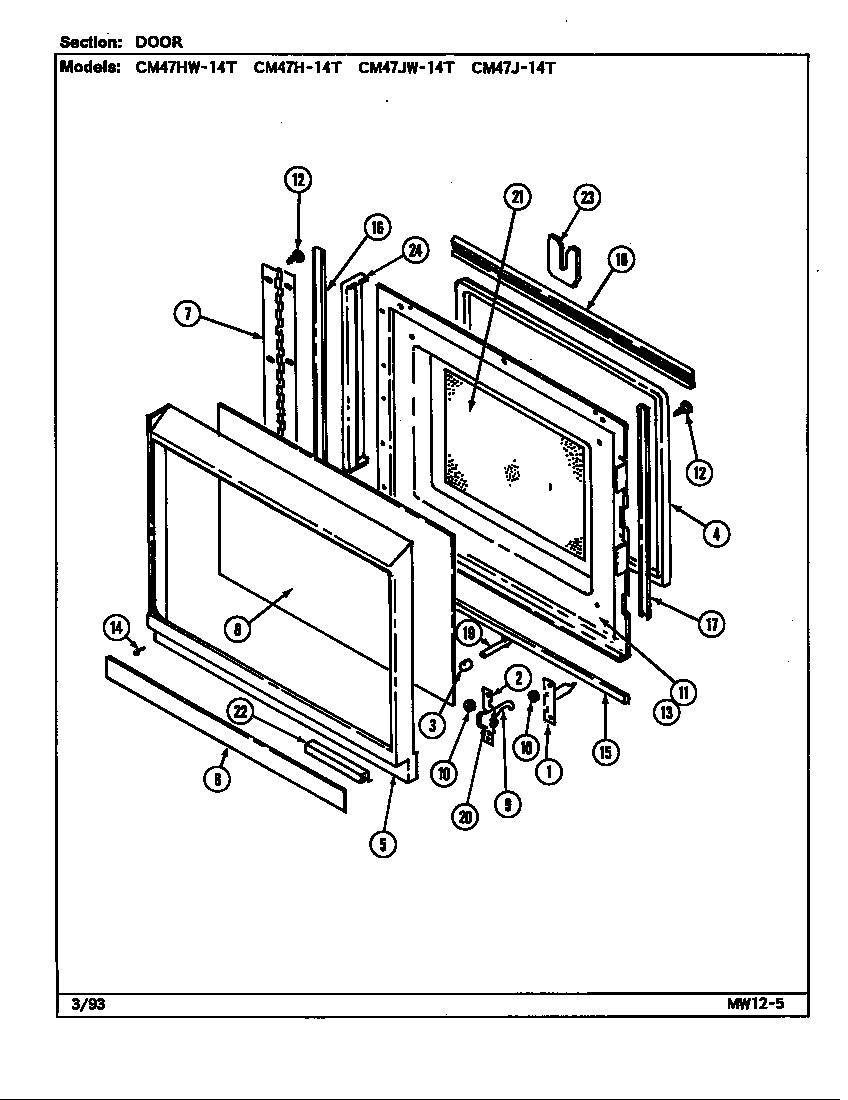

Door diagram
Screw
Part #03010135
Replaced by #WP74004005
Manufacturer substitution
This part replaces 03010135. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.91
17% OFF Phone Price : $5.91
Qty
Internal controls diagram
Rivet Pop
Part #03060002
Replaced by #WP210720
Manufacturer substitution
This part replaces 03060002. Substitute parts can look different from the original.
In Stock
$18.61
10% OFF Phone Price : $20.61
Qty
Control panel diagram
Rocker Switch
Part #01140082
Replaced by #74008717
Manufacturer substitution
This part replaces 01140082. Substitute parts can look different from the original.
In Stock
$98.26
Qty
Fuse 15a 125
Part #01050005
Replaced by #WPY01050009
Manufacturer substitution
This part replaces 01050005. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.35
12% OFF Phone Price : $8.35
Qty
Control panel diagram
Wire Assembly
Part #04010273
The manufacturer no longer makes this part, and there's no substitute part
