Black & Decker
Lawn Sweeper

Model # NSW18 TYPE 1 Official Black & Decker leaf blower

Here are the diagrams and repair parts for Official Black & Decker NSW18-TYPE-1 leaf blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |

Leaf Blower End Tube 90571366
#2

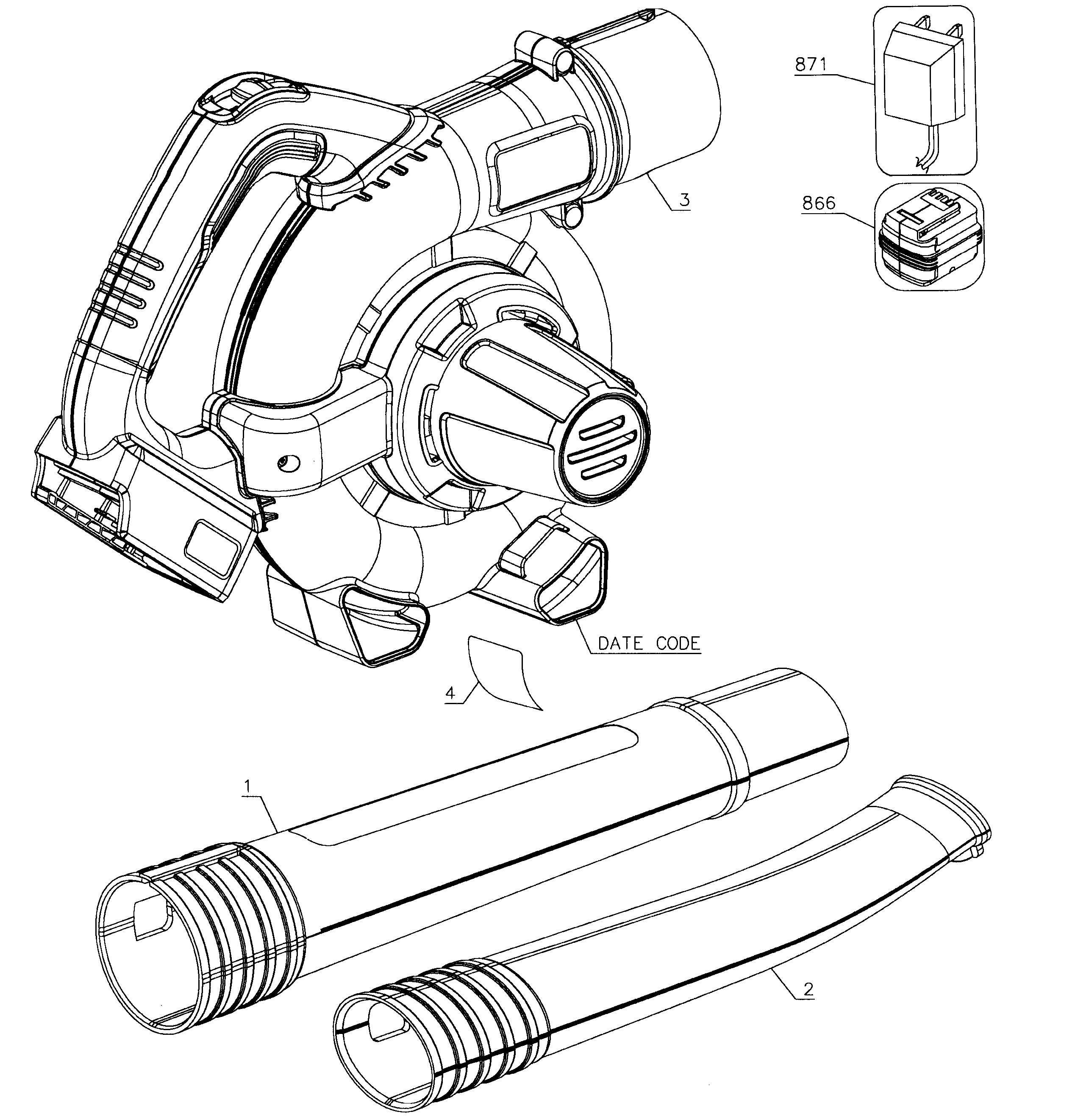

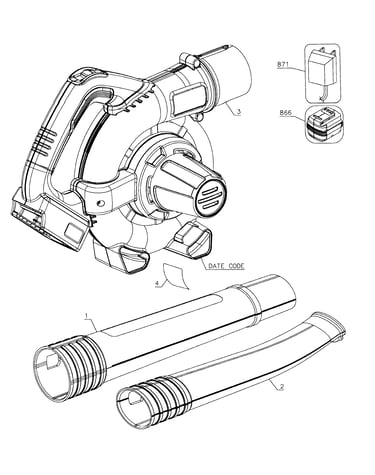

Blower assy diagram

Leaf blower end tube

Part #90571366

The manufacturer no longer makes this part, and there's no substitute part

Blower 90571112
#3

Blower assy diagram

Blower

Part #90571112

The manufacturer no longer makes this part, and there's no substitute part

Cap 90555391
#866

Blower assy diagram

Cap

Part #90555391

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Battery Pack 90571604
#866A

Blower assy diagram

Lawn & garden equipment battery pack

Part #90571604

The manufacturer no longer makes this part, and there's no substitute part

Charger 90571729-01
#871

Blower assy diagram

Charger

Part #90571729-01

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 90574536
#4

Blower assy diagram

Nameplate

Part #90574536

The manufacturer no longer makes this part, and there's no substitute part

Blower Tube, Upper 90571365
#1

Blower assy diagram

Blower tube, upper

Part #90571365

The manufacturer no longer makes this part, and there's no substitute part
