Frigidaire
Room Air Conditioner

Model # FAK127P1V1 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAK127P1V1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

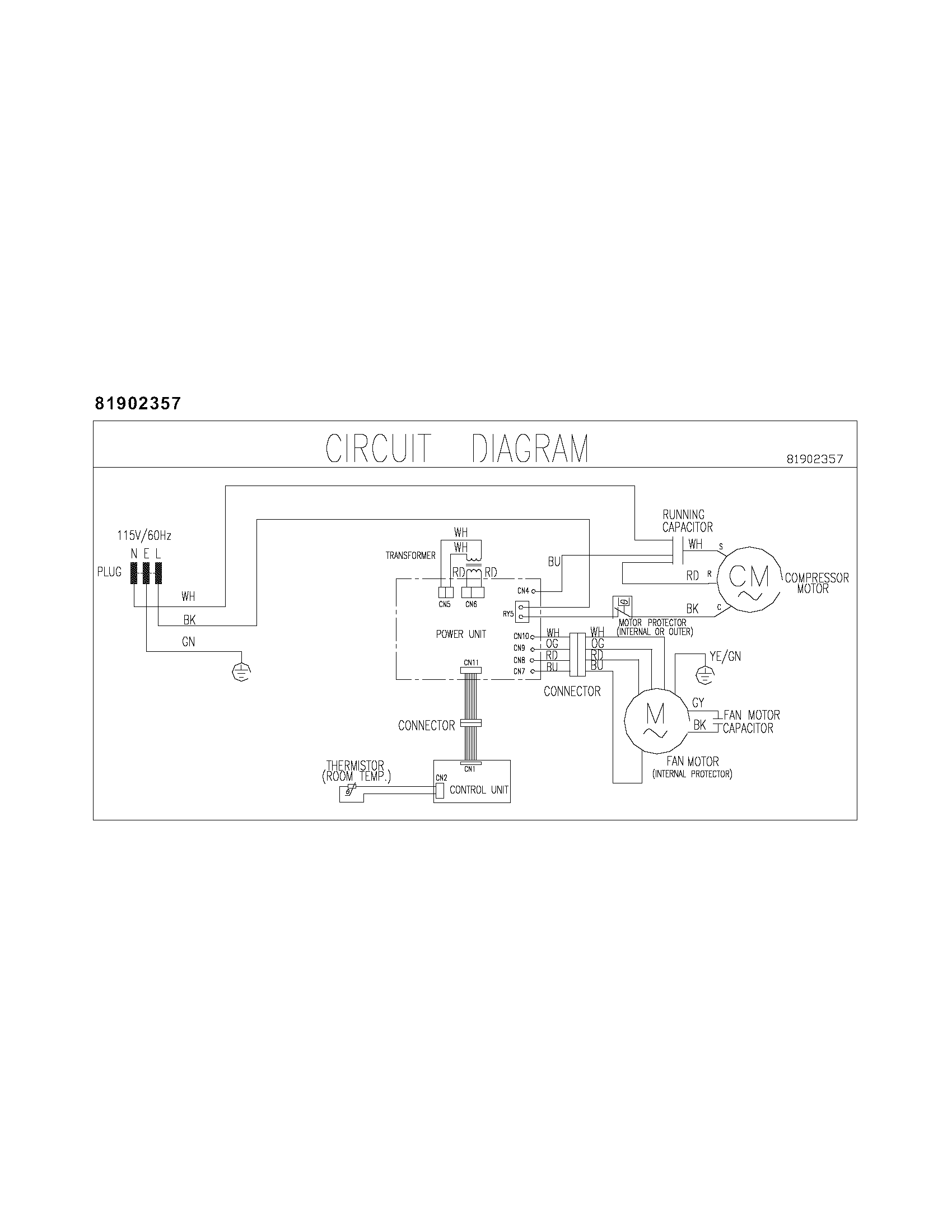

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Lever 5304448109
#31

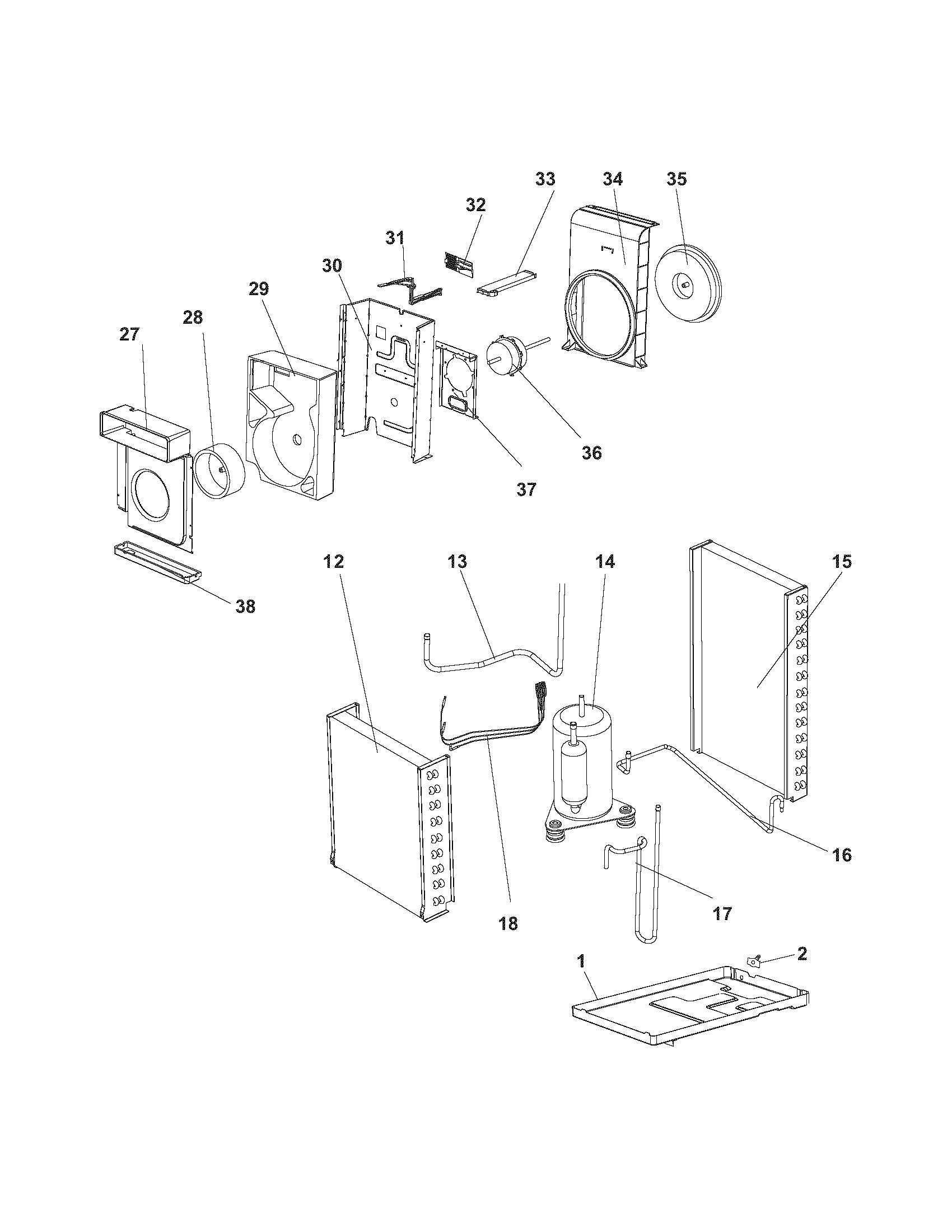

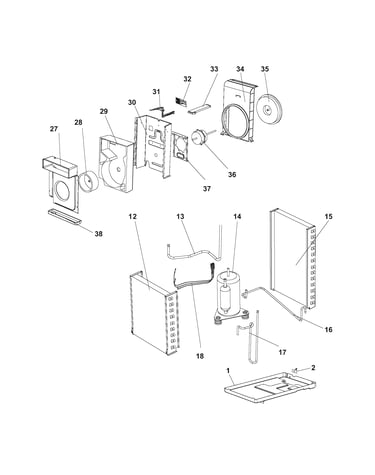

Cooling & air flow diagram

Lever

Part #5304448109

The manufacturer no longer makes this part, and there's no substitute part

Panel 5304448098
#20

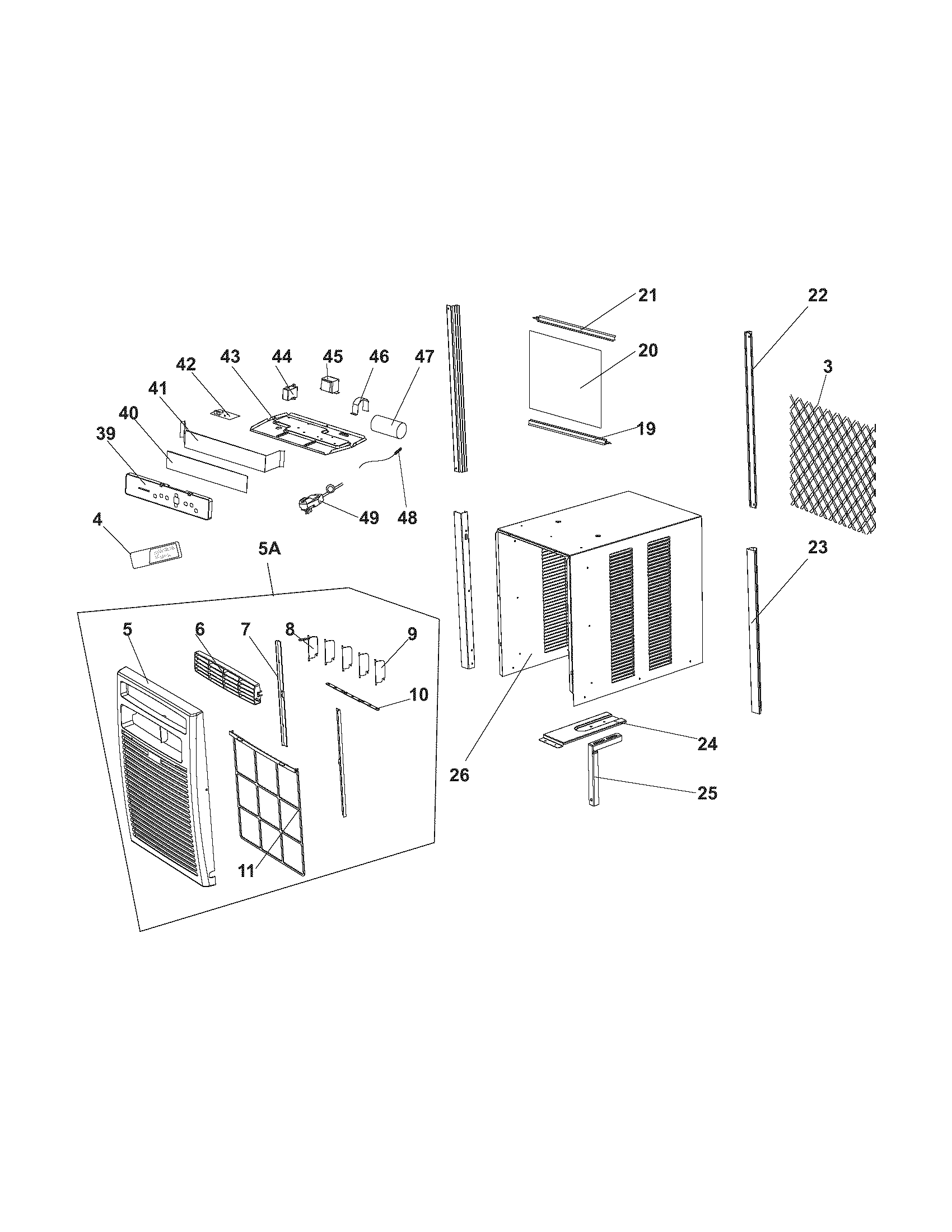

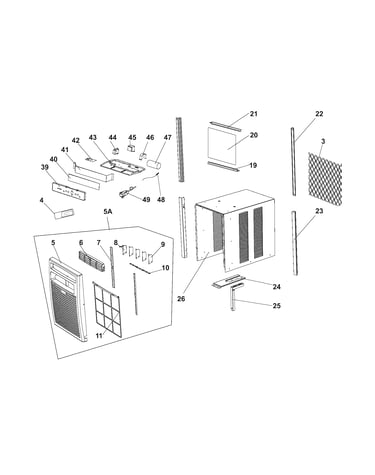

Cabinet/front/controls diagram

Panel

Part #5304448098

The manufacturer no longer makes this part, and there's no substitute part

Suction Tube 5304448135
#13

Cooling & air flow diagram

Suction tube

Part #5304448135

The manufacturer no longer makes this part, and there's no substitute part

Transformer 5304447810
#45

Cabinet/front/controls diagram

Transformer

Part #5304447810

The manufacturer no longer makes this part, and there's no substitute part

Scroll 5304448107
#29

Cooling & air flow diagram

Scroll

Part #5304448107

The manufacturer no longer makes this part, and there's no substitute part

Base 5304448081
#1

Cooling & air flow diagram

Base

Part #5304448081

The manufacturer no longer makes this part, and there's no substitute part

Bracket 5304448103
#25

Cabinet/front/controls diagram

Bracket

Part #5304448103

The manufacturer no longer makes this part, and there's no substitute part

Compressor 5304448136
#14

Cooling & air flow diagram

Compressor

Part #5304448136

The manufacturer no longer makes this part, and there's no substitute part

Platform 5304448102
#24

Cabinet/front/controls diagram

Platform

Part #5304448102

The manufacturer no longer makes this part, and there's no substitute part

Discharge Tube 5304448139
#17

Cooling & air flow diagram

Discharge tube

Part #5304448139

The manufacturer no longer makes this part, and there's no substitute part
