Model # PRL364EDG05 Official Thermador range

Here are the diagrams and repair parts for Official Thermador PRL364EDG05 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

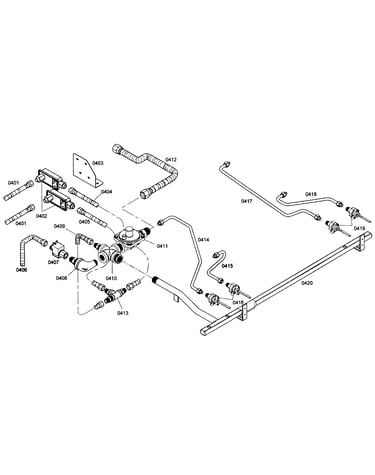

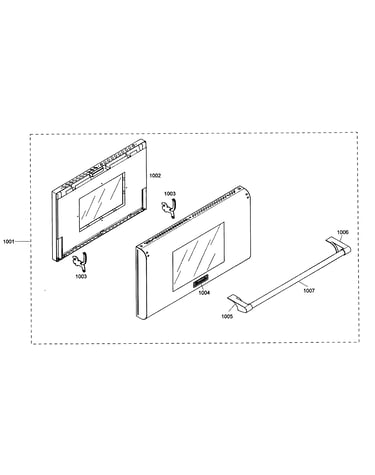

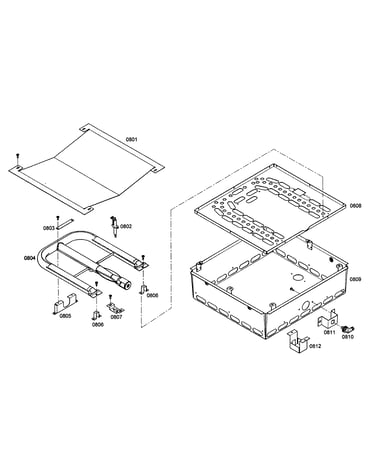

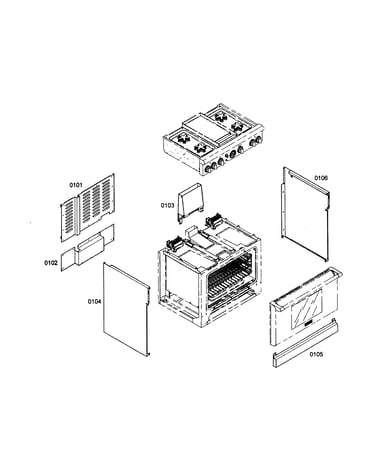

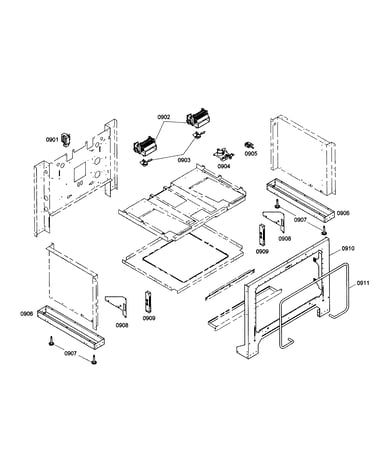

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Igniter 492431
#704

Oven 1 diagram

Igniter

Part #492431

Replaced by #00492431

?
Manufacturer substitution
This part replaces 492431. Substitute parts can look different from the original.
$126.93 |
7% OFF Phone Price : $136.93
In Stock
Nut 188978
#307

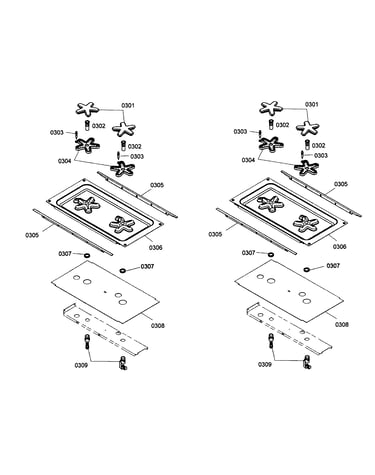

Burner assy diagram

Nut

Part #188978

Replaced by #00188978

?
Manufacturer substitution
This part replaces 188978. Substitute parts can look different from the original.
$20.59 |
20% OFF Phone Price : $25.59
In Stock
Switch 428049
#212

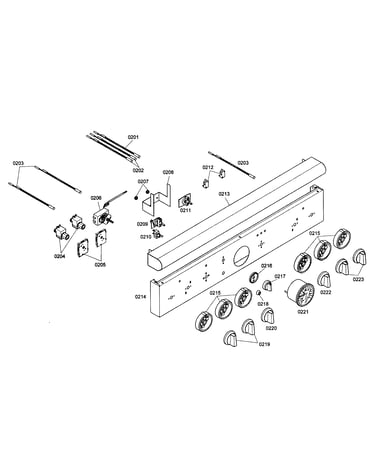

Control panel diagram

Switch

Part #428049

Replaced by #00428049

?
Manufacturer substitution
This part replaces 428049. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Led Diode 643505
#203

Control panel diagram

Led diode

Part #643505

Replaced by #00617886

?
Manufacturer substitution
This part replaces 643505. Substitute parts can look different from the original.
$64.49 |
7% OFF Phone Price : $69.49
In Stock
Control Unit 605350
#606

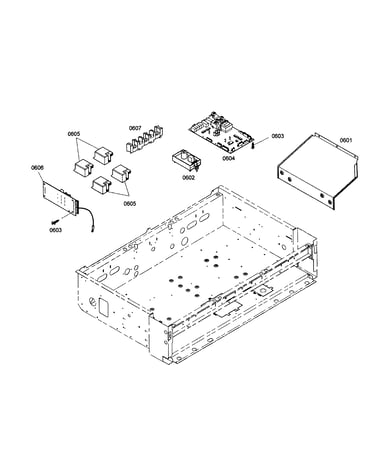

Control assy diagram

Control unit

Part #605350

Replaced by #00619016

?
Manufacturer substitution
This part replaces 605350. Substitute parts can look different from the original.
$192.89 |
5% OFF Phone Price : $202.89
In Stock
Range Grille Grid 143673
#1104

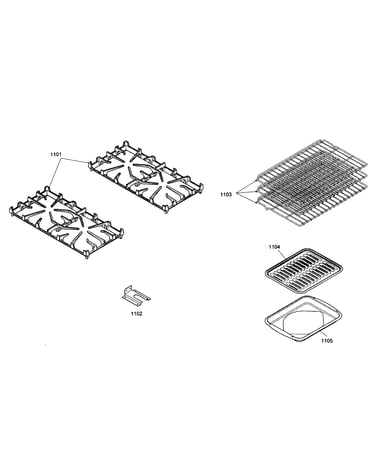

Accessory diagram

Range grille grid

Part #143673

Replaced by #00449756

?
Manufacturer substitution
This part replaces 143673. Substitute parts can look different from the original.
$57.89
In Stock
Support 418089
#712

Oven 1 diagram

Support

Part #418089

Replaced by #00418089

?
Manufacturer substitution
This part replaces 418089. Substitute parts can look different from the original.
$143.30
In Stock
Knob 609109
#220

Control panel diagram

Knob

Part #609109

Replaced by #00617885

?
Manufacturer substitution
This part replaces 609109. Substitute parts can look different from the original.
$107.29 |
9% OFF Phone Price : $117.29
In Stock
Element 445588
#504

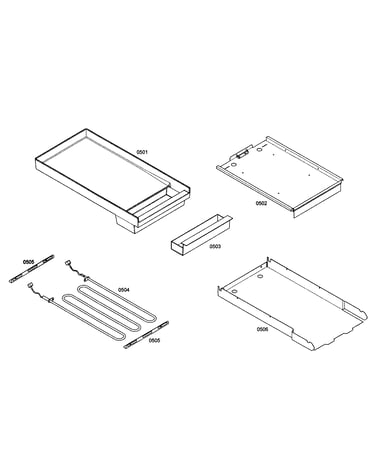

Griddle diagram

Element

Part #445588

Replaced by #00445588

?
Manufacturer substitution
This part replaces 445588. Substitute parts can look different from the original.
$273.05 |
$10.00 OFF Phone Price : $283.05
In Stock
Ignition Module 604749
#605

Control assy diagram

Ignition module

Part #604749

Replaced by #00619757

?
Manufacturer substitution
This part replaces 604749. Substitute parts can look different from the original.
$148.19 |
6% OFF Phone Price : $158.19
In Stock
