Whirlpool WFE525S0JZ3 electric range Parts

To identify your Whirlpool stove model, we look for the model and serial tag on the range itself; on the Whirlpool WFE525S0JZ3, the tag is typically found around the oven door frame area, inside the storage drawer, or on the back panel. Once you have the full model number, matching parts becomes straightforward.

Where to look on a Whirlpool electric range

Check these common tag locations first:

• Along the oven door frame (open the oven door and inspect the frame edges)

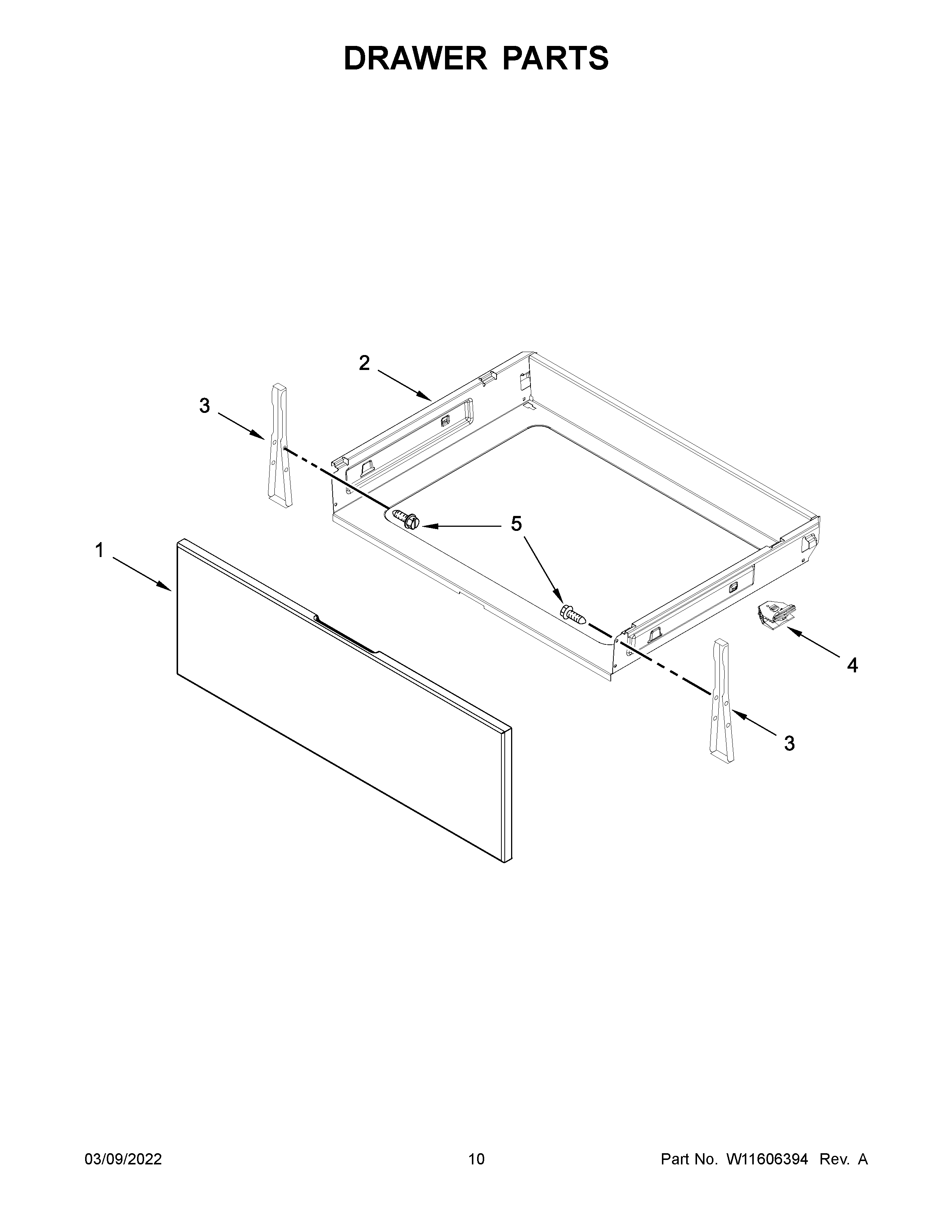

• Inside the storage drawer (pull the drawer out and look on the frame or side wall)
• On the back of the range (rear panel, sometimes near the power cord entry)
• Under the cooktop lip (less common, but worth a quick look)
• Behind the control area (only if you can safely access it)

What the model number looks like (and what to write down)

The model number is usually a mix of letters and numbers (example: WFE525S0JZ3). Record:

• Full model number (exact characters)
• Serial number (helps with production date and revisions)
• Any suffixes or revision codes printed near the model number

Quick ID checklist

Item on tag	Why it matters	Example
Model number	Ensures correct part fit	WFE525S0JZ3
Serial number	Helps confirm version/run	Varies
Brand	Narrows diagrams and parts lists	Whirlpool

Why it matters

Whirlpool ranges often have multiple versions that look identical but use different components (surface element switches, bake elements, door hinges). Using the exact model number helps us match the correct diagrams and parts the first time.

Helpful next step

If you are identifying the model to troubleshoot a display code, use our Whirlpool freestanding range error codes guide to narrow the failure to a specific system (oven sensor, door lock, control).

Last updated: February 2026

A Whirlpool electric range typically lasts 10 to 15 years with normal household use and basic care. For the Whirlpool WFE525S0JZ3, keeping the cooktop and oven clean, avoiding repeated high-heat abuse, and fixing small heating issues early helps you reach the upper end of that range.

What affects lifespan the most

• Heating system stress: frequent broiling, long high-temp bakes, and heavy cookware can wear elements faster.
• Spills and boilovers: sugary or acidic spills can damage the cooktop surface and switches if not cleaned promptly.
• Electrical connections: loose or overheated power connections can shorten component life.
• Door wear: slamming the door can fatigue hinges and affect sealing.
• Maintenance habits: gentle cleaning and quick repairs prevent bigger failures.

Quick care checklist (high impact)

• Wipe up spills after the surface cools; use a proper scraper such as the cooktop scraper WA906B for stuck-on residue.
• Keep pans centered and sized to the element to reduce overheating.
• Avoid using the oven as a space heater or for long, repeated high-temp runs.
• If a burner cycles erratically, address it early (often a switch or element issue).
• If you ever smell hot wiring or see discoloration at the cord connection, stop using the range and have the power connection checked.

Common “wear items” and what they usually mean

Symptom	Most common wear area	Typical fix type
Oven temperature swings	Sensor	Replace sensor
One surface burner not heating	Radiant element or control switch	Replace failed part
Door not closing evenly	Door hinge	Replace hinge

Model-matched examples for WFE525S0JZ3 include the range oven temperature sensor WPW10181986 and the range dual surface element control switch WPW10434452.

Why it matters

A range that is nearing end-of-life often shows up as uneven baking, slow preheat, or intermittent surface heating. Replacing a single failed part can restore performance and delay a full range replacement.

Last updated: February 2026

For the Whirlpool WFE525S0JZ3 electric range, the most commonly replaced parts are the heating components (bake and broil elements, surface elements), temperature sensing and control parts, and door hardware. These parts typically address no-heat, uneven cooking, burner issues, and door sealing problems.

Most common replacement parts for this model

These are frequent wear or failure items on electric ranges like the WFE525S0JZ3:

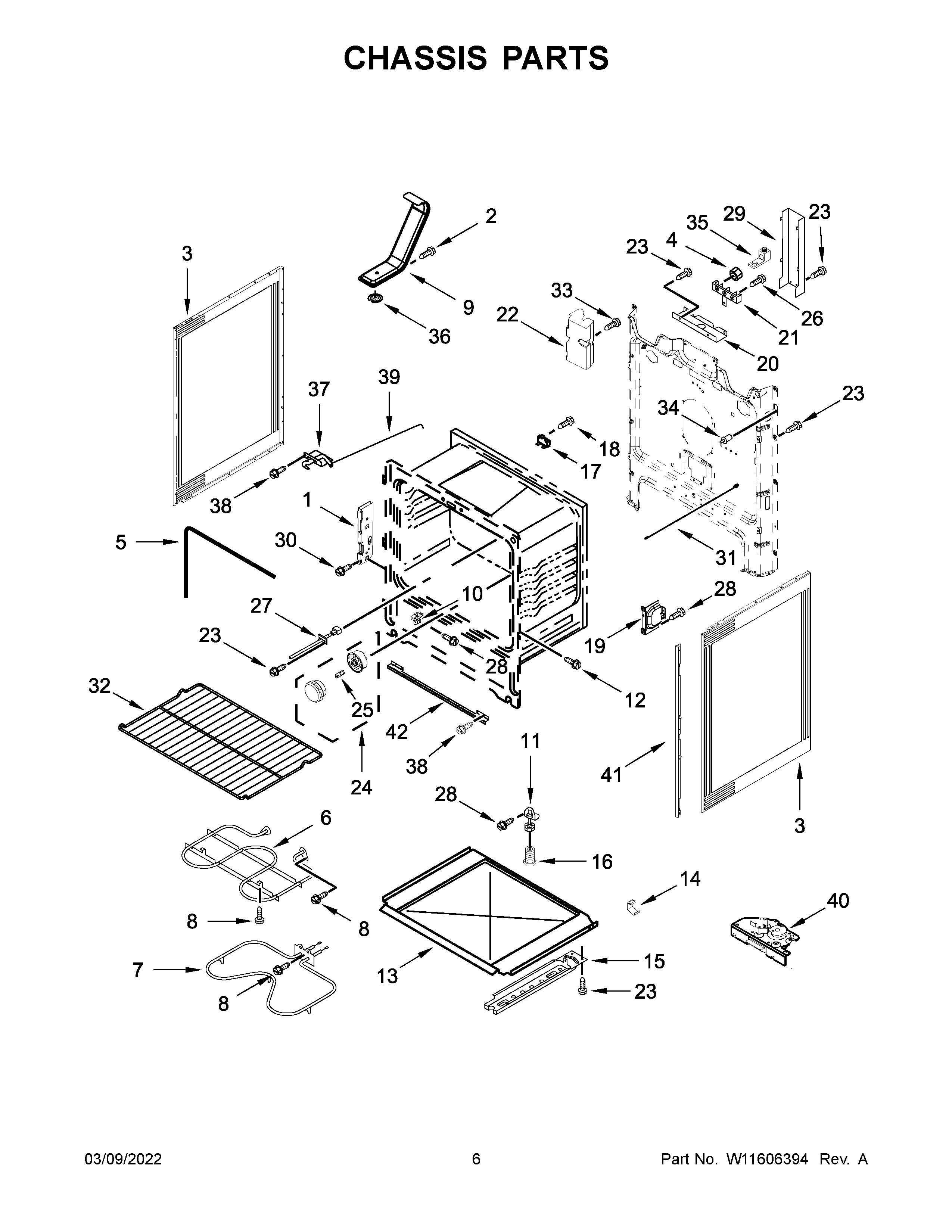

• Oven not heating or baking unevenly: bake element W11182108
• Broil not working or weak broil: range broil element W10856603

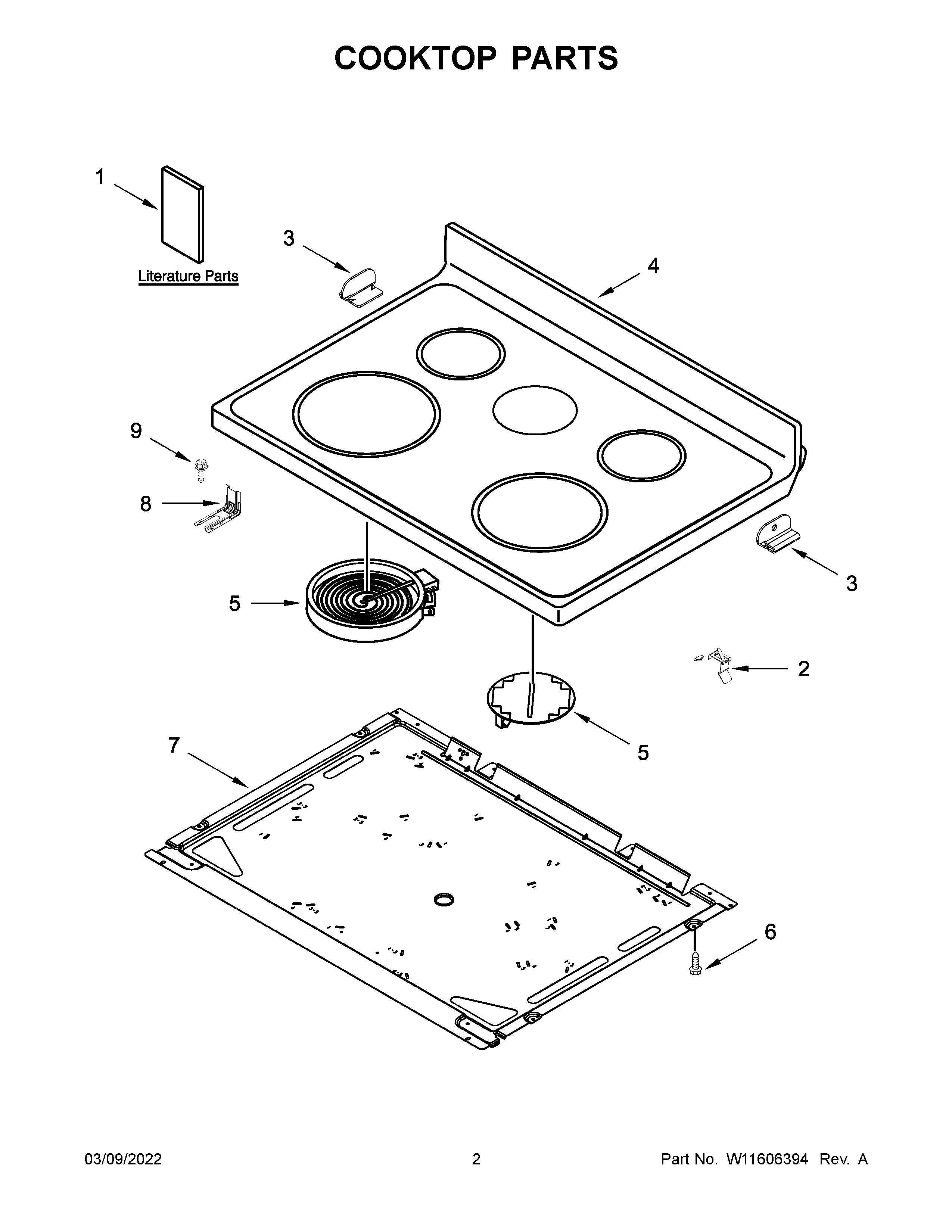

• One surface burner not heating or cycling incorrectly: range dual radiant surface element W11517959 or range radiant surface element, 8-in W11047722

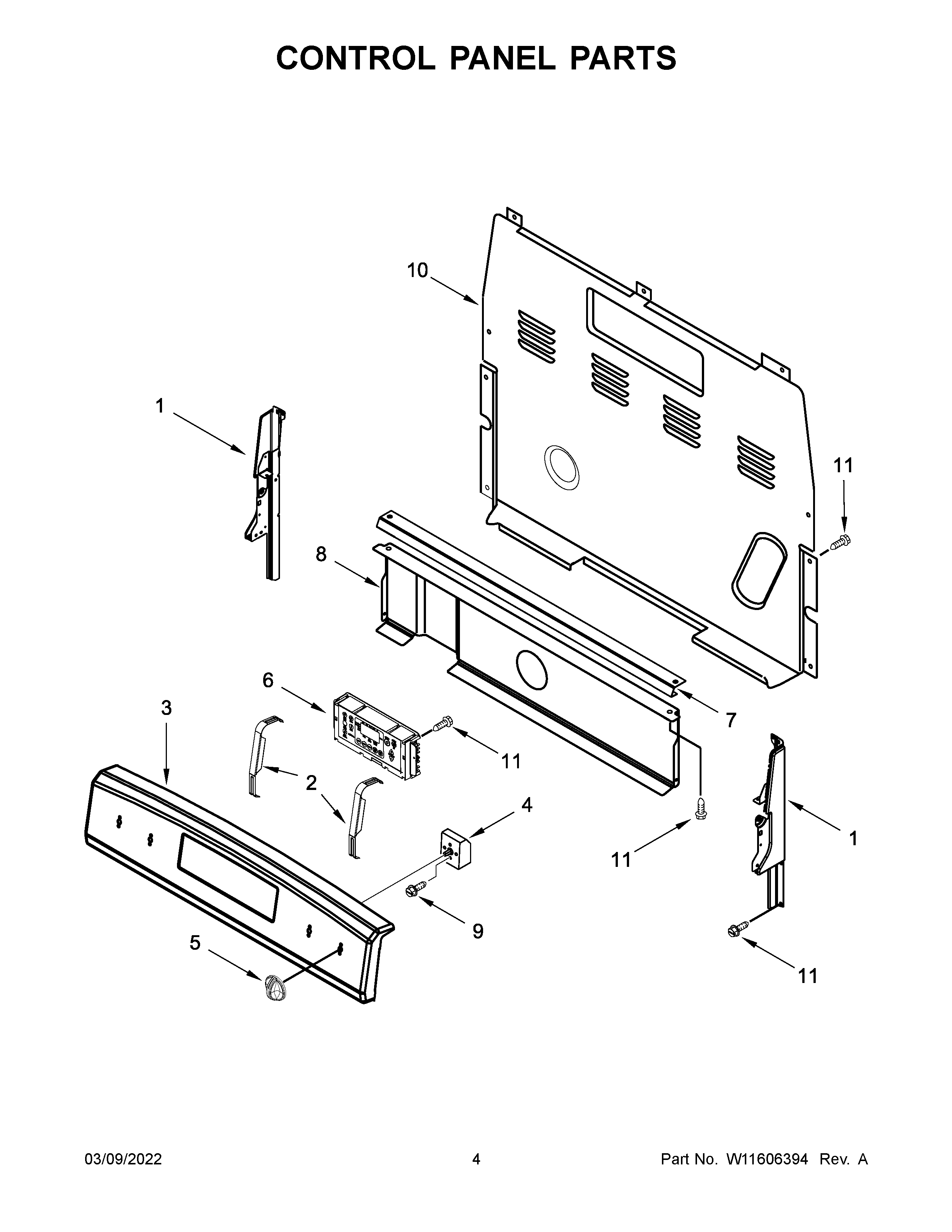

• Burner heat stuck high or won’t turn on: range dual surface element control switch WPW10434452
• Oven temperature off (overheats or underheats): range oven temperature sensor WPW10181986

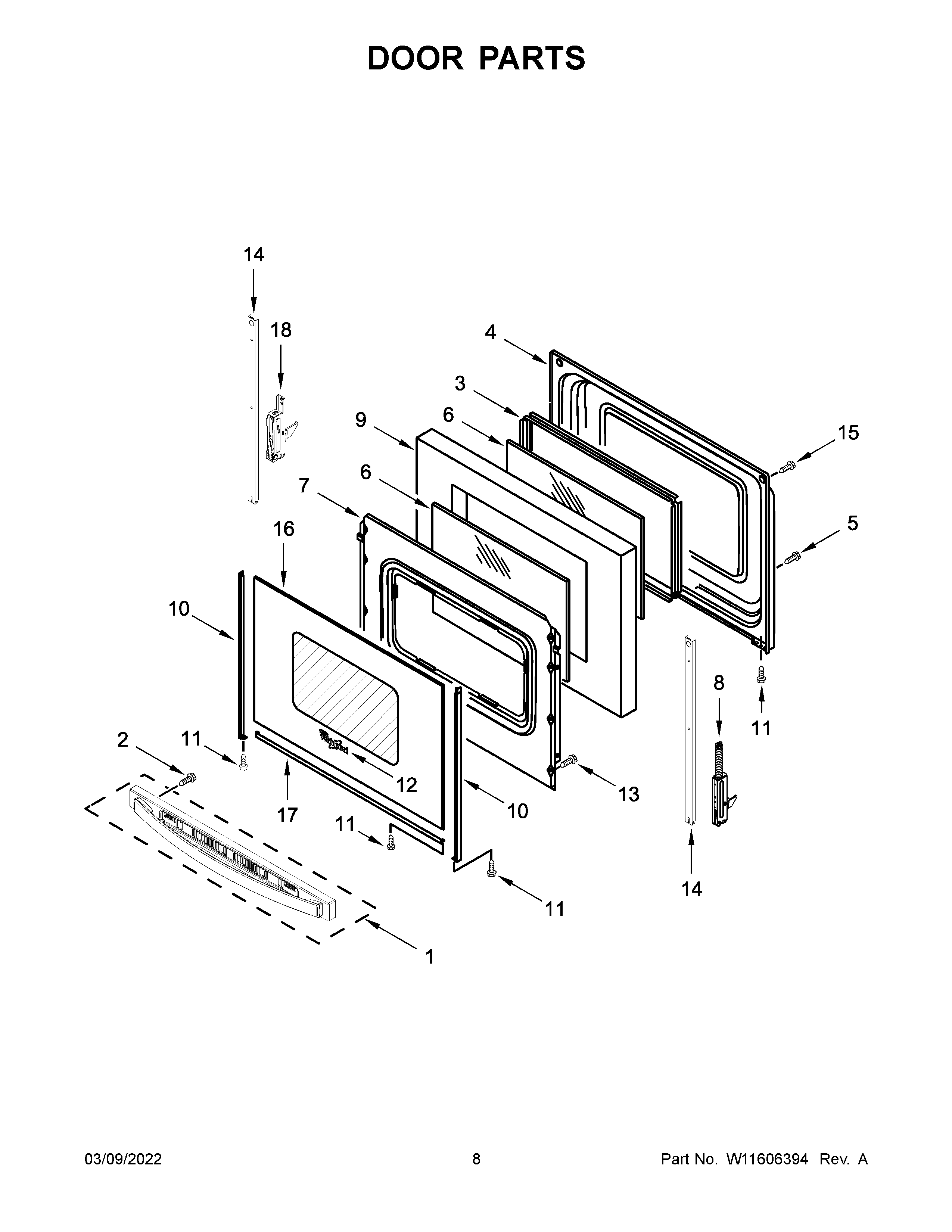

• Door won’t close tightly, heat leaks, or longer preheat times: seal, door W11542153 or a hinge such as range oven door hinge WPW10299224

Quick symptom-to-part guide

Symptom	Most likely part(s)	What it affects
No bake heat	Bake element	Baking and preheat
No broil heat	Broil element	Broiling and top browning
Burner won’t heat	Surface element, control switch	Cooktop performance
Temps inaccurate	Oven temperature sensor	Cooking results
Door drops or won’t seal	Door hinge, door seal	Heat retention, safety

Why these parts matter

Heating and temperature-control parts directly impact cooking performance and energy use. Door seals and hinges help the oven hold heat; when they wear out, you can see longer preheat times, uneven results, and hotter exterior surfaces.

Before you order

We recommend these checks to avoid buying the wrong part:

• Match the symptom to the correct circuit (bake vs broil vs specific burner position).
• Inspect for visible damage (blistered element, loose terminals, torn gasket).
• If you’re testing electrically, use safe meter practices; see how to use a multimeter to test electrical parts video.
• Confirm your model number is WFE525S0JZ3 before ordering.

Last updated: March 2026
